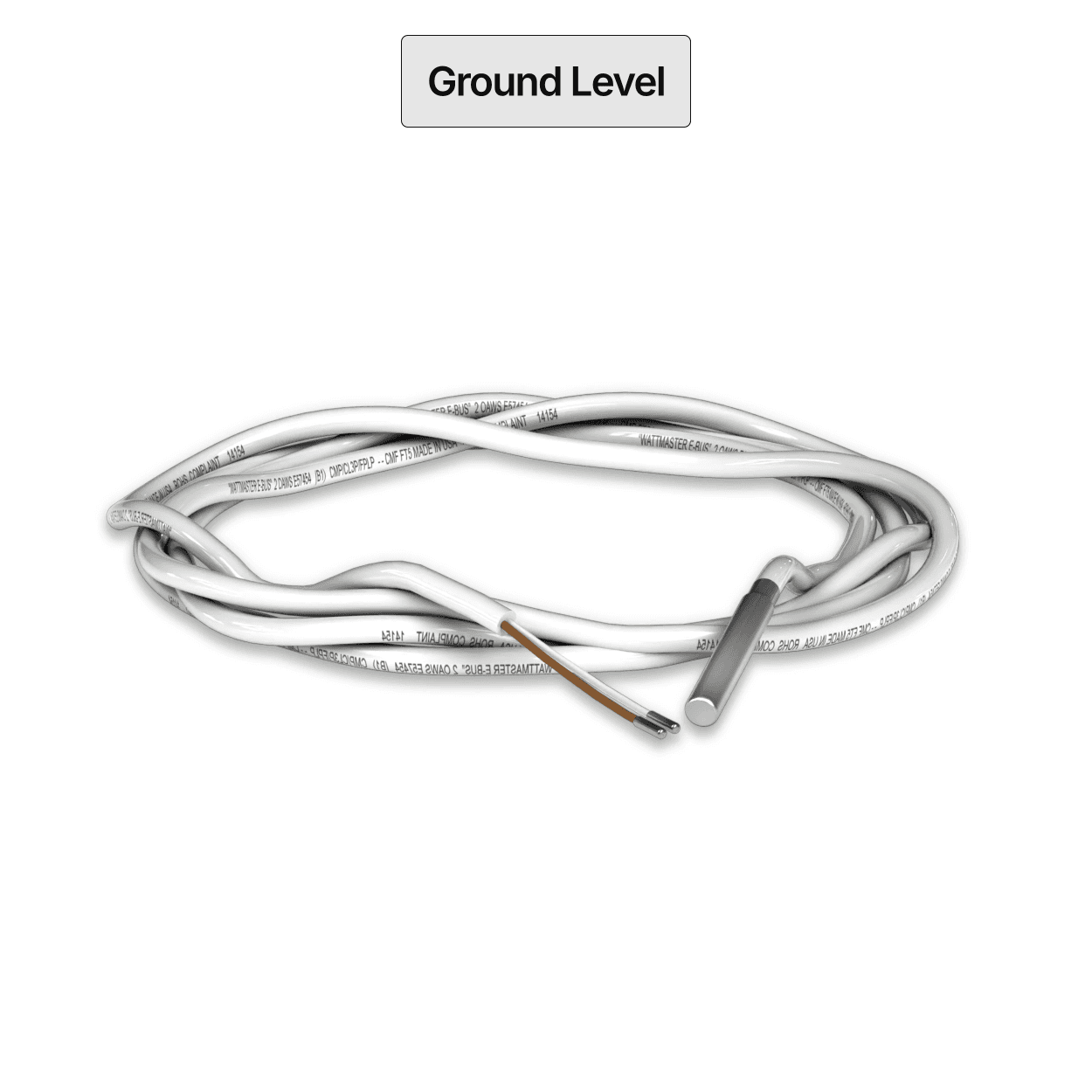

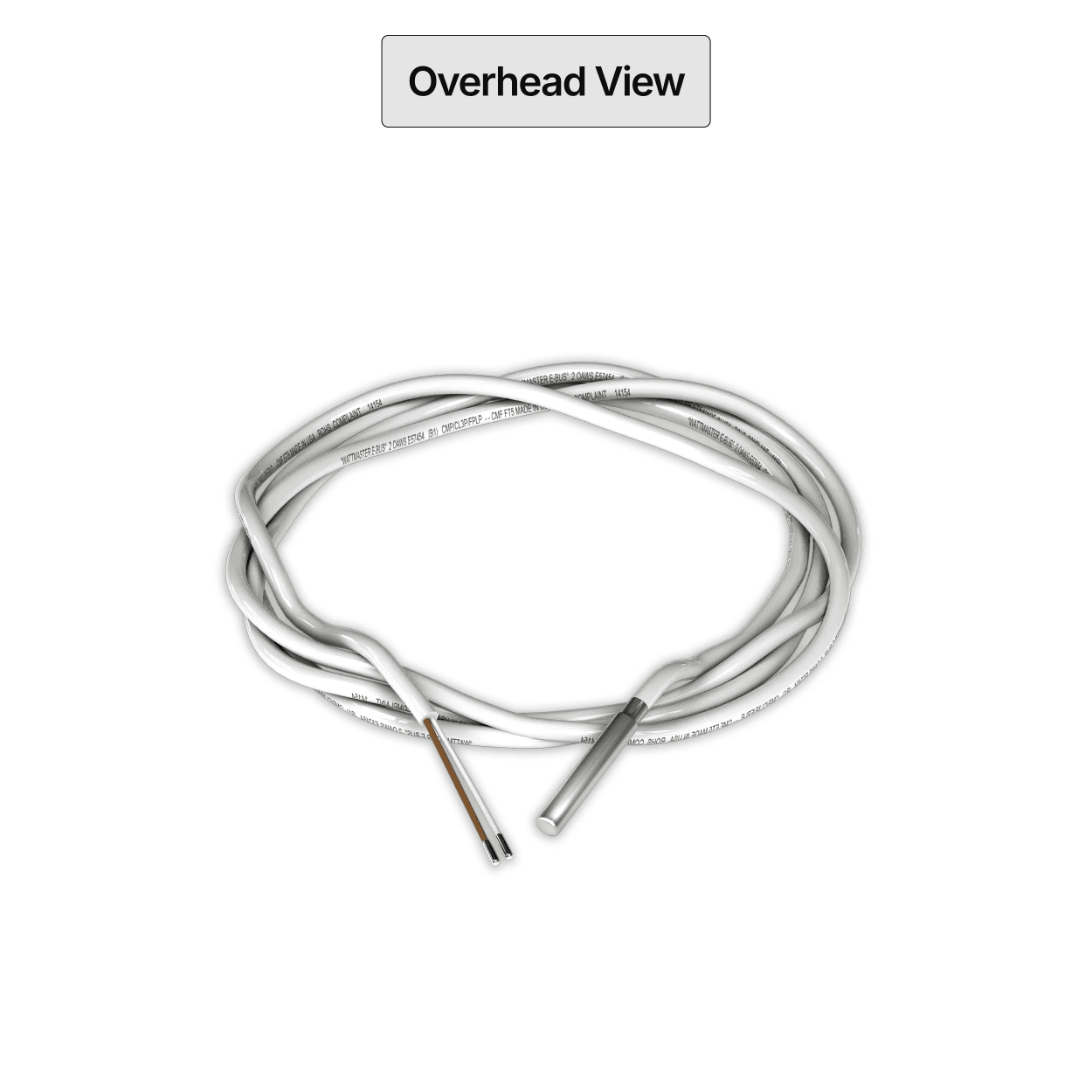

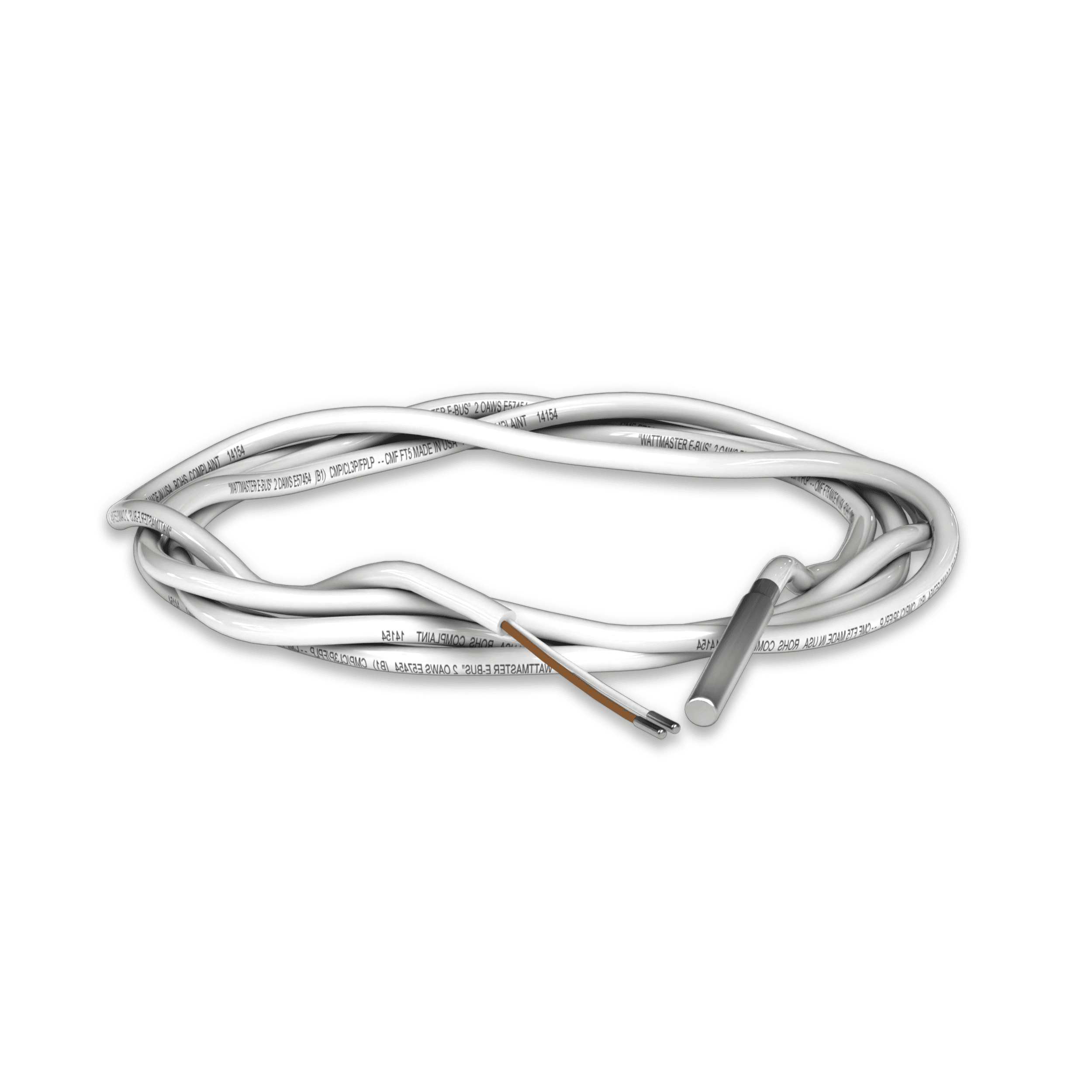

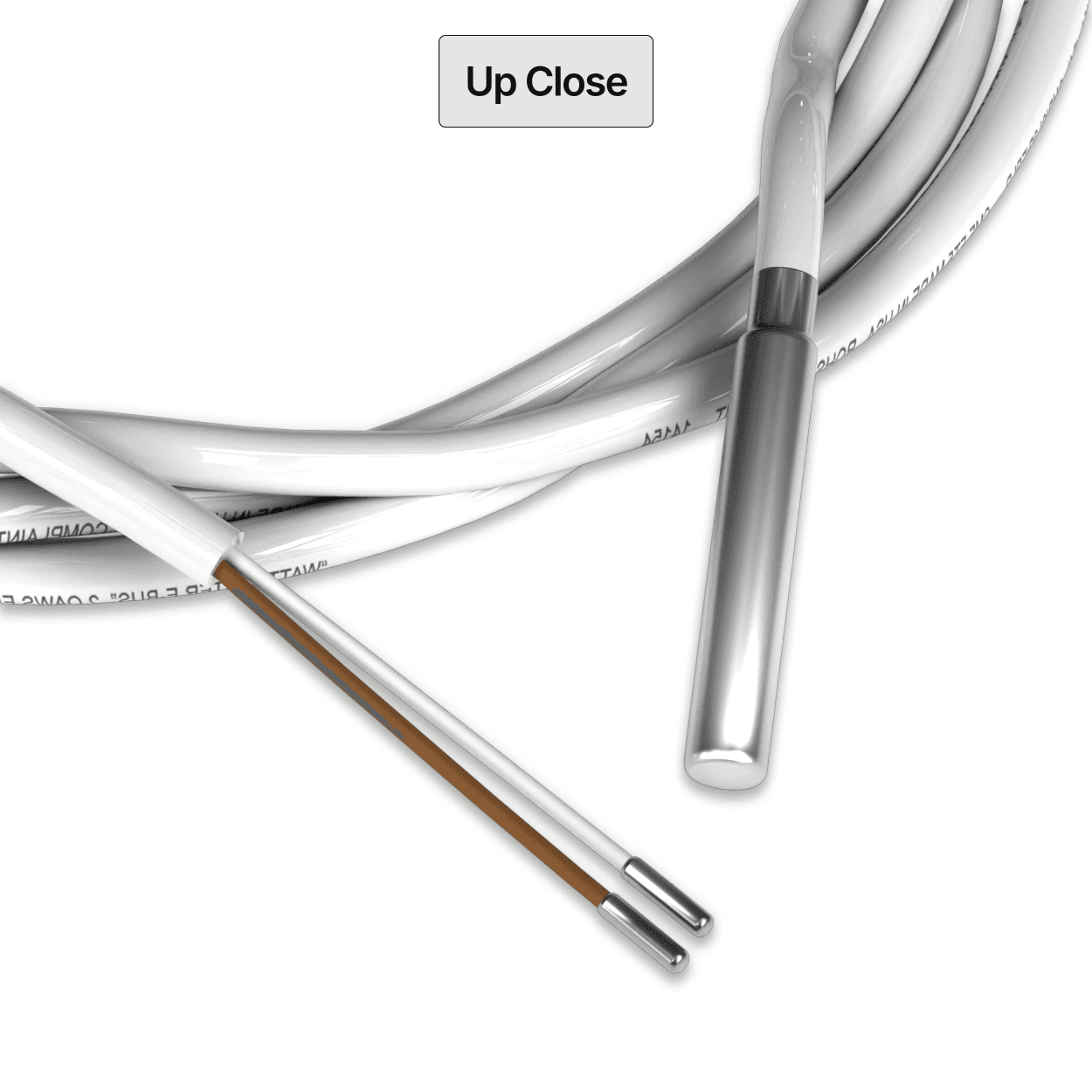

Tasseron Cable/Bullet Temperature Sensor (THTCPA10) Aftermarket Part No. 0843P-0838
Tasseron Cable/Bullet Temperature Sensor (THTCPA10) Aftermarket Part No. 0843P-0838
Tasseron Cable/Bullet Temperature Sensor (THTCPA10) Aftermarket Part No. 0843P-0838
$20
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron THTCPA10 Temperature Sensor features a durable AISI 304 stainless-steel probe with IP66 Star-Crimp sealing and a 10′ PVC HT cable rated for up to 105 °C. Designed for dependable temperature measurement and long-term stability, it delivers precision and reliability in demanding HVAC and industrial applications.
The Tasseron THTCPA10 Temperature Sensor features a durable AISI 304 stainless-steel probe with IP66 Star-Crimp sealing and a 10′ PVC HT cable rated for up to 105 °C. Designed for dependable temperature measurement and long-term stability, it delivers precision and reliability in demanding HVAC and industrial applications.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Device Type
Cable Rating
Cable Lengths
Probe Construction
Enclosure Rating
Sensor Element Options
Sensor Value Examples
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
Cable / Bullet-Type Temperature Sensor
PVC HT cable rated −20 to 105 °C (−4 to 221 °F), 5′ or 10′ standard lengths
Standard 5′ or 10′ · Custom lengths available
AISI 304 stainless steel, 6 mm × 45 mm · filled with waterproof compound
IP66 Star-Crimp watertight assembly
NTC thermistors · RTD Pt100 / Pt1000 · Ni1000 (TC5 / 891) · 12 K NTC (optional)
10 K Ω @ 25 °C (Type 2 / 3) · 20 K Ω @ 25 °C · Pt100 Ω @ 0 °C · Pt1000 Ω @ 0 °C
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temp Range (RTD Elements)
Mounting
Compatibility
Approval / Certification
Enclosure Material
Probe Dimensions
Cable Seal
Repeatability / Stability
Warranty / Accessory
Country of Manufacture
−40 to 180 °C (−40 to 356 °F)
Direct mount · Flexible cable routing
Compatible with most major control systems
CE & RoHS Compliant
Stainless steel probe · PVC HT or silicone cable
6 mm diameter × 45 mm length
Star-Crimp (IP66)
Long-term stability, low drift
1 year limited warranty
Made in the USA
Device Type
Cable Rating
Cable Lengths
Probe Construction
Enclosure Rating
Sensor Element Options
Sensor Value Examples
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
Cable / Bullet-Type Temperature Sensor
PVC HT cable rated −20 to 105 °C (−4 to 221 °F), 5′ or 10′ standard lengths
Standard 5′ or 10′ · Custom lengths available
AISI 304 stainless steel, 6 mm × 45 mm · filled with waterproof compound
IP66 Star-Crimp watertight assembly
NTC thermistors · RTD Pt100 / Pt1000 · Ni1000 (TC5 / 891) · 12 K NTC (optional)
10 K Ω @ 25 °C (Type 2 / 3) · 20 K Ω @ 25 °C · Pt100 Ω @ 0 °C · Pt1000 Ω @ 0 °C
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temperature Range (RTD Elements)
Mounting
Compatibility
Approval / Certification
Enclosure Material
Probe Dimensions
Cable Seal
Repeatability / Stability
Warranty / Accessory
Country of Manufacture
−40 to 180 °C (−40 to 356 °F)
Direct mount · Flexible cable routing
Compatible with most major control systems
CE & RoHS Compliant
Stainless steel probe · PVC HT or silicone cable
6 mm diameter × 45 mm length
Star-Crimp (IP66)
Long-term stability, low drift
1 year limited warranty
Made in the USA
Device Type
Cable Rating
Cable Lengths
Probe Construction
Enclosure Rating
Sensor Element Options
Sensor Value Examples
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
Cable / Bullet-Type Temperature Sensor
PVC HT cable rated −20 to 105 °C (−4 to 221 °F), 5′ or 10′ standard lengths
Standard 5′ or 10′ · Custom lengths available
AISI 304 stainless steel, 6 mm × 45 mm · filled with waterproof compound
IP66 Star-Crimp watertight assembly
NTC thermistors · RTD Pt100 / Pt1000 · Ni1000 (TC5 / 891) · 12 K NTC (optional)
10 K Ω @ 25 °C (Type 2 / 3) · 20 K Ω @ 25 °C · Pt100 Ω @ 0 °C · Pt1000 Ω @ 0 °C
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temp Range (RTD Elements)
Mounting
Compatibility
Approval / Certification
Enclosure Material
Probe Dimensions
Cable Seal
Repeatability / Stability
Warranty / Accessory
Country of Manufacture
−40 to 180 °C (−40 to 356 °F)
Direct mount · Flexible cable routing
Compatible with most major control systems
CE & RoHS Compliant
Stainless steel probe · PVC HT or silicone cable
6 mm diameter × 45 mm length
Star-Crimp (IP66)
Long-term stability, low drift
1 year limited warranty
Made in the USA
Benefits at a Glance
IP66 Star-Crimp stainless-steel probe ensures watertight, durable performance
Flexible PVC HT or high-temperature silicone cable for various environments
Compatible with major control systems and multiple sensing elements
1-year limited warranty and CE / RoHS compliance for dependable operation
Benefits at a Glance
IP66 Star-Crimp stainless-steel probe ensures watertight, durable performance
Flexible PVC HT or high-temperature silicone cable for various environments
Compatible with major control systems and multiple sensing elements
1-year limited warranty and CE / RoHS compliance for dependable operation
Benefits at a Glance
IP66 Star-Crimp stainless-steel probe ensures watertight, durable performance
Flexible PVC HT or high-temperature silicone cable for various environments
Compatible with major control systems and multiple sensing elements
1-year limited warranty and CE / RoHS compliance for dependable operation
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Sensor is manufactured in the USA and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
Each Sensor is manufactured in the USA and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
