Tasseron Outdoor Humidity/Temperature Sensor THHOSA5C Addison Aftermarket Part No. 0843P-0587
Tasseron Outdoor Humidity/Temperature Sensor THHOSA5C Addison Aftermarket Part No. 0843P-0587
Tasseron Outdoor Humidity/Temperature Sensor THHOSA5C Addison Aftermarket Part No. 0843P-0587
$325
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
Product Details
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Sensor Type
Repeatability
Resolution (Sensitivity)
Outdoor Humidity / Temp Sensor (Safe Box Enclosure)
Field-selectable 0–5 V, 0–10 V, or 4–20 mA output
8–35 V DC / AC (0–5 V) · 13–35 V DC / AC (0–10 V) · 10–35 V DC (4–20 mA)
Voltage mode 32–35 mA · Current mode 4–20 mA
±2 % / ±3 % (10–90 % RH) · ±5 % (0–100 % RH)
0–100 % RH (non-condensing)
−40 to 60 °C (−40 to 140 °F)
Capacitive humidity sensor (non-condensing)
0.8 % RH @ 25 °C
0.1 % RH
Enclosure Rating
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
NEMA 4X / IP66 weatherproof
UV-resistant polycarbonate, UL 94 V-2
Quick-mount bracket system; snap-in housing
Pt1000 IEC 751 4–20 mA loop output
½″ NPT adapter included (mountable either side)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω · Open > 1500 Ω · Fault > 22.5 mA
10 K Type 2/3 · 20 K · 3 K · Pt100/1000 · Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year warranty; ½″ NPT adapter included
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Sensor Type
Repeatability
Resolution (Sensitivity)
Outdoor Humidity / Temp Sensor (Safe Box Enclosure)
Field-selectable 0–5 V, 0–10 V, or 4–20 mA output
8–35 V DC / AC (0–5 V) · 13–35 V DC / AC (0–10 V) · 10–35 V DC (4–20 mA)
Voltage mode 32–35 mA · Current mode 4–20 mA
±2 % / ±3 % (10–90 % RH) · ±5 % (0–100 % RH)
0–100 % RH (non-condensing)
−40 to 60 °C (−40 to 140 °F)
Capacitive humidity sensor (non-condensing)
0.8 % RH @ 25 °C
0.1 % RH
Enclosure Rating
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
NEMA 4X / IP66 weatherproof
UV-resistant polycarbonate, UL 94 V-2
Quick-mount bracket system; snap-in housing
Pt1000 IEC 751 4–20 mA loop output
½″ NPT adapter included (mountable either side)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω · Open > 1500 Ω · Fault > 22.5 mA
10 K Type 2/3 · 20 K · 3 K · Pt100/1000 · Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year warranty; ½″ NPT adapter included
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Sensor Type
Repeatability
Resolution (Sensitivity)
Outdoor Humidity / Temp Sensor (Safe Box Enclosure)
Field-selectable 0–5 V, 0–10 V, or 4–20 mA output
8–35 V DC / AC (0–5 V) · 13–35 V DC / AC (0–10 V) · 10–35 V DC (4–20 mA)
Voltage mode 32–35 mA · Current mode 4–20 mA
±2 % / ±3 % (10–90 % RH) · ±5 % (0–100 % RH)
0–100 % RH (non-condensing)
−40 to 60 °C (−40 to 140 °F)
Capacitive humidity sensor (non-condensing)
0.8 % RH @ 25 °C
0.1 % RH
Enclosure Rating
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
NEMA 4X / IP66 weatherproof
UV-resistant polycarbonate, UL 94 V-2
Quick-mount bracket system; snap-in housing
Pt1000 IEC 751 4–20 mA loop output
½″ NPT adapter included (mountable either side)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω · Open > 1500 Ω · Fault > 22.5 mA
10 K Type 2/3 · 20 K · 3 K · Pt100/1000 · Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year warranty; ½″ NPT adapter included
Benefits at a Glance
Precise outdoor monitoring with ±2%, ±3%, or ±5% RH accuracy options
Weatherproof NEMA 4X / IP66 Safe Box enclosure for rugged field protection
Fast, tool-free installation with hinged cover and Quick Connect terminals
Long-term reliability with dual filters and conformal-coated circuit boards
Benefits at a Glance
Precise outdoor monitoring with ±2%, ±3%, or ±5% RH accuracy options
Weatherproof NEMA 4X / IP66 Safe Box enclosure for rugged field protection
Fast, tool-free installation with hinged cover and Quick Connect terminals
Long-term reliability with dual filters and conformal-coated circuit boards
Benefits at a Glance
Precise outdoor monitoring with ±2%, ±3%, or ±5% RH accuracy options
Weatherproof NEMA 4X / IP66 Safe Box enclosure for rugged field protection
Fast, tool-free installation with hinged cover and Quick Connect terminals
Long-term reliability with dual filters and conformal-coated circuit boards

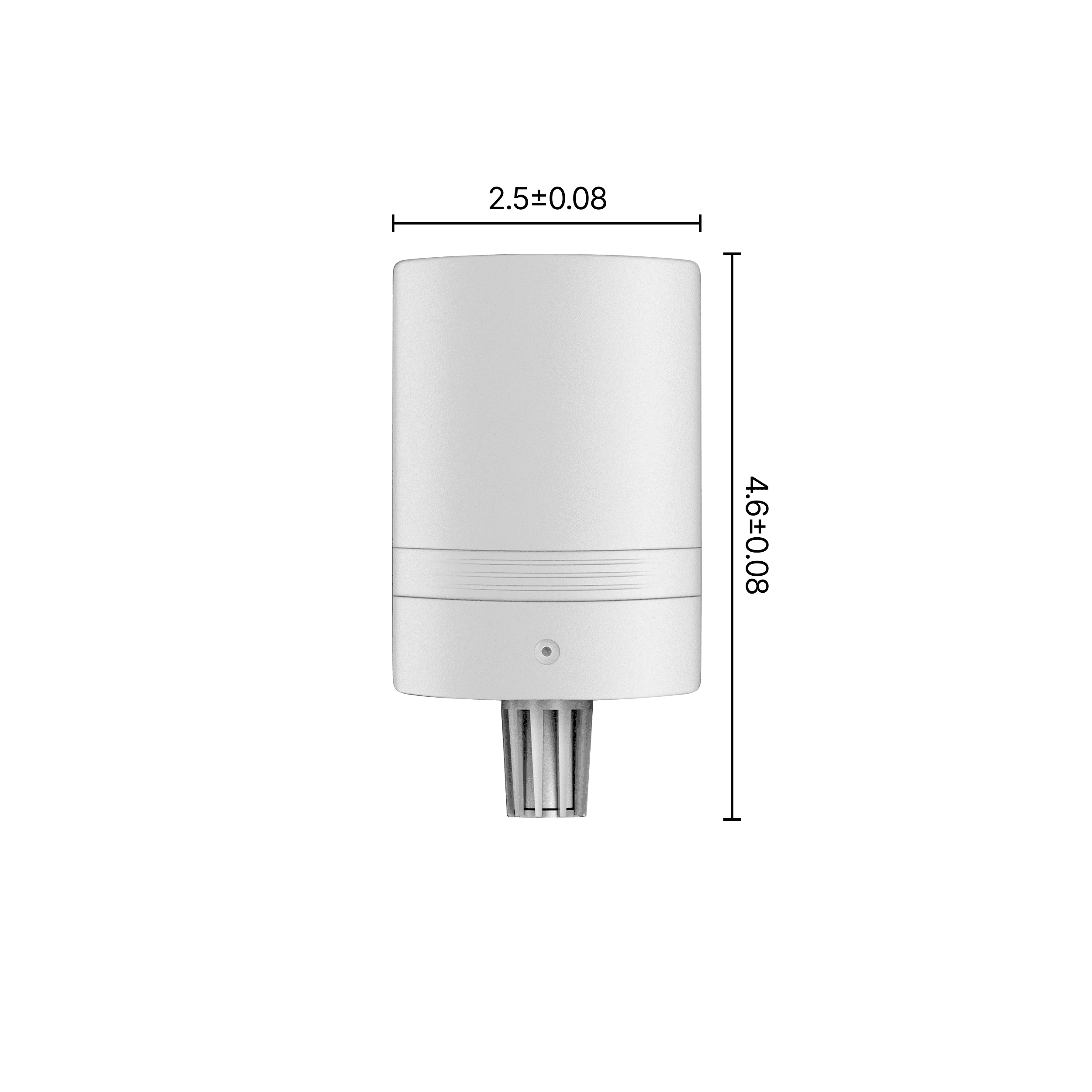

Measurements in Inches

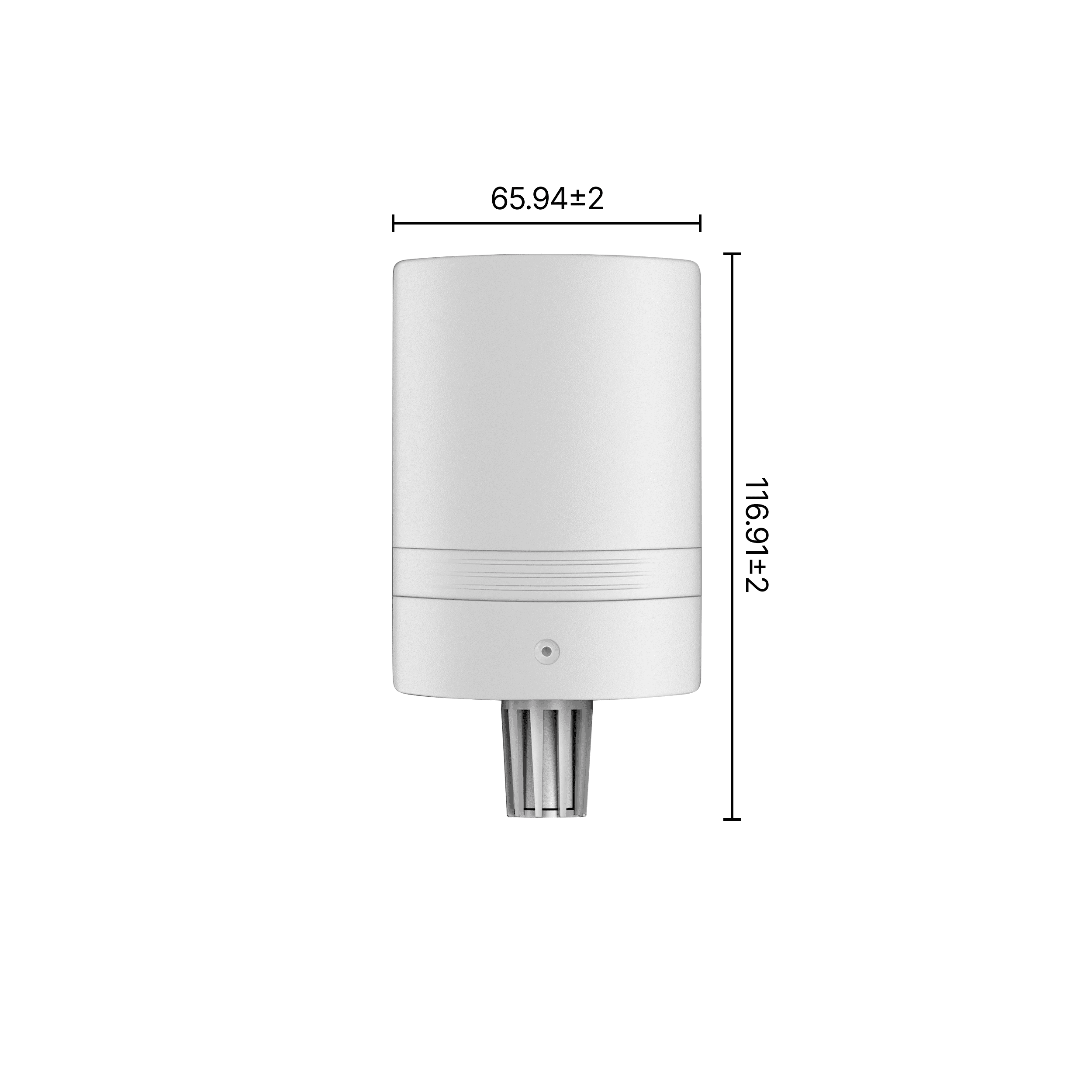

Measurements in Millimeters
Measurements in Inches
Measurements in Millimeters
Measurements in Inches
Measurements in Millimeters
Each Tasseron Outdoor Humidity/Temperature Sensor is manufactured in the USA and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
Each Tasseron Outdoor Humidity/Temperature Sensor is manufactured in the USA and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
