Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V
Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V
Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0784 -710mm/230V -460V
$1,990
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments

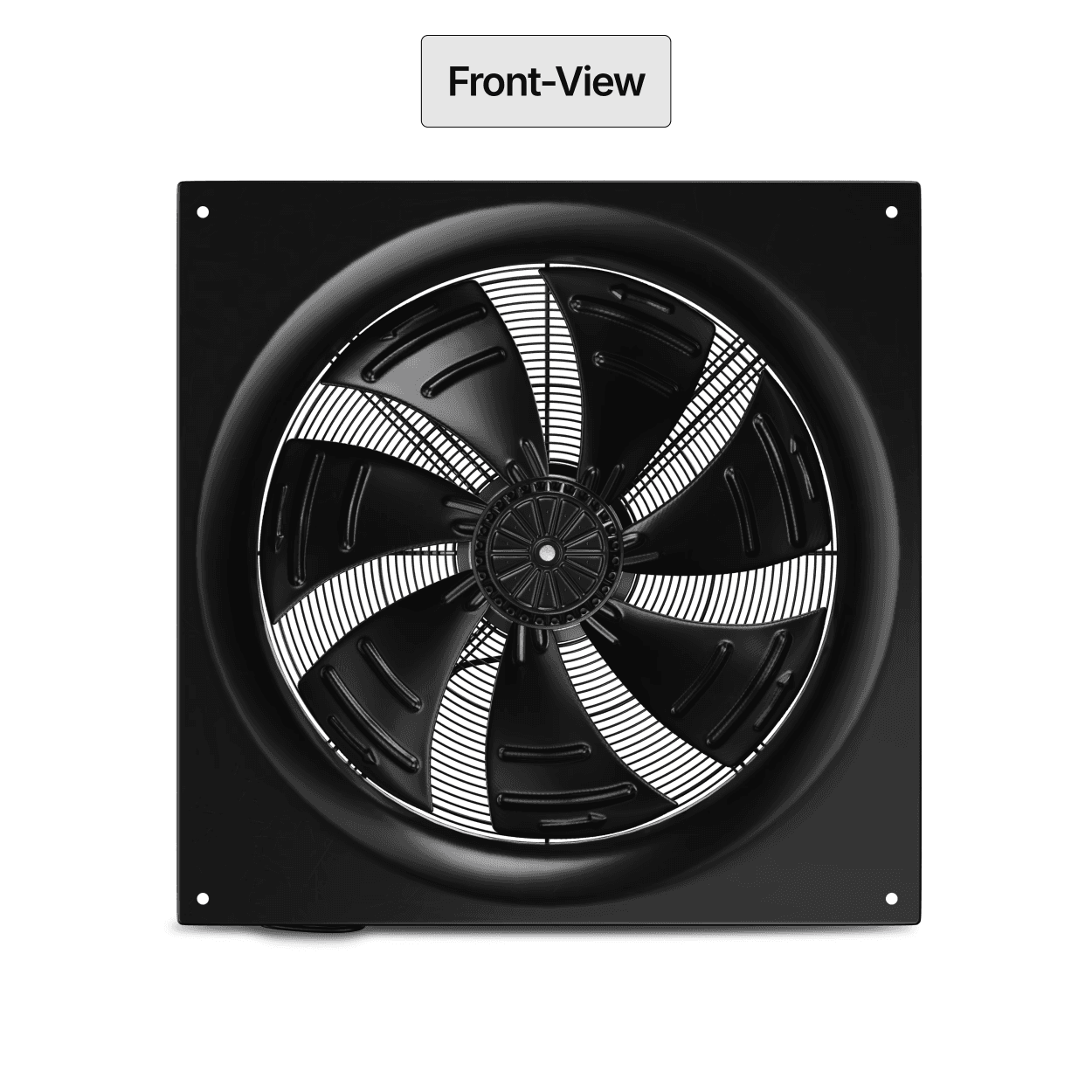

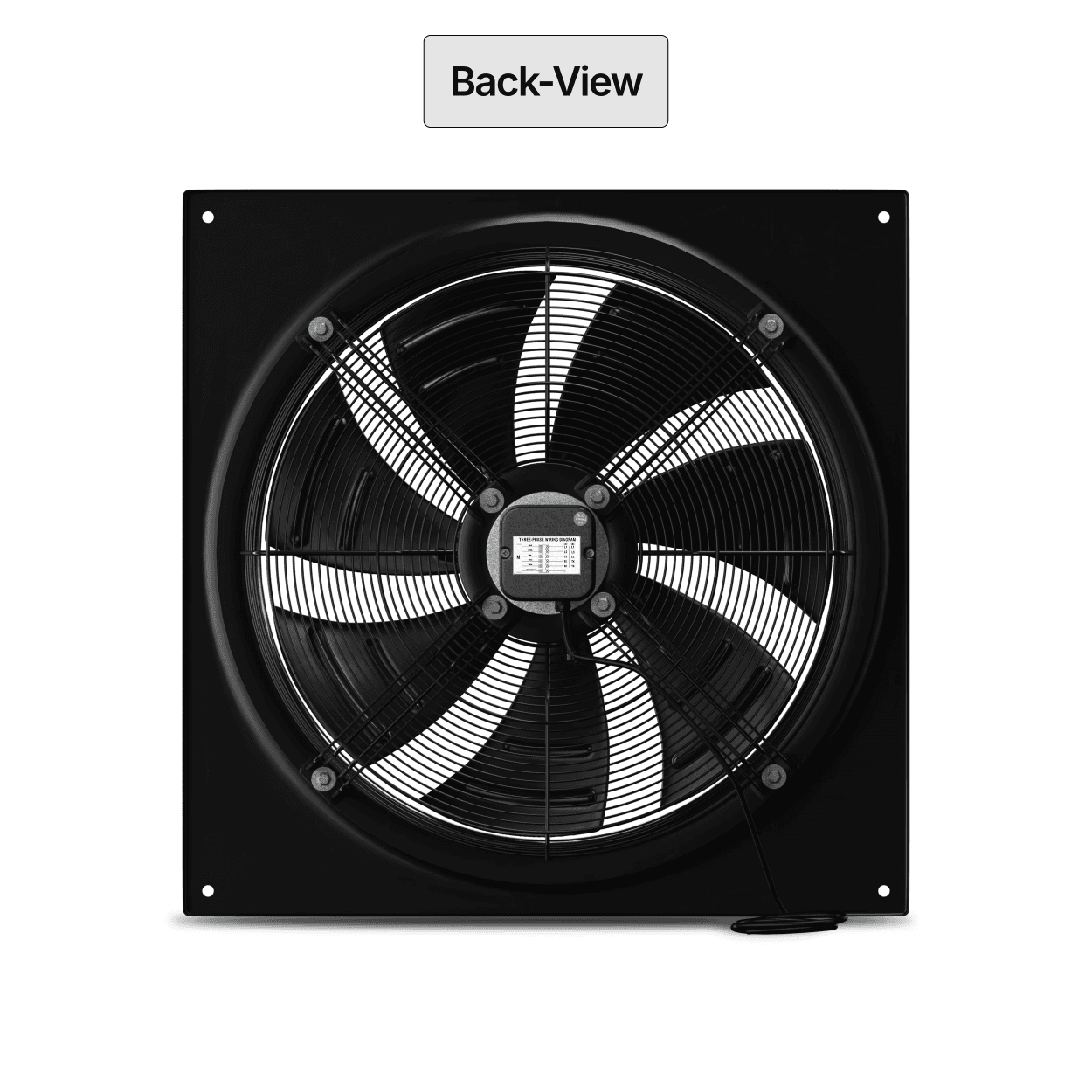

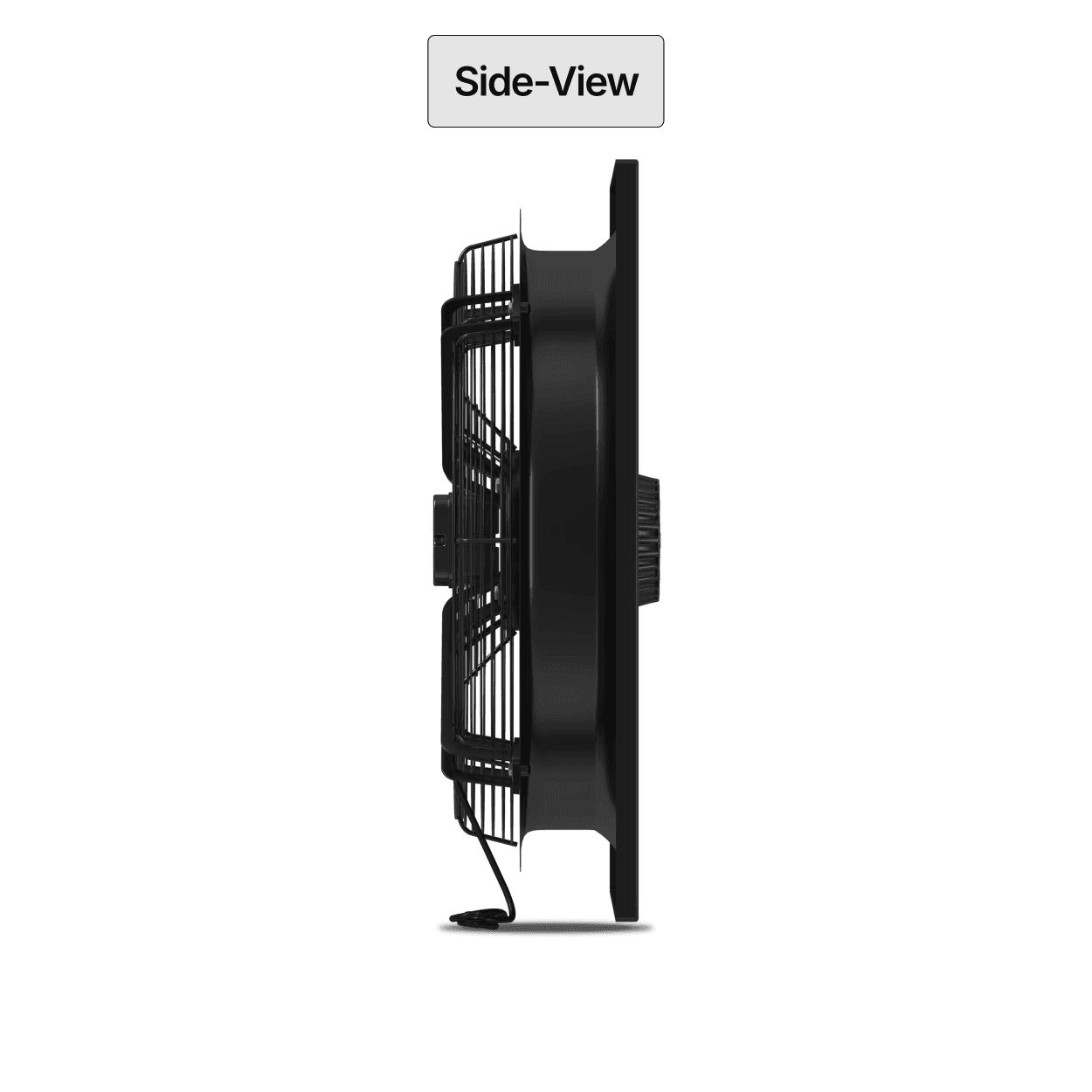

Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Scroll to the bottom to view our other sizes.
Scroll to the bottom to view our other sizes.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Unit
Brand
Motor
Model
Voltage
Frequency
Input Power
Current
Speed
Airflow
Axial Fan Motor with Fan Assembly
Dunli
Three Phase Motor
YWF.A6T-710S-5FIIIV04
230V / 460V
60 Hz
1250 W
3.4 / 2.2 A
1050 r/min
14700 m³/h
Noise
Rotation
Insulation Class
Motor Protection
Protection Class
Ambient Temperature
Bearings
Mounting Type
Net Weight / Gross Weight
Package Size
75 dBA
Counter Clockwise
F
Overhead Protection Function - Cut Off Temperature 150-160 Celsius
IP54
-30°C + 60°C
Ball Bearings
Horizontal or Vertical
82.00 / 90.00 lbs
34.00 x 34.00 x 12.00 in
Unit
Brand
Motor
Model
Voltage
Frequency
Input Power
Current
Speed
Airflow
Axial Fan Motor with Fan Assembly
Dunli
Three Phase Motor
YWF.A6T-710S-5FIIIV04
230V / 460V
60 Hz
1250 W
3.4 / 2.0 A
1050 r/min
14700 m³/h
Noise
Rotation
Insulation Class
Motor Protection
Protection Class
Ambient Temperature
Bearings
Mounting Type
Net Weight / Gross Weight
Package Size
75 dBA
Counter Clockwise
F
Overhead Protection Function - Cut Off Temperature 150-160 Celsius
IP54
-30°C + 60°C
Ball Bearings
Horizontal or Vertical
82.00 / 90.00 lbs
34.00 x 34.00 x 12.00 in
Unit
Brand
Motor
Model
Voltage
Frequency
Input Power
Current
Speed
Airflow
Axial Fan Motor with Fan Assembly
Dunli
Three Phase Motor
YWF.A6T-710S-5FIIIV04
230V / 460V
60 Hz
1250 W
3.4 / 2.2 A
1050 r/min
14700 m³/h
Noise
Rotation
Insulation Class
Motor Protection
Protection Class
Ambient Temperature
Bearings
Mounting Type
Net Weight / Gross Weight
Package Size
75 dBA
Counter Clockwise
F
Overhead Protection Function - Cut Off Temperature 150-160 Celsius
IP54
-30°C + 60°C
Ball Bearings
Horizontal or Vertical
82.00 / 90.00 lbs
34.00 x 34.00 x 12.00 in
Benefits at a Glance
Superior-level airflow for an unbeatable price
Heavy-duty durability built for long service life
Plug and play compatibility—drop-in replacement for Addison 0515P-0784
Fast shipping from Miami, ready when you are
Benefits at a Glance
Superior-level airflow for an unbeatable price
Heavy-duty durability built for long service life
Plug and play compatibility—drop-in replacement for Addison 0515P-0784
Fast shipping from Miami, ready when you are
Benefits at a Glance
Superior-level airflow for an unbeatable price
Heavy-duty durability built for long service life
Plug and play compatibility—drop-in replacement for Addison 0515P-0784
Fast shipping from Miami, ready when you are

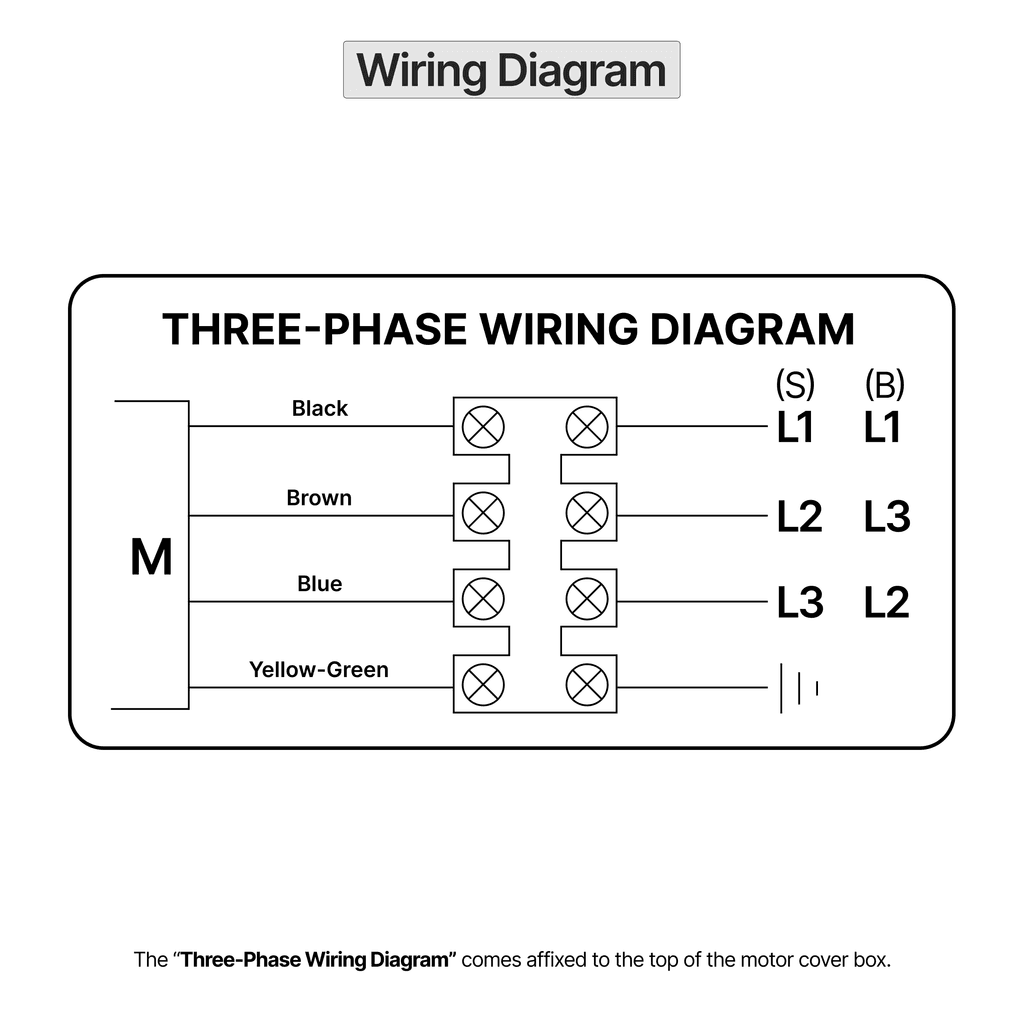

Three Phase Wiring Diagram
The diagram comes affixed to the top of the motor cover box.
710mm
Three-Phase Wiring Diagram
Orange
Brown
Red
Gray
Blue
Black
White
White
Yellow-Green
(S)
TK
TK
L3
L2
L1
L1
L3
L2
TK
TK
(B)
M
Wiring Diagram
Orange
Brown
Red
Gray
Blue
Black
White
White
Yellow-Green
(S)
TK
TK
L3
L2
L1
L1
L3
L2
TK
TK
(B)
M
Y Wiring Diagram

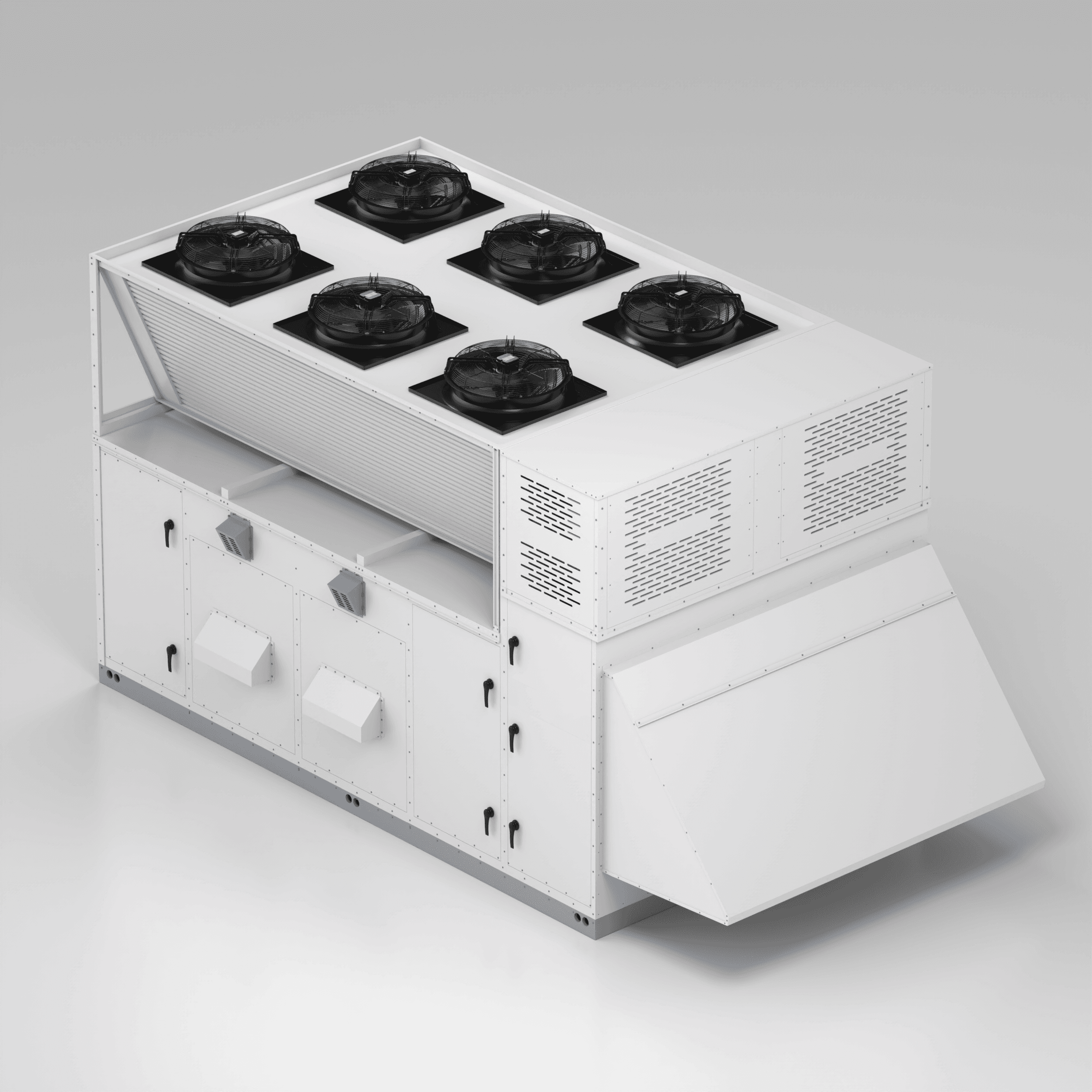

Product on HVAC Unit
This is a 3D render of our 550mm model
visualized on top of an Addison Unit
Three Phase Wiring Diagram
The diagram comes affixed to the top of
the motor cover box.
550mm
Three-Phase Wiring Diagram
Orange
Brown
Red
Gray
Blue
Black
White
White
Yellow-Green
(S)
TK
TK
L3
L2
L1
L1
L3
L2
TK
TK
(B)
M
Wiring Diagram
Orange
Brown
Red
Gray
Blue
Black
White
White
Yellow-Green
(S)
TK
TK
L3
L2
L1
L1
L3
L2
TK
TK
(B)
M
Y Wiring Diagram
Product on HVAC Unit
This is a 3D render of our 550mm model
visualized on top of an Addison Unit
Three Phase Wiring Diagram
The diagram comes affixed to the top
of the motor cover box.
710mm
Three-Phase Wiring Diagram
Orange
Brown
Red
Gray
Blue
Black
White
White
Yellow-Green
(S)
TK
TK
L3
L2
L1
L1
L3
L2
TK
TK
(B)
M
Wiring Diagram
Orange
Brown
Red
Gray
Blue
Black
White
White
Yellow-Green
(S)
TK
TK
L3
L2
L1
L1
L3
L2
TK
TK
(B)
M
Y Wiring Diagram
Product on HVAC Unit
This is a 3D render of our 550mm model
visualized on top of an Addison Unit

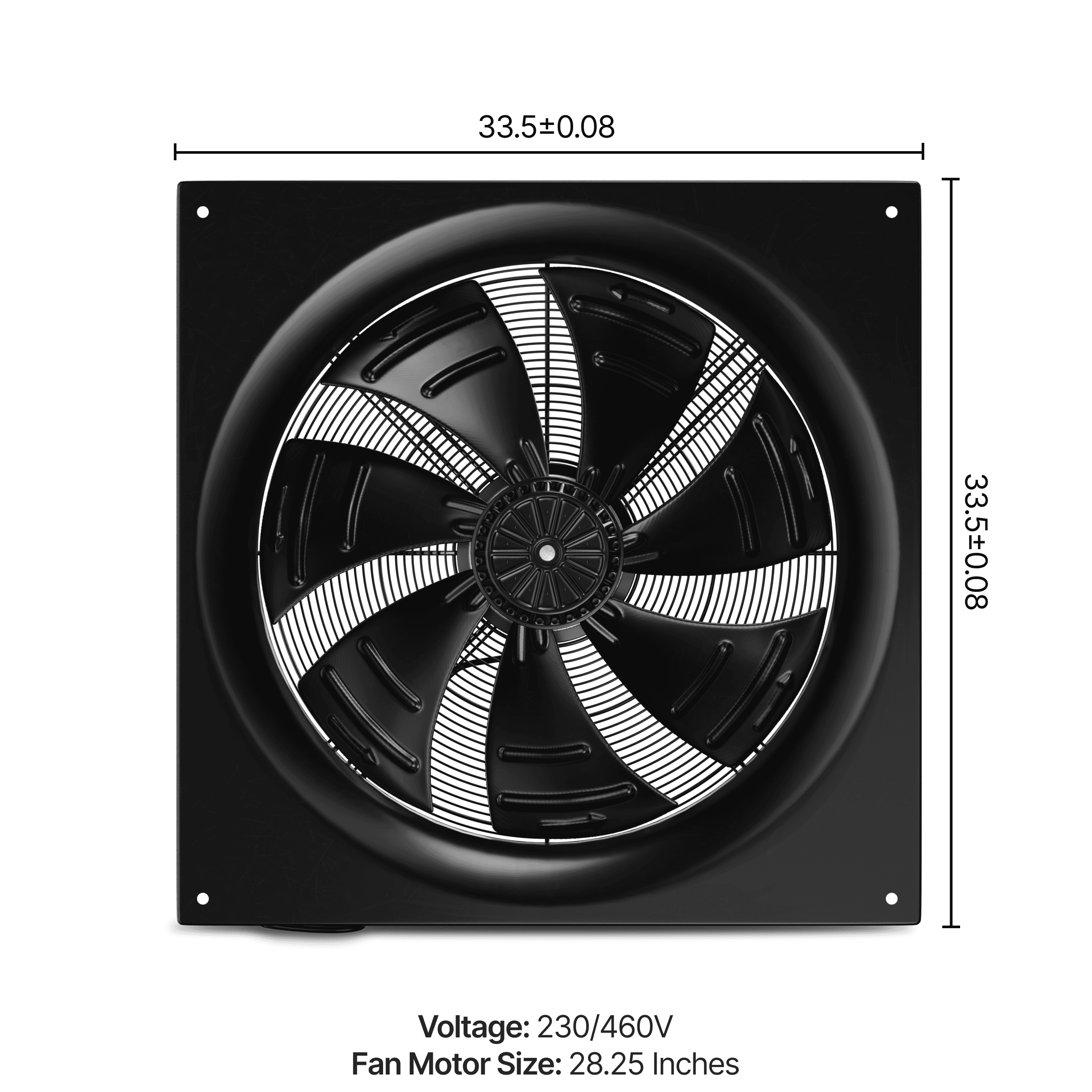

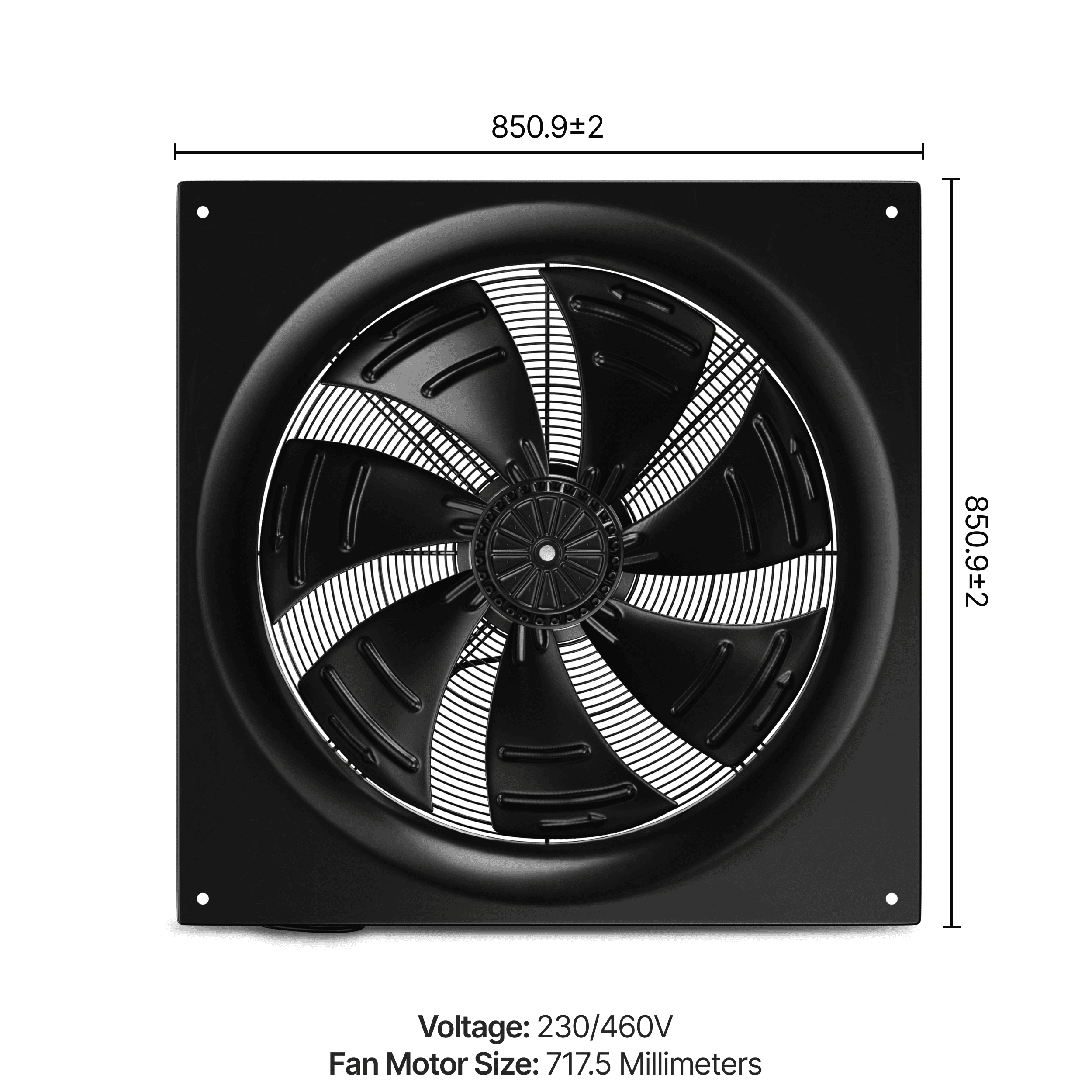

Measurements
Inches
Millimeters
710mm
710mm
Measurements
Inches
Millimeters
710mm
710mm
Measurements
Inches
Millimeters
710mm
710mm
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi

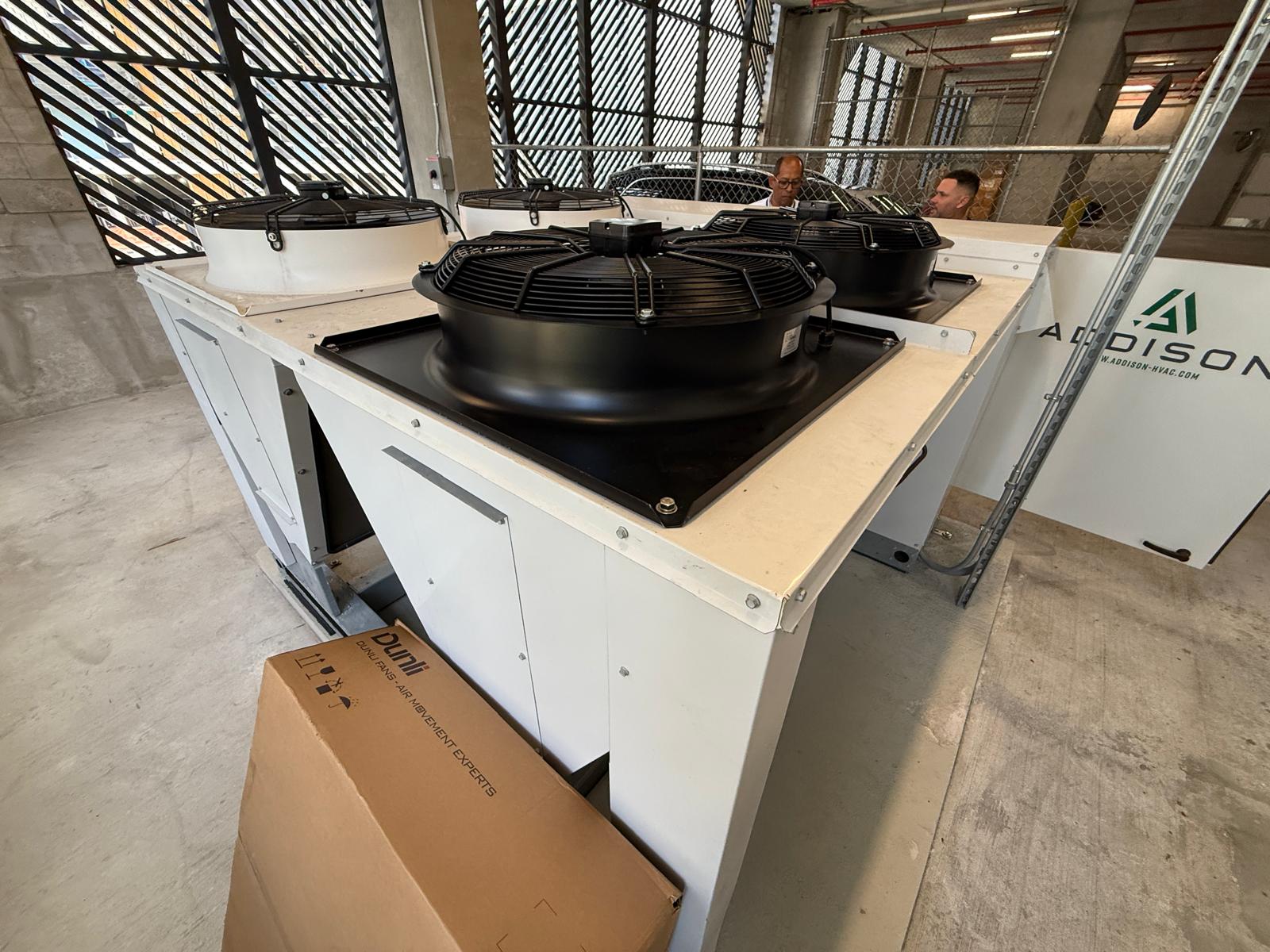

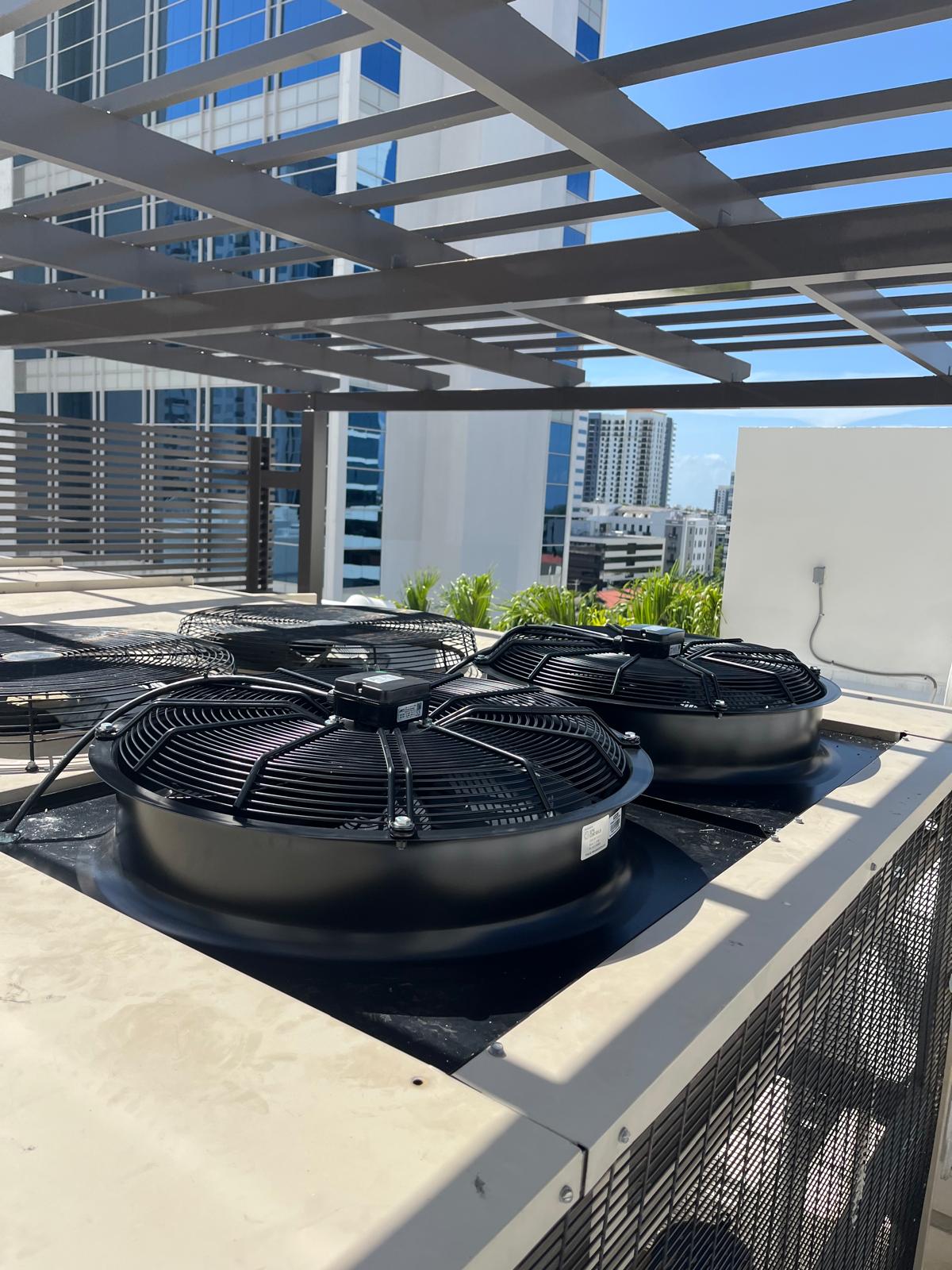

Product in the Field
Images provided by real customers
of
1
2
3
3
Product in the Field
Images provided by real customers
of
1
2
3
3
Product in the Field
Images provided by real customers
of
1
2
3
3
Product in the Field
Images provided by real customers
Product in the Field
Images provided by real customers
More Sizes
The following models also come in a 230/460V
More Sizes
