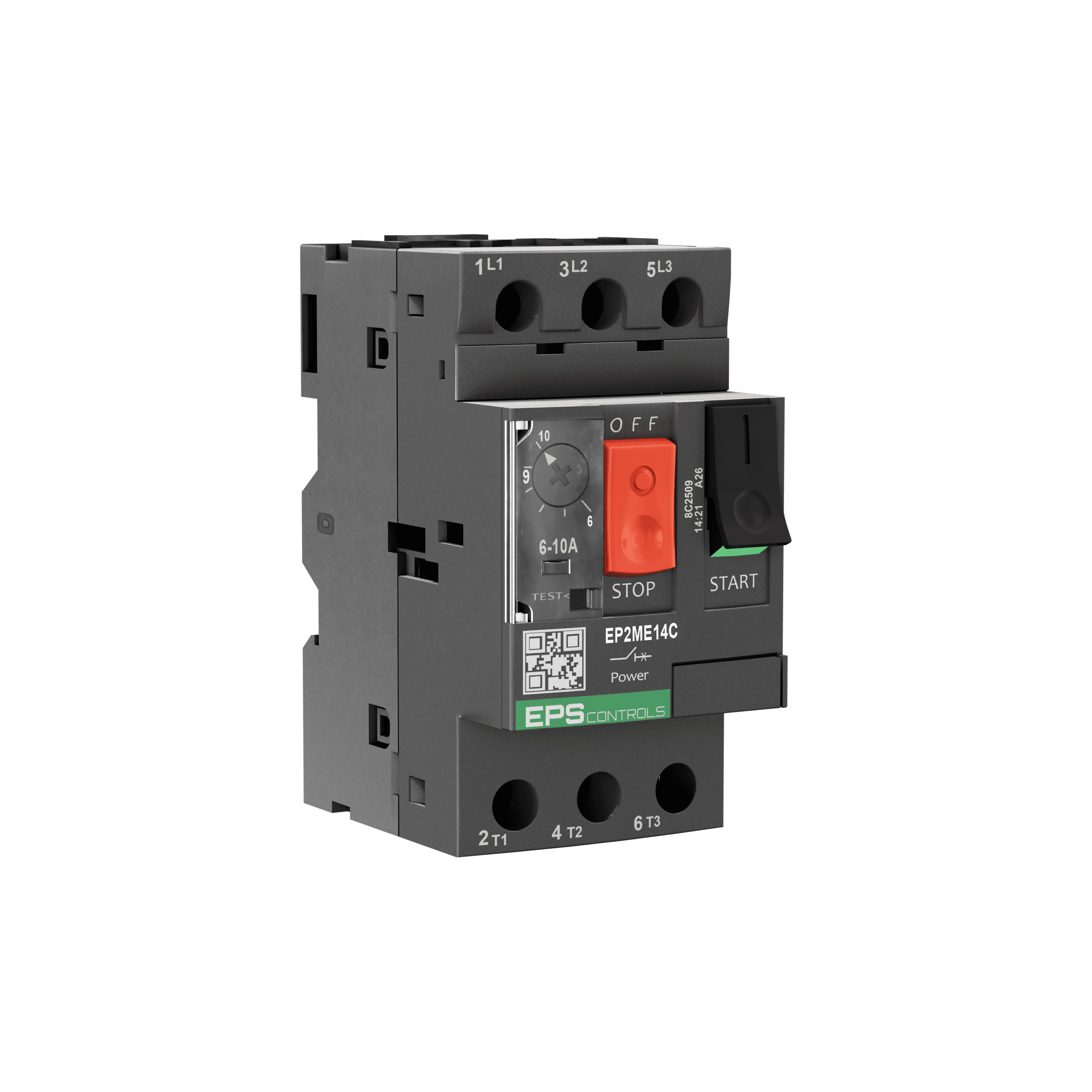

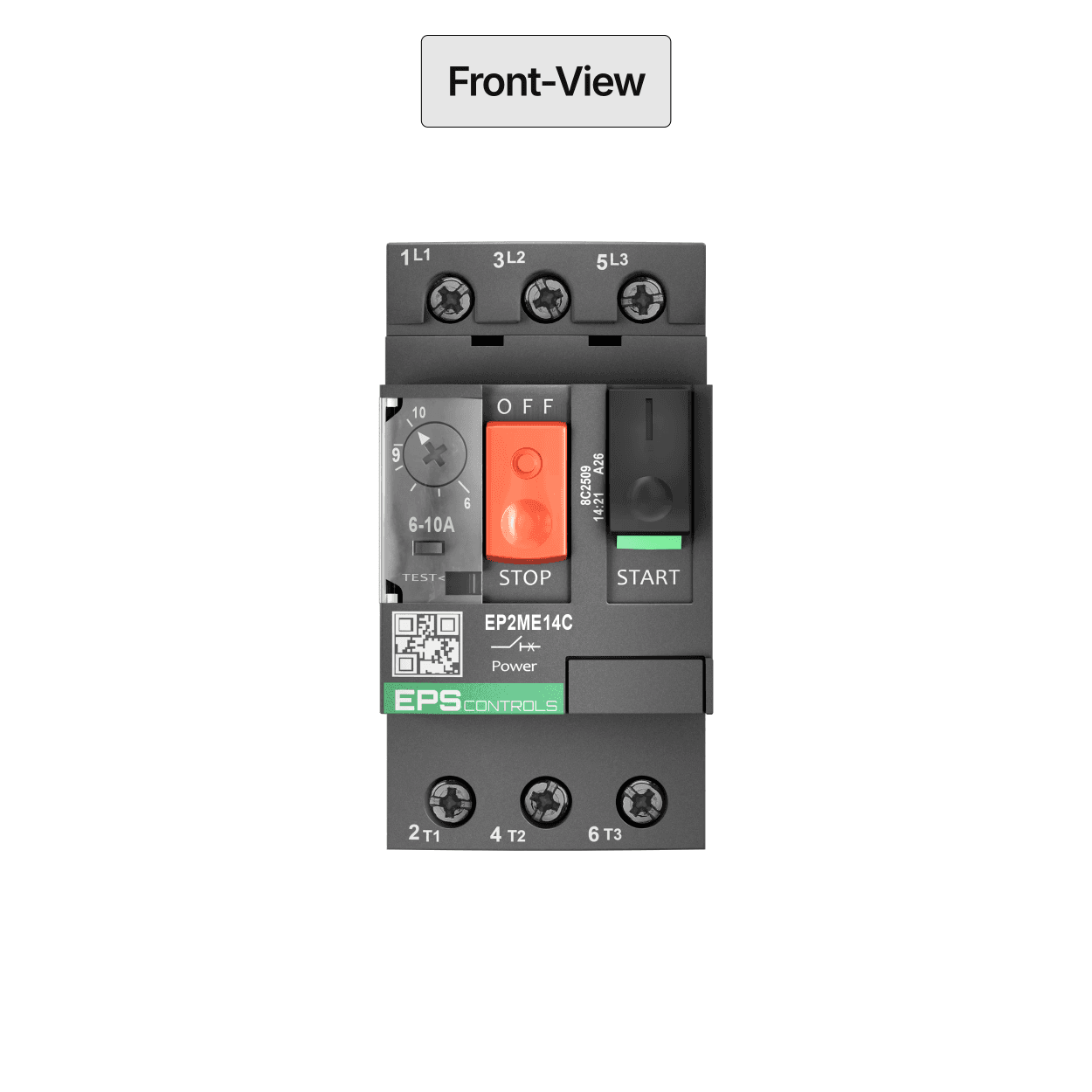

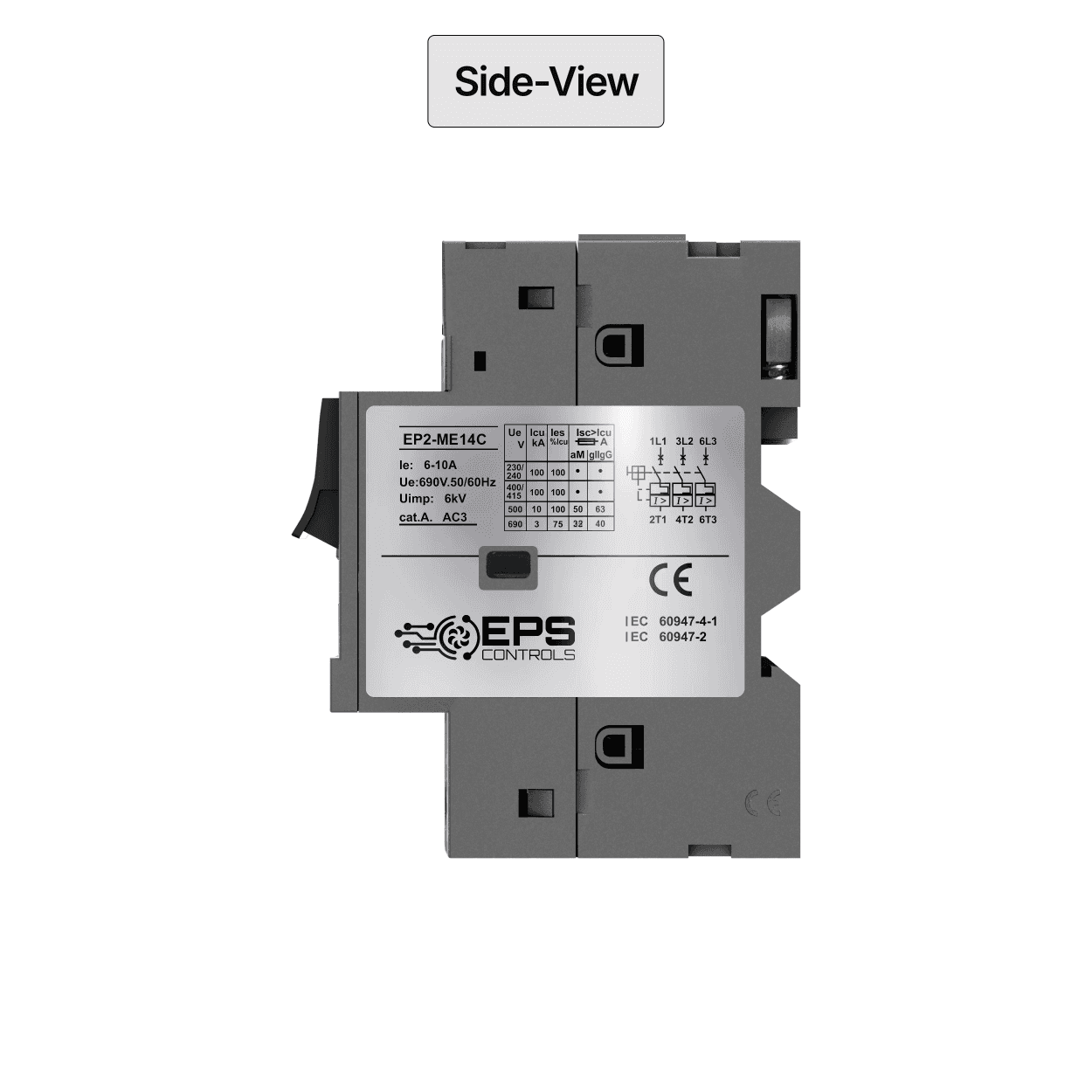

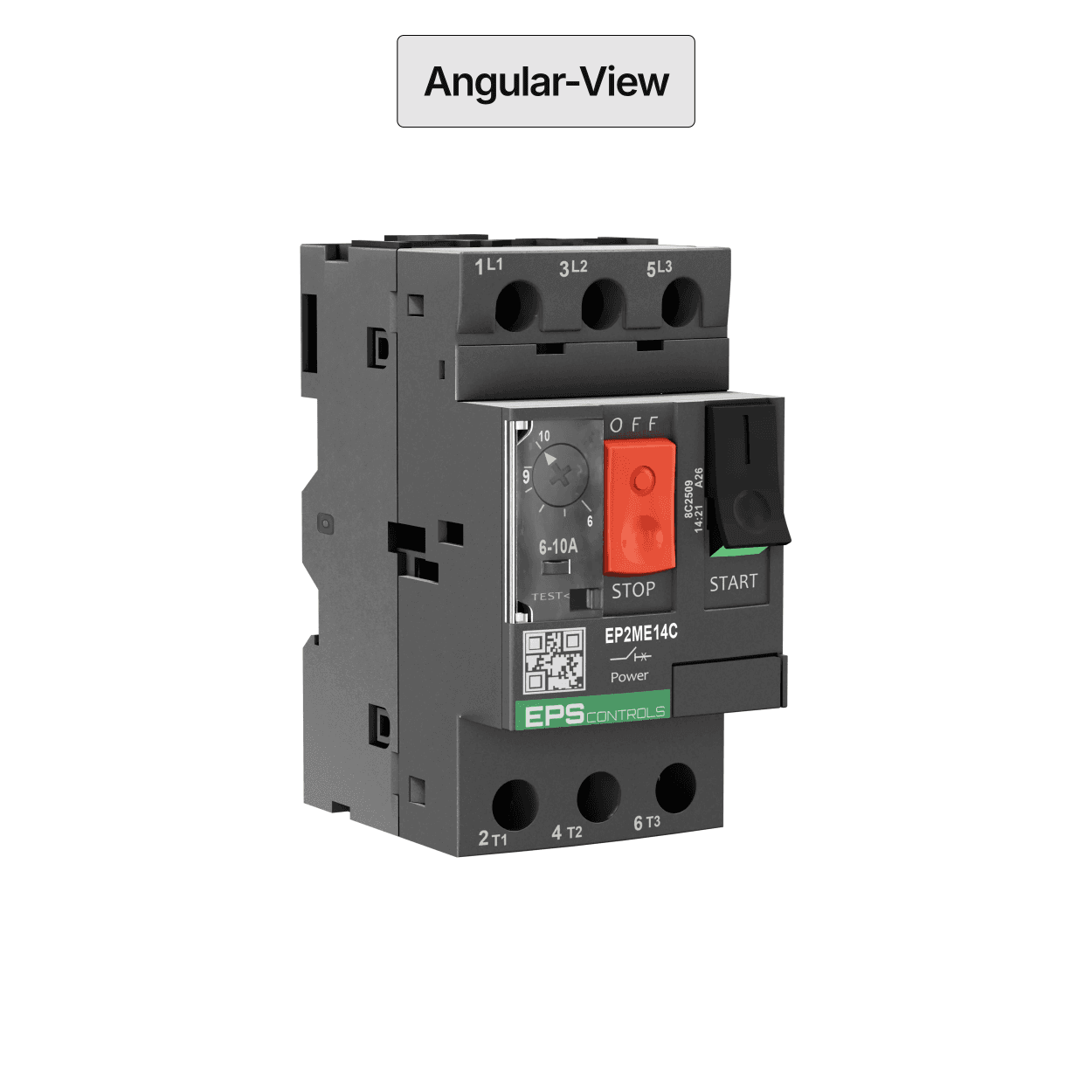

Circuit Breaker - 6-10A - ME14C
Circuit Breaker - 6-10A - ME14C
Circuit Breaker - 6-10A - ME14C
$165
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Scroll to the bottom to view our other sizes.
Scroll to the bottom to view our other sizes.
Scroll to the bottom to view our other sizes.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The EP2ME14C is a compact thermal-magnetic motor protection circuit breaker designed to safeguard motors within the 6–10A range. It provides overload, short-circuit, and phase-failure protection while integrating START/STOP pushbuttons for direct front-panel operation. Built to IEC 60947 standards, the EP2ME14C is ideal for pumps, fans, compressors, conveyors, and general automation panels.
The EP2ME14C is a compact thermal-magnetic motor protection circuit breaker designed to safeguard motors within the 6–10A range. It provides overload, short-circuit, and phase-failure protection while integrating START/STOP pushbuttons for direct front-panel operation. Built to IEC 60947 standards, the EP2ME14C is ideal for pumps, fans, compressors, conveyors, and general automation panels.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Rated Service Breaking Capacity (Ics)
Magnetic Trip Setting
Thermal Trip Class
6–10A (adjustable)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV
230V / 400V / 440V / 500V / 690V AC
100 kA (230–690V)
100% of Icu
Fixed instantaneous magnetic release
Class 10
Phase Failure Sensitivity
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
Yes (built-in)
Integrated STOP (red) / START (green) buttons
35 mm DIN rail
L1–L3 (input) / T1–T3 (output)
Supports solid, stranded, and ferrule-type conductors
IP20 (front)
–20°C to +55°C
100,000+ operations
10,000+ operations (AC-3 duty)
Auxiliary contacts (OF/SD), shunt trip, undervoltage release, enclosure kits
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
6–10A (adjustable)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV
230V / 400V / 440V / 500V / 690V AC
100 kA (230–690V)
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temperature Range (RTD Elements)
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
−40 to 180 °C (−40 to 356 °F)
Integrated STOP (red) / START (green) buttons
35 mm DIN rail
L1–L3 (input) / T1–T3 (output)
Supports solid, stranded, and ferrule-type conductors
IP20 (front)
–20°C to +55°C
100,000+ operations
10,000+ operations (AC-3 duty)
Auxiliary contacts (OF/SD), shunt trip, undervoltage release, enclosure kits
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Rated Service Breaking Capacity (Ics)
Magnetic Trip Setting
Thermal Trip Class
6–10A (adjustable)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV
230V / 400V / 440V / 500V / 690V AC
100 kA (230–690V)
100% of Icu
Fixed instantaneous magnetic release
Class 10
Phase Failure Sensitivity
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
Yes (built-in)
Integrated STOP (red) / START (green) buttons
35 mm DIN rail
L1–L3 (input) / T1–T3 (output)
Supports solid, stranded, and ferrule-type conductors
IP20 (front)
–20°C to +55°C
100,000+ operations
10,000+ operations (AC-3 duty)
Auxiliary contacts (OF/SD), shunt trip, undervoltage release, enclosure kits
Benefits at a Glance
Reliable Overload Protection: Adjustable 6–10A thermal release with precise Class 10 tripping.
High Fault Interruption Capacity: Up to 100 kA across all operating voltages for maximum safety.
Integrated Manual Controls: Built-in START/STOP buttons streamline commissioning and on-site servicing.
Compact DIN-Rail Design: Easy installation, minimal panel footprint, and wide accessory support.
Benefits at a Glance
Reliable Overload Protection: Adjustable 6–10A thermal release with precise Class 10 tripping.
High Fault Interruption Capacity: Up to 100 kA across all operating voltages for maximum safety.
Integrated Manual Controls: Built-in START/STOP buttons streamline commissioning and on-site servicing.
Compact DIN-Rail Design: Easy installation, minimal panel footprint, and wide accessory support.
Benefits at a Glance
Reliable Overload Protection: Adjustable 6–10A thermal release with precise Class 10 tripping.
High Fault Interruption Capacity: Up to 100 kA across all operating voltages for maximum safety.
Integrated Manual Controls: Built-in START/STOP buttons streamline commissioning and on-site servicing.
Compact DIN-Rail Design: Easy installation, minimal panel footprint, and wide accessory support.
