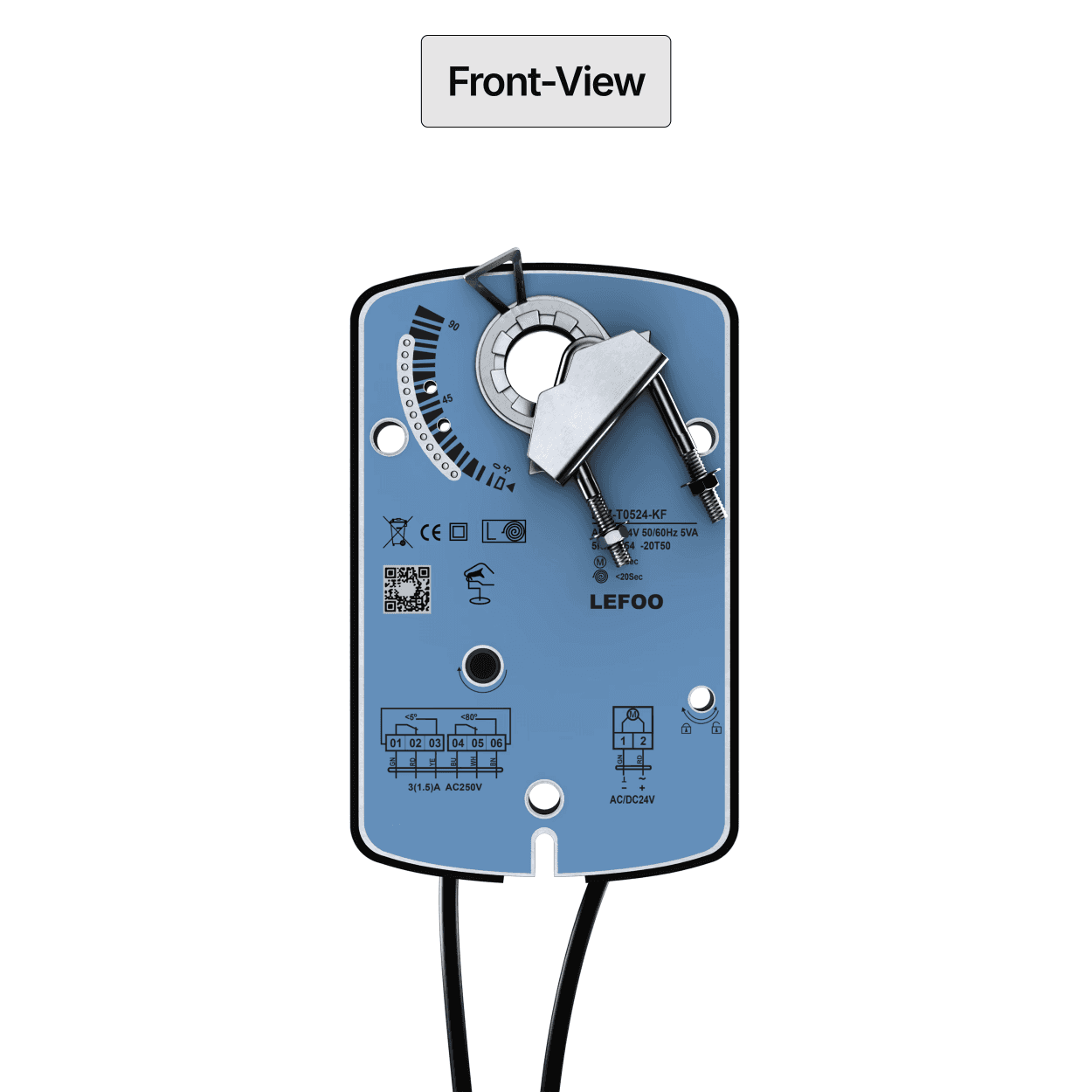

Damper Actuator Spring LFZ-T0524-KF
Damper Actuator Spring LFZ-T0524-KF
Damper Actuator Spring LFZ-T0524-KF
$230
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The LFZ-T Spring-Reset Damper Actuator delivers reliable fail-safe performance for ventilation and air-handling systems. Using an imported DC/brushless motor, it provides 5–15 Nm torque with automatic mechanical spring return on power loss. Designed for long service life, low noise, and dependable ON/OFF control, the LFZ-T is ideal for safety-critical dampers requiring over 30,000 operating cycles.
The LFZ-T Spring-Reset Damper Actuator delivers reliable fail-safe performance for ventilation and air-handling systems. Using an imported DC/brushless motor, it provides 5–15 Nm torque with automatic mechanical spring return on power loss. Designed for long service life, low noise, and dependable ON/OFF control, the LFZ-T is ideal for safety-critical dampers requiring over 30,000 operating cycles.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Torque Options
Power Supply Options
Voltage Range
Control Signal
Spring Return
Motor Run Time
Auxiliary Switches
Noise Level
Rotation Angle
Manual Adjustment
5 Nm / 10 Nm / 15 Nm
AC24V / DC24V / AC100–240V
AC/DC 19.2–28.8V or AC85–265V (depending on model)
ON-OFF control
Automatic mechanical spring reset on power loss (≤20 s)
70 seconds
Optional 2-switch configuration (“F” models)
Motor running 46 dB; spring reset 62 dB
Max. 95°, mechanically adjustable limit
Available on all series
Cable Size
Aux Switch Rating
Suitable Damper Size
Position Indication
Electrical Grade
Protection Rating
Working Temperature
Storage Temperature
Shaft Requirements
Weight
0.5 mm²
3A, AC230V
1 Nm per 0.1 m² (standard wind resistance)
Mechanical display
III (safe low voltage) / II (double insulation)
IP54
–20°C to +50°C
–30°C to +80°C
Round shaft Ø10–16 mm; length > 50 mm
< 1.8 kg
Torque Options
Power Supply Options
Voltage Range
Control Signal
Spring Return
Motor Run Time
Auxiliary Switches
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
5 Nm / 10 Nm / 15 Nm
AC24V / DC24V / AC100–240V
AC/DC 19.2–28.8V or AC85–265V (depending on model)
ON-OFF control
Automatic mechanical spring reset on power loss (≤20 s)
70 seconds
Optional 2-switch configuration (“F” models)
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temperature Range (RTD Elements)
Aux Switch Rating
Suitable Damper Size
Position Indication
Electrical Grade
Protection Rating
Working Temperature
Storage Temperature
Shaft Requirements
Weight
−40 to 180 °C (−40 to 356 °F)
3A, AC230V
1 Nm per 0.1 m² (standard wind resistance)
Mechanical display
III (safe low voltage) / II (double insulation)
IP54
–20°C to +50°C
–30°C to +80°C
Round shaft Ø10–16 mm; length > 50 mm
< 1.8 kg
Torque Options
Power Supply Options
Voltage Range
Control Signal
Spring Return
Motor Run Time
Auxiliary Switches
Noise Level
Rotation Angle
Manual Adjustment
5 Nm / 10 Nm / 15 Nm
AC24V / DC24V / AC100–240V
AC/DC 19.2–28.8V or AC85–265V (depending on model)
ON-OFF control
Automatic mechanical spring reset on power loss (≤20 s)
70 seconds
Optional 2-switch configuration (“F” models)
Motor running 46 dB; spring reset 62 dB
Max. 95°, mechanically adjustable limit
Available on all series
Cable Size
Aux Switch Rating
Suitable Damper Size
Position Indication
Electrical Grade
Protection Rating
Working Temperature
Storage Temperature
Shaft Requirements
Weight
0.5 mm²
3A, AC230V
1 Nm per 0.1 m² (standard wind resistance)
Mechanical display
III (safe low voltage) / II (double insulation)
IP54
–20°C to +50°C
–30°C to +80°C
Round shaft Ø10–16 mm; length > 50 mm
< 1.8 kg
Benefits at a Glance
Fail-Safe Protection: Automatic spring return ensures damper closure during power loss.
Durable Motor System: High-quality DC/brushless motor with 30,000+ operating cycles.
Flexible Installation: Multi-voltage input and universal shaft compatibility.
Low-Noise Operation: Quiet motor running for building-friendly environments.
Benefits at a Glance
Fail-Safe Protection: Automatic spring return ensures damper closure during power loss.
Durable Motor System: High-quality DC/brushless motor with 30,000+ operating cycles.
Flexible Installation: Multi-voltage input and universal shaft compatibility.
Low-Noise Operation: Quiet motor running for building-friendly environments.
Benefits at a Glance
Fail-Safe Protection: Automatic spring return ensures damper closure during power loss.
Durable Motor System: High-quality DC/brushless motor with 30,000+ operating cycles.
Flexible Installation: Multi-voltage input and universal shaft compatibility.
Low-Noise Operation: Quiet motor running for building-friendly environments.

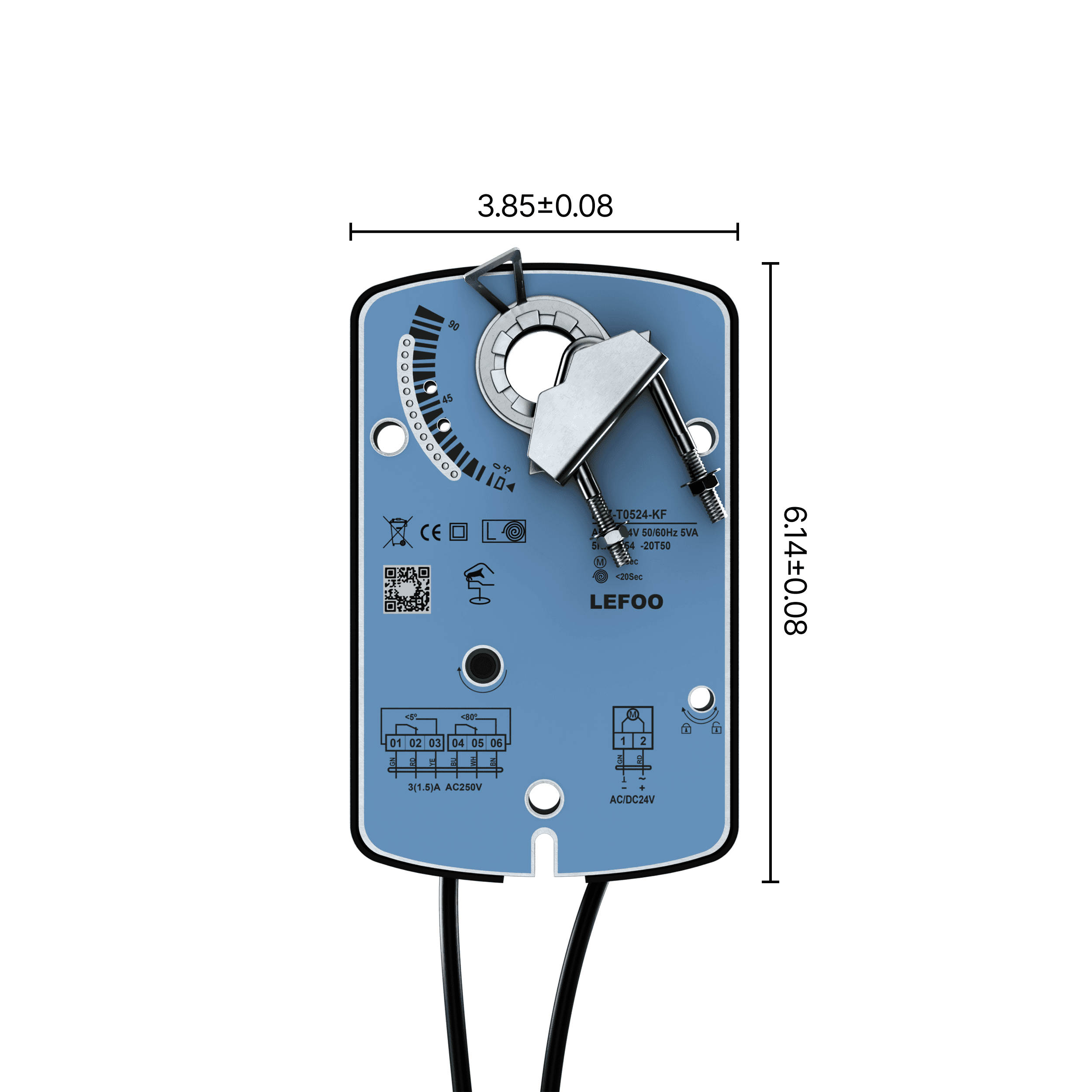

Measurements
