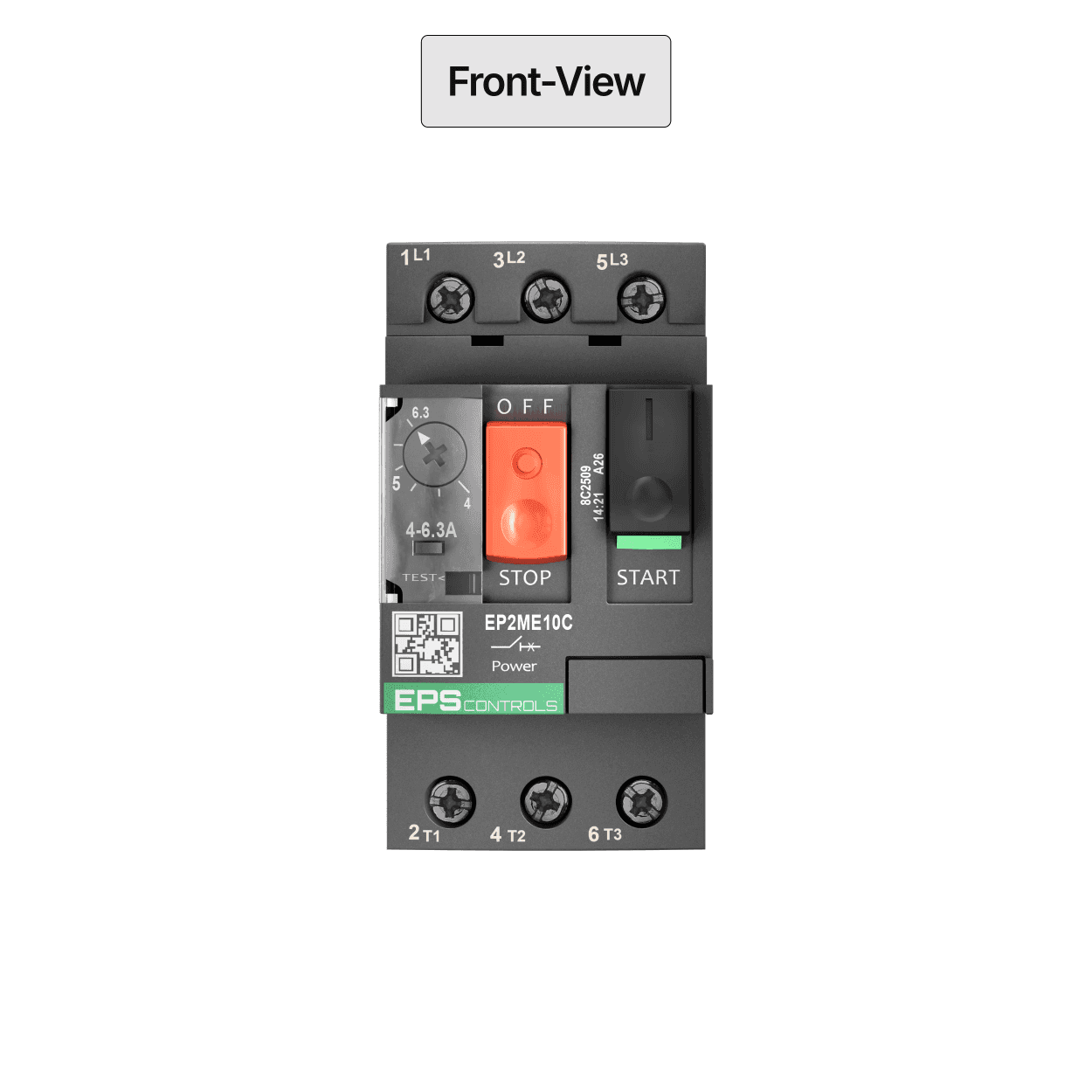

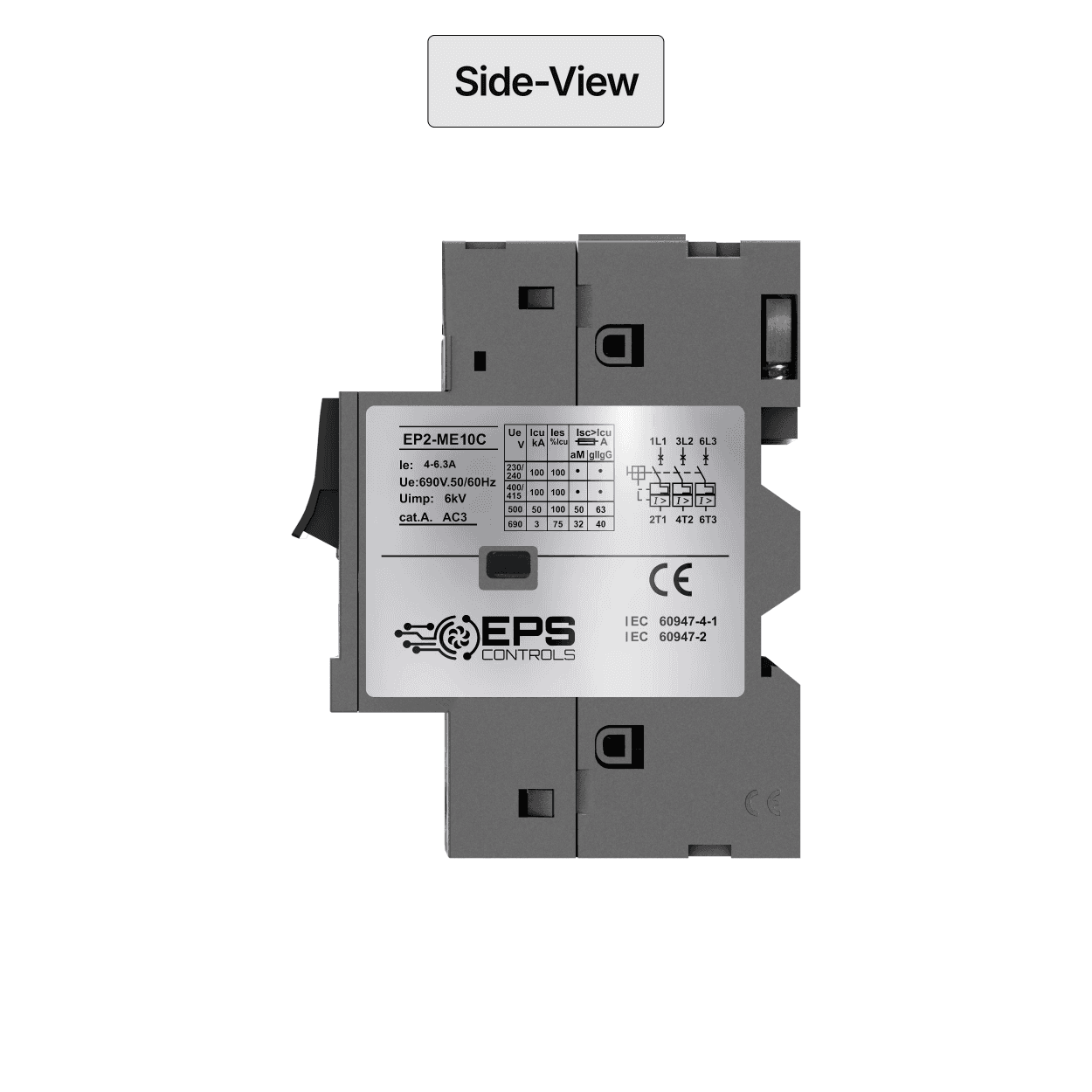

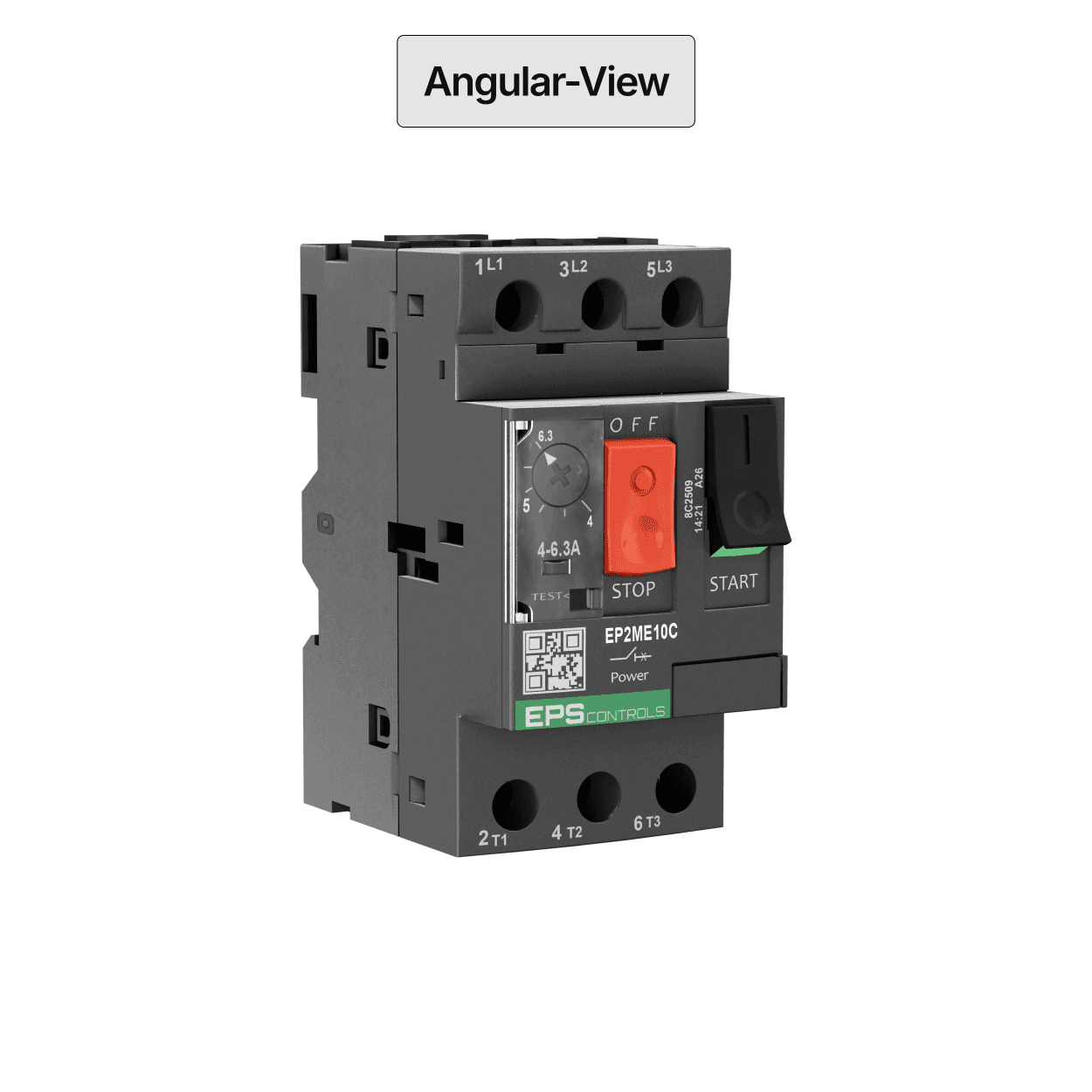

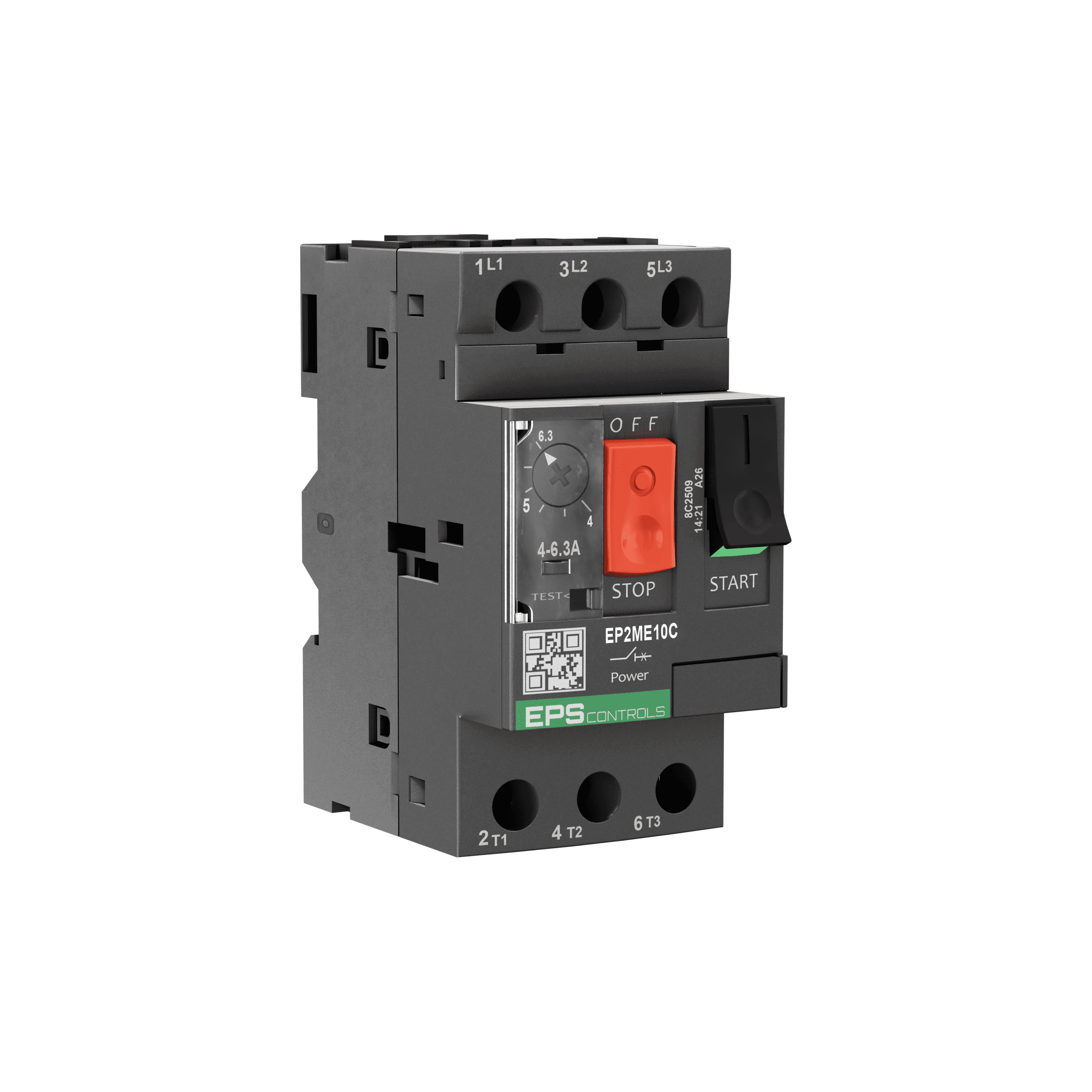

Circuit Breaker - 4-6.3A - ME10C
Circuit Breaker - 4-6.3A - ME10C
Circuit Breaker - 4-6.3A - ME10C
$165
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Scroll to the bottom to view our other sizes.
Scroll to the bottom to view our other sizes.
Scroll to the bottom to view our other sizes.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The EP2ME10C is a thermal-magnetic motor protection circuit breaker engineered for reliable overload, short-circuit, and phase-loss protection in the 4–6.3A range. With integrated STOP/START controls and Class 10 protection, it offers dependable performance for motor control, HVAC systems, pumps, and general automation. Fully compliant with IEC 60947-2 and IEC 60947-4-1, this compact breaker is optimized for DIN-rail installation.
The EP2ME10C is a thermal-magnetic motor protection circuit breaker engineered for reliable overload, short-circuit, and phase-loss protection in the 4–6.3A range. With integrated STOP/START controls and Class 10 protection, it offers dependable performance for motor control, HVAC systems, pumps, and general automation. Fully compliant with IEC 60947-2 and IEC 60947-4-1, this compact breaker is optimized for DIN-rail installation.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Rated Service Breaking Capacity (Ics)
Magnetic Trip Setting
Thermal Trip Class
4–6.3A (adjustable)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV
230V / 400V / 440V / 500V / 690V AC
100 kA (230–690V)
100% of Icu
Fixed instantaneous magnetic release
Class 10
Phase Failure Sensitivity
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
Yes (built-in)
Integrated STOP (red) / START (green) buttons
35 mm DIN rail
L1–L3 (input) / T1–T3 (output)
Supports solid, stranded, and ferrule-type conductors
IP20 (front)
–20°C to +55°C
100,000+ operations
10,000+ operations (AC-3 duty)
Auxiliary contacts (OF/SD), shunt trip, undervoltage release, enclosures
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
4–6.3A (adjustable)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV
230V / 400V / 440V / 500V / 690V AC
100 kA (230–690V)
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temperature Range (RTD Elements)
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
−40 to 180 °C (−40 to 356 °F)
Integrated STOP (red) / START (green) buttons
35 mm DIN rail
L1–L3 (input) / T1–T3 (output)
Supports solid, stranded, and ferrule-type conductors
IP20 (front)
–20°C to +55°C
100,000+ operations
10,000+ operations (AC-3 duty)
Auxiliary contacts (OF/SD), shunt trip, undervoltage release, enclosures
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Rated Service Breaking Capacity (Ics)
Magnetic Trip Setting
Thermal Trip Class
4–6.3A (adjustable)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV
230V / 400V / 440V / 500V / 690V AC
100 kA (230–690V)
100% of Icu
Fixed instantaneous magnetic release
Class 10
Phase Failure Sensitivity
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
Yes (built-in)
Integrated STOP (red) / START (green) buttons
35 mm DIN rail
L1–L3 (input) / T1–T3 (output)
Supports solid, stranded, and ferrule-type conductors
IP20 (front)
–20°C to +55°C
100,000+ operations
10,000+ operations (AC-3 duty)
Auxiliary contacts (OF/SD), shunt trip, undervoltage release, enclosures
Benefits at a Glance
Precise Motor Protection: Adjustable 4–6.3A thermal range with rapid magnetic short-circuit trip.
High Fault Capacity: 100 kA breaking performance suitable for industrial environments.
Integrated Controls: Front-mounted STOP/START buttons simplify operation and commissioning.
Compact & Universal: DIN-rail ready with broad accessory compatibility for easy panel integration.
Benefits at a Glance
Precise Motor Protection: Adjustable 4–6.3A thermal range with rapid magnetic short-circuit trip.
High Fault Capacity: 100 kA breaking performance suitable for industrial environments.
Integrated Controls: Front-mounted STOP/START buttons simplify operation and commissioning.
Compact & Universal: DIN-rail ready with broad accessory compatibility for easy panel integration.
Benefits at a Glance
Precise Motor Protection: Adjustable 4–6.3A thermal range with rapid magnetic short-circuit trip.
High Fault Capacity: 100 kA breaking performance suitable for industrial environments.
Integrated Controls: Front-mounted STOP/START buttons simplify operation and commissioning.
Compact & Universal: DIN-rail ready with broad accessory compatibility for easy panel integration.
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi

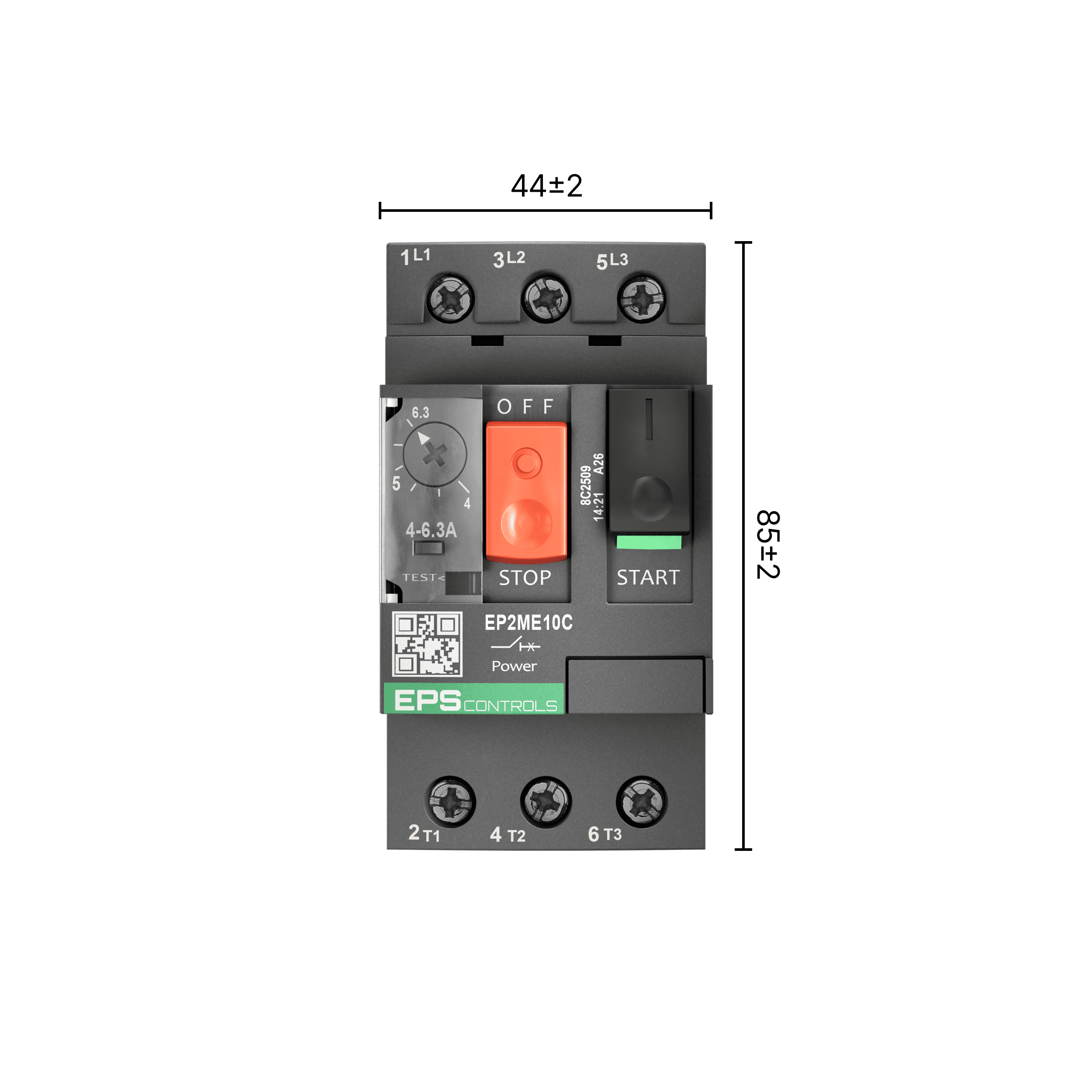

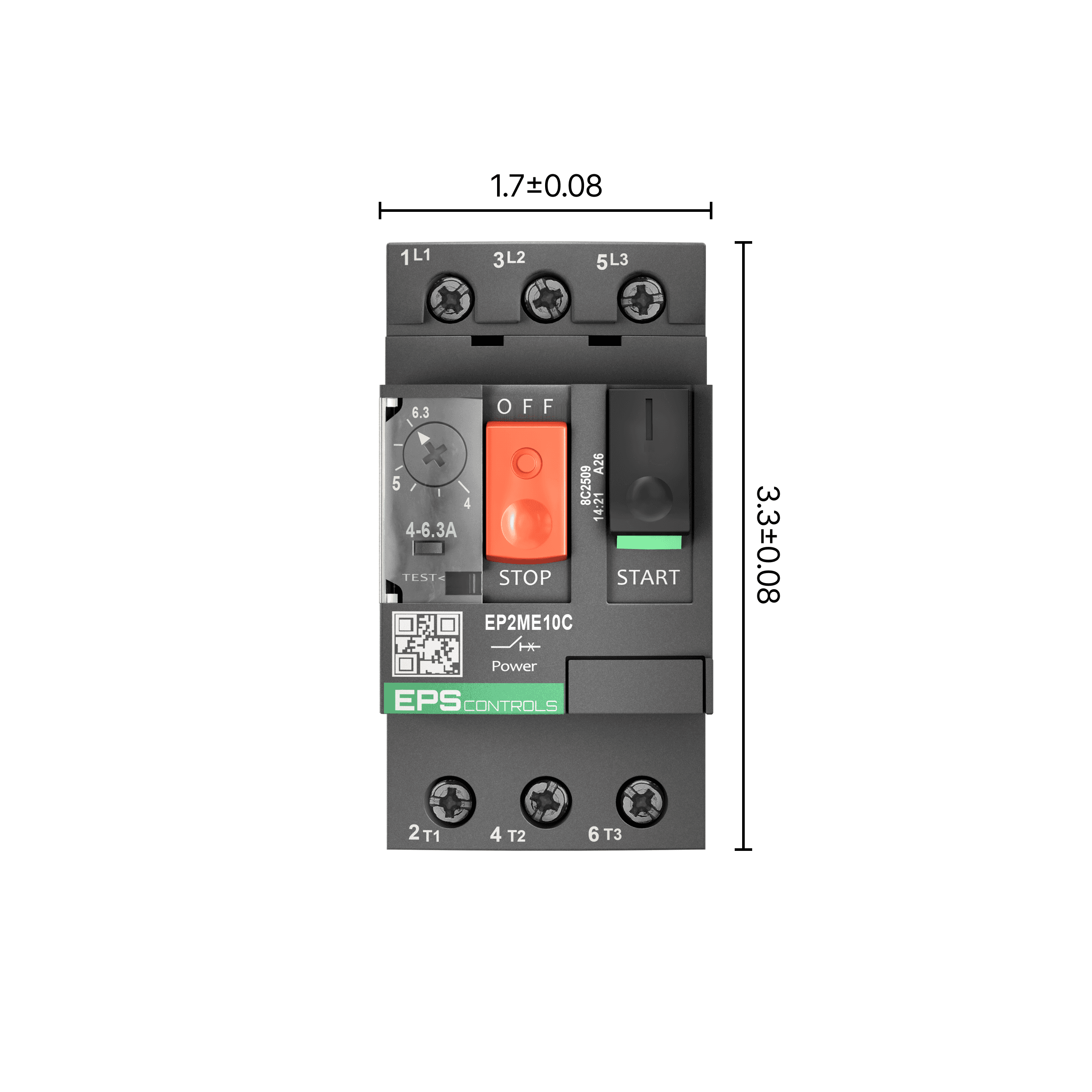

Measurements
Inches
Millimeters
4-6.3A
4-6.3A
Measurements
Inches
Millimeters
4-6.3A
4-6.3A
Measurements
Inches
Millimeters
4-6.3A
4-6.3A
Product in the Field
Images provided by real customers
Product in the Field
Images provided by real customers
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Circuit Breaker is manufactured in China and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
Each Circuit Breaker is manufactured in China and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
