Tasseron Room Humidity/Temperature Sensor (THHRAA5C)
Tasseron Room Humidity/Temperature Sensor (THHRAA5C)
Tasseron Room Humidity/Temperature Sensor (THHRAA5C)
$142
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Room Aero Humidity/Temperature (THHRAA5C) Sensor offers precise relative humidity and optional temperature measurement in an attractive, low-profile ABS enclosure. With field-selectable analog outputs (0-5V, 0-10V, or 4-20mA), high airflow design for fast response, and Quick Connect terminals, it provides reliable performance, effortless installation, and minimal drift for indoor HVAC and building automation applications.
The Tasseron Room Aero Humidity/Temperature (THHRAA5C) Sensor offers precise relative humidity and optional temperature measurement in an attractive, low-profile ABS enclosure. With field-selectable analog outputs (0-5V, 0-10V, or 4-20mA), high airflow design for fast response, and Quick Connect terminals, it provides reliable performance, effortless installation, and minimal drift for indoor HVAC and building automation applications.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Sensor Type
Repeatability
Resolution (Sensitivity)
Room Humidity/Temperature Sensor (Aero Enclosure)
Field-selectable 0–5 V, 0–10 V, or 4–20 mA; Modbus RTU (RS-485) option
8–35 V DC/AC (0–5 V); 13–35 V DC/AC (0–10 V); 10–35 V DC (4–20 mA)
Voltage mode 10–12 mA; Current mode 4–20 mA
±2 % / ±3 % (10–90 % RH); ±5 % (0–100 % RH)
0–100 % RH; 0–50 °C (32–122 °F)
0–50 °C (32–122 °F); 0–100 % RH (non-condensing)
Capacitive humidity sensor (non-condensing); optional NTC/RTD temperature
0.8 % RH @ 25 °C
0.1 % RH
Enclosure Rating
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
UL 94 HB; low-profile injection-molded ABS
ABS, UV-resistant with quick-snap cover
Direct wall mount or single-gang box; built-in level
Pt1000 IEC 751 4–20 mA loop output
N/A (indoor use)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω; Open > 1500 Ω; Fault > 22.5 mA
10 K Type 2/3; 20 K; 3 K; Pt100/1000; Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year limited warranty; insulated back included
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
Room Humidity/Temperature Sensor (Aero Enclosure)
Field-selectable 0–5 V, 0–10 V, or 4–20 mA; Modbus RTU (RS-485) option
8–35 V DC/AC (0–5 V); 13–35 V DC/AC (0–10 V); 10–35 V DC (4–20 mA)
Voltage mode 10–12 mA; Current mode 4–20 mA
±2 % / ±3 % (10–90 % RH); ±5 % (0–100 % RH)
0–100 % RH; 0–50 °C (32–122 °F)
0–50 °C (32–122 °F); 0–100 % RH (non-condensing)
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temperature Range (RTD Elements)
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
−40 to 180 °C (−40 to 356 °F)
ABS, UV-resistant with quick-snap cover
Direct wall mount or single-gang box; built-in level
Pt1000 IEC 751 4–20 mA loop output
N/A (indoor use)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω; Open > 1500 Ω; Fault > 22.5 mA
10 K Type 2/3; 20 K; 3 K; Pt100/1000; Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year limited warranty; insulated back included
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Sensor Type
Repeatability
Resolution (Sensitivity)
Room Humidity/Temperature Sensor (Aero Enclosure)
Field-selectable 0–5 V, 0–10 V, or 4–20 mA; Modbus RTU (RS-485) option
8–35 V DC/AC (0–5 V); 13–35 V DC/AC (0–10 V); 10–35 V DC (4–20 mA)
Voltage mode 10–12 mA; Current mode 4–20 mA
±2 % / ±3 % (10–90 % RH); ±5 % (0–100 % RH)
0–100 % RH; 0–50 °C (32–122 °F)
0–50 °C (32–122 °F); 0–100 % RH (non-condensing)
Capacitive humidity sensor (non-condensing); optional NTC/RTD temperature
0.8 % RH @ 25 °C
0.1 % RH
Enclosure Rating
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
UL 94 HB; low-profile injection-molded ABS
ABS, UV-resistant with quick-snap cover
Direct wall mount or single-gang box; built-in level
Pt1000 IEC 751 4–20 mA loop output
N/A (indoor use)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω; Open > 1500 Ω; Fault > 22.5 mA
10 K Type 2/3; 20 K; 3 K; Pt100/1000; Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year limited warranty; insulated back included
Benefits at a Glance
Precise indoor monitoring with ±2%, ±3%, or ±5% RH accuracy and low drift over 5 years
Sleek, low-profile Aero enclosure for seamless integration in room aesthetics
Effortless, tool-free installation with Quick Connect terminals and built-in level
Fast response and long-term reliability with high airflow design and coated elements
Benefits at a Glance
Precise indoor monitoring with ±2%, ±3%, or ±5% RH accuracy and low drift over 5 years
Sleek, low-profile Aero enclosure for seamless integration in room aesthetics
Effortless, tool-free installation with Quick Connect terminals and built-in level
Fast response and long-term reliability with high airflow design and coated elements
Benefits at a Glance
Precise indoor monitoring with ±2%, ±3%, or ±5% RH accuracy and low drift over 5 years
Sleek, low-profile Aero enclosure for seamless integration in room aesthetics
Effortless, tool-free installation with Quick Connect terminals and built-in level
Fast response and long-term reliability with high airflow design and coated elements

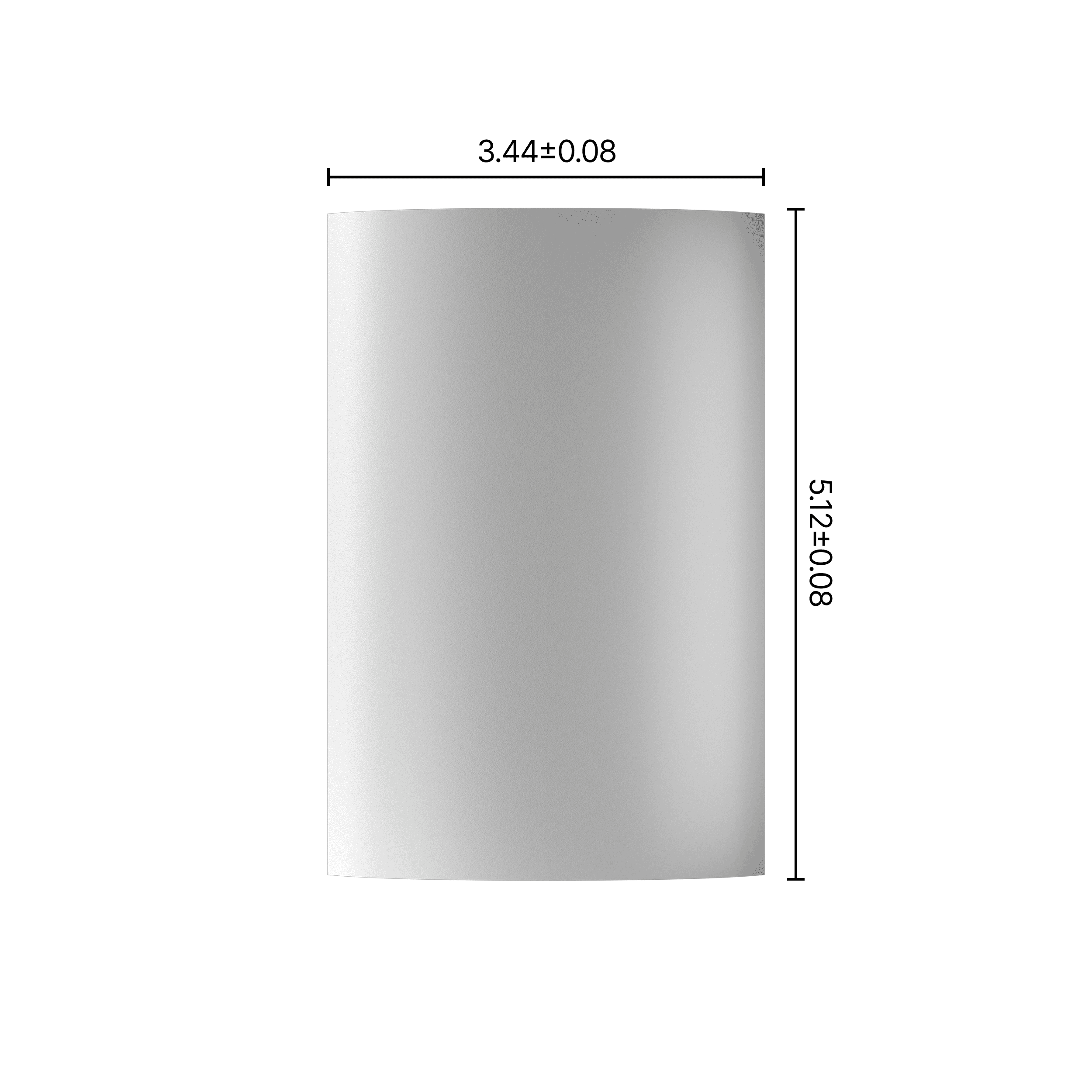

Measurements
