Tasseron Duct Mount Humidity/Temperature Sensor THHDSA5C Addison Aftermarket Part No. 0843P-0586
Tasseron Duct Mount Humidity/Temperature Sensor THHDSA5C Addison Aftermarket Part No. 0843P-0586
Tasseron Duct Mount Humidity/Temperature Sensor THHDSA5C Addison Aftermarket Part No. 0843P-0586
$185
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments

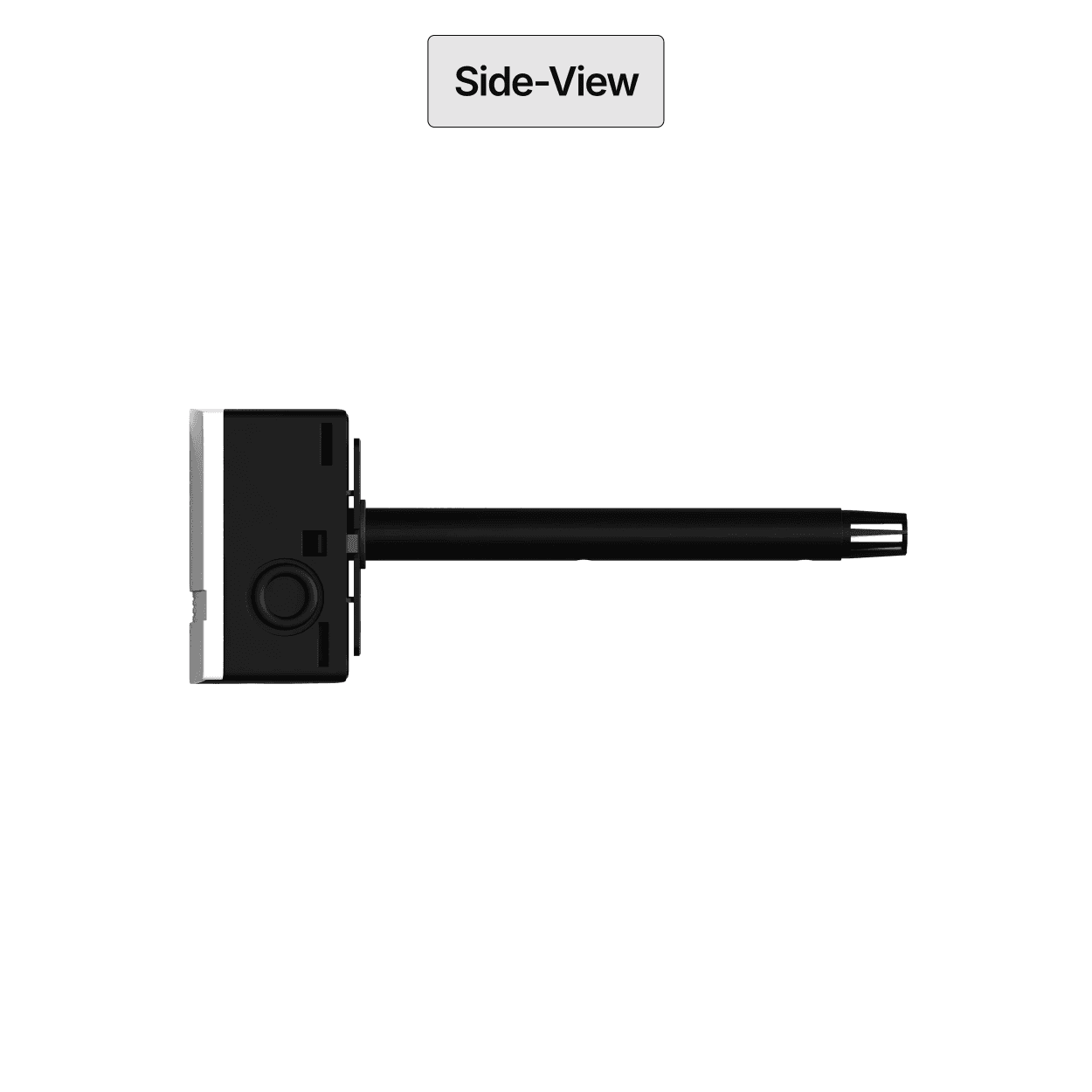

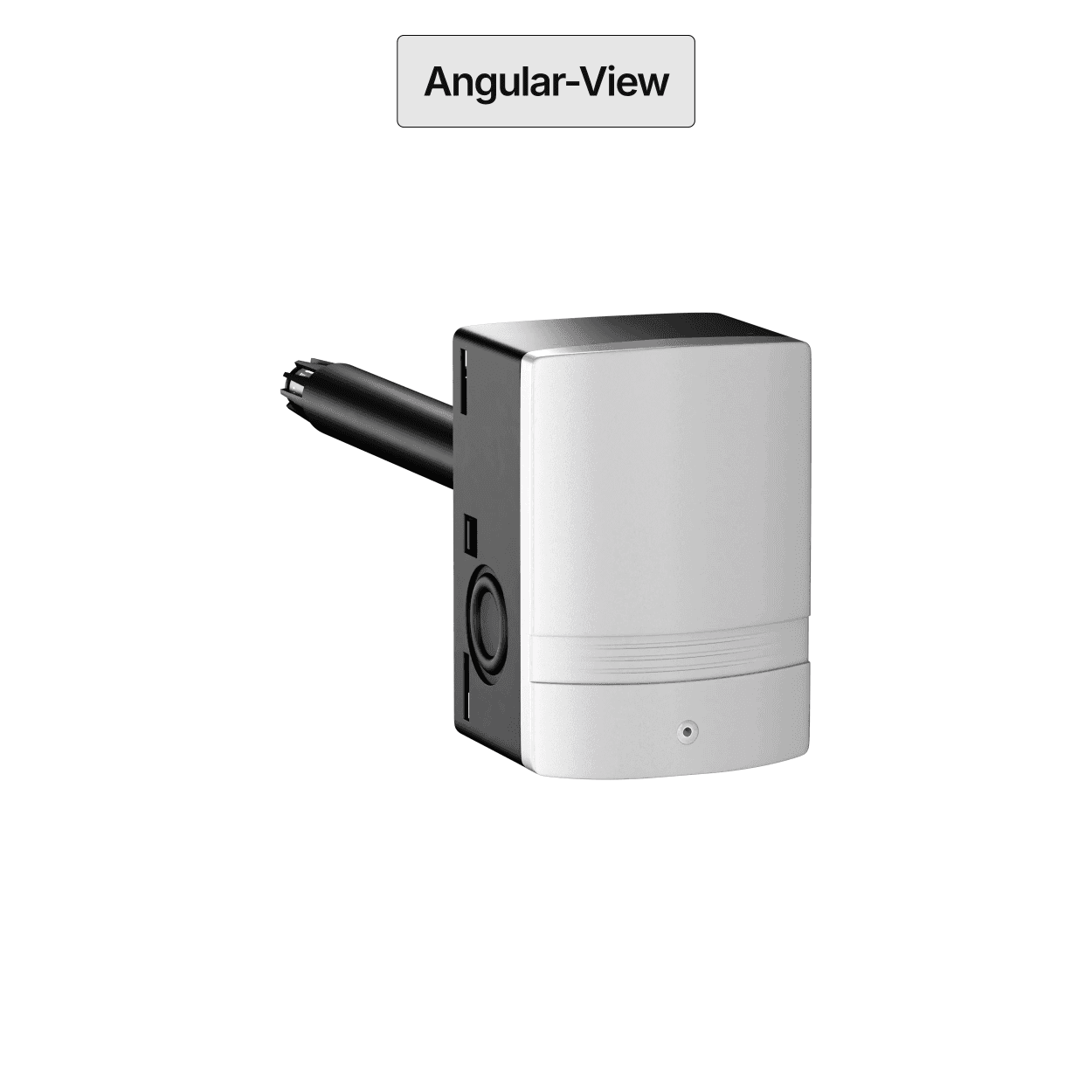

Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Duct Mount Humidity/Temperature Sensor offers high-accuracy humidity and temperature measurement in a rugged NEMA 4X/IP65 Safe Box enclosure. With field-selectable outputs, conformal-coated circuit boards, and an adjustable probe, it ensures durability, installation flexibility, and long-term stability for commercial HVAC duct applications.
The Tasseron Duct Mount Humidity/Temperature Sensor offers high-accuracy humidity and temperature measurement in a rugged NEMA 4X/IP65 Safe Box enclosure. With field-selectable outputs, conformal-coated circuit boards, and an adjustable probe, it ensures durability, installation flexibility, and long-term stability for commercial HVAC duct applications.
The Tasseron Outdoor Humidity/Temperature Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
Product Details
Device Type
Output Modes
Supply Voltage
Supply Current
RH Accuracy
RH Measurement Range
Operating Temp Range
RH Sensor Type
Repeatability
Resolution (Sensitivity)
Duct-mount RH (optional Temp) transmitter in Safe Box enclosure
Field-selectable 0–5 V, 0–10 V, or 4–20 mA via DIP switches
8–35 VDC or 10–35 VAC (depending on output mode)
Voltage mode: 32–35 mA; Current mode: 4–20 mA loop
±2% / ±3% (10–90% RH), ±5% (0–100% RH)
0–100% RH, non-condensing
−40 to 60 °C (−40 to 140 °F)
Capacitive
0.8% RH @ 25 °C
0.1% RH
Enclosure Rating
Enclosure Material
Mounting
Probe Length
Probe Material
Terminations
Filter
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
NEMA 4X / IP65, weatherproof
UV-resistant polycarbonate, UL 94 V-2
Quick-mount bracket; snap-in housing
Adjustable up to 8"
Glass-filled nylon, UL 94 HB
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Replaceable polyethylene dual filters (contamination protection)
NTC 10K-2/10K-3/20K/3K; RTD Pt100/Pt1000; Ni1000-891/Ni1000-TC5
CE, RoHS; Made in USA
1 year limited warranty; includes ½″ NPT conduit adapter
Device Type
Output Modes
Supply Voltage
Supply Current
RH Accuracy
RH Measurement Range
Operating Temp Range
RH Sensor Type
Repeatability
Resolution (Sensitivity)
Duct-mount RH (optional Temp) transmitter in Safe Box enclosure
Field-selectable 0–5 V, 0–10 V, or 4–20 mA via DIP switches
8–35 VDC or 10–35 VAC (depending on output mode)
Voltage mode: 32–35 mA; Current mode: 4–20 mA loop
±2% / ±3% (10–90% RH), ±5% (0–100% RH)
0–100% RH, non-condensing
−40 to 60 °C (−40 to 140 °F)
Capacitive
0.8% RH @ 25 °C
0.1% RH
Enclosure Rating
Enclosure Material
Mounting
Probe Length
Probe Material
Terminations
Filter
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
NEMA 4X / IP65, weatherproof
UV-resistant polycarbonate, UL 94 V-2
Quick-mount bracket; snap-in housing
Adjustable up to 8"
Glass-filled nylon, UL 94 HB
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Replaceable polyethylene dual filters (contamination protection)
NTC 10K-2/10K-3/20K/3K; RTD Pt100/Pt1000; Ni1000-891/Ni1000-TC5
CE, RoHS; Made in USA
1 year limited warranty; includes ½″ NPT conduit adapter
Device Type
Output Modes
Supply Voltage
Supply Current
RH Accuracy
RH Measurement Range
Operating Temp Range
RH Sensor Type
Repeatability
Resolution (Sensitivity)
Duct-mount RH (optional Temp) transmitter in Safe Box enclosure
Field-selectable 0–5 V, 0–10 V, or 4–20 mA via DIP switches
8–35 VDC or 10–35 VAC (depending on output mode)
Voltage mode: 32–35 mA; Current mode: 4–20 mA loop
±2% / ±3% (10–90% RH), ±5% (0–100% RH)
0–100% RH, non-condensing
−40 to 60 °C (−40 to 140 °F)
Capacitive
0.8% RH @ 25 °C
0.1% RH
Enclosure Rating
Enclosure Material
Mounting
Probe Length
Probe Material
Terminations
Filter
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
NEMA 4X / IP65, weatherproof
UV-resistant polycarbonate, UL 94 V-2
Quick-mount bracket; snap-in housing
Adjustable up to 8"
Glass-filled nylon, UL 94 HB
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Replaceable polyethylene dual filters (contamination protection)
NTC 10K-2/10K-3/20K/3K; RTD Pt100/Pt1000; Ni1000-891/Ni1000-TC5
CE, RoHS; Made in USA
1 year limited warranty; includes ½″ NPT conduit adapter
Benefits at a Glance
Precise monitoring with ±2%, ±3%, or ±5% RH accuracy options
Weatherproof NEMA 4X / IP65 Safe Box enclosure for reliable protection
Quick installation with hinged cover, adjustable probe, and tool-free terminals
Long-term stability with dual filters and conformal-coated circuit boards
Benefits at a Glance
Precise monitoring with ±2%, ±3%, or ±5% RH accuracy options
Weatherproof NEMA 4X / IP65 Safe Box enclosure for reliable protection
Quick installation with hinged cover, adjustable probe, and tool-free terminals
Long-term stability with dual filters and conformal-coated circuit boards
Benefits at a Glance
Precise monitoring with ±2%, ±3%, or ±5% RH accuracy options
Weatherproof NEMA 4X / IP65 Safe Box enclosure for reliable protection
Quick installation with hinged cover, adjustable probe, and tool-free terminals
Long-term stability with dual filters and conformal-coated circuit boards
Measurements in Inches

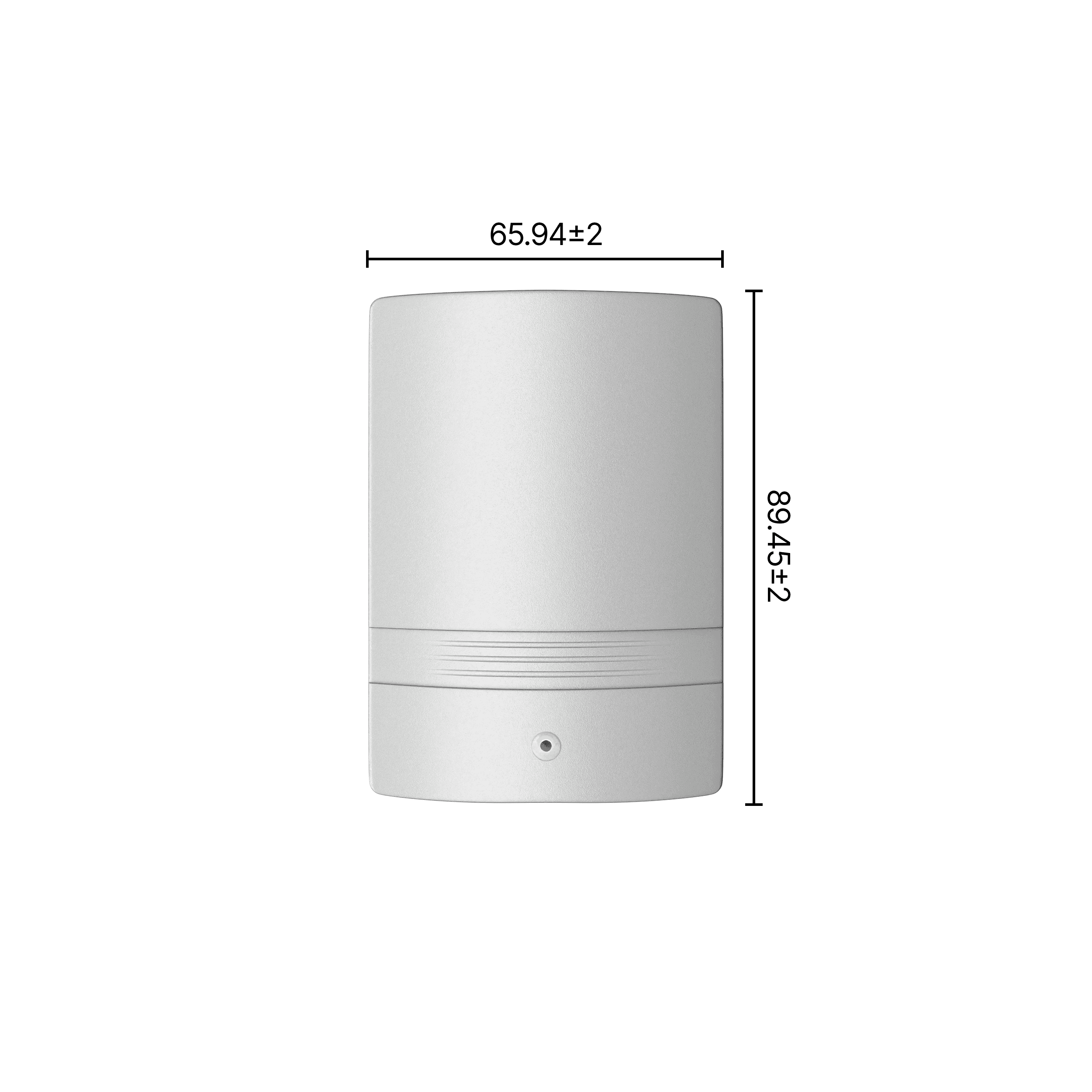

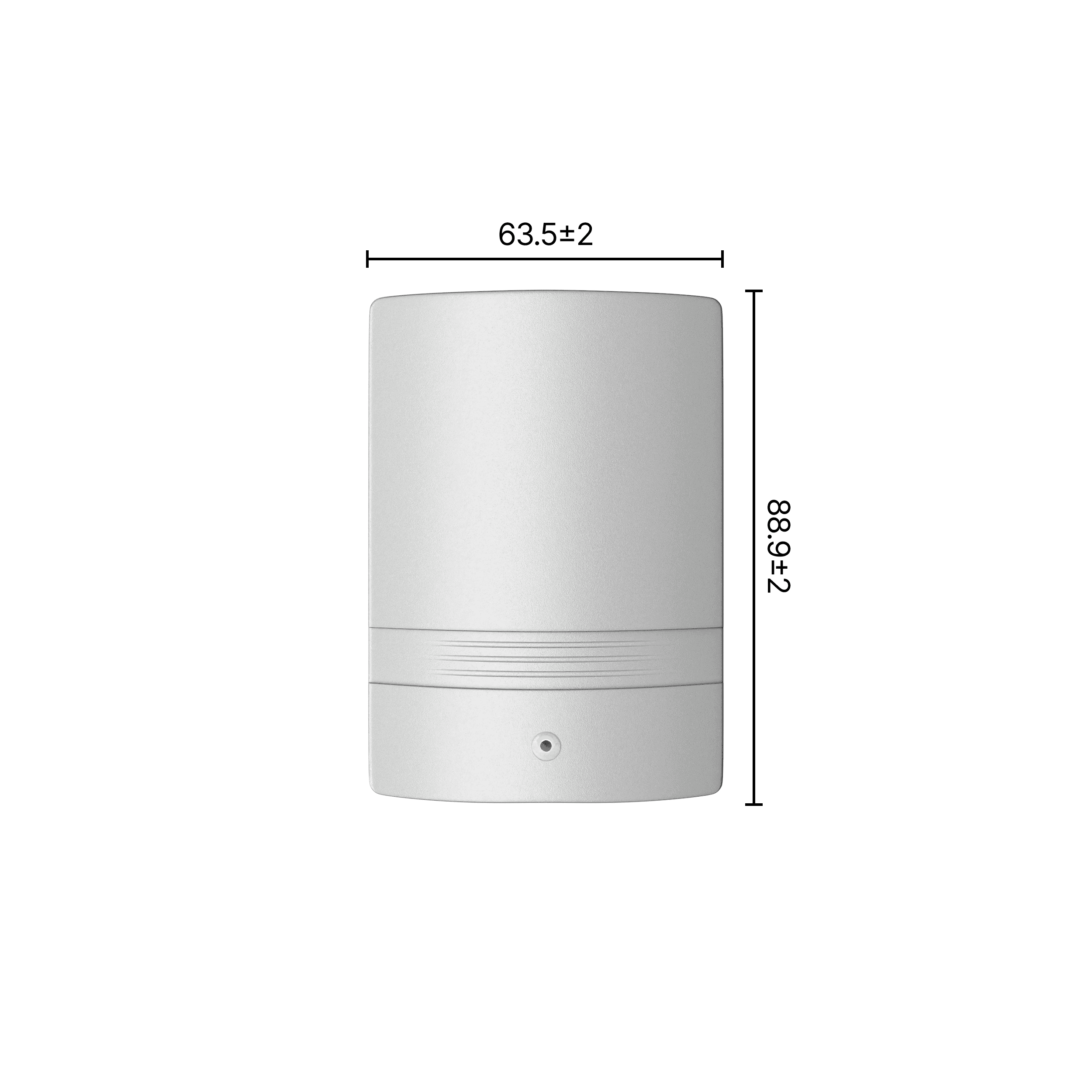

Measurements in Millimeters
Measurements in Inches
Measurements in Millimeters
Measurements in Inches
Measurements in Millimeters
Each Tasseron Duct Mount Humidity/Temperature Sensor is manufactured in the USA and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
Each Tasseron Duct Mount Humidity/Temperature Sensor is manufactured in the USA and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
