Damper Actuator Rotary LFZ0624-MF
Damper Actuator Rotary LFZ0624-MF
Damper Actuator Rotary LFZ0624-MF
$230
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The LFZ Standard Rotary Actuator provides precise, efficient control for HVAC air and water systems. With torque ranges from 2–40 Nm and multiple signal options—including ON/OFF and proportional 0–10 V / 4–20 mA—the LFZ series delivers versatile, low-noise, long-life performance. IP54 protection, manual override, and optional auxiliary switches make it a robust choice for modern automation applications.
The LFZ Standard Rotary Actuator provides precise, efficient control for HVAC air and water systems. With torque ranges from 2–40 Nm and multiple signal options—including ON/OFF and proportional 0–10 V / 4–20 mA—the LFZ series delivers versatile, low-noise, long-life performance. IP54 protection, manual override, and optional auxiliary switches make it a robust choice for modern automation applications.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Torque Options
Power Supply Options
Running Time Range
Control Signal
Auxiliary Switches
Rotation Direction
Nominal/Max Angle
Manual Adjustment
Noise Level
Protection Grade
2, 4, 6, 8, 16, 24, 32, 40 Nm
24V AC/DC or 230V AC (varies by model)
20–220 seconds depending on torque/model
ON-OFF control or 0(2)–10 V / 4–20 mA proportional signals
One or two optional switches (KF/MF series)
Selectable via DIP switch
90° / 95°
Manual operation available via disengagement button
46 dB(A) at 1 meter
IP54
Ambient Operating Temperature
Storage Temperature
Humidity Resistance
Wire Size
Terminal Specification
Suitable Damper Area
Position Indication
Electrical Grade
Minimum Shaft Length
Weight
–20°C to +50°C
–20°C to +50°C
95% RH, non-condensing (EN 60730-1)
0.5 mm²
Max 2 mm²
0.3 m² (2 Nm) to 5.2 m² (32 Nm) depending on model
Mechanical rotation-angle display
Class III (low voltage) / Class II (double insulation)
> 50 mm
< 1.3 kg (varies by torque)
Torque Options
Power Supply Options
Running Time Range
Control Signal
Auxiliary Switches
Rotation Direction
Nominal/Max Angle
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
2, 4, 6, 8, 16, 24, 32, 40 Nm
24V AC/DC or 230V AC (varies by model)
20–220 seconds depending on torque/model
ON-OFF control or 0(2)–10 V / 4–20 mA proportional signals
One or two optional switches (KF/MF series)
Selectable via DIP switch
90° / 95°
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temperature Range (RTD Elements)
Storage Temperature
Humidity Resistance
Wire Size
Terminal Specification
Suitable Damper Area
Position Indication
Electrical Grade
Minimum Shaft Length
Weight
−40 to 180 °C (−40 to 356 °F)
–20°C to +50°C
95% RH, non-condensing (EN 60730-1)
0.5 mm²
Max 2 mm²
0.3 m² (2 Nm) to 5.2 m² (32 Nm) depending on model
Mechanical rotation-angle display
Class III (low voltage) / Class II (double insulation)
> 50 mm
< 1.3 kg (varies by torque)
Torque Options
Power Supply Options
Running Time Range
Control Signal
Auxiliary Switches
Rotation Direction
Nominal/Max Angle
Manual Adjustment
Noise Level
Protection Grade
2, 4, 6, 8, 16, 24, 32, 40 Nm
24V AC/DC or 230V AC (varies by model)
20–220 seconds depending on torque/model
ON-OFF control or 0(2)–10 V / 4–20 mA proportional signals
One or two optional switches (KF/MF series)
Selectable via DIP switch
90° / 95°
Manual operation available via disengagement button
46 dB(A) at 1 meter
IP54
Ambient Operating Temperature
Storage Temperature
Humidity Resistance
Wire Size
Terminal Specification
Suitable Damper Area
Position Indication
Electrical Grade
Minimum Shaft Length
Weight
–20°C to +50°C
–20°C to +50°C
95% RH, non-condensing (EN 60730-1)
0.5 mm²
Max 2 mm²
0.3 m² (2 Nm) to 5.2 m² (32 Nm) depending on model
Mechanical rotation-angle display
Class III (low voltage) / Class II (double insulation)
> 50 mm
< 1.3 kg (varies by torque)
Benefits at a Glance
Wide Torque Range: Suitable for small to large dampers from 0.3 to 5.2 m².
Versatile Control: Supports ON-OFF and proportional control signals.
Reliable Performance: Long-life motor with stable, low-noise operation.
Flexible Configuration: Optional auxiliary switches and DIP-switch direction selection.
Benefits at a Glance
Wide Torque Range: Suitable for small to large dampers from 0.3 to 5.2 m².
Versatile Control: Supports ON-OFF and proportional control signals.
Reliable Performance: Long-life motor with stable, low-noise operation.
Flexible Configuration: Optional auxiliary switches and DIP-switch direction selection.
Benefits at a Glance
Wide Torque Range: Suitable for small to large dampers from 0.3 to 5.2 m².
Versatile Control: Supports ON-OFF and proportional control signals.
Reliable Performance: Long-life motor with stable, low-noise operation.
Flexible Configuration: Optional auxiliary switches and DIP-switch direction selection.
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi

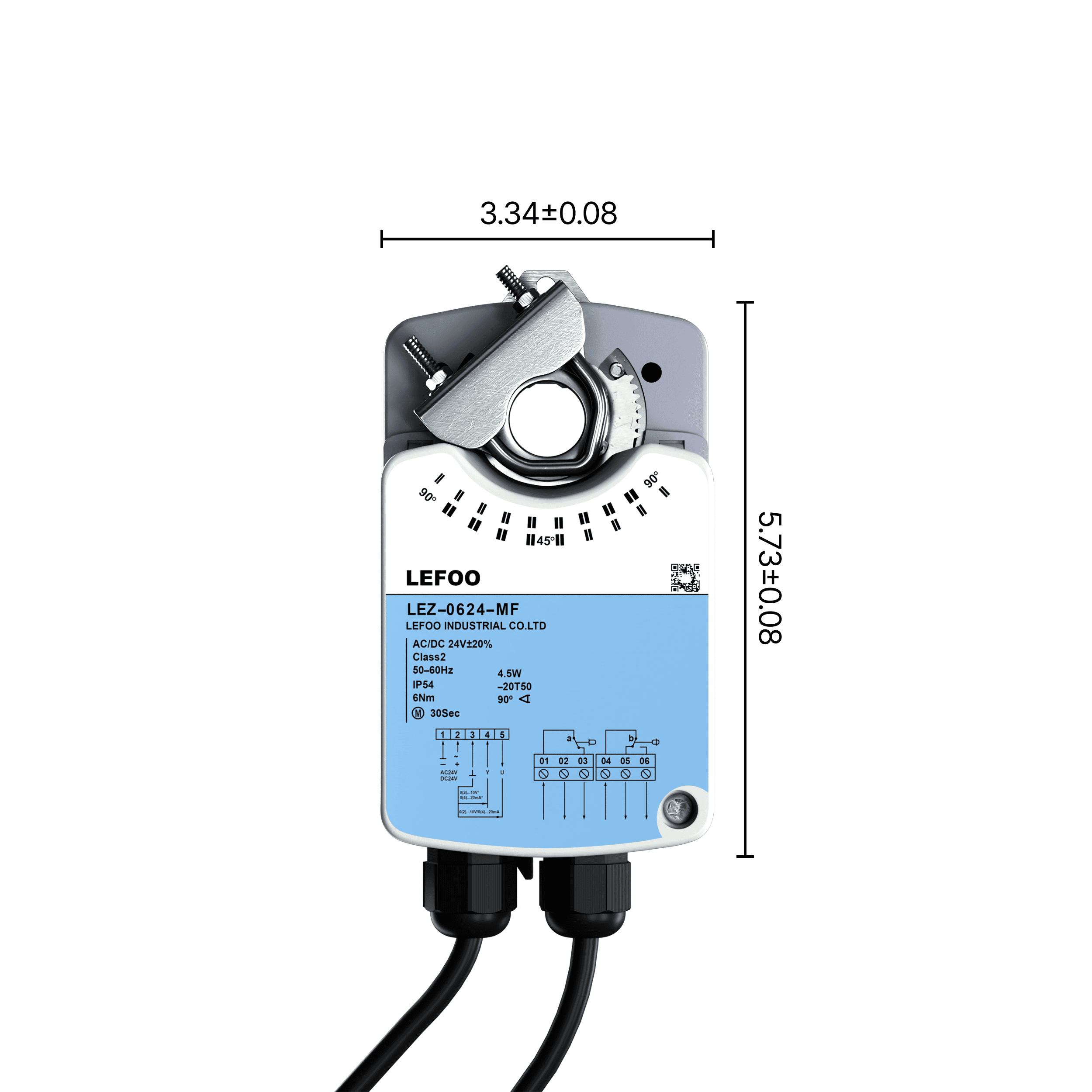

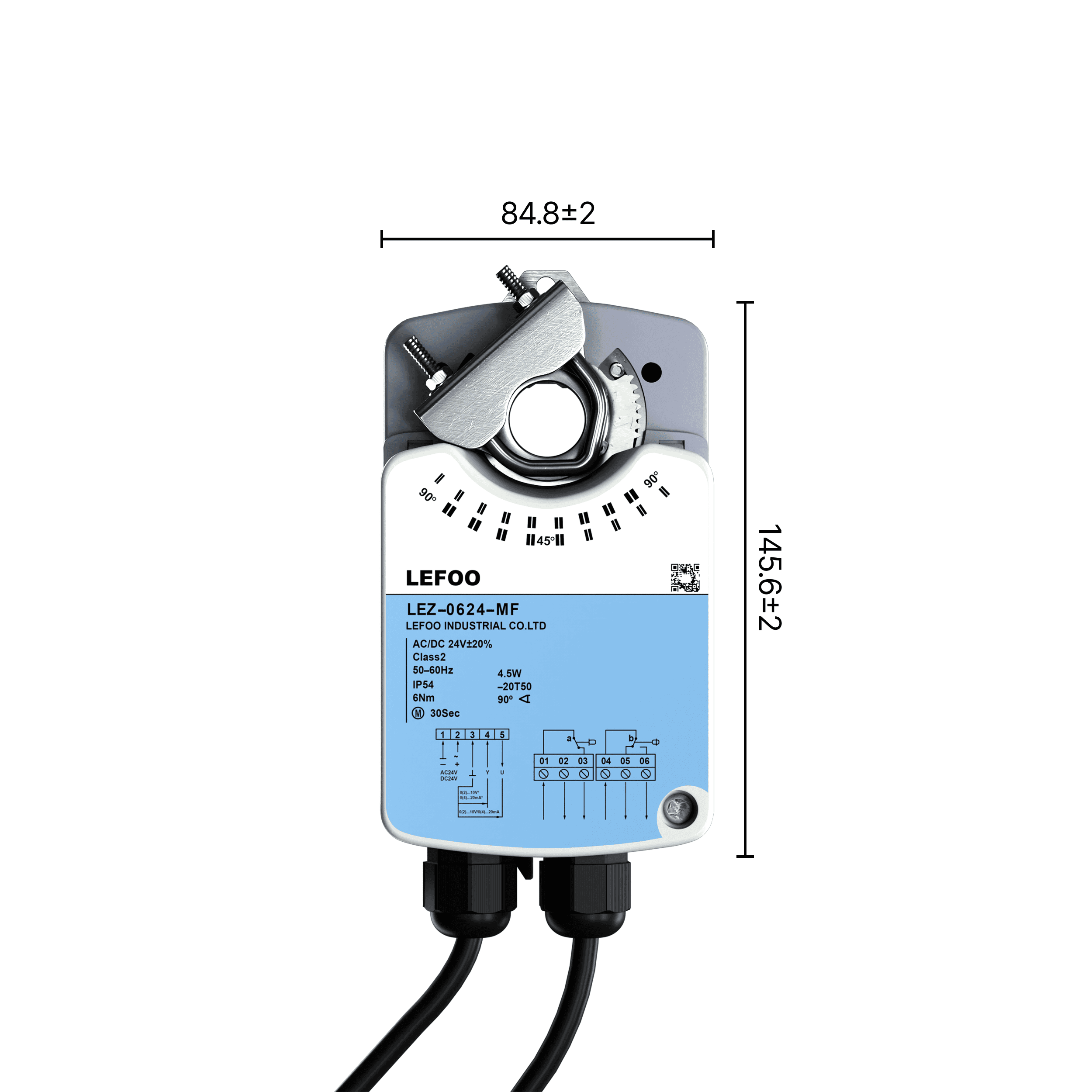

Measurements
Inches
Millimeters
Standard Rotary Actuator
Standard Rotary Actuator
Measurements
Inches
Millimeters
Standard Rotary Actuator
Standard Rotary Actuator
Measurements
Inches
Millimeters
Standard Rotary Actuator
Standard Rotary Actuator
Product in the Field
Images provided by real customers
Product in the Field
Images provided by real customers
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Actuator is manufactured in China and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
Each Actuator is manufactured in China and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
