EBUS Vertical Outside Air Temp/RH Sensor - WattMaster OE265-16-G / AAON ASM01838
EBUS Vertical Outside Air Temp/RH Sensor - WattMaster OE265-16-G / AAON ASM01838
EBUS Vertical Outside Air Temp/RH Sensor - WattMaster OE265-16-G / AAON ASM01838
$435
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.

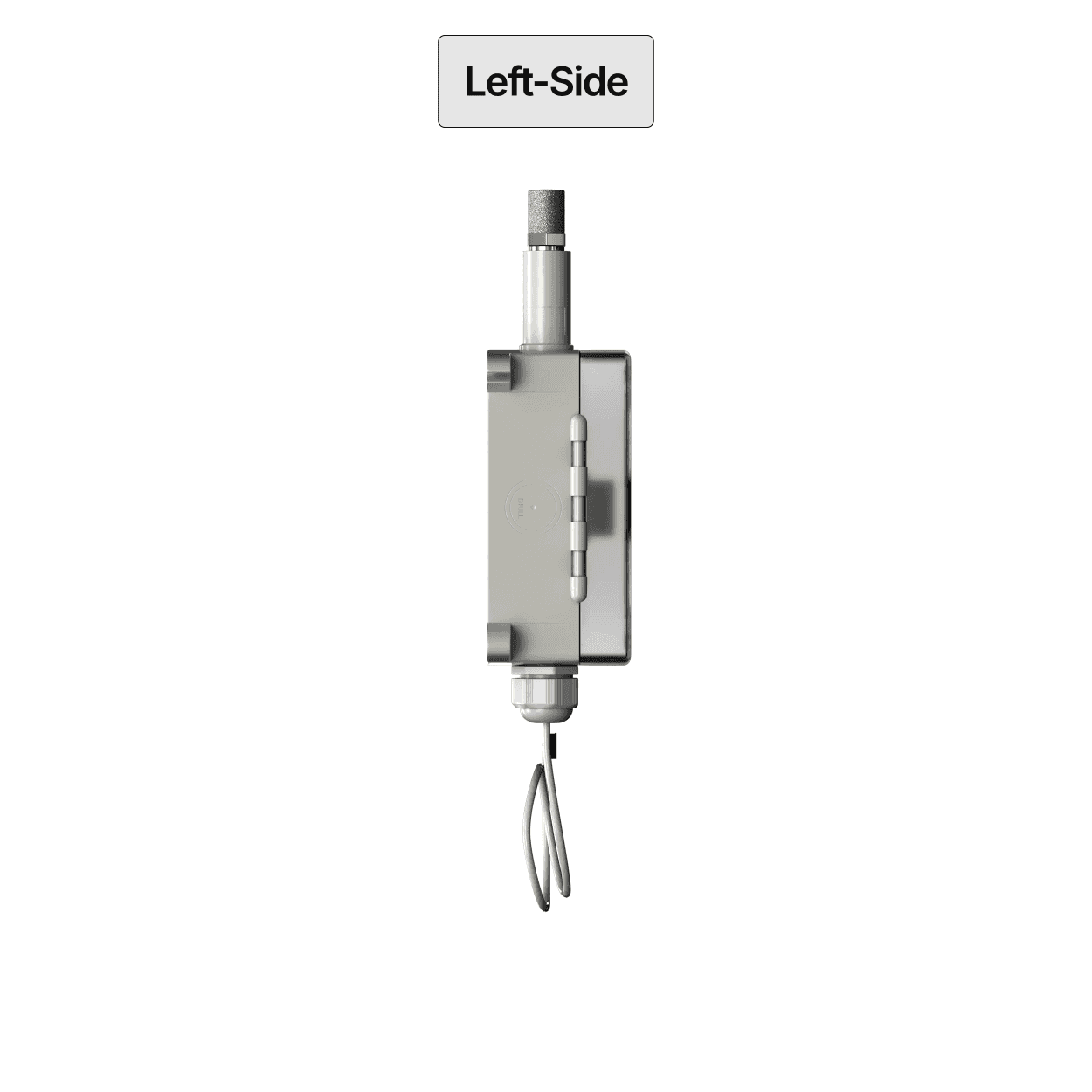

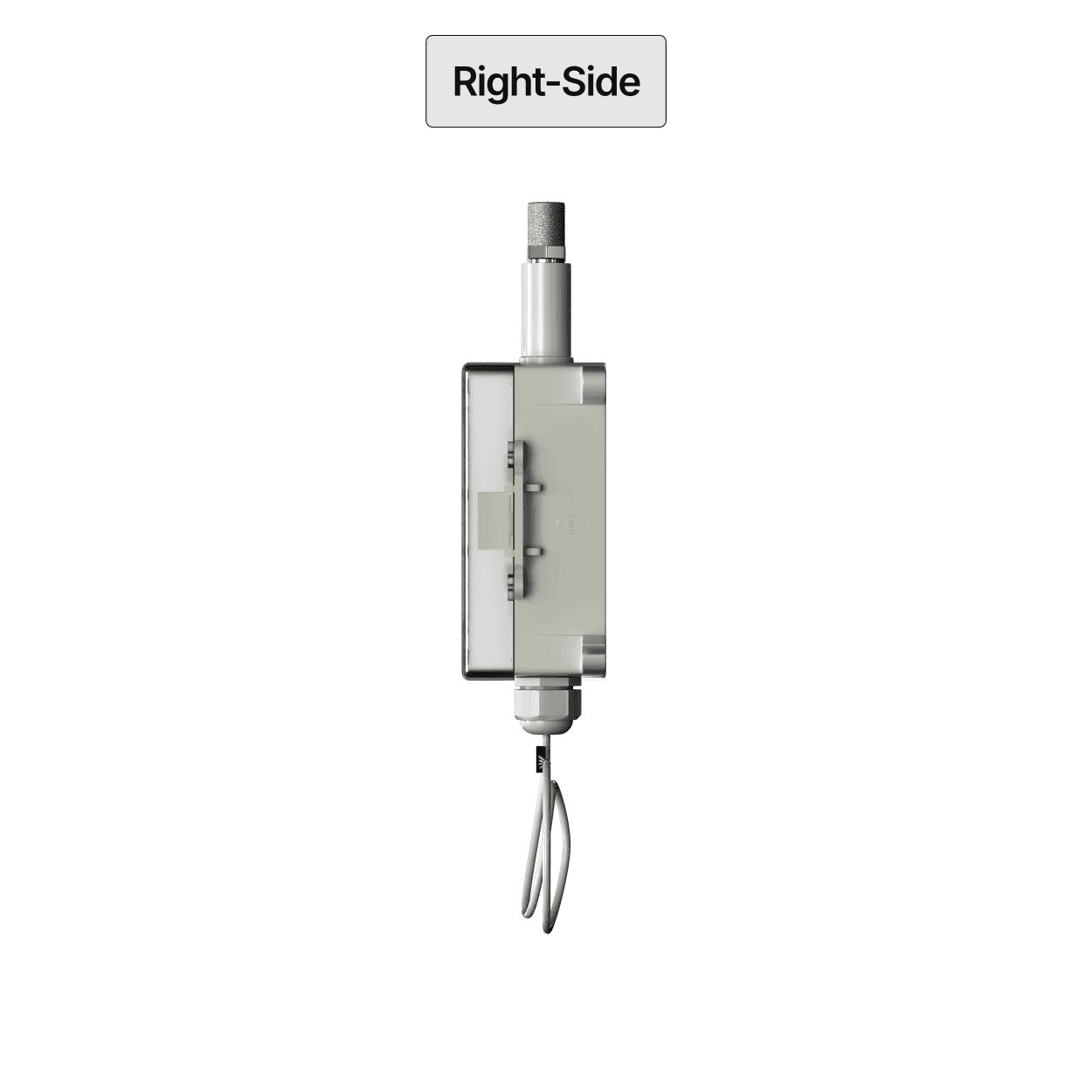

The EBUS Vertical Outside Air Temp/RH Sensor delivers precise outdoor air temperature and humidity data with a vertical mount configuration. Designed for AAON controllers, it enables accurate economizer and dewpoint control while withstanding extreme environmental conditions, making it a dependable choice for long-term rooftop and outdoor installations.
The EBUS Vertical Outside Air Temp/RH Sensor delivers precise outdoor air temperature and humidity data with a vertical mount configuration. Designed for AAON controllers, it enables accurate economizer and dewpoint control while withstanding extreme environmental conditions, making it a dependable choice for long-term rooftop and outdoor installations.
Product Details
Device Type
Manufacturer / Model Number
AAON Part Number
Sensor Element Type
Accuracy – RH
Accuracy – Temp
Measurement Range – RH
Measurement Range – Temp
Output / Communication
Mounting Orientation
Vertical Outdoor Air Temperature & Humidity Sensor
OE265-16-G
ASM01838
Digital capacitive sensing device
±3% RH
±0.8 °F
0–100%
−40 °F to 185 °F
E-BUS
Vertical, upright, outdoor air stream
Cable / Connector
Enclosure Type
Ambient Temperature Limits
Weight
Typical Applications
Installation Caution
Operating Environment
Protection
Warranty
Origin

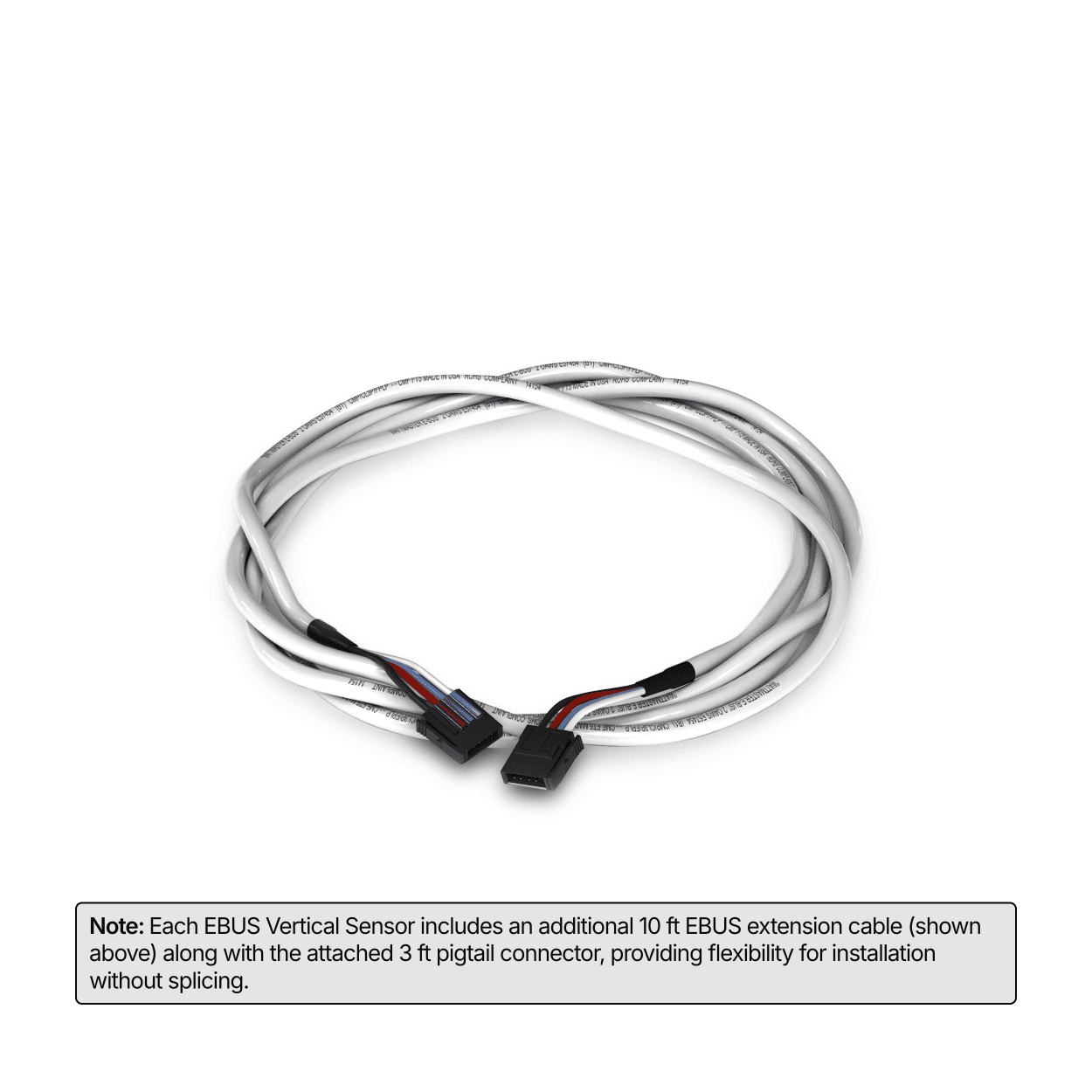

Attached 3 ft cable with female connector + 10 ft EBUS cable included
Weather-resistant housing
−40 °F to 185 °F
2.3 oz
Economizer wetbulb/dewpoint control, makeup air dehumidification
Must be shaded, not exposed to direct sunlight
Outdoor, protected from direct weather
Rain-tight when installed per instructions
1 year
Made in USA
Device Type
Manufacturer / Model Number
AAON Part Number
Sensor Element Type
Accuracy – RH
Accuracy – Temp
Measurement Range – RH
Measurement Range – Temp
Output / Communication
Mounting Orientation
Vertical Outdoor Air Temperature & Humidity Sensor
OE265-16-G
ASM01838
Digital capacitive sensing device
±3% RH
±0.8 °F
0–100%
−40 °F to 185 °F
E-BUS
Vertical, upright, outdoor air stream
Cable / Connector
Enclosure Type
Ambient Temperature Limits
Weight
Typical Applications
Installation Caution
Operating Environment
Protection
Warranty
Origin
Attached 3 ft cable with female connector + 10 ft EBUS cable included
Weather-resistant housing
−40 °F to 185 °F
2.3 oz
Economizer wetbulb/dewpoint control, makeup air dehumidification
Must be shaded, not exposed to direct sunlight
Outdoor, protected from direct weather
Rain-tight when installed per instructions
1 year
Made in USA
Device Type
Manufacturer / Model Number
AAON Part Number
Sensor Element Type
Accuracy – RH
Accuracy – Temp
Measurement Range – RH
Measurement Range – Temp
Output / Communication
Mounting Orientation
Vertical Outdoor Air Temperature & Humidity Sensor
OE265-16-G
ASM01838
Digital capacitive sensing device
±3% RH
±0.8 °F
0–100%
−40 °F to 185 °F
E-BUS
Vertical, upright, outdoor air stream
Cable / Connector
Enclosure Type
Ambient Temperature Limits
Weight
Typical Applications
Installation Caution
Operating Environment
Protection
Warranty
Origin
Attached 3 ft cable with female connector + 10 ft EBUS cable included
Weather-resistant housing
−40 °F to 185 °F
2.3 oz
Economizer wetbulb/dewpoint control, makeup air dehumidification
Must be shaded, not exposed to direct sunlight
Outdoor, protected from direct weather
Rain-tight when installed per instructions
1 year
Made in USA
Benefits at a Glance
Premium precision engineered for superior pressure measurement
Robust construction designed for extended operational lifespan
Seamless integration—direct replacement for Addison 0844P-0163
Fast shipping from Miami, ready when you are
Benefits at a Glance
Premium precision engineered for superior pressure measurement
Robust construction designed for extended operational lifespan
Seamless integration—direct replacement for Addison 0844P-0163
Fast shipping from Miami, ready when you are
Benefits at a Glance
Premium precision engineered for superior pressure measurement
Robust construction designed for extended operational lifespan
Seamless integration—direct replacement for Addison 0844P-0163
Fast shipping from Miami, ready when you are
Measurements in Inches
Measurements in Millimeters
Measurements in Inches
Measurements in Millimeters
Measurements in Inches
Measurements in Millimeters
Each EBUS Vertical Sensor is factory tested and calibrated, manufactured in the USA, and engineered for lasting performance in extreme outdoor conditions.
Each EBUS Vertical Sensor is factory tested and calibrated, manufactured in the USA, and engineered for lasting performance in extreme outdoor conditions.
