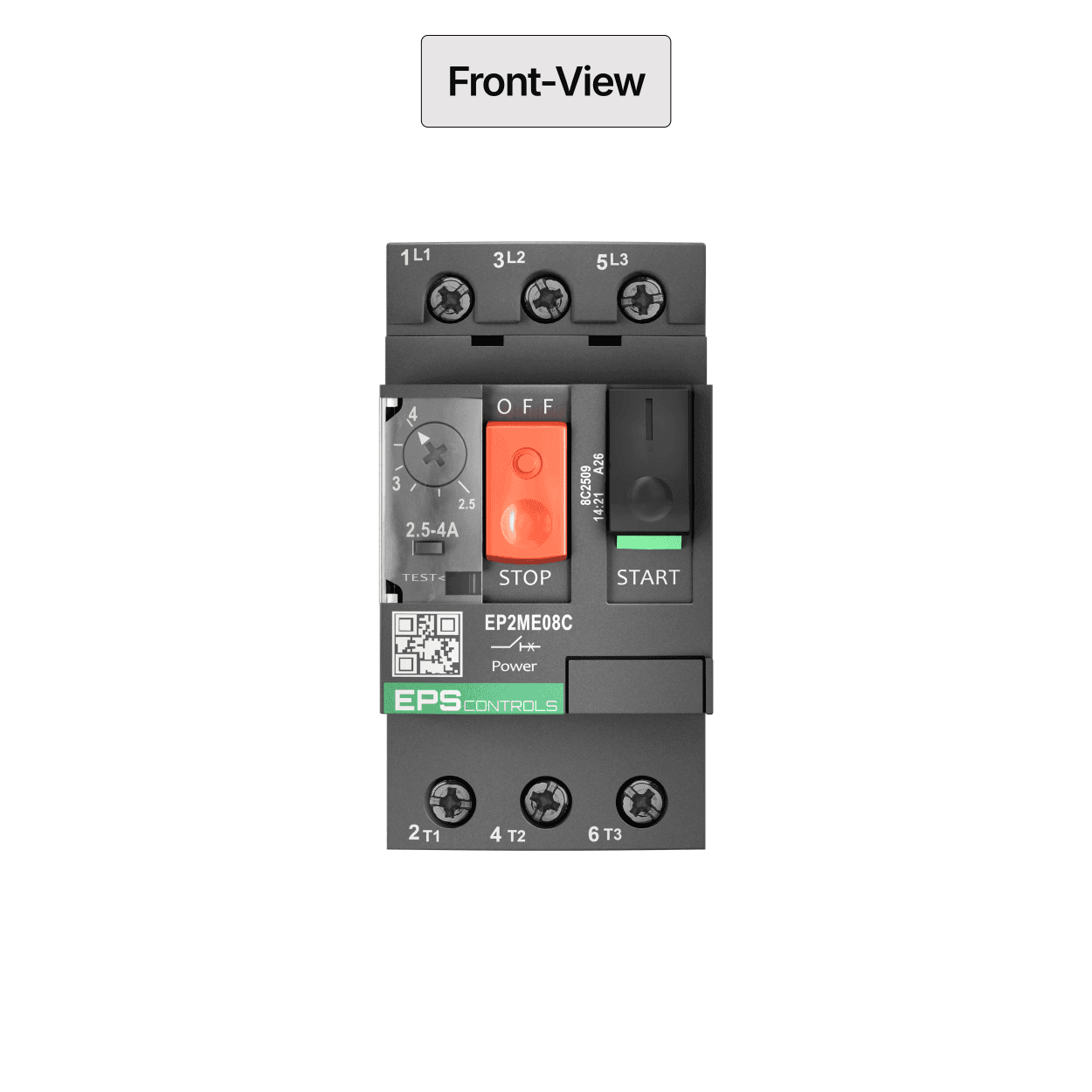

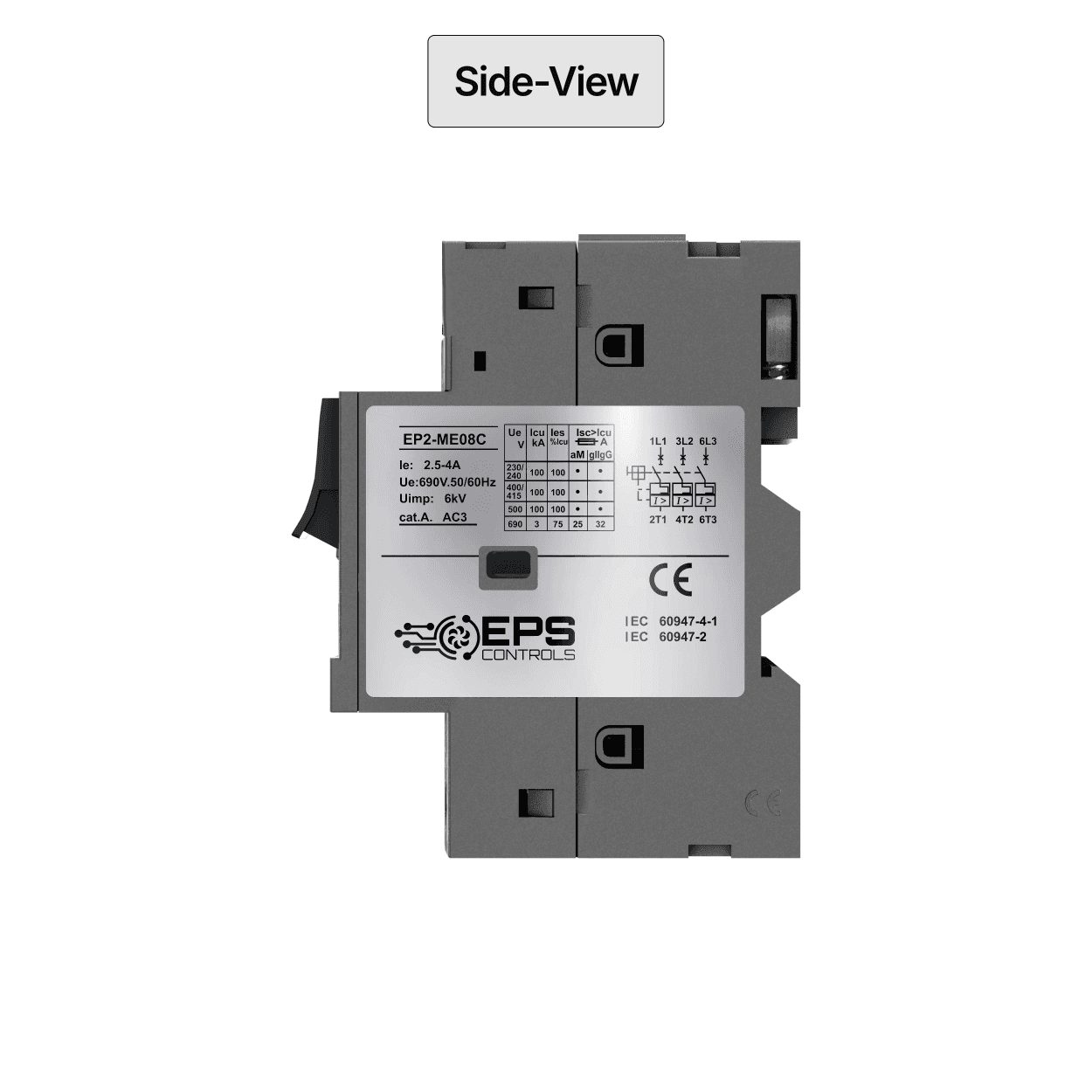

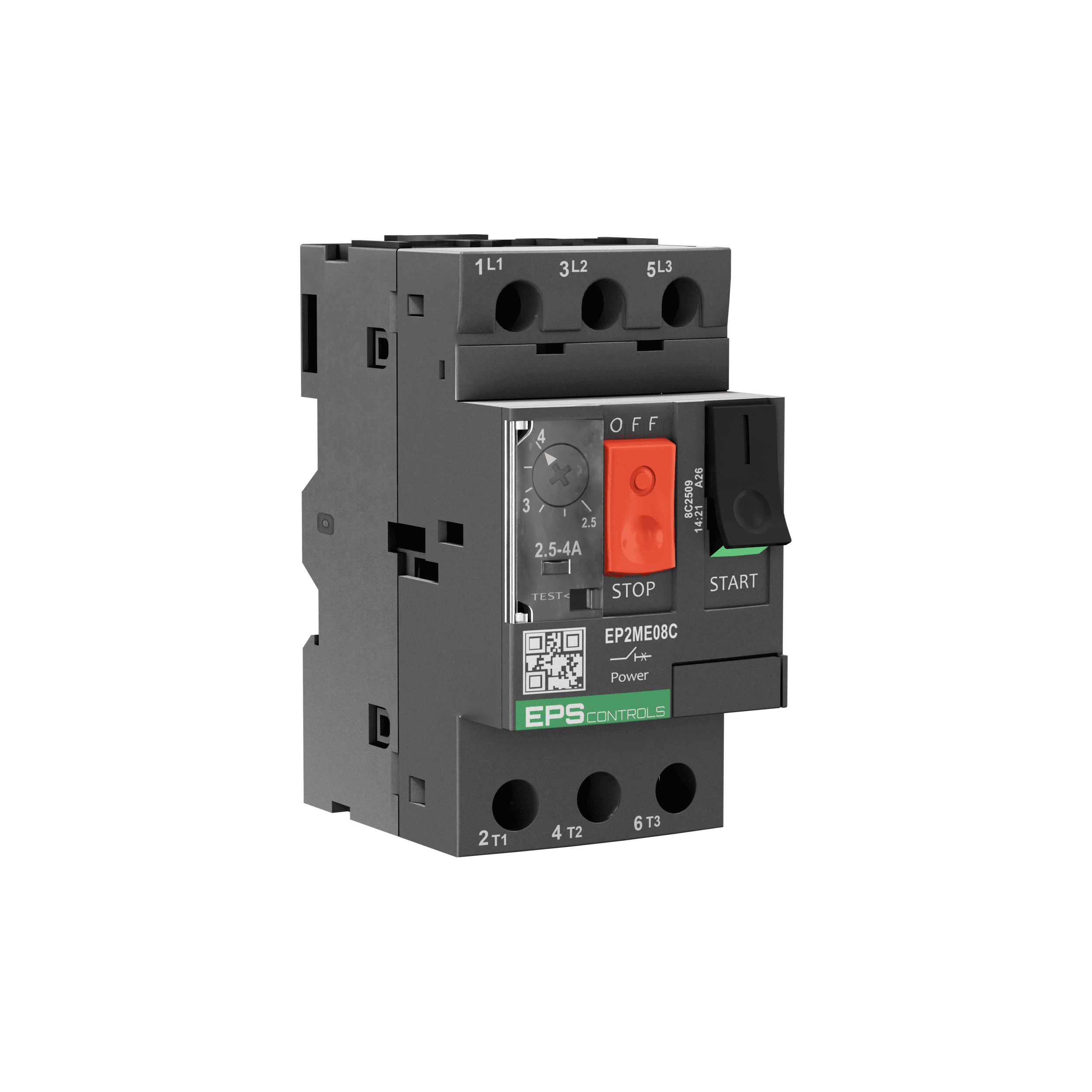

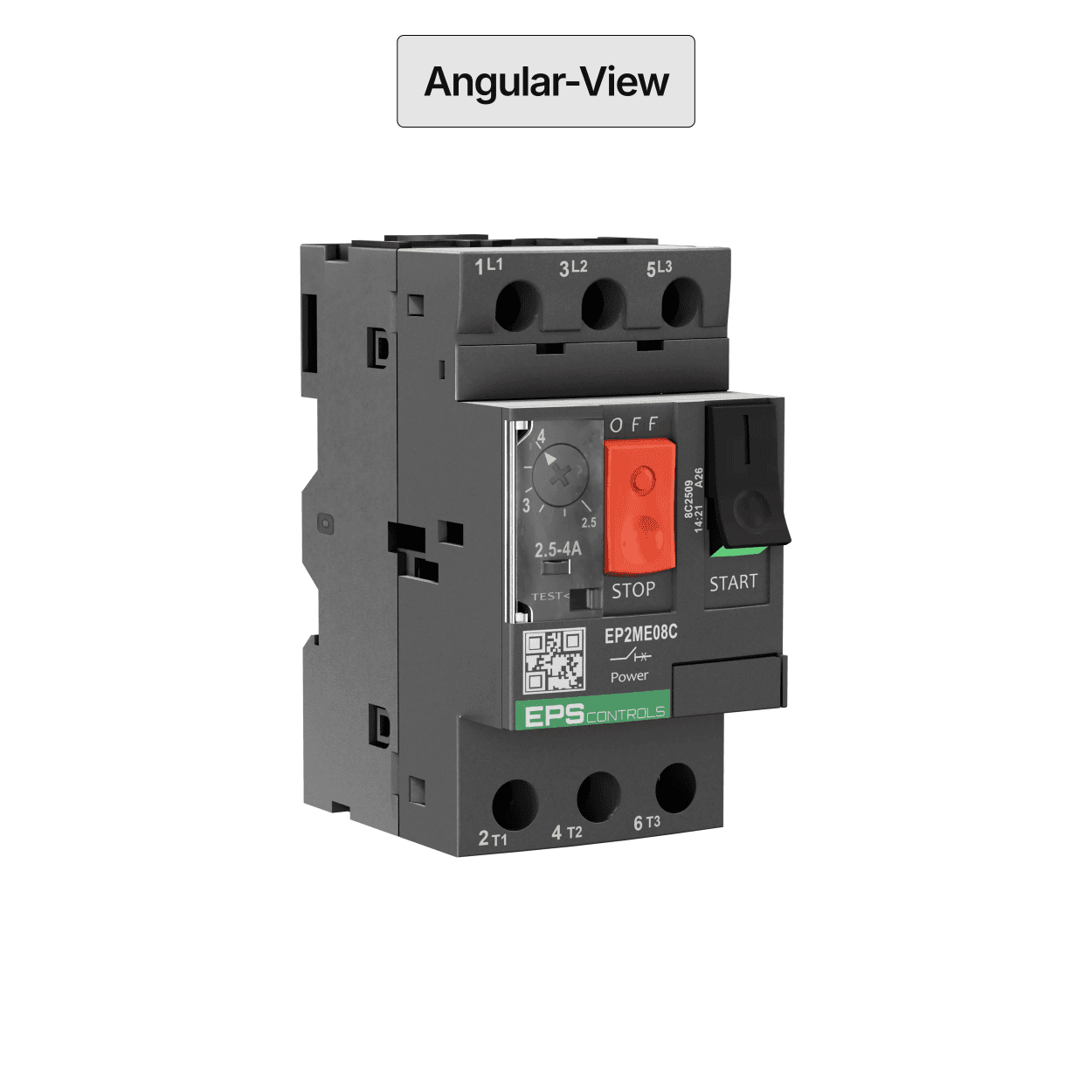

Circuit Breaker - 2.5-4A - ME08C
Circuit Breaker - 2.5-4A - ME08C
Circuit Breaker - 2.5-4A - ME08C
$165
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Scroll to the bottom to view our other sizes.
Scroll to the bottom to view our other sizes.
Scroll to the bottom to view our other sizes.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The EP2ME08C is a compact thermal-magnetic motor protection circuit breaker designed for reliable overload, short-circuit, and phase-failure protection for motors in the 2.5–4A range. With integrated STOP/START pushbuttons, adjustable thermal release, and true Type-C magnetic protection, it delivers robust performance in a small footprint. Fully compliant with IEC 60947-2 and IEC 60947-4-1, it is ideal for direct-on-line motor control, HVAC equipment, pumps, fans, and automation panels.
The EP2ME08C is a compact thermal-magnetic motor protection circuit breaker designed for reliable overload, short-circuit, and phase-failure protection for motors in the 2.5–4A range. With integrated STOP/START pushbuttons, adjustable thermal release, and true Type-C magnetic protection, it delivers robust performance in a small footprint. Fully compliant with IEC 60947-2 and IEC 60947-4-1, it is ideal for direct-on-line motor control, HVAC equipment, pumps, fans, and automation panels.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Rated Service Breaking Capacity (Ics)
Magnetic Trip Setting
Thermal Trip Class
2.5–4A (adjustable dial)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV (per IEC 60947-2 typical for GV2-type breakers)
230V / 400V / 440V / 500V / 690V AC
100 kA across 230–690V ranges
100% of Icu across all voltages (2.5–4A range)
Fixed high-speed magnetic release (≈13×In typical GV2 spec)
Class 10 overload protection
Phase Failure Sensitivity
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
Yes – built-in (GV2 standard feature)
Integrated STOP (red) / START (green) pushbuttons
35 mm DIN-rail
3-pole input (L1, L2, L3) and 3-pole output (T1, T2, T3)
Suitable for multi-strand and ferrule-terminated conductors
IP20 (front) / up to IP65 in enclosure (per GV2 series)
–20°C to +55°C
100,000+ operations
10,000+ operations under AC-3 duty
Undervoltage release, shunt trip, auxiliary contacts (OF/SD), enclosure kits
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
2.5–4A (adjustable dial)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV (per IEC 60947-2 typical for GV2-type breakers)
230V / 400V / 440V / 500V / 690V AC
100 kA across 230–690V ranges
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temperature Range (RTD Elements)
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
−40 to 180 °C (−40 to 356 °F)
Integrated STOP (red) / START (green) pushbuttons
35 mm DIN-rail
3-pole input (L1, L2, L3) and 3-pole output (T1, T2, T3)
Suitable for multi-strand and ferrule-terminated conductors
IP20 (front) / up to IP65 in enclosure (per GV2 series)
–20°C to +55°C
100,000+ operations
10,000+ operations under AC-3 duty
Undervoltage release, shunt trip, auxiliary contacts (OF/SD), enclosure kits
Rated Current Range (Thermal)
Trip Unit Type
Standard Compliance
Rated Insulation Voltage (Ui)
Rated Impulse Withstand Voltage (Uimp)
Rated Operating Voltage (Ue)
Short-Circuit Breaking Capacity (Icu)
Rated Service Breaking Capacity (Ics)
Magnetic Trip Setting
Thermal Trip Class
2.5–4A (adjustable dial)
Thermal-magnetic combined protection
IEC 60947-2 / IEC 60947-4-1
690V AC
6 kV (per IEC 60947-2 typical for GV2-type breakers)
230V / 400V / 440V / 500V / 690V AC
100 kA across 230–690V ranges
100% of Icu across all voltages (2.5–4A range)
Fixed high-speed magnetic release (≈13×In typical GV2 spec)
Class 10 overload protection
Phase Failure Sensitivity
Control Type
Mounting
Terminals
Terminal Capacity
Housing Protection Rating
Operating Temperature
Mechanical Durability
Electrical Durability
Compatible Accessories
Yes – built-in (GV2 standard feature)
Integrated STOP (red) / START (green) pushbuttons
35 mm DIN-rail
3-pole input (L1, L2, L3) and 3-pole output (T1, T2, T3)
Suitable for multi-strand and ferrule-terminated conductors
IP20 (front) / up to IP65 in enclosure (per GV2 series)
–20°C to +55°C
100,000+ operations
10,000+ operations under AC-3 duty
Undervoltage release, shunt trip, auxiliary contacts (OF/SD), enclosure kits
Benefits at a Glance
Precision Motor Protection: Accurate thermal adjustment (2.5–4A) with built-in magnetic short-circuit trip ensures reliable protection of small motors and loads.
Integrated Control & Safety: Front-mounted STOP/START buttons simplify commissioning and allow safe, manual intervention directly at the panel.
High Breaking Capacity: Up to 100 kA breaking capacity across all major operating voltages provides exceptional fault protection for industrial environments.
Compact, Universal Design: DIN-rail mounting, minimal footprint, and compatibility with standard accessories make installation and panel integration extremely efficient.
Benefits at a Glance
Precision Motor Protection: Accurate thermal adjustment (2.5–4A) with built-in magnetic short-circuit trip ensures reliable protection of small motors and loads.
Integrated Control & Safety: Front-mounted STOP/START buttons simplify commissioning and allow safe, manual intervention directly at the panel.
High Breaking Capacity: Up to 100 kA breaking capacity across all major operating voltages provides exceptional fault protection for industrial environments.
Compact, Universal Design: DIN-rail mounting, minimal footprint, and compatibility with standard accessories make installation and panel integration extremely efficient.
Benefits at a Glance
Precision Motor Protection: Accurate thermal adjustment (2.5–4A) with built-in magnetic short-circuit trip ensures reliable protection of small motors and loads.
Integrated Control & Safety: Front-mounted STOP/START buttons simplify commissioning and allow safe, manual intervention directly at the panel.
High Breaking Capacity: Up to 100 kA breaking capacity across all major operating voltages provides exceptional fault protection for industrial environments.
Compact, Universal Design: DIN-rail mounting, minimal footprint, and compatibility with standard accessories make installation and panel integration extremely efficient.
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi

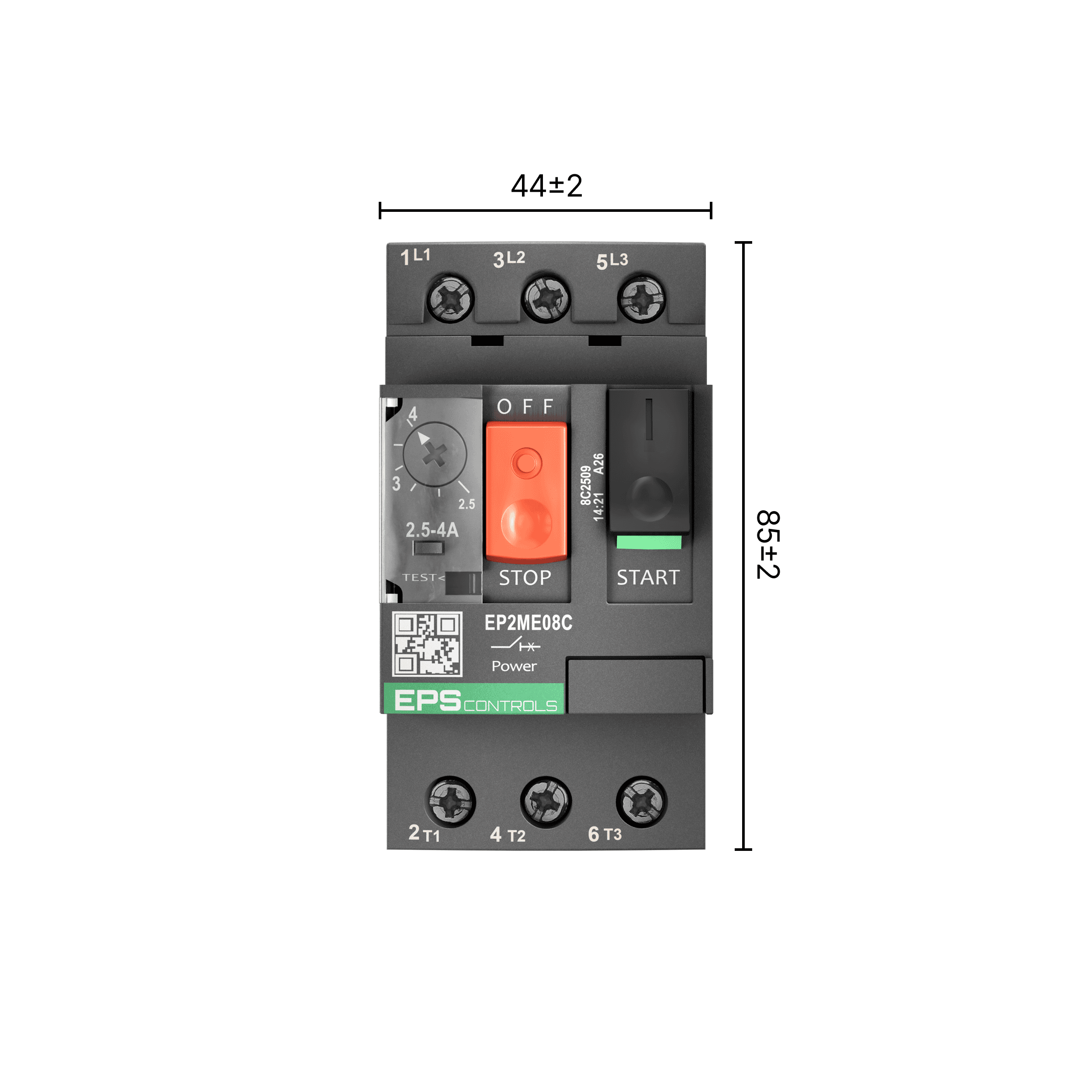

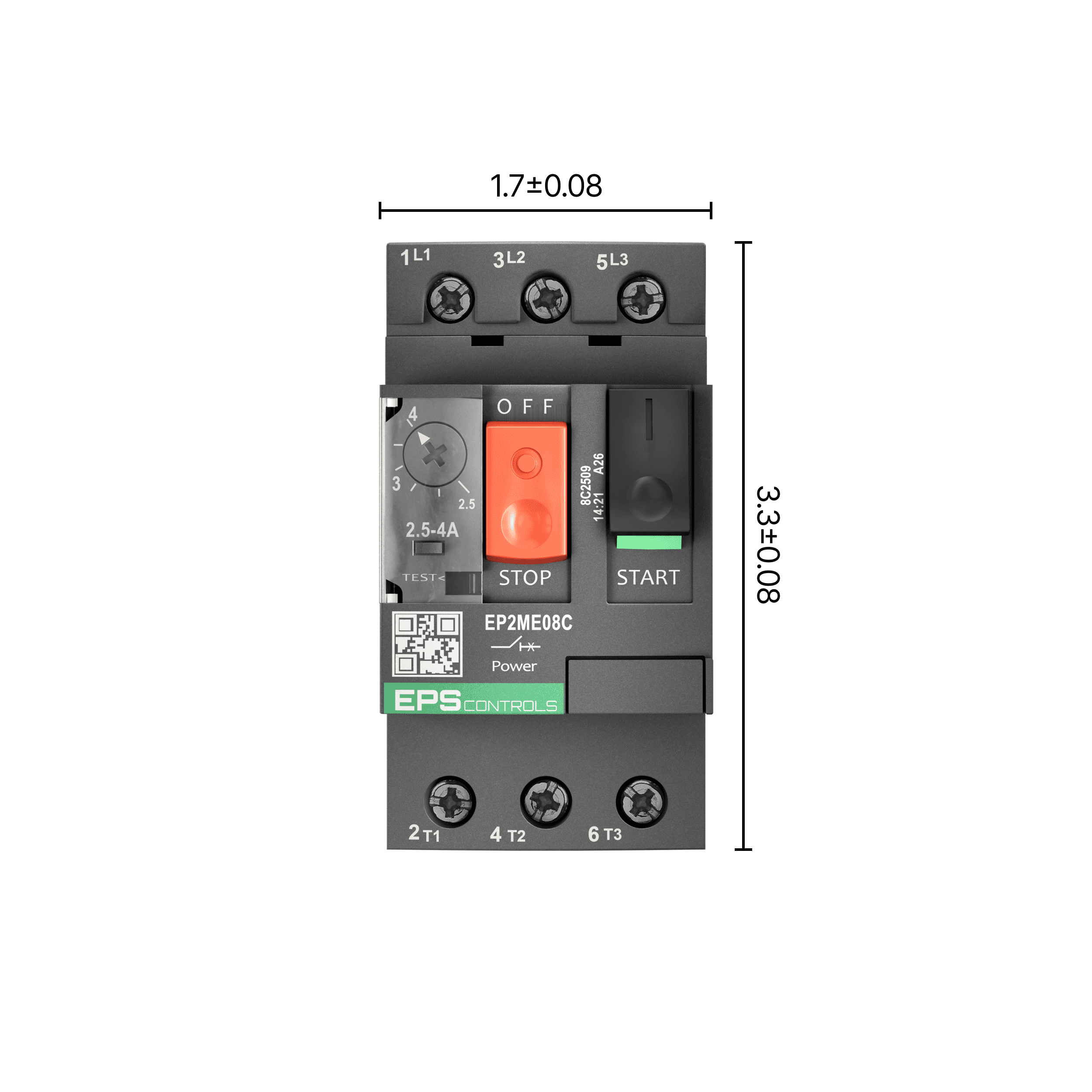

Measurements
Inches
Millimeters
2.5-4A
2.5-4A
Measurements
Inches
Millimeters
2.5-4A
2.5-4A
Measurements
Inches
Millimeters
2.5-4A
2.5-4A
