Tasseron Duct Euro Humidity/Temperature Sensor (THHDEA5C) Addison SAT/RH Aftermarket for # 0843P-0586
Tasseron Duct Euro Humidity/Temperature Sensor (THHDEA5C) Addison SAT/RH Aftermarket for # 0843P-0586
Tasseron Duct Euro Humidity/Temperature Sensor (THHDEA5C) Addison SAT/RH Aftermarket for # 0843P-0586
$85
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments

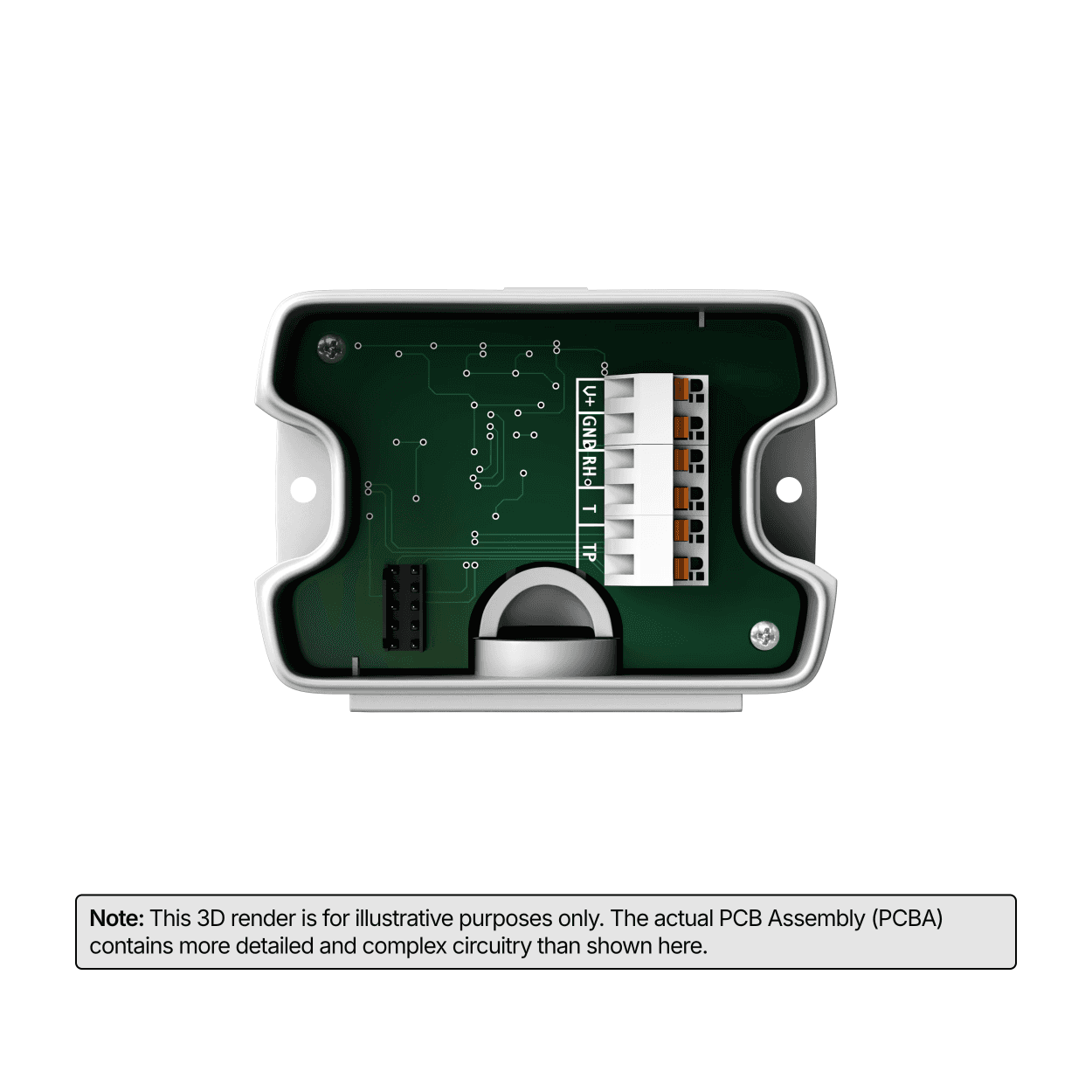

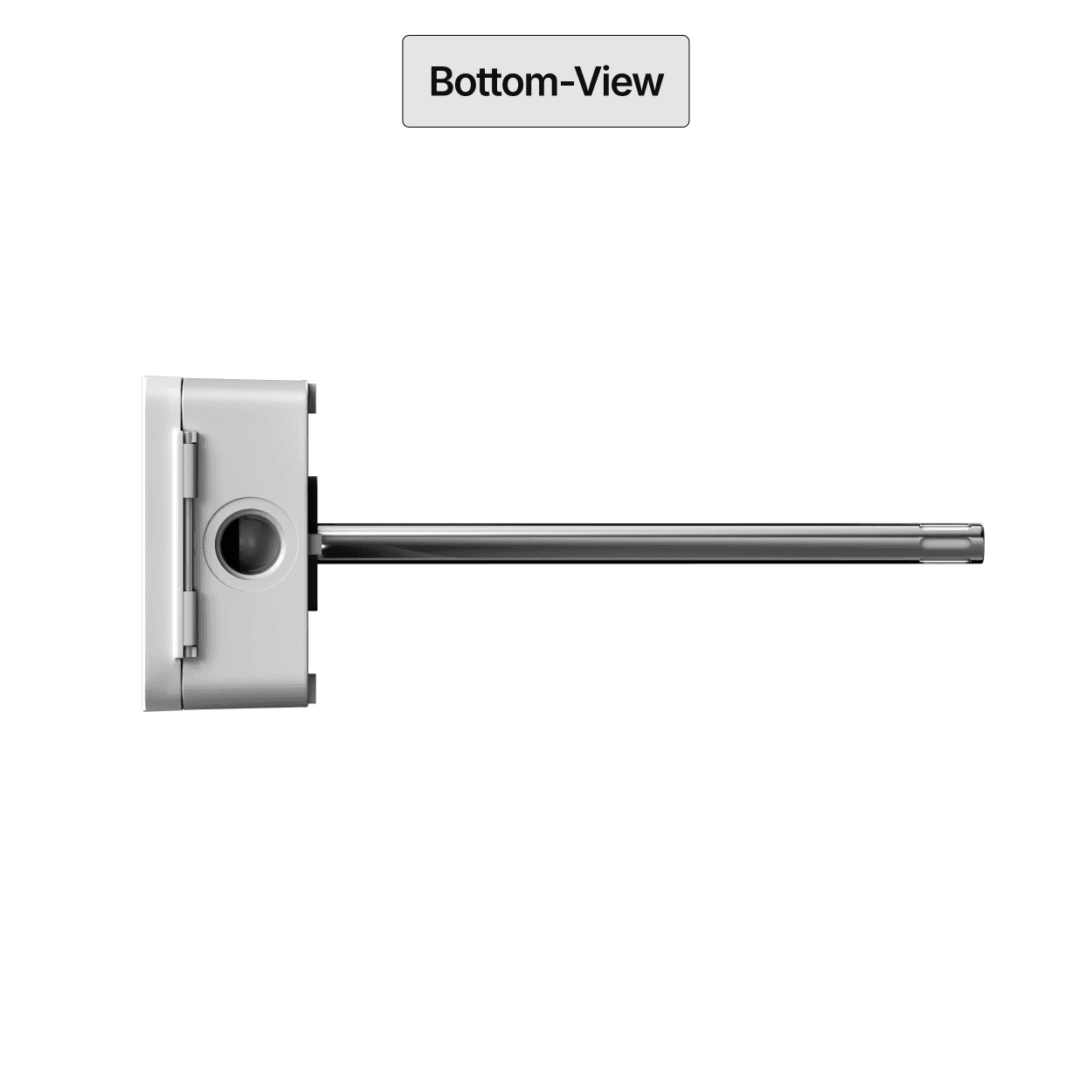

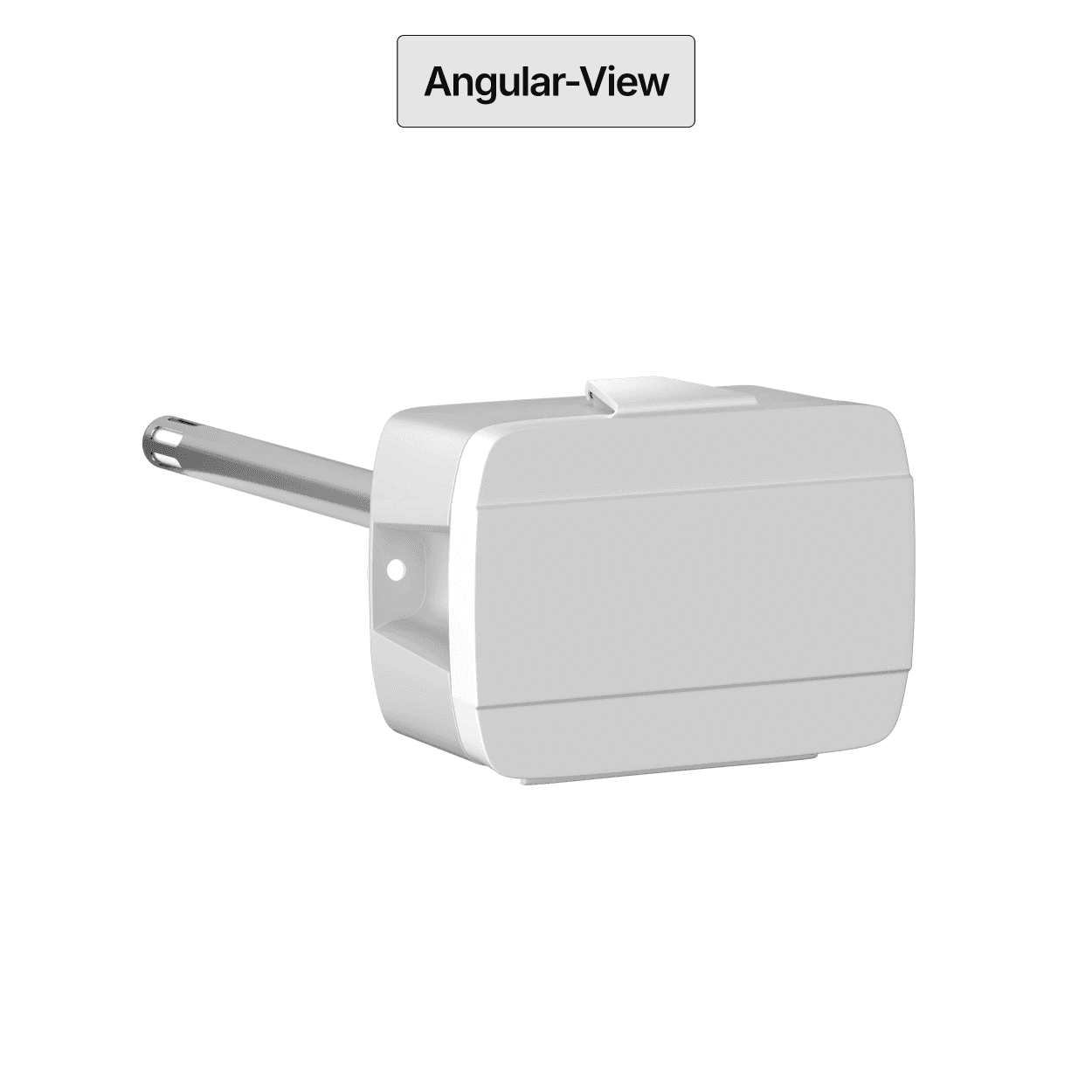

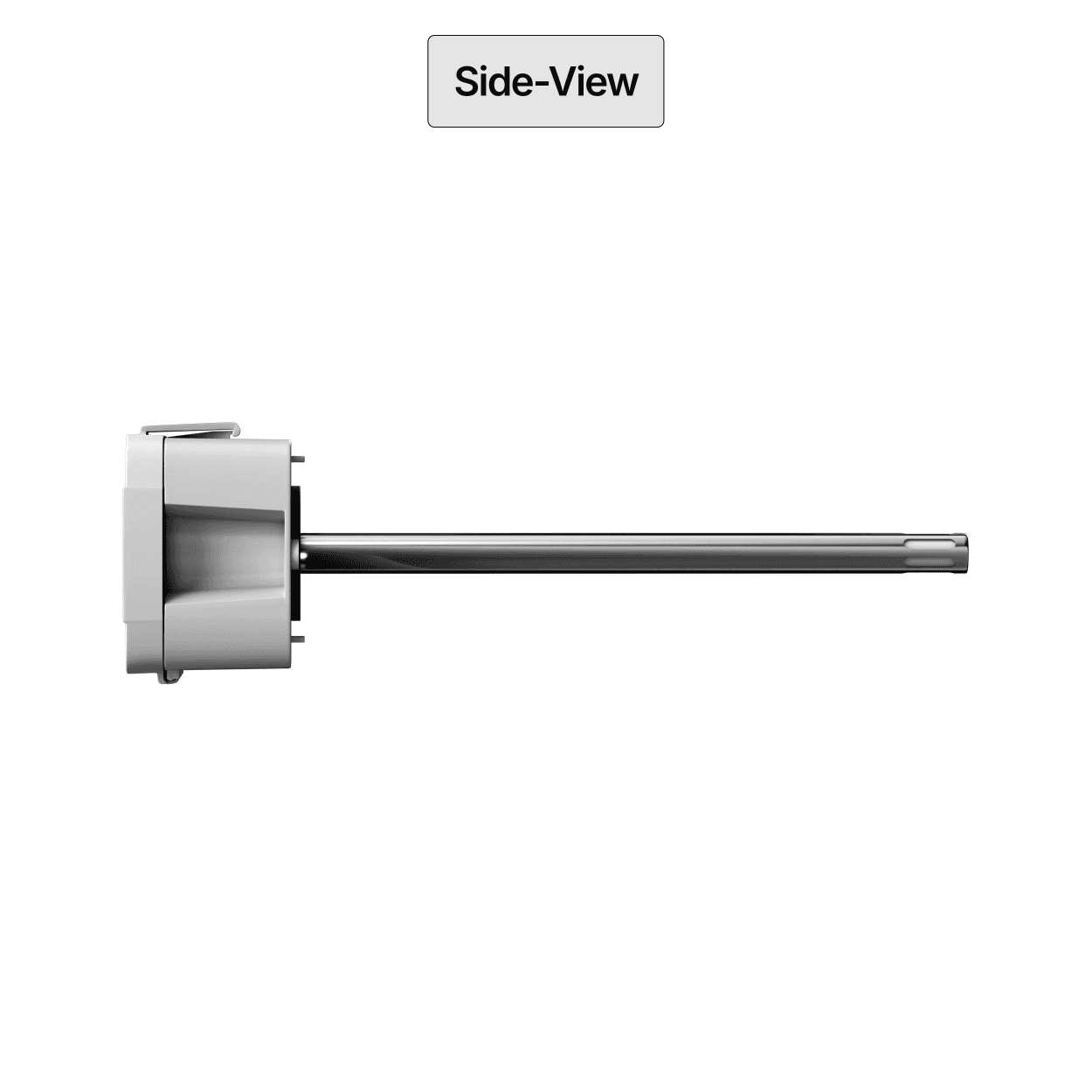

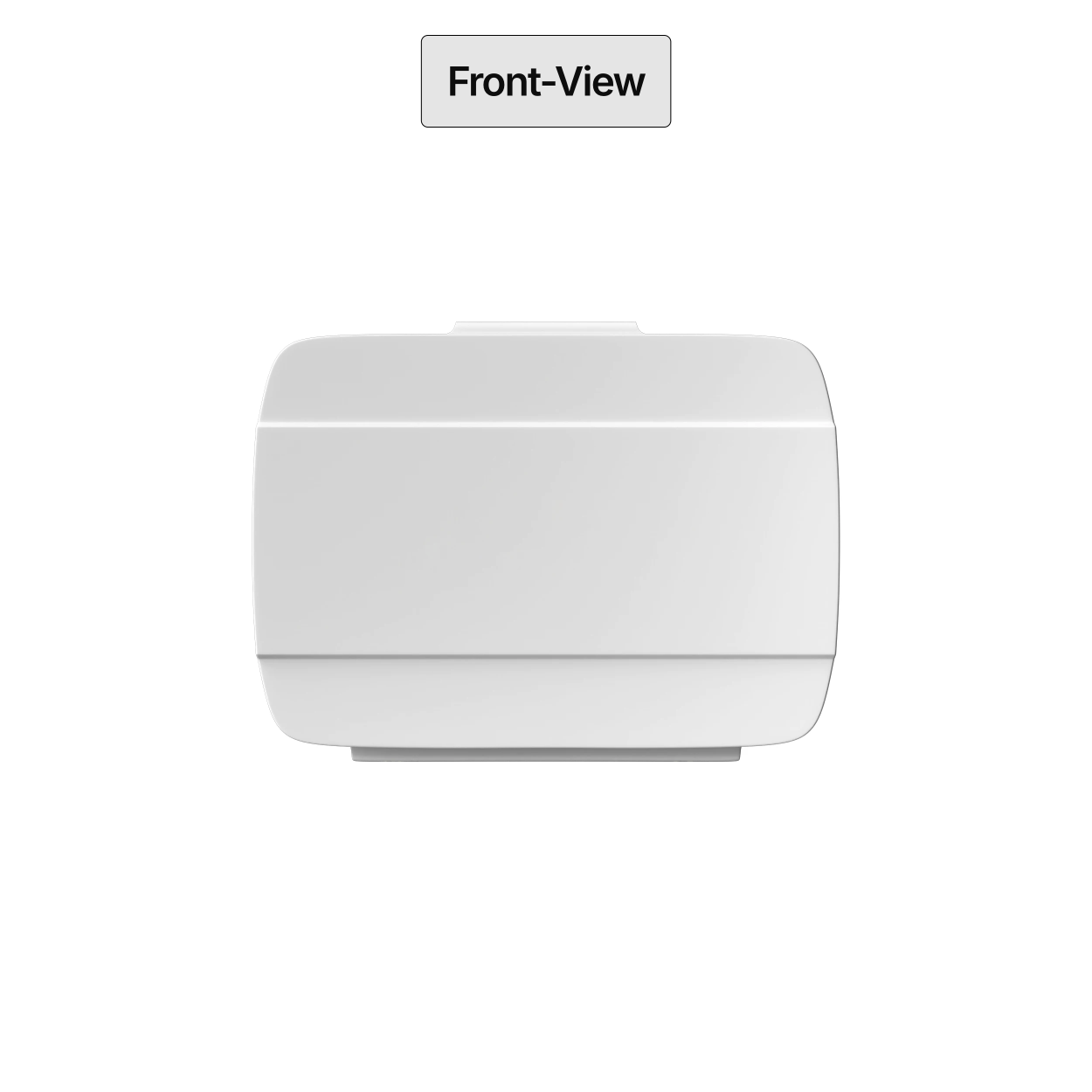

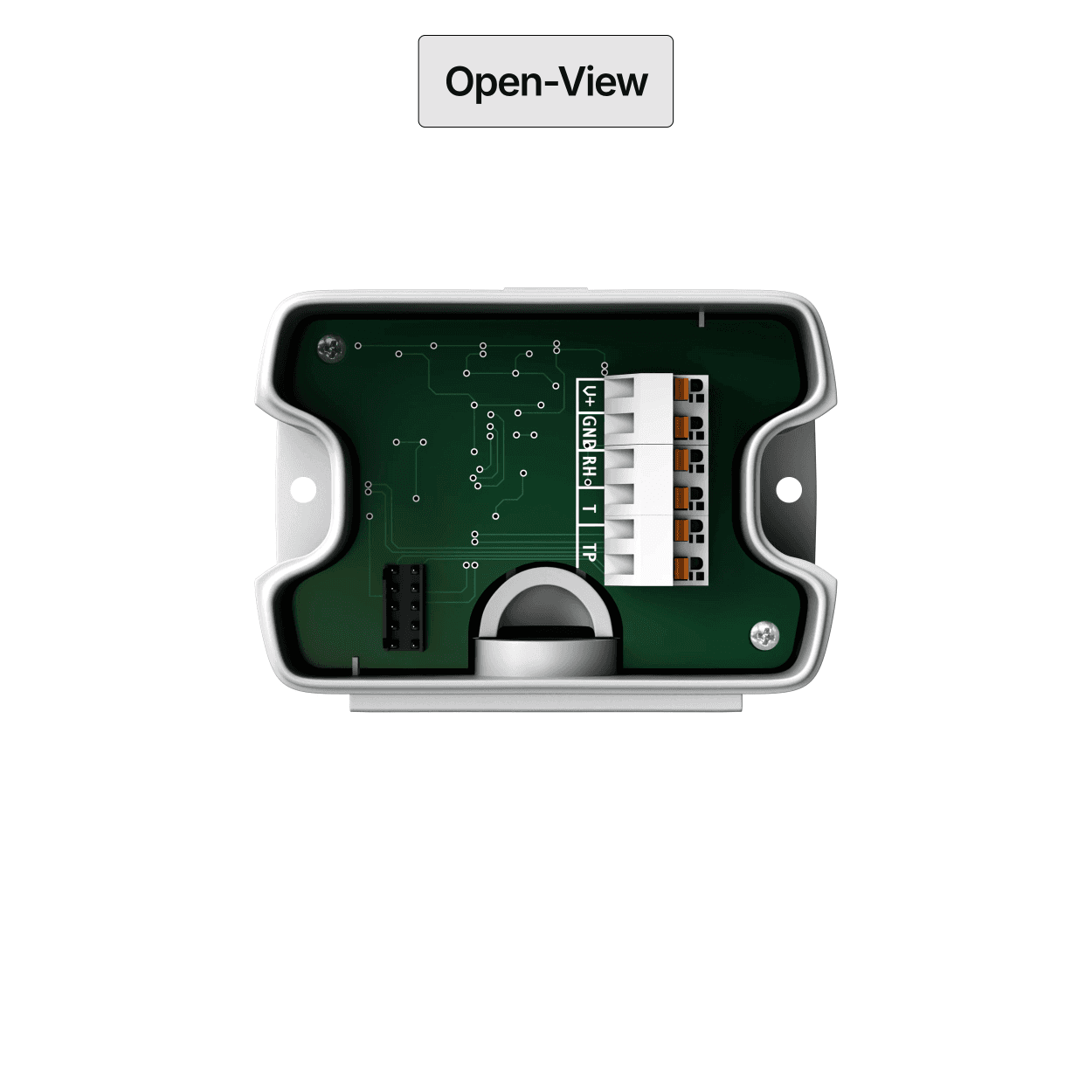

Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Humidity/Temperature (THHOSA5C) Sensor delivers precise humidity and temperature measurement in a rugged NEMA 4X/IP66 Safe Box enclosure. With field-selectable voltage or current outputs, dual-filter protection, and conformal-coated circuit boards, it ensures reliability, easy installation, and long-term stability for demanding outdoor HVAC applications.
The Tasseron Outdoor Euro Temperature (THHDEA5C) Sensor provides accurate temperature measurement in a durable NEMA 4X/IP65 weatherproof enclosure. Featuring field-selectable analog outputs (0-10V or 4-20mA), coated circuit boards for moisture resistance, and optional passive temperature elements, it offers reliable performance, simple installation, and extended stability for challenging outdoor HVAC environments.
The Tasseron Outdoor Euro Temperature (THHDEA5C) Sensor provides accurate temperature measurement in a durable NEMA 4X/IP65 weatherproof enclosure. Featuring field-selectable analog outputs (0-10V or 4-20mA), coated circuit boards for moisture resistance, and optional passive temperature elements, it offers reliable performance, simple installation, and extended stability for challenging outdoor HVAC environments.
Product Details
Product Details
Key specifications and performance details for this product.
Key specifications and performance details for this product.
Key specifications and performance
details for this product.
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Sensor Type
Repeatability
Resolution (Sensitivity)
Outdoor Temperature Sensor (Euro Enclosure)
Field-selectable 0–10 V or 4–20 mA output; Modbus RTU (RS-485) option
24 VAC ±20%; 15–35 VDC (voltage version); 18–35 VDC (digital version)
3 VA (24 VAC); 3 W (24 VDC) peak
±0.3 °C / ±0.54 °F
−40 to +70 °C (−40 to +158 °F); other ranges available
−40 to +70 °C (−40 to +158 °F); 10–90% RH (non-condensing)
Active analog or digital; optional passive NTC/RTD elements
< 0.1 °C
0.1 °C
Enclosure Rating
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
NEMA 4X / IP65 weatherproof
PC/ABS UL 94 V-0, UV-resistant injection-molded
Quick-mount bracket system; snap-in housing; adjustable depth flange option
Pt1000 IEC 751 4–20 mA loop output
½″ NPT adapter included (mountable either side)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω; Open > 1500 Ω; Fault > 22.5 mA
10 K Type 2/3; 20 K; 3 K; Pt100/1000; Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year limited warranty; ½″ NPT adapter and M16 cable gland included
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Accuracy
Temperature Range (PVC HT)
Temperature Range (Silicone)
Outdoor Temperature Sensor (Euro Enclosure)
Field-selectable 0–10 V or 4–20 mA output; Modbus RTU (RS-485) option
24 VAC ±20%; 15–35 VDC (voltage version); 18–35 VDC (digital version)
3 VA (24 VAC); 3 W (24 VDC) peak
±0.3 °C / ±0.54 °F
−40 to +70 °C (−40 to +158 °F); other ranges available
−40 to +70 °C (−40 to +158 °F); 10–90% RH (non-condensing)
NTC ± 0.2 °C (0–70 °C) · Pt100 / Pt1000 ± 0.3 °C · Ni1000 ± 0.5 °C
−20 to 105 °C (−4 to 221 °F)
−40 to 125 °C (−40 to 257 °F)
Temperature Range (RTD Elements)
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
−40 to 180 °C (−40 to 356 °F)
PC/ABS UL 94 V-0, UV-resistant injection-molded
Quick-mount bracket system; snap-in housing; adjustable depth flange option
Pt1000 IEC 751 4–20 mA loop output
½″ NPT adapter included (mountable either side)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω; Open > 1500 Ω; Fault > 22.5 mA
10 K Type 2/3; 20 K; 3 K; Pt100/1000; Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year limited warranty; ½″ NPT adapter and M16 cable gland included
Device Type
Output Modes
Supply Voltage
Supply Current
Accuracy
Measurement Range
Operating Range
Sensor Type
Repeatability
Resolution (Sensitivity)
Outdoor Temperature Sensor (Euro Enclosure)
Field-selectable 0–10 V or 4–20 mA output; Modbus RTU (RS-485) option
24 VAC ±20%; 15–35 VDC (voltage version); 18–35 VDC (digital version)
3 VA (24 VAC); 3 W (24 VDC) peak
±0.3 °C / ±0.54 °F
−40 to +70 °C (−40 to +158 °F); other ranges available
−40 to +70 °C (−40 to +158 °F); 10–90% RH (non-condensing)
Active analog or digital; optional passive NTC/RTD elements
< 0.1 °C
0.1 °C
Enclosure Rating
Enclosure Material
Mounting
Transmitter Element (opt.)
Conduit Adapter
Terminations
Short / Open Circuit Detection
Temperature Elements (opt.)
Approvals / Origin
Warranty / Accessory
NEMA 4X / IP65 weatherproof
PC/ABS UL 94 V-0, UV-resistant injection-molded
Quick-mount bracket system; snap-in housing; adjustable depth flange option
Pt1000 IEC 751 4–20 mA loop output
½″ NPT adapter included (mountable either side)
Spring-loaded Quick Connect terminals, AWG 22–16 (0.35–1.5 mm²)
Short < 840 Ω; Open > 1500 Ω; Fault > 22.5 mA
10 K Type 2/3; 20 K; 3 K; Pt100/1000; Ni1000 (TC5/891)
CE & RoHS Compliant; Made in USA
1 year limited warranty; ½″ NPT adapter and M16 cable gland included
Benefits at a Glance
Precise outdoor temperature monitoring with ±0.3 °C accuracy for reliable HVAC control
Durable NEMA 4X / IP65 Euro enclosure for robust protection in harsh weather conditions
Fast, tool-free installation with hinged cover and Quick Connect terminals
Long-term stability with coated circuit boards and optional dual-element protection
Benefits at a Glance
Precise outdoor temperature monitoring with ±0.3 °C accuracy for reliable HVAC control
Durable NEMA 4X / IP65 Euro enclosure for robust protection in harsh weather conditions
Fast, tool-free installation with hinged cover and Quick Connect terminals
Long-term stability with coated circuit boards and optional dual-element protection
Benefits at a Glance
Precise outdoor temperature monitoring with ±0.3 °C accuracy for reliable HVAC control
Durable NEMA 4X / IP65 Euro enclosure for robust protection in harsh weather conditions
Fast, tool-free installation with hinged cover and Quick Connect terminals
Long-term stability with coated circuit boards and optional dual-element protection
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi
Measurements
Inches
Millimeters
0-750psi
0-750psi

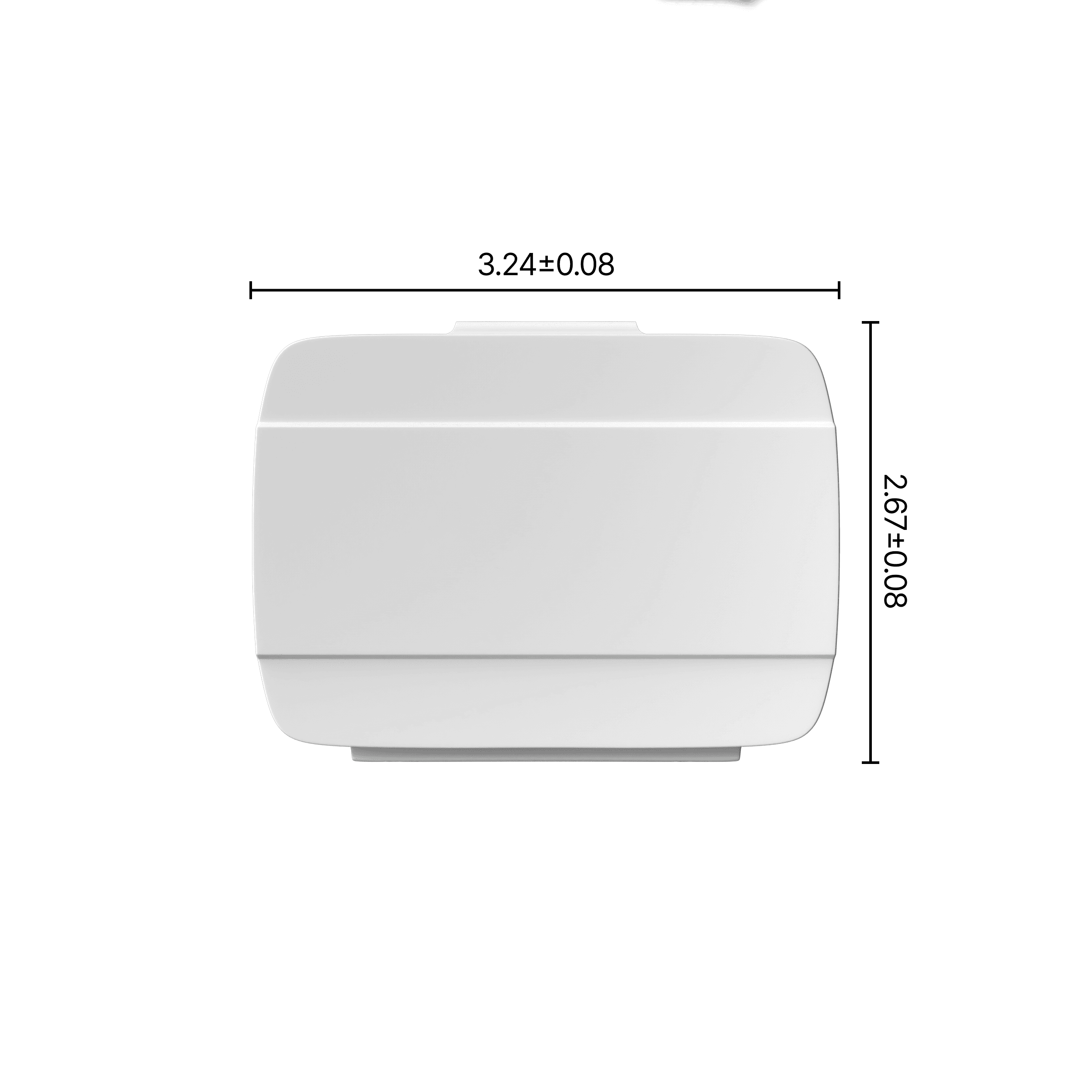

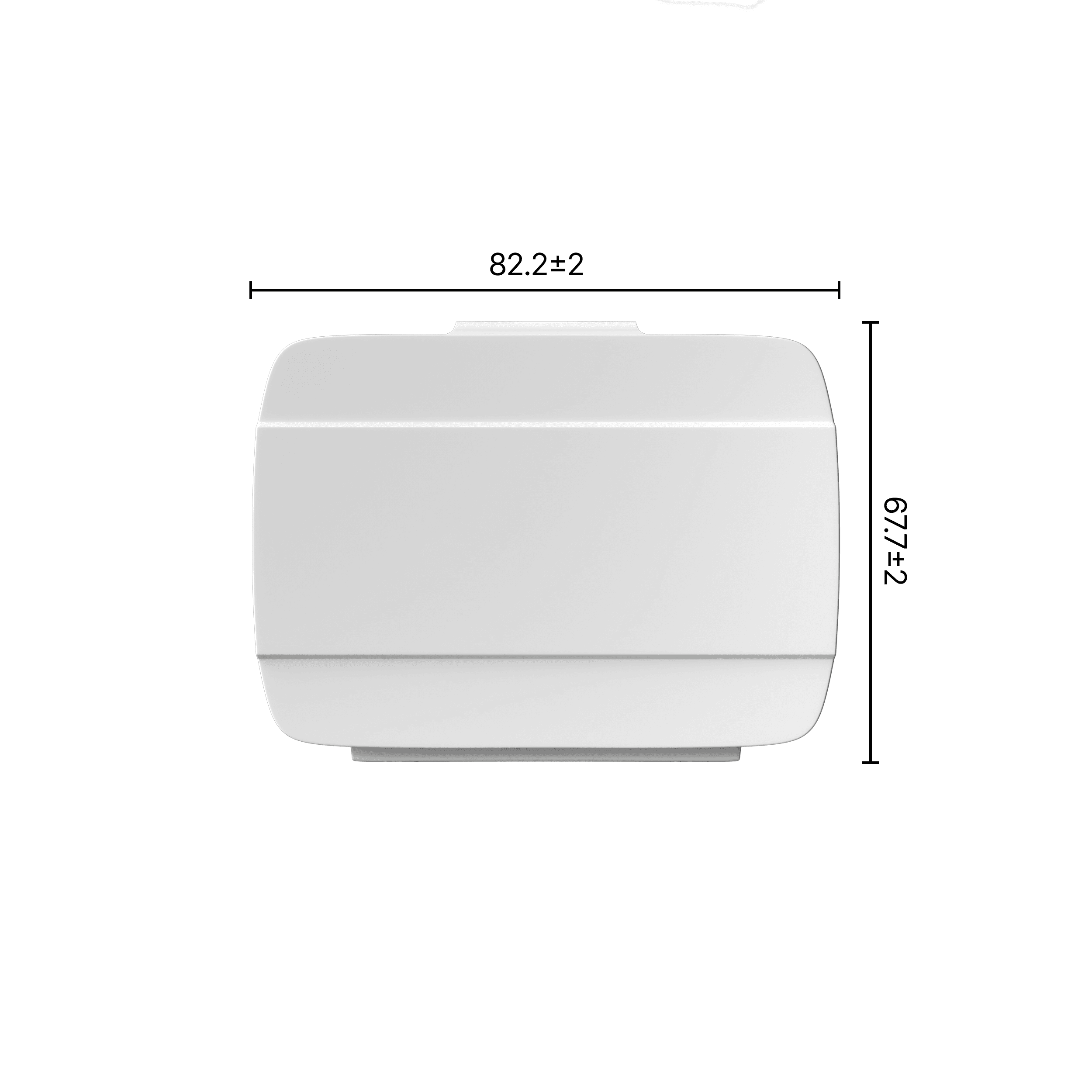

Measurements
Inches
Millimeters
THHDEA5C
THHDEA5C
Measurements
Inches
Millimeters
THHDEA5C
THHDEA5C
Measurements
Inches
Millimeters
THHDEA5C
THHDEA5C
Product in the Field
Images provided by real customers
Product in the Field
Images provided by real customers
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Sensor is manufactured in the USA and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
Each Sensor is manufactured in the USA and undergoes strict quality testing to ensure dependable performance, environmental protection, and customer satisfaction.
