EBUS Horizontal Outside Air Temp/RH Sensor - WattMaster OE265-15-G / AAON ASM01836
EBUS Horizontal Outside Air Temp/RH Sensor - WattMaster OE265-15-G / AAON ASM01836
EBUS Horizontal Outside Air Temp/RH Sensor - WattMaster OE265-15-G / AAON ASM01836
$435
In Stock
In Stock
In Stock
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
1-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
Fulfillment for this product is currently between 1-2 days.
The EBUS Horizontal Outside Air Temp/RH Sensor combines accurate outdoor air temperature and humidity sensing in a compact, weather-resistant design. Built for AAON units, it provides reliable feedback for economizer and dehumidification control, ensuring precise wetbulb and dewpoint measurements in demanding HVAC applications.
The EBUS Horizontal Outside Air Temp/RH Sensor combines accurate outdoor air temperature and humidity sensing in a compact, weather-resistant design. Built for AAON units,
it provides reliable feedback for economizer and dehumidification control, ensuring precise wetbulb and dewpoint measurements in demanding HVAC applications.
The EBUS Horizontal Outside Air Temp/RH Sensor combines accurate outdoor air temperature and humidity sensing in a compact, weather-resistant design. Built for AAON units, it provides reliable feedback for economizer and dehumidification control, ensuring precise wetbulb and dewpoint measurements in demanding HVAC applications.
Product Details
Device Type
Manufacturer / Model Number
AAON Part Number
Sensor Element Type
Accuracy – RH
Accuracy – Temp
Measurement Range – RH
Measurement Range – Temp
Output / Communication
Mounting Orientation
Horizontal Outdoor Air Temperature & Humidity Sensor
OE265-15-G
ASM01836
Digital capacitive sensing device
±3% RH
±0.8 °F
0–100%
−40 °F to 185 °F
E-BUS
Horizontal, upright, outdoor air stream
Cable / Connector
Enclosure Type
Ambient Temperature Limits
Weight
Typical Applications
Installation Caution
Operating Environment
Protection
Warranty
Origin
Attached 3 ft cable with female connector + 10 ft EBUS cable included
Weather-resistant housing
−40 °F to 185 °F
2.3 oz
Economizer wetbulb/dewpoint control, makeup air dehumidification
Must be shaded, not exposed to direct sunlight
Outdoor, protected from direct weather
Rain-tight when installed per instructions
1 year
Made in USA
Device Type
Manufacturer / Model Number
AAON Part Number
Sensor Element Type
Accuracy – RH
Accuracy – Temp
Measurement Range – RH
Measurement Range – Temp
Output / Communication
Mounting Orientation
Horizontal Outdoor Air Temperature & Humidity Sensor
OE265-15-G
ASM01836
Digital capacitive sensing device
±3% RH
±0.8 °F
0–100%
−40 °F to 185 °F
E-BUS
Horizontal, upright, outdoor air stream
Cable / Connector
Enclosure Type
Ambient Temperature Limits
Weight
Typical Applications
Installation Caution
Operating Environment
Protection
Warranty
Origin
Attached 3 ft cable with female connector + 10 ft EBUS cable included
Weather-resistant housing
−40 °F to 185 °F
2.3 oz
Economizer wetbulb/dewpoint control, makeup air dehumidification
Must be shaded, not exposed to direct sunlight
Outdoor, protected from direct weather
Rain-tight when installed per instructions
1 year
Made in USA
Device Type
Manufacturer / Model Number
AAON Part Number
Sensor Element Type
Accuracy – RH
Accuracy – Temp
Measurement Range – RH
Measurement Range – Temp
Output / Communication
Mounting Orientation
Horizontal Outdoor Air Temperature & Humidity Sensor
OE265-15-G
ASM01836
Digital capacitive sensing device
±3% RH
±0.8 °F
0–100%
−40 °F to 185 °F
E-BUS
Horizontal, upright, outdoor air stream
Cable / Connector
Enclosure Type
Ambient Temperature Limits
Weight
Typical Applications
Installation Caution
Operating Environment
Protection
Warranty
Origin
Attached 3 ft cable with female connector + 10 ft EBUS cable included
Weather-resistant housing
−40 °F to 185 °F
2.3 oz
Economizer wetbulb/dewpoint control, makeup air dehumidification
Must be shaded, not exposed to direct sunlight
Outdoor, protected from direct weather
Rain-tight when installed per instructions
1 year
Made in USA
Benefits at a Glance
Fully integrated RH + temperature sensing with E-BUS communications
Rugged outdoor design rated for −40 °F to 185 °F operations
Compact weatherproof enclosure with durable plastic build and versatile cable-length for flexible install
High-accuracy digital capacitive RH sensor (±3%) and precise temperature readings
Benefits at a Glance
Fully integrated RH + temperature sensing with E-BUS communications
Rugged outdoor design rated for −40 °F to 185 °F operations
Compact weatherproof enclosure with durable plastic build and versatile cable-length for flexible install
High-accuracy digital capacitive RH sensor (±3%) and precise temperature readings
Benefits at a Glance
Fully integrated RH + temperature sensing with E-BUS communications
Rugged outdoor design rated for −40 °F to 185 °F operations
Compact weatherproof enclosure with durable plastic build and versatile cable-length for flexible install
High-accuracy digital capacitive RH sensor (±3%) and precise temperature readings

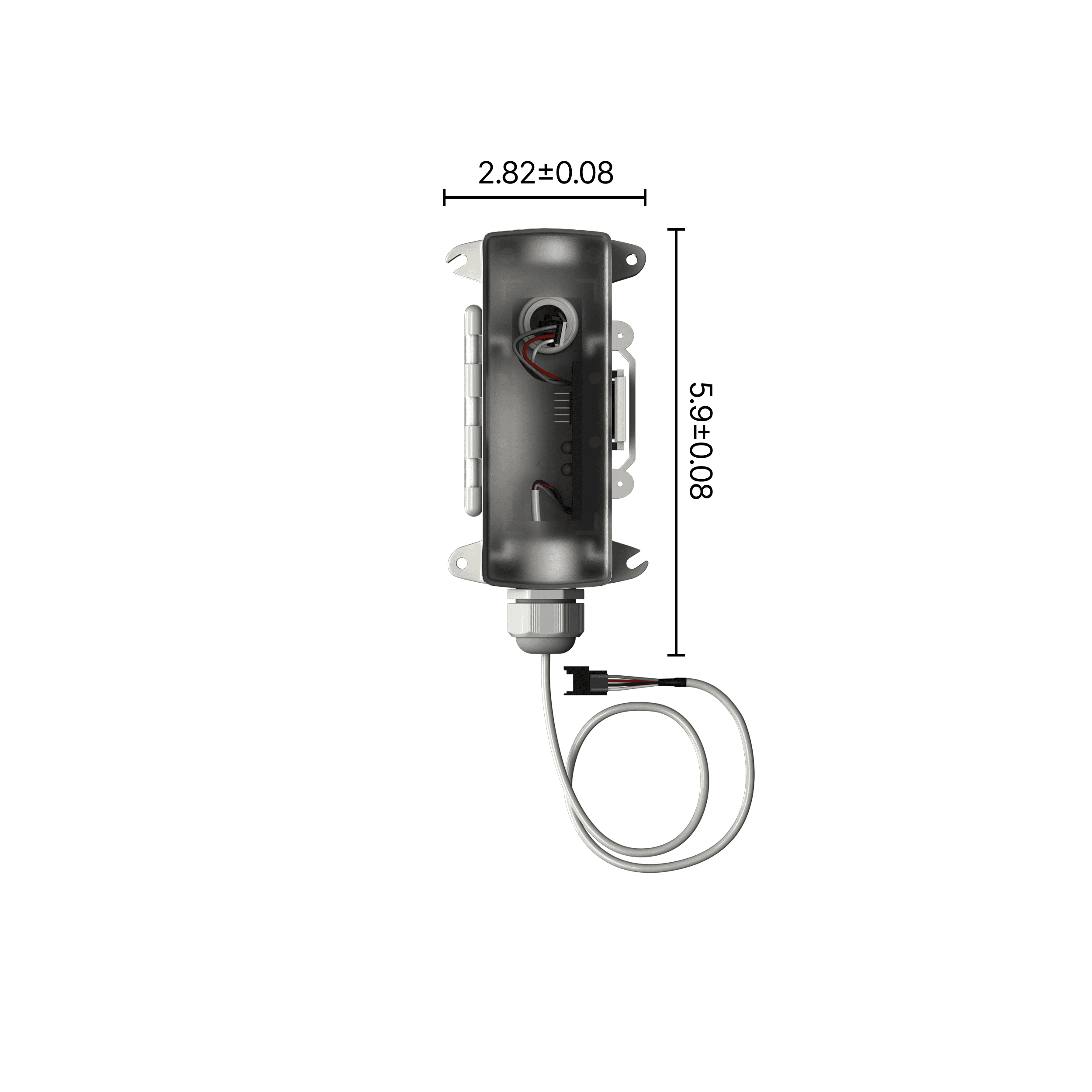

Measurements in Inches

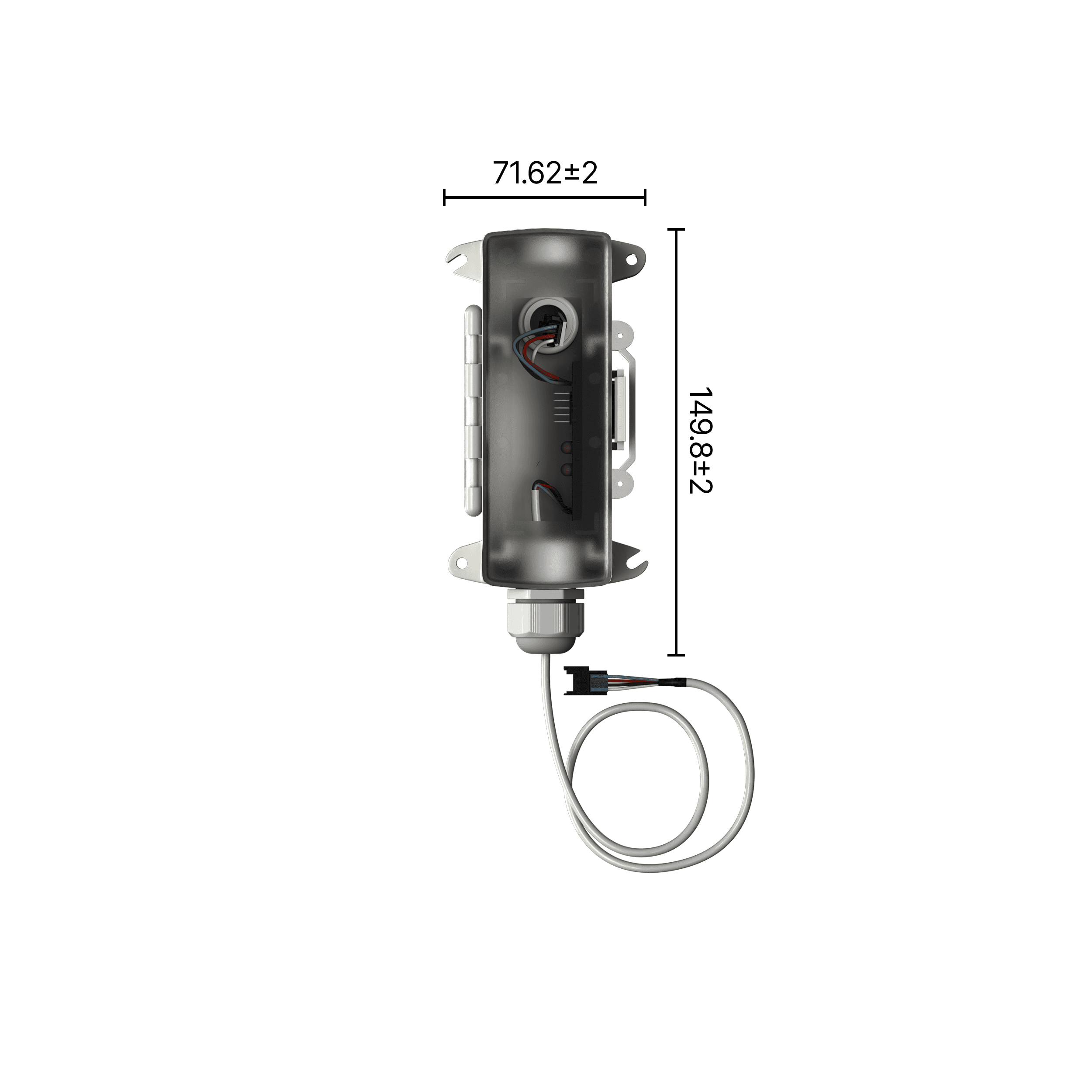

Measurements in Millimeters
Measurements in Inches
Measurements in Millimeters
Measurements in Inches
Measurements in Millimeters
Each EBUS Horizontal Sensor is factory tested and calibrated, manufactured in the USA, and engineered for lasting performance in extreme outdoor conditions.
Each EBUS Horizontal Sensor is factory tested and calibrated, manufactured in the USA, and engineered for lasting performance in extreme outdoor conditions.
