A Guide to the Pressure Transducer

At its core, a pressure transducer is a device that senses the pressure of a gas or a liquid and converts that measurement into a usable electrical signal. Think of it as a translator for machinery. It takes the physical language of pressure—something a control system can't directly understand—and turns it into an electrical message that a computer or a PLC can read and act on. This simple but critical function is the backbone of countless automated systems, from factory floors to the car you drive.

Demystifying the Pressure Transducer

The best way to understand a transducer is to think about a real-world problem. Imagine trying to explain how hard you’re squeezing a garden hose to someone who can't see it. You could say "a little" or "a lot," but that’s vague. A pressure transducer acts like a gauge that puts a number to that squeeze, giving you a precise value like "50 PSI." It provides clear, actionable data.

This ability to convert a physical force into a clean electrical signal is what makes these devices so vital. It allows machines and control panels to "feel" and react to pressure changes with incredible accuracy, whether that's maintaining hydraulic fluid levels in a stamping press or managing refrigerant in a commercial HVAC system.

Core Components and Function

No matter the specific type or brand, nearly every pressure transducer is built around three key components working together. Once you understand these parts, you can see how the whole device works.

• Sensing Element: This is the part that does the "feeling." It's in direct contact with the gas or liquid being measured and usually features a thin, flexible diaphragm that physically moves or deforms under pressure.

• Transduction Element: This is where the magic happens. It takes the physical movement from the sensing element and converts it into a very small, raw electrical signal. The technology here (like a strain gauge or a piezoelectric crystal) is what really defines the type of transducer.

• Signal Conditioning Circuitry: The raw signal from the transduction element is often weak, noisy, and not very useful on its own. This onboard circuitry cleans, amplifies, and standardizes that signal into a common format, like a 0-5V voltage or a 4-20mA current loop.

The core principle is all about proportionality. The electrical output from the transducer is directly proportional to the pressure it senses. A small change in pressure creates a small change in the signal, and a big change in pressure creates a big one. It's a clean, 1-to-1 relationship.

Transducer vs. Transmitter vs. Sensor

In the field, you'll hear the terms "sensor," "transducer," and "transmitter" thrown around, sometimes interchangeably. This can get confusing, but there are important technical differences based on what kind of signal comes out.

A pressure sensor is the most basic part. It’s just the sensing element that detects pressure and produces some kind of raw output, which may not be standardized or ready to use.

A pressure transducer is the next step up. It contains the sensor but also includes the signal conditioning circuitry to convert that raw reading into a standardized voltage output (like volts or millivolts).

Finally, a pressure transmitter is a specific kind of transducer. Its job is to convert the pressure reading into a standardized current output, almost always 4-20 milliamps (mA). This format is the gold standard for industrial settings because the signal can travel over very long wires without losing strength or picking up electrical noise.

While there are distinct differences, you’ll often find that "transducer" is used as a catch-all term for any of these devices.

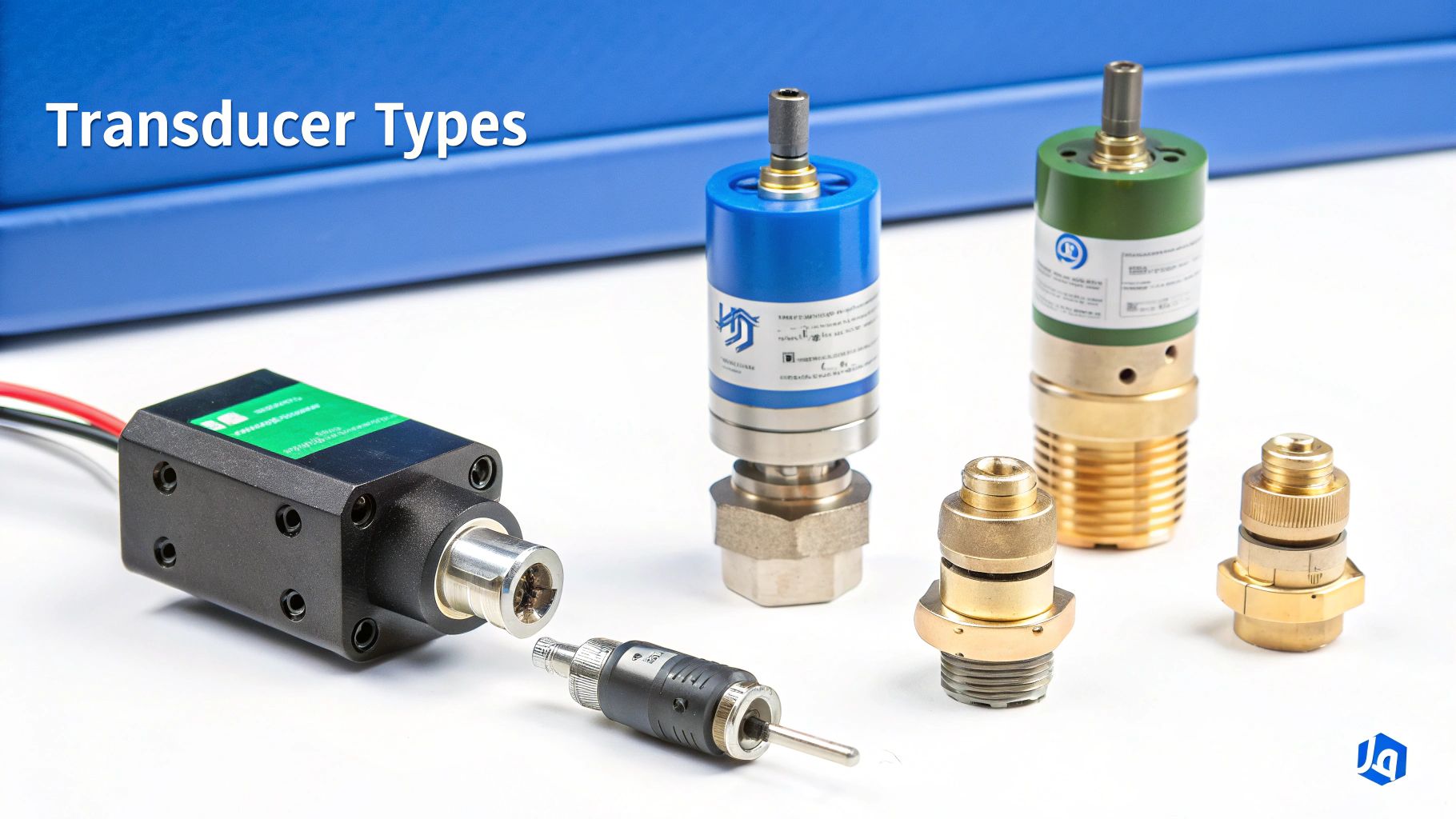

Exploring Core Pressure Transducer Technologies

The real magic of a pressure transducer happens inside, with the specific sensing technology it uses to turn a physical force into an electrical signal. While they all do the same job, how they do it can be wildly different, and each method has its own unique strengths. Understanding what’s going on under the hood helps explain why one transducer is perfect for a high-precision lab, while another is built to survive the punishing environment of an industrial pump.

At the heart of every one of these devices is a clever bit of engineering designed to react to pressure in a consistent, measurable way. Let's peel back the layers on the most common technologies to see what makes them tick.

Piezoresistive: The Everyday Workhorse

Piezoresistive technology is easily one of the most common and versatile methods you'll find in a modern pressure transducer. The principle behind it is beautifully simple. Think about squeezing a rubber ball—as you apply pressure, it deforms, and its physical properties change. A piezoresistive sensor works on a similar idea, but instead of shape, it changes its electrical properties.

It uses a semiconductor material, usually silicon, that literally changes its electrical resistance when it's bent or squeezed. As pressure flexes a tiny diaphragm, it puts a strain on this material, altering how easily electricity flows through it. The transducer’s internal electronics measure this change in resistance and convert it into a highly accurate pressure reading. Thanks to their reliability and cost-effectiveness, you’ll find piezoresistive sensors everywhere, from your car's engine to the office HVAC system.

Capacitive Sensing: Precision and Stability

Capacitive pressure transducers take a completely different approach, one based on storing an electrical charge. Imagine two tiny metal plates sitting incredibly close to each other, separated by a microscopic gap. The ability of this setup to hold an electrical charge is known as capacitance.

In a capacitive transducer, one of these plates is a flexible diaphragm that moves when pressure is applied. When pressure rises, the diaphragm bows inward, getting closer to the fixed plate and increasing the capacitance. When the pressure drops, the diaphragm moves away, and the capacitance decreases.

This change in capacitance, though minuscule, is remarkably consistent and stable over time. This makes capacitive technology a fantastic choice for applications demanding high accuracy and long-term reliability, like aerospace systems or critical industrial processes where even the slightest measurement drift is unacceptable.

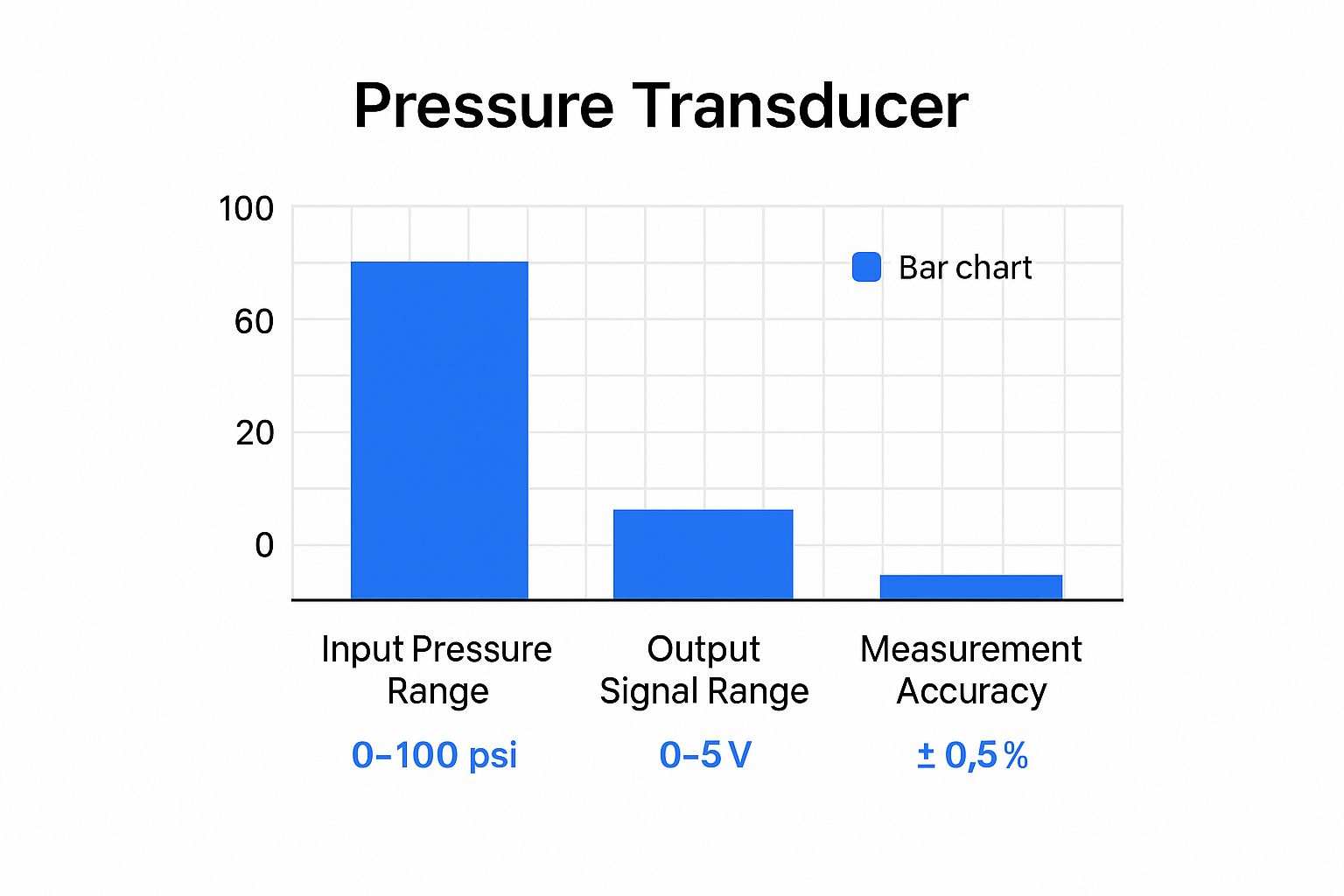

The following chart shows how a typical pressure transducer translates its input pressure range into a predictable electrical output signal, all within a defined accuracy tolerance.

This visual highlights the direct relationship between the physical pressure being measured and the electrical signal being sent, which is the fundamental job of any transducer.

Other Key Technologies

While piezoresistive and capacitive sensors cover a lot of ground, several other technologies have been developed for more specialized jobs. Each one offers a unique advantage for specific operational demands.

• Strain Gauge: This is one of the classic transducer technologies. It works by bonding a grid of metallic foil to a diaphragm. When pressure flexes the diaphragm, the foil gets stretched or compressed, which changes its electrical resistance. It's a tough, proven method that’s often the go-to for heavy-duty industrial and hydraulic systems.

• Piezoelectric: Don't get this one mixed up with piezoresistive! Piezoelectric technology uses special crystals, like quartz, that generate a tiny electrical charge when they're squeezed. This makes them incredibly responsive to dynamic, or rapidly changing, pressures. Think of measuring the force inside an engine cylinder during combustion or the shockwave from an explosion—that's where piezoelectric sensors shine.

• MEMS (Micro-Electro-Mechanical Systems): This isn't really a standalone technology, but more of a revolutionary manufacturing technique. MEMS allows engineers to build incredibly small mechanical sensors directly onto a silicon chip. This miniaturization has made pressure transducers smaller, cheaper, and more power-efficient than ever before, paving the way for their use in everything from smartphones to disposable medical devices.

To make sense of it all, it helps to see these technologies side-by-side. Each one has a "sweet spot" where it performs best.

Comparison of Pressure Transducer Technologies

The table below gives you a quick snapshot of how these core technologies stack up against one another.

Ultimately, choosing the right pressure transducer comes down to matching the technology’s strengths to what your application truly needs—from the pressure range and required accuracy to the harshness of the operating environment.

How to Select the Right Pressure Transducer

Choosing the right pressure transducer is a big deal, and for good reason. Get it right, and you get reliable data that keeps your systems running safely and efficiently. Get it wrong, and you're looking at potential downtime, messed-up process control, and a lot of headaches. Sifting through datasheets can feel overwhelming, but you only need to nail down a few key specs to make a solid choice.

The best way to think about it isn't as a technical exam, but more like a matching game. You're simply trying to find the transducer whose capabilities match the reality of your application. The first—and most important—step is to figure out what "normal" looks like in your system.

Define Your Operating Pressure Range

Before you even glance at a product catalog, you need to know the lowest and highest pressures your system hits during normal operation. This is your operating pressure range, and it’s the single most important factor in your decision.

Let’s say you have a hydraulic system that usually hums along between 200 and 800 PSI. You’ll want a transducer with a range that comfortably covers that, like 0-1000 PSI. If you pick one with a range that’s too low (say, 0-500 PSI), you’re asking for it to get damaged. But if you go too high (like 0-5000 PSI), you’ll lose the fine-grained detail in your measurements where it matters most.

Decode the Accuracy Specification

Accuracy ratings can look a little intimidating, but the idea is simple. It’s the maximum amount of error you can expect between what the transducer reads and the actual pressure. This is almost always shown as a percentage of the transducer’s full-scale output (FSO).

Let's break that down with an example. You're looking at a 0-1000 PSI transducer with an accuracy of ±0.5% FSO.

• Full-Scale Output (FSO): 1000 PSI

• Potential Error: 0.5% of 1000 PSI is 5 PSI

• What This Means: At any point, the reading could be off by as much as 5 PSI high or low.

For keeping an eye on a simple water tank, that's probably fine. But if you’re running a sensitive lab experiment or a critical HVAC chiller, you'll need something much tighter, maybe with an accuracy of ±0.1% or even better.

Remember, higher accuracy almost always means a higher price tag. The trick is to find a pressure transducer that is accurate enough for the job, without paying a premium for precision you simply don't need.

Consider Overpressure and Temperature Extremes

The real world is messy. Your system won’t always run under perfect conditions. Sudden pressure spikes and wild temperature swings are part of the job, and your transducer needs to be tough enough to handle them.

• Overpressure Rating: Sometimes called "proof pressure," this spec tells you the absolute maximum pressure the device can take without suffering permanent damage. A good rule of thumb is to pick a transducer with an overpressure rating at least 1.5 to 2 times your system's max operating pressure. That gives you a safety buffer for those unexpected surges.

• Operating Temperature: Every transducer has a sweet spot—a temperature range where it works as advertised. If your equipment lives in an engine compartment or a freezing refrigeration line, you absolutely have to choose a transducer built for that environment. Pushing it outside its rated temperature range will lead to wonky readings or, worse, total failure.

Match the Output Signal to Your System

Finally, the transducer has to be able to talk to your control system. The output signal is the language it uses to send its measurements to your PLC, data logger, or display. There are two main dialects you'll run into:

• Voltage Output (e.g., 0-5V or 0-10V): Simple and effective. This is great for controlled environments or when the cable run to the controller is short.

• Current Output (4-20mA): This is the gold standard for industrial settings. A 4-20mA signal is incredibly resistant to electrical noise and can travel over very long distances without degrading, making it perfect for sprawling facilities.

Making sure the output signal is compatible with your existing equipment is a quick but crucial final check. If you need expert help finding the right components for your HVAC or refrigeration setup, the team at EPS Controls can help you find the perfect device for your system’s demands.

Where You'll Find Pressure Transducers in the Real World

From keeping a passenger jet safely cruising at 30,000 feet to making sure a factory’s assembly line doesn't skip a beat, the pressure transducer is a true unsung hero. Think of them as the nervous system for modern machinery. They provide the critical data needed for everything to run safely, efficiently, and under control. Seeing where they're used helps connect the dots, showing just how much we depend on them to turn physical force into useful information.

This reliance isn't just anecdotal; the numbers back it up. The global market for pressure transducers was recently valued at around USD 7.77 billion and is expected to climb to USD 12.77 billion in the coming years. That's no surprise. Their role keeps expanding in automation, healthcare, aerospace, and cars—fields where getting the pressure right isn't just a goal, it's a must. If you're curious about the market dynamics, you can dig into some detailed industry analysis on the pressure transducer market growth from Research and Markets.

Industrial Automation and Manufacturing

In the world of automated factories, pressure transducers are basically the MVPs. They’re the key to monitoring and controlling the hydraulic and pneumatic systems that act as the "muscles" for everything from massive stamping presses to nimble robotic arms.

Imagine a hydraulic press shaping a car door. The pressure transducer ensures the perfect amount of force is applied. Too little, and the part is scrap. Too much, and you could damage a multi-million-dollar piece of equipment. The transducer sends a constant stream of feedback to the control system, allowing it to adjust on the fly.

You’ll find them all over the factory floor:

• Hydraulic Systems: Monitoring fluid pressure to guarantee consistent force and, more importantly, prevent a dangerous overpressure situation.

• Pneumatic Controls: Keeping air pressure just right for automated tools, conveyor belts, and other moving parts.

• Process Control: Maintaining exact pressure levels inside chemical reactors, pipelines, and storage tanks where stability is everything.

Aerospace and Aviation

Nowhere is pressure measurement more vital than in the sky. Hundreds of lives hang in the balance, all depending on accurate readings from dozens of pressure transducers tucked away inside an aircraft. They are absolutely fundamental to flight safety.

A modern airplane relies on pressure transducers for everything. They measure cabin pressure to keep us comfortable and safe, check hydraulic pressure in the landing gear, and monitor the flight control systems. They even help calculate airspeed and altitude by sensing tiny changes in atmospheric pressure.

The conditions are brutal. We're talking sub-zero temperatures at high altitudes and bone-jarring vibrations during takeoff. These devices have to be incredibly tough and reliable. Failure is simply not an option.

Automotive Systems

Your own car is probably packed with pressure transducers, all working quietly to boost its performance, safety, and gas mileage. They’re constantly checking a wide range of fluid and gas pressures that are essential to keep your vehicle running smoothly.

A few places they’re hiding in your car:

1. Engine Oil Pressure: This is the one that triggers the dashboard light, warning you of low oil pressure and helping you avoid catastrophic engine failure.

2. Fuel Pressure: It makes sure the engine gets the right fuel-to-air mix for clean, efficient combustion.

3. Brake Fluid Pressure: It's a core part of your anti-lock braking (ABS) and stability control systems, helping you stay in control during a hard stop.

4. Tire Pressure Monitoring Systems (TPMS): The sensor in each tire warns you if the pressure is low, which is a huge plus for both safety and fuel economy.

Healthcare and Environmental Monitoring

The reach of pressure transducers goes way beyond big machines. In medicine, they are legitimate lifesavers. Ventilators use them to deliver air to a patient's lungs with incredible precision, and every blood pressure monitor you’ve ever seen relies on one to provide vital diagnostic data.

They also play a huge role in protecting our environment. These sensors are used to monitor water levels in reservoirs and rivers, giving us early warnings about potential floods. They’re also a key component in weather stations, where barometric pressure readings help us forecast what the weather will do next. It just goes to show how central the simple act of measuring pressure really is.

Getting Your Installation and Calibration Right

You can pick the perfect pressure transducer for the job, but if you don't install and calibrate it properly, you're only halfway there. Getting accurate, reliable data depends on a careful setup. It’s like tuning a fine instrument—you wouldn't expect a concert-quality sound without it, and the same goes for your measurements.

These best practices are about making sure your investment actually pays off. Every detail, from where you place the device to how tightly you screw it in, has a real impact. Skipping these steps is a common cause of bad readings, early sensor failure, and expensive downtime.

Where You Install Matters—A Lot

The spot you choose for your pressure transducer can make or break its performance and longevity. You're looking for a location that's stable, shielded from the worst of the environment, and away from anything that could mess with its sensitive internal components.

Before you wrench anything into place, think through these points:

• Steer Clear of Vibration and Shock: Bolting a transducer directly to a rumbling pump or engine is asking for trouble. Constant shaking creates noise in the signal and can physically damage the delicate parts inside. The easy fix? Use a remote mounting bracket or even just a bit of flexible tubing to isolate it.

• Watch the Temperature: Big temperature swings, both hot and cold, can make a transducer's output drift off-target. This is called thermal error. Always keep the device within its rated temperature range and away from obvious heat sources like exhaust manifolds or steam lines.

• Get the Orientation Right: When measuring liquids, try to mount the transducer so the electrical connector points up. It's a simple trick that prevents condensation from dripping down into the electronics and causing a short.

One of the most common ways people ruin a new transducer is by over-tightening it. Cranking it down too hard can warp the diaphragm and permanently wreck the sensor. Always use a torque wrench and stick to the manufacturer's specs. It’s the single best thing you can do to avoid installation damage.

Why You Can't Skip Calibration

Calibration is simply checking your transducer's reading against a trusted, high-accuracy standard and tweaking it to match. It’s definitely not a "set it and forget it" task. Over time, every sensor will naturally drift a little, losing a tiny bit of its initial accuracy.

Regular calibration is how you fight that drift and ensure your data is trustworthy. In critical systems, like HVAC controls or industrial processing, a sensor that's out of whack can lead to wasted energy or even create safety risks. Think of it as a routine health check for your whole measurement system.

A Quick Guide to Two-Point Calibration

While serious calibration calls for specialized lab gear, you can often perform a basic two-point check right in the field to make sure things are on track. This process fine-tunes the two most critical points of the transducer's scale: the bottom and the top.

1. Setting the Zero: First, make sure there's no pressure on the transducer (just open it to the air). Adjust the output signal until it reads exactly zero—for example, 4mA or 0V. This gives you a solid baseline for every measurement.

2. Setting the Span: Next, apply a known, steady pressure that matches the transducer's maximum rating. You'll need a reliable pressure source for this. Now, adjust the output until it hits the max signal, like 20mA or 5V.

Running through this simple process confirms that your transducer is reading correctly across its entire operating range. For any system that relies on precise pressure control, sticking to a regular calibration schedule is non-negotiable.

Troubleshooting Common Pressure Transducer Issues

Sooner or later, even the most robust pressure transducer will give you trouble. When a critical measurement suddenly goes haywire, knowing where to start looking can save a ton of time, money, and frustration. Most problems fall into just a few categories, and with a bit of systematic thinking, you can get things running smoothly again.

Before you jump to the conclusion that the transducer itself is dead, take a deep breath and check its surroundings. It’s surprisingly common for the real culprit to be something simple, like a loose wire or a flaky power supply, which can perfectly mimic a failed device.

Inaccurate or Unstable Readings

This is the big one—your transducer is sending back readings that are either way off the mark or bouncing around like a pogo stick. For any automated process, this kind of bad data can cause chaos.

Your first move should be to check the power. An unstable voltage supply is notorious for causing erratic signals. After that, get your eyes on the wiring. Look for loose connections, corrosion, or any signs of damage. It's also worth considering electrical noise; high-power equipment like motors or variable frequency drives running nearby can easily interfere with the low-voltage signal from a transducer.

It's easy to forget about environmental factors, but they can be a huge source of trouble. Has the transducer been exposed to temperatures or vibrations beyond its design limits? That kind of stress can physically warp the delicate sensing element inside, leading to readings that are temporarily—or permanently—wrong.

Zero Output or a Dead Signal

Getting nothing at all from your transducer can be alarming, but it often makes for a straightforward diagnosis. A completely dead signal usually points to one of three main problems.

Here’s how to track it down:

• Check the Power Supply: Grab a multimeter and verify that the correct voltage is reaching the transducer’s terminals. No power, no signal. It's as simple as that.

• Verify the Wiring: A wire connected to the wrong terminal (reversed polarity) or a break somewhere in the line will stop the signal cold. Double-check your connections against the manufacturer's wiring diagram.

• Inspect for Clogging or Damage: Take a look at the business end of the transducer. The pressure port can easily get clogged with debris, preventing it from sensing anything. Also, check for physical signs of an overpressure event, which can rupture the internal diaphragm and kill the sensor for good.

By working through these steps methodically—from the electrical supply all the way to the physical connection—you can pin down the root cause of most transducer issues and keep your systems running accurately and reliably.

Got Questions? We’ve Got Answers.

Even after you've got the basics down, a few practical questions always pop up when you're in the field with a pressure transducer. Let's tackle some of the most common ones that engineers and techs run into.

Think of this as your quick-reference guide for those on-the-job moments.

Gauge, Absolute, or Differential Pressure—What's the Real Difference?

It all comes down to your frame of reference. The distinction is simpler than it sounds, and picking the right one is all about what you're actually trying to measure.

• Absolute Pressure: This is your baseline. It's measured against a true vacuum—a complete absence of pressure. Absolute pressure readings aren't affected by changes in the weather or altitude, giving you the total, unfiltered pressure.

• Gauge Pressure: This is the one we use most often in daily life, like when checking tire pressure. It measures pressure relative to the current atmospheric pressure around you. So, a reading of 0 PSI gauge pressure is actually equal to the surrounding air pressure.

• Differential Pressure: This one is straightforward—it just measures the difference in pressure between two distinct points. A classic example is measuring the pressure before and after a filter to see how clogged it's getting.

How Often Do I Really Need to Calibrate My Transducer?

There's no magic number here; it really depends on the job. For most standard industrial applications, getting it calibrated once a year is a solid rule of thumb.

But if you're working in a high-stakes lab or a really harsh environment with lots of vibration or wild temperature swings, you'll want to tighten that schedule. In those cases, checking it every three to six months is a much safer bet to stay ahead of sensor drift. When in doubt, always check the manufacturer's spec sheet.

Can I Use the Same Transducer for Both Liquids and Gases?

Usually, yes. The big thing to watch out for is material compatibility. The parts of the transducer that physically touch the liquid or gas are called the "wetted parts."

You have to be absolutely sure that these materials—typically stainless steel or another alloy—won't react with whatever you're measuring. If you get it wrong, you risk corrosion, sensor failure, and a major headache. Always double-check the datasheet for compatibility before you install anything.

The IP rating is a crucial spec that tells you how tough a pressure transducer is against the elements. It’s a standardized code that grades its protection against dust and water, so you can be confident you’re picking a device that will actually survive where you put it.

What's the Deal with the IP Rating on a Pressure Transducer?

That Ingress Protection (IP) rating is a simple two-digit code that tells you how well the transducer is sealed.

• The first number (from 0-6) is for solids like dust. The higher the number, the better the seal. A 6 means it’s completely dust-tight.

• The second number (from 0-8) is for liquids. A 5, for instance, can handle a jet of water, while an 8 means you can submerge it completely.

So, when you see a rating like IP67, you know the device is totally protected from dust and can survive being dunked in up to one meter of water for 30 minutes. That's exactly what you want for a lot of demanding industrial settings.
