Tucked away deep inside your HVAC system is a component that works tirelessly, day in and day out, to keep your home comfortable: the evaporator coil. It's easy to overlook, but its job is absolutely essential. Think of it as the cold, refreshing heart of your air conditioner, absorbing your home's heat and humidity to deliver cool, crisp air.

How well this single part performs directly impacts your comfort, the quality of the air you breathe, and even your monthly energy bills.

The Unsung Hero of Your Home's Cooling System

Most of us never actually see our evaporator coil. It's usually hidden away inside the indoor air handler or furnace cabinet. Out of sight, but certainly not out of mind for HVAC professionals. Along with the outdoor condenser unit, it’s one of the two most critical pieces of any split-system air conditioner. Its entire purpose is to absorb heat, which is the fundamental process of cooling.

The science behind it became a huge deal in the mid-1900s when air conditioning started becoming common in buildings across North America and Europe. The coil works by circulating a very cold liquid refrigerant through its network of tubes. As your home's warm air blows over these tubes, the refrigerant absorbs the heat and evaporates into a gas. This is a simple but powerful process. If you're interested in the backstory, you can explore more about the history and market of this technology to see how far it's come.

Why Your Evaporator Coil Matters So Much

The health and efficiency of your evaporator coil have a ripple effect across your entire HVAC system. When it's working right, your home cools down quickly and stays comfortable. But its job is bigger than just dropping the temperature.

Here are a few reasons this component is so vital:

• Energy Efficiency: A clean coil is a master at heat transfer. It lets your AC cool your home without breaking a sweat. But when it gets dirty, it has to work much harder and run longer, which you'll definitely see on your energy bill.

• Home Comfort: The coil is also your home's primary dehumidifier. As warm, sticky air passes over the cold surface, moisture condenses out of the air (just like on a cold glass of iced tea) and drains away. This is what leaves your indoor air feeling so crisp and pleasant, not just cool.

• Air Quality: There's a downside to that cool, dark, and damp environment. If it's not maintained, an evaporator coil can become a perfect home for mold and bacteria. A clean coil is a key part of keeping your indoor air healthy.

A properly maintained evaporator coil isn't just a "nice-to-have"—it's an absolute necessity for an efficient, long-lasting AC system that delivers both comfort and clean air.

Getting a handle on its role is the first step. It helps you see why things like changing your air filters on time and getting annual tune-ups are so important for keeping your cooling system running at its best.

How Your Evaporator Coil Makes Cold Air

Ever wonder how your air conditioner takes that warm, sticky air in your home and turns it into a cool, refreshing breeze? It's not magic, but it feels like it. The entire transformation happens at one critical component: the evaporator coil.

Think about how a cold glass of iced tea "sweats" on a hot summer day. The evaporator coil uses a very similar principle of physics, just on a much more powerful scale, to cool your entire house.

To really get it, let's follow the journey of the refrigerant—the special fluid that acts as the lifeblood of your AC system. A very cold, low-pressure mix of liquid and gas refrigerant gets pumped into the evaporator coil. At the same time, your HVAC system's blower motor pulls warm air from your rooms and pushes it right over the coil's thin metal fins.

The Great Heat Exchange

This is where the real work gets done. Heat naturally moves from a warmer area to a colder one, and the refrigerant inside that coil is frigid. As your home's warm air flows across the coil, the cold refrigerant instantly starts absorbing its heat.

This heat absorption has a fascinating effect.

The sudden transfer of heat causes the low-pressure liquid refrigerant to boil and vaporize, turning into a low-pressure gas. In changing from a liquid to a gas, it effectively soaks up the heat from your air, leaving only chilled air behind to be blown back into your rooms.

But that's not all. This process is also what removes humidity from the air. The moisture floating in your warm indoor air hits the cold surface of the evaporator coil and condenses into water droplets. These droplets are collected in a drain pan and safely piped away. This is why air conditioning doesn't just feel cooler—it feels less muggy and much more comfortable.

This simple, yet powerful, cooling cycle is what keeps you comfortable.

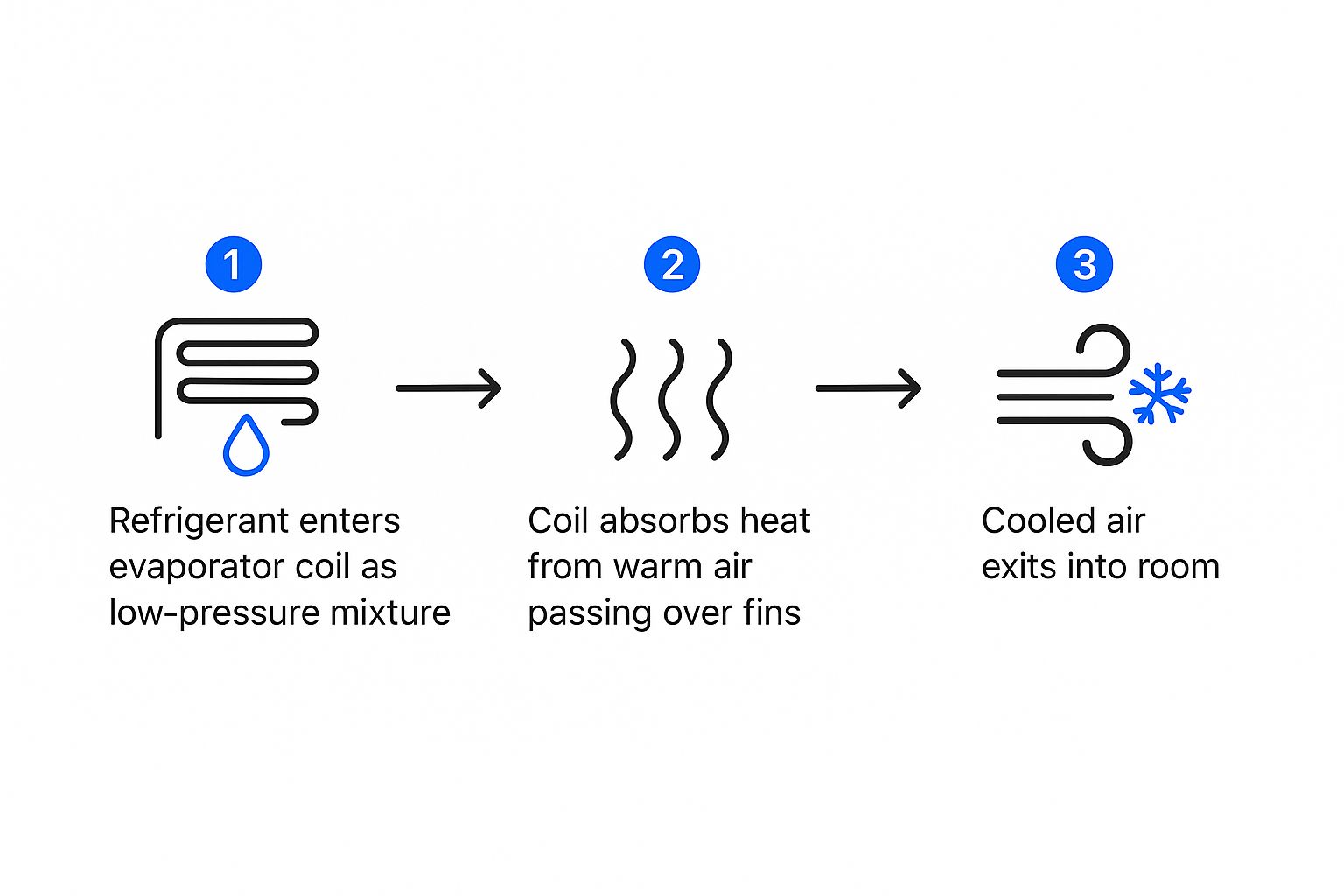

The visual above really drives home how the refrigerant's phase change is the core mechanism that absorbs heat and delivers cool, comfortable air.

The Refrigerant's Complete Journey

Once the refrigerant has turned into a gas and grabbed all that heat, its job inside the evaporator coil is done for the moment. But the cycle is far from over.

From the evaporator coil, this now-gaseous refrigerant travels to the outdoor condenser unit. There, the entire process is reversed. The condenser compresses the gas back into a liquid, releasing all the heat it captured from your home into the outside air. The cooled liquid refrigerant is then sent back inside to start the process all over again.

For this continuous loop to work flawlessly, a few things need to be in perfect harmony:

• Proper Airflow: If a dirty air filter or a blocked vent restricts airflow, the coil can get too cold and freeze over.

• Correct Refrigerant Levels: Too little refrigerant (usually from a leak) causes the pressure inside the coil to drop too low, which can also lead to freezing.

• A Clean Coil: A thick layer of dust and grime acts like an insulator, preventing the coil from absorbing heat efficiently.

When all these elements are balanced, your evaporator coil can do its job with incredible efficiency, keeping your home cool and comfortable day after day.

Common Evatorator Coil Designs and Materials

While every evaporator coil does the same job, they don't all look the same. Their physical shape and the metal they're made from can differ quite a bit. These aren't just cosmetic choices—they directly affect how the coil is installed, its efficiency, and whether it even fits inside your furnace or air handler.

Getting familiar with the common types helps you understand why a technician might recommend one design over another for your specific home. The three main designs you’ll run into are named, quite literally, for their shapes.

• A-Coils: This is the one you’ll see most often. It’s shaped like a tent or the letter 'A', a clever design that packs a massive amount of surface area into a compact space for maximum heat exchange. You'll typically find A-coils sitting on top of an upflow furnace or inside a standard air handler.

• Slab Coils: Just like the name implies, these are simple, flat coils that might be slightly angled. They're the go-to solution for tight spaces where a bulky A-coil just won't fit. Think attics or crawl spaces with horizontal or downflow systems.

• N-Coils: A more recent innovation, the N-coil (sometimes called a Z-coil) is basically a smarter, folded version of the A-coil. This N-shape squeezes in even more surface area and is generally easier to clean and service, striking a great balance between performance and maintenance.

The Great Material Debate: Copper vs. Aluminum

Besides the shape, the metal used to build the coil is a huge factor. For years, the industry standard was a combination of copper tubes woven through aluminum fins. These days, all-aluminum coils are becoming the norm. Each material comes with its own set of pros and cons, sparking a continuous debate among HVAC pros.

The choice between copper and aluminum isn't about which is "best," but which is best for the situation. It's a constant balancing act between heat transfer efficiency, corrosion resistance, and of course, cost.

To understand the trade-offs, it helps to see how the two materials stack up side-by-side.

Evaporator Coil Material Comparison

This table breaks down the key differences you’ll find between copper and aluminum coils.

In the end, the specific evaporator coil in your system—whether it’s an N-coil made of aluminum or a classic copper A-coil—is a result of careful decisions balancing performance, budget, and the physical space available. Knowing what makes them different gives you the confidence to talk shop with your HVAC technician when it's time for a repair or a full system replacement.

Here is the rewritten section, crafted to sound like an experienced human expert:

Keeping Your Evaporator Coil Healthy and Happy

When it comes to your AC system, a clean evaporator coil is an efficient one. This directly translates to better comfort and lower energy bills. The good news is that staying on top of maintenance is your best line of defense against most common coil problems, and the single most important task is surprisingly simple.

The Power of a Clean Air Filter

Think of your HVAC system's air filter as the personal bodyguard for your evaporator coil. Its entire job is to intercept dust, pet hair, pollen, and all sorts of other airborne gunk before it can get anywhere near the coil's delicate fins.

So, what happens when that filter gets clogged? Airflow gets choked off. This restriction means the coil can't pull enough heat out of the air, which can cause it to get way too cold and even freeze solid. Even worse, a dirty filter eventually stops doing its job, letting particles slip by and cling to the damp coil surfaces, forming a gross, insulating blanket of grime.

The golden rule is to check your filter every month and plan on replacing it at least every 1-3 months. This one small, cheap habit is the absolute best way to stop that insulating layer of dirt from building up and forcing your system to work overtime.

Telltale Signs Your Coil Needs a Pro

Even if you're a champion at changing your filters, your evaporator coil will likely need a professional cleaning at some point. Your AC system is pretty good at giving you hints when it’s not feeling well. Paying attention to these clues can save you from a much bigger headache—and a much bigger repair bill—down the road.

Keep an eye (and nose) out for these classic symptoms:

• Weak Cooling: Is your AC running constantly but the house just won't get cool? A dirty coil could be to blame. That layer of grime is literally blocking the heat from being absorbed.

• Funky Smells: If you get a whiff of musty, "dirty sock" odor every time the AC kicks on, that's a red flag for mold or mildew growth on the dark, damp coil. This isn't just unpleasant; it's a direct hit to your home's indoor air quality.

• Spiking Energy Bills: A sudden, unexplained jump in your electricity costs is a classic sign your system is struggling. A dirty evaporator coil is one of the most common culprits.

These issues really drive home how important it is to have not just clean parts, but an efficiently designed system. As energy regulations get stricter, manufacturers are pushing the envelope with new coil designs that maximize heat transfer while using less power. To see how the industry is adapting, you can read more about these regulatory impacts on coil development and the innovations they're sparking.

If you spot any of these warning signs, it’s time to call in a qualified HVAC technician. They have the right tools, training, and specialized, non-acidic cleaners to get your coil spotless without bending the delicate fins or causing damage. A little professional care goes a long way in extending the life of your system, keeping your energy use in check, and ensuring the air in your home is clean and healthy.

Diagnosing Common Evaporator Coil Problems

When your air conditioner decides to take an unscheduled break, the evaporator coil is one of the first places a pro will look. Getting familiar with the classic symptoms can help you figure out what's going on, even if you ultimately need an expert to handle the repair. At the very least, you'll be able to have a much more productive conversation with your HVAC technician.

The most obvious and frequent issue is a frozen evaporator coil. It sounds a bit strange, right? An AC component freezing over? While the coil is supposed to be cold, it should never be encased in a block of ice. That ice acts like a thick winter coat, completely preventing the coil from doing its job of absorbing heat from your home's air.

The Frozen Coil and Its Causes

A frozen coil is almost never the root problem itself. Instead, it's a massive red flag pointing to a deeper issue, usually with either airflow or refrigerant levels. Your first and easiest check should always be the air filter. If it’s caked with dust and debris, it can choke off the airflow, causing the coil's surface temperature to dive below freezing.

If the filter looks clean, the next likely culprit is a low refrigerant charge. When your system is low on refrigerant, almost always because of a leak somewhere, the pressure inside the evaporator coil plummets. This sharp drop in pressure causes a corresponding, and equally sharp, drop in temperature, which is what leads to ice forming.

So, what typically triggers a freeze-up?

• Dirty Air Filters: This is, without a doubt, the number one cause. A clogged filter simply doesn't let enough warm air pass over the coil.

• Blocked Vents or Ducts: Similar to a dirty filter, if you have furniture blocking return vents or have closed off too many supply vents, you're disrupting the system's airflow balance.

• Low Refrigerant: A leak is a serious problem. It means the sealed system has been compromised, and you'll need a certified professional to find the leak, fix it, and recharge the system properly.

A frozen coil puts immense strain on your AC's compressor, which happens to be one of the most expensive parts of the entire system. If you see ice, turn your AC off immediately. Let it thaw out completely to prevent a small problem from turning into a catastrophic failure.

Identifying Refrigerant Leaks

Besides causing freeze-ups, refrigerant leaks have other tell-tale signs. Since the refrigerant is under high pressure, a leak can sometimes create a faint hissing or bubbling sound near the indoor unit. You'll also notice the classic symptoms of poor performance: the air coming from your vents feels lukewarm, or the AC runs constantly without ever hitting the temperature you set on the thermostat.

Over the years, manufacturers have gotten better at building coils, often combining copper and aluminum to improve durability and heat transfer. While this has made coils more efficient, even the best-made ones can develop tiny, pinhole leaks over time. You can find more details on evaporator coil market trends here if you're interested in the materials science behind modern coils.

Clogged Condensate Drains

Finally, a very common—and messy—problem is a clogged condensate drain. As the evaporator coil wrings humidity out of the air, that water collects in a drain pan and flows outside through a small pipe. Over time, that drain line can get clogged with algae and sludge.

When that happens, the water has nowhere to go. It backs up, overflows the pan, and can cause serious water damage to your ceilings, walls, or floors, not to mention creating a perfect environment for mold growth. The dead giveaway is a puddle of water around your indoor air handler.

While a handy homeowner might be able to clear a simple clog in the drain line, problems like a frozen coil or a suspected refrigerant leak really demand a professional. They have the tools and training to fix it safely and correctly.

What's Next for Cooling and Coil Technology?

The evaporator coil, long the quiet workhorse of any air conditioner, is now right at the heart of some exciting changes in the HVAC world. As the global need for effective cooling continues to climb, the pressure is on to develop technologies that are smarter, tougher, and much kinder to our planet. We're not talking about completely reinventing the coil, but rather refining it to be significantly more efficient and sustainable.

This push for better technology is creating some serious market momentum. The global evaporator coil market was already valued at around USD 13.5 billion in 2023, and it's on track to hit nearly USD 19.8 billion by 2032. All that growth, largely driven by new construction and urbanization, is what’s pushing manufacturers to innovate. If you're curious about the numbers, you can dive into a detailed market analysis to see how these trends are playing out.

Smarter Designs for a Greener World

One of the biggest leaps forward we're seeing is the rise of microchannel coils. Think of it like this: take the classic round tube and fin design, but shrink it way down into tiny, flat tubes that snake through the fins. This seemingly simple change has a massive impact.

• Boosted Efficiency: This design dramatically increases the surface area available for heat exchange, meaning it can pull heat out of the air much faster and more effectively, all within a smaller unit.

• Less Refrigerant Needed: Microchannel systems need a lot less refrigerant to do their job—sometimes up to 30% less. That’s a win for both your wallet and the environment.

• A Smaller Footprint: Because they're so compact, these coils give engineers the freedom to design HVAC units that are smaller, lighter, and more adaptable to different spaces.

Another area seeing major progress is in advanced surface coatings. We're now seeing manufacturers apply specialized polymer coatings directly onto the coils.

These high-tech coatings create an incredibly slick, durable barrier. This surface not only fights off corrosion but also actively prevents mold, mildew, and bacteria from getting a foothold—addressing both the coil's lifespan and the quality of the air you breathe.

These innovations show a clear path forward. The evaporator coil of the future will be smaller, use fewer resources, last longer, and help create healthier indoor air. It's an evolution that promises HVAC systems that are not only more powerful but also better for our budgets and the planet.

Frequently Asked Questions About Evaporator Coils

To wrap things up, let's tackle some of the questions we hear most often from homeowners about their evaporator coils. Getting the right answers can save you a lot of headaches and help you make smart choices for your home's comfort system.

How Often Should I Have My Evaporator Coil Cleaned?

In a perfect world, a professional cleaning once a year during your regular HVAC tune-up is plenty for most homes. Think of it as annual preventative maintenance.

However, life isn't always perfect. If you have furry friends shedding dander, live in a particularly dusty area, or someone in the house struggles with allergies, you might want to bump that up to twice a year. The absolute best thing you can do yourself is to stay on top of your air filter—changing it every 1-3 months is crucial.

A clean air filter is your evaporator coil's first and best line of defense. It's a simple step that stops the dirt and gunk that choke off airflow and cause your system to work harder, freeze up, and fail.

What Are the Signs of a Leaking Evaporator Coil?

A refrigerant leak isn't something to ignore; it's a major problem that needs a professional's touch right away. Here are the tell-tale signs that you might have a leak:

• You hear a strange hissing or even a bubbling sound near your indoor unit.

• Your AC is running, but the air coming out of the vents is lukewarm or just plain warm.

• You spot ice or frost building up on the coil or the copper refrigerant lines connected to it.

• Your energy bills suddenly spike without any obvious reason.

If you notice any of these, it's time to call in a pro. Refrigerant isn't something a homeowner can handle, and a leak will only get worse.

Can I Just Replace the Evaporator Coil Myself?

In a word: no. Replacing an evaporator coil is definitely not a DIY project. This is a complex task that legally and safely requires a licensed HVAC technician.

Why? The job involves recovering and recharging high-pressure refrigerant, which demands special certifications and equipment. It also requires soldering (brazing) refrigerant lines and dealing with high-voltage electrical connections.

Trying to do this yourself is incredibly dangerous. You’ll instantly void your HVAC system's warranty, and a small mistake could lead to catastrophic (and very expensive) damage. Technicians rely on trusted suppliers like EPS Controls to get reliable, manufacturer-warrantied coils, ensuring the repair is done right with the correct components. Leave this one to the experts.
