DIY Condenser Fan Motor Replacement Guide

That loud humming from your outdoor AC unit? If the fan blades aren't moving, you've likely got a failing condenser fan motor. This is a common problem, but one you need to address quickly. When that fan stops, your system can't get rid of the heat it pulls from your house, which can cause the whole unit to overheat and shut down. Left unchecked, this can lead to a much more expensive compressor failure.

Signs Your Condenser Fan Motor Is Failing

Before you run out and buy a new motor, let's be sure that's actually the problem. A failing fan motor can look a lot like other issues, especially a bad capacitor or a faulty contactor. A wrong diagnosis means wasted time and money, so let's look at the specific symptoms that point directly to the motor.

The condenser fan's whole job is to pull air over the outdoor coils to release heat. When the motor gives up, that critical process grinds to a halt.

The Most Obvious Symptoms

You can often see and hear the classic signs of a dying fan motor. Keep an eye (and an ear) out for these dead giveaways:

• Loud Humming or Grinding Noises: If you hear a loud, angry hum from the unit but the fan blades are dead still, that’s a huge red flag. It usually means the motor is getting power but is physically seized and can't turn.

• Slow or Intermittent Spinning: You might notice the fan struggles to start, never quite gets up to full speed, or just spins for a few minutes before quitting. This is a tell-tale sign of worn-out motor bearings or an overheating issue.

• The Unit Overheats and Shuts Down: Does your AC run for about 10-15 minutes and then just stop? That's probably the compressor's built-in safety switch tripping. Without the fan running, heat and pressure build up to unsafe levels, forcing a shutdown to prevent catastrophic damage.

Pro Tip: Here’s a quick field test I always do. First, kill the power to the unit at the breaker and the disconnect box. Then, take a long screwdriver or a stick and gently push the fan blades. If they feel stiff or refuse to budge, the motor's bearings are almost certainly shot. If they spin freely for a very long time, your problem is more likely the capacitor.

Differentiating Motor Failure from Other Issues

It's incredibly easy to mistake a bad motor for a bad capacitor. The capacitor is what gives the motor the electrical "kick" to get started. When a capacitor dies, the motor will hum but won't be able to start spinning—the exact same symptom as a seized motor.

This is a very common repair. The global AC fan motor market is valued at around $9.32 billion, with over half (51%) of replacements driven by homeowners upgrading older systems for better energy efficiency. You can find more details on these trends in recent industry analysis.

To help you troubleshoot, here’s a quick reference to distinguish between the most common outdoor unit failures.

Quick Diagnostic Chart: AC Outdoor Unit Problems

Use this reference to quickly distinguish between a failing fan motor and other common AC issues based on the symptoms you're observing.

Remember, starting with the simplest and cheapest potential fix—like the capacitor—can save you a lot of headache. If that doesn't solve it, then you can be more confident that the motor is the real culprit.

Choosing the Right Motor and Gathering Your Tools

Getting this job right comes down to two simple things: having the exact right motor and the proper tools on hand before you start. I've seen countless DIYers get halfway through this project only to realize their new motor is incompatible or they have to make another trip to the hardware store. Let's make sure that doesn't happen to you.

First, let's get your toolkit sorted. You can forget those long, intimidating lists you find online. You probably have most of what you need already. The trick is having the right size and type of tool for the tight spaces in an AC unit.

Your Essential Tool Checklist

This is the practical list of what I actually carry when I'm heading out for this specific job. Having these ready to go will make the whole process a lot less frustrating.

• Multimeter: This is your most important safety tool. It's non-negotiable. You’ll use it to confirm the power is dead before you touch a single wire.

• Nut Driver Set: A good multi-bit driver with 1/4-inch and 5/16-inch heads is your best friend here. It'll handle pretty much every screw on the unit's housing and the motor mount.

• Adjustable Wrench or Pliers: Absolutely essential for gripping the motor shaft when you're trying to break loose a stubborn fan blade set screw.

• Allen Wrench Set (Hex Keys): You’ll need this for that one critical job: loosening the set screw holding the fan blade to the motor shaft.

• Wire Strippers and Crimpers: For making clean, solid electrical connections. Seriously, don't try to use a pocket knife; it's unsafe and you'll get a shoddy connection.

• Screwdrivers: Just a basic Phillips and a flathead will get you through the rest of the panel screws.

Field Tip: Before you do anything else, pull out your phone and snap a clear picture of the data plate on the old motor. This little tag has every spec you need. Trying to read a faded, greasy label while crouched in the dirt is a great way to buy the wrong part.

Decoding the Motor Data Plate

That little metal plate on the side of the motor is your Rosetta Stone for finding a replacement. Matching these specs isn't just a suggestion—it's critical for your AC's performance and health. Getting it wrong can lead to poor cooling, or worse, a damaged compressor.

Here are the key specs you absolutely must match:

1. Voltage (VOLTS): Most residential AC units run on a 208/230V motor. This has to be an exact match.

2. Horsepower (HP): Match the HP precisely, whether it’s 1/4 HP or 1/3 HP. Too little power, and the motor will burn out. Too much power can create excessive airflow and strain the entire system.

3. Revolutions Per Minute (RPM): A motor's speed, like 1075 RPM, also needs to be a perfect match. The wrong RPM throws off the system's designed airflow, killing its efficiency.

4. Frame Size (FR): This tells you the motor's physical size and how the mounting bolts line up. Common sizes are 48 or 56. If the frame size is wrong, the new motor simply won't fit.

5. Amperage (AMPS or FLA): The Full Load Amps should be very close to the original.

6. Rotation (ROT): The plate will show which way the shaft spins—clockwise (CW) or counter-clockwise (CCW), usually with a little arrow. Many universal motors are reversible (REV), which is a nice bonus.

OEM vs. Universal Motors: A Real-World Comparison

When you start shopping, you'll see two main options: an OEM (Original Equipment Manufacturer) part or a universal motor. The OEM part is an identical replacement, while a universal one is designed to work in a variety of units.

Honestly, for most homeowners doing their own repair, a good-quality universal motor is a smart, cost-effective choice. As long as you meticulously match the key specs from that data plate, you'll get great performance and value, and you’ll find one a lot faster.

Essential Safety Steps Before You Begin

Before you even think about picking up a tool, let’s get serious about safety. This is non-negotiable. Your outdoor AC unit is powered by 240 volts, a level of electricity that can be lethal. Taking shortcuts with high voltage isn't just a bad idea; it can be your last mistake.

We're going to follow a two-step power-down procedure. This isn't overkill—it's a deliberate, redundant process designed to ensure that you and the electricity stay completely separate.

The Two-Step Power-Down

First, go to your home's main electrical panel. You're looking for the breaker that powers the air conditioner, which is almost always a large double-pole breaker. It might be labeled "AC," "Condenser," or something similar. Flip it decisively to the "OFF" position.

Now, head outside to the condenser unit. Look for a smaller metal box on the wall right next to it—this is the disconnect switch. Open it up. Inside, you'll either find a pull-out block or a heavy-duty switch. Pull the block straight out or flip the switch down to "OFF." This physically disconnects the power right at the source of your work.

Verify Zero Voltage with a Multimeter

Here's a rule I live by: never trust that the power is off just because you flipped a switch. This is where your multimeter proves its worth. A quick ten-second check can literally save your life.

Set your multimeter to the AC voltage setting (V~). You'll need to take off the service panel on the side of the condenser to get to the internal wiring. The main power lines connect to a component called the contactor.

Carefully touch one probe to the L1 terminal and the other probe to the L2 terminal on the contactor. The reading on your multimeter must be zero volts. If you see any number other than zero, stop what you're doing and figure out what's still live.

Crucial Takeaway: The only confirmation that it's safe to work is a multimeter reading of zero. Don't rely on labels or memory. Trust your meter.

Safely Discharge the Capacitor

Okay, the main power is dead. But there’s one more sneaky hazard lurking inside: the capacitor. Think of this can-shaped part as a temporary battery that holds a powerful charge long after the power is cut. Touching its terminals can give you a nasty shock.

Grab a screwdriver with a well-insulated handle. Holding it only by the handle, bridge the metal shaft across the two main terminals on the capacitor (often marked "C" and "HERM"). You’ll likely hear a "pop" and see a small spark. That's the stored energy being safely discharged.

After that spark, the capacitor is inert, and the entire unit is finally safe. Now you can get to work on replacing the fan motor without worrying about any electrical surprises.

A Practical Guide to Removing the Old Fan Motor

Alright, with the power off and safety checks done, it's time to roll up your sleeves. This is where a little patience and a methodical approach will save you from a world of frustration. Getting the old motor out isn't complicated, but it's where you can run into a few snags if you're not careful.

First things first, you need to get inside the unit. That means taking off the top protective grille. Grab your nut driver—you'll likely need a 1/4-inch or 5/16-inch socket—and zip off the screws holding it down. My advice? Toss them into a magnetic parts tray or even just an old coffee mug. Trust me, they have a knack for disappearing in the grass forever.

Once the screws are out, you can lift the entire top assembly (grille and motor) and carefully flip it over to rest beside the unit. Go easy here. The wires are still attached, and the last thing you want to do is yank one loose before you're ready.

Document and Disconnect the Wires

Before you touch a single wire, stop. Pull out your phone and take a few clear pictures of the wiring from different angles. Get a good shot of where each wire lands on the capacitor and the contactor. This is your single best defense against confusion later, especially since the wire colors on your new motor might not match up perfectly.

The fan motor wires usually lead to two main components: the contactor, which supplies the power, and the capacitor, which gives the motor the kick it needs to start. Using your photos as a guide, you can start disconnecting them. Most will have simple spade connectors that should wiggle off. If one is being stubborn, use a pair of needle-nose pliers to gently persuade it, making sure to pull on the metal connector itself, not the wire.

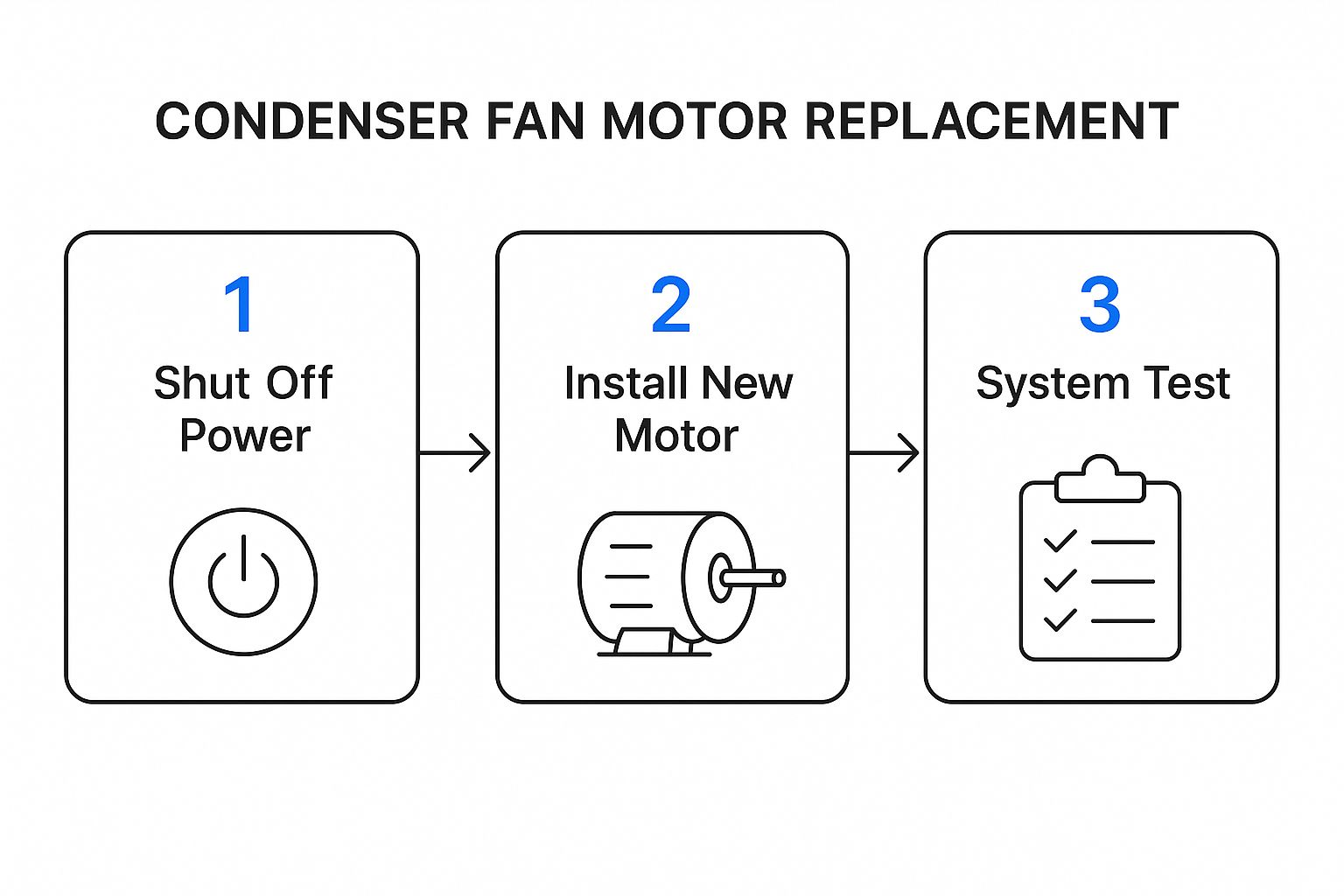

This visual provides a great roadmap for the entire project, showing how each phase logically flows into the next.

As you can see, it all comes down to moving from safety and prep to removal, installation, and final testing.

Tackling a Stuck Fan Blade

Now we get to the part that trips up more people than anything else: getting the fan blade off the old motor shaft. It's held on by a small set screw, but years of heat, rain, and humidity conspire to rust that screw and the blade hub right onto the shaft.

Your best friend here is a can of good penetrating oil like PB B'laster or Liquid Wrench. Find the set screw on the blade's hub and give it a healthy spray. Don't be shy. Let it sit for a good 15-20 minutes; you need to give it time to creep into those rusty threads.

After a good soak, grab the right size Allen wrench and give it a try. If it doesn't want to move, resist the urge to just crank on it until you strip the head. A better trick is to give the long end of the Allen wrench a few sharp taps with a hammer to help shock the rusty threads loose.

Pro Tip from the Field: If that set screw is a lost cause—completely rusted out or stripped—you might have to drill it out. It’s a last-ditch effort, but sometimes it's the only option. Start with a small bit and slowly work your way up in size until the screw is gone.

Even with the screw out, the blade might still be fused to the shaft. Whatever you do, don't pry on the thin edges of the fan blades. You’ll bend them, and the whole assembly will be out of balance. The right way is to use a rubber mallet or a block of wood to gently tap upwards on the solid hub, working your way around to slowly "walk" it off the shaft. Patience is your ally here.

Unbolting the Old Motor

You're on the home stretch. With the fan blade out of the way, the only thing left is to unbolt the motor from its mounting bracket. You'll see four long bolts, one at each corner, that go straight through the motor. A nut driver or a small wrench will take care of these.

As you remove the last bolt, hold onto the motor with your other hand. You don't want it to drop and smash into the delicate aluminum fins of the condenser coil below.

Lift the old motor out, and that's it! The removal is done. Take a moment to celebrate—the hardest part is behind you. Now you've got a clear path to get that new motor in and get your A/C humming again.

Getting the New Fan Motor Installed and Wired

Alright, the old motor is out of the way. Now for the satisfying part—getting the new one in and bringing your AC back to life. This is where a little patience and attention to detail really make a difference. A solid installation means your new motor will run quietly, cool effectively, and hopefully last for many years to come.

We’re going to nail two key steps that I’ve seen people mess up time and time again: getting the motor mounted rock-solid and setting the fan blade at the perfect height. Getting these two things right is what separates a temporary patch-up from a professional-quality repair.

Bolting Down the New Motor

Start by setting the new motor onto the mounting bracket on the underside of the top grille. If you got the right frame size, it should drop into place without any fuss. Line up the bolt holes on the motor with the slots on the bracket.

Go ahead and insert the four long mounting bolts, threading them through the bracket and into the motor. Get them started by hand first. Then, grab your nut driver and snug them down in a star pattern, just like you would with lug nuts on a car wheel. This little trick ensures the motor sits perfectly flush and avoids putting stress on the housing. Don't go crazy with the torque—just get them firm and secure.

A wobbly motor is a noisy motor, plain and simple. Even a slight vibration can lead to premature bearing failure and a rattling sound that will drive you nuts. Spend an extra 30 seconds here to make sure every bolt is tightened evenly.

It's also pretty cool to think about the technology you're holding. The entire market for HVAC motors, including the one you're installing, is a massive USD 18.3 billion industry. A lot of that value comes from the push for better energy efficiency, which is why a new, properly installed motor can often outperform the original one. You can find more details on the HVAC motors market and its trends if you're curious.

Setting the Perfect Fan Blade Height

Pay close attention here, because this step is absolutely critical for performance. The fan blade has to sit at the right depth inside the fan shroud (that circular opening in the top grille) to pull the maximum amount of air across the hot condenser coils.

First, gently slide the fan blade onto the shaft of the new motor. Don't tighten the set screw just yet. Now, carefully set the entire top grille assembly back onto the condenser unit so you can see where the blade is sitting.

You're aiming for the top edge of the fan blades to be roughly halfway inside the shroud opening.

• If it's too high, the fan will just churn air from above the unit instead of pulling it through the coils, which kills your cooling efficiency.

• If it's too low, you run the risk of the blades hitting the condenser coils or other parts inside. That's a recipe for disaster.

Adjust the blade up or down the shaft until you find that sweet spot. Once you have it, hold the blade steady and use your Allen wrench to really tighten the set screw down onto the flat part of the motor shaft. This locks it in place so it won’t slip or wobble when it’s spinning at high speed.

Wiring It All Up

Now it's time to connect the wires. Pull out your phone and open up those pictures you took earlier—they're your best friend for this part. The process is usually pretty straightforward, but one wrong connection can mean the motor won't start, or worse, you could damage it.

Using your photos as a guide, connect the main power wires (usually a black and another colored wire) to the correct terminals on the contactor. After that, connect the capacitor wires (often two brown ones) to the "C" (Common) and "FAN" terminals on your capacitor. A pair of needle-nose pliers can be really helpful here to make sure the spade connectors slide on snugly and make a solid connection.

What to Do with Universal Motor Wires

If you went with a universal replacement motor, you probably have a few extra wires hanging there. Don't worry. Those are there to let you set the correct fan rotation, which is what makes the motor "universal."

Your new motor will have a wiring diagram, either on a sticker right on the motor body or on a sheet in the box. This diagram is your map. It will tell you exactly which wires to connect to get either a clockwise (CW) or counter-clockwise (CCW) spin.

For instance, the diagram might say something like:

1. Connect the yellow and purple wires for a CW rotation.

2. Connect the yellow and orange wires for a CCW rotation.

Just look at your old motor to see which way it spun (it's almost always stamped on the data plate) and match it by connecting the right wires on the new one. Take any wires you don't use, twist a wire nut on the end of them, and tuck them out of the way so they can't short out on anything.

With the wiring done, you're on the home stretch and ready for reassembly and testing.

Testing Your Work and Final Checks

You’ve done the heavy lifting—the new motor is mounted, the blade is on, and the wires are connected. Now for the moment of truth. This is where we make sure all that hard work pays off with a perfectly running AC.

Before you even think about flipping a breaker, it’s time to carefully put everything back together. Set the top grille assembly back on the unit, making sure it sits flush. As you lower it, keep a close eye on your new wiring.

One of the most common mistakes I see is a pinched wire caught between the metal grille and the unit's frame. That’s a surefire way to short out your brand-new motor or create a serious electrical hazard. Gently guide all the wires into the control panel area, making sure they’re clear of any sharp edges or screw holes.

Once you’re confident the wires are safe, you can start threading the screws back into the top grille. Just get them snug—there’s no need to crank down on them.

The Final Once-Over

Before we bring electricity back into the picture, let’s run through one last quick check. It's a simple habit that has saved me from countless headaches over the years.

• Motor Mounts: Are all four motor bolts good and tight?

• Fan Blade: Is the set screw cinched down tight on the flat side of the motor shaft? Give it a gentle wiggle to be sure.

• Wire Connections: Are all your spade connectors pushed firmly onto the contactor and capacitor terminals?

• Clearance: Take a final look inside. Are there any stray wires, tools, or even a leaf that could get hit by the spinning blades?

This quick sanity check takes less than a minute and gives you some valuable peace of mind.

The Power-Up Sequence

Alright, it's time to energize the unit. You'll want to do this in the reverse order of how you shut it down to ensure a safe, controlled startup.

Start at the outdoor disconnect switch right next to the unit. Firmly slide the pull-out block back in or flip the switch to the "ON" position. This brings power back to the condenser itself.

Now, head inside to your main electrical panel. Find that double-pole breaker you switched off for the AC and flip it back on. Just like that, the unit is fully powered and ready to go.

A Pro Tip: Always power up at the disconnect first, then the main breaker. This way, if there’s an immediate fault or short, it’s contained right at the unit instead of tripping the breaker for that entire part of your house.

With the power back on, it’s time to tell your AC to get to work. Go to your thermostat, set the mode to "COOL," and drop the temperature a few degrees below the current room temp. This sends the signal for the outdoor unit to kick into gear.

What to Look and Listen For

Head back outside and watch the unit for the first couple of minutes. A successful condenser fan motor replacement is pretty hard to miss.

You should see the fan spin up smoothly and quietly. There shouldn't be any wobbling, hesitation, or rattling. All you should hear is the gentle whir of moving air—no grinding or scraping sounds allowed.

The demand for these quieter, more efficient motors is a big reason why the global market is projected to hit USD 1.8 billion by 2033. You can see more about these condenser fan motor market trends on marketresearchintellect.com.

Hover your hand a few inches above the top grille. You should feel a strong, consistent column of warm air being pushed out. That's the tell-tale sign that your new fan is doing its job perfectly, pulling air across the coils and getting that heat out of your house.

Quick Post-Install Troubleshooting

What if something seems off? Don't panic. Most problems at this stage are easy to fix.

If the fan is spinning backward (it feels like it’s sucking air in from the top), you just need to reverse the motor's rotation. Kill all the power, discharge the capacitor again for safety, and simply swap the two small rotation wires on your universal motor. The wiring diagram will show you which ones.

If the motor just hums but won't start spinning, it's almost always a bad connection. Power everything down again, and double-check that your connections at the capacitor and contactor are completely secure. Once you've confirmed everything is tight and the fan is spinning the right way, you can officially call this job a success.
