Your Guide to the Condenser Fan Motor

Your outdoor AC unit has one job: to get rid of the heat from inside your home. The condenser fan motor is the component that makes this happen. It's the engine that powers the large fan you see spinning on top of the unit, pulling air over the condenser coils to dissipate heat.

Without this crucial motor, your air conditioner can't release the heat it has absorbed, which quickly leads to the entire system overheating. This doesn't just affect cooling performance; it puts the whole system at risk.

The Heart of Your Outdoor AC Unit

Think about the radiator fan in your car. On a hot summer day, it kicks on to pull air across the radiator and keep your engine from overheating. A condenser fan motor does the exact same thing for your AC's compressor, which is the most expensive and hardest-working part of the system.

As your AC runs, the compressor gets incredibly hot. The fan motor spins the blades to constantly draw outside air over the condenser coils. This airflow carries away the heat that the refrigerant has collected from inside your house, allowing the cooling cycle to continue. If that fan stops, the heat has nowhere to go.

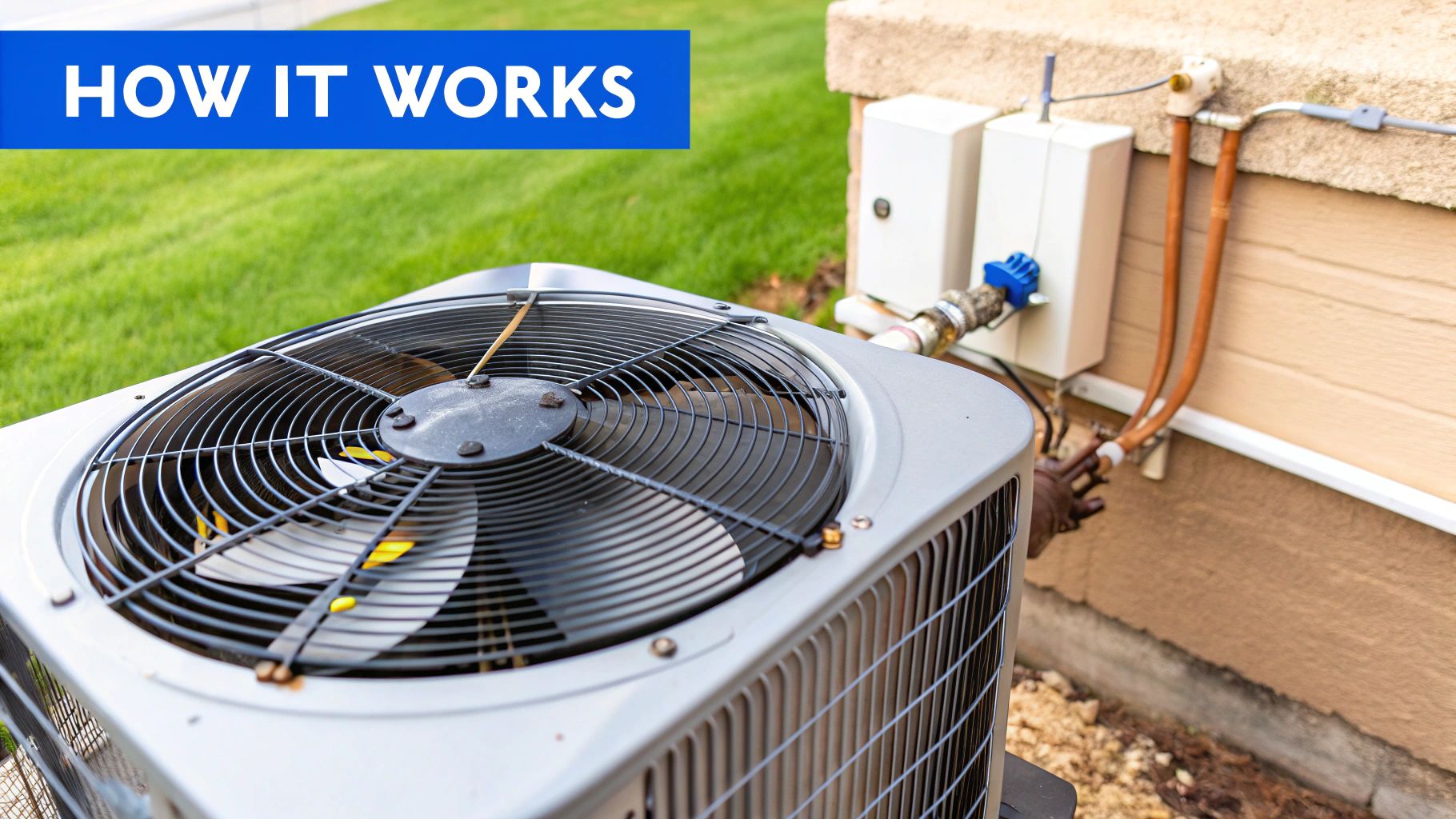

How It All Works Together

The motor isn't a solo act. It works as part of a small team to get the job done, and each part has a specific role.

• The Motor: This is the workhorse. It takes electrical power and converts it into the spinning motion that turns the fan blades.

• The Fan Blades: These are carefully designed and angled to grab and pull a huge volume of air through the top of the unit.

• The Capacitor: Think of this little cylinder as a battery booster. It gives the motor a powerful jolt of energy to overcome inertia and get spinning from a dead stop. In fact, a bad capacitor is one of the most frequent reasons a fan motor fails to start.

When all three parts are working together seamlessly, heat is efficiently whisked away from the unit. But if just one of them fails, the whole process breaks down. This can cause the compressor to overheat in a matter of minutes, leading to permanent and very expensive damage.

A dead condenser fan motor is more than just a nuisance; it's a direct threat to your AC's compressor. Keeping it running properly is the key to preventing a catastrophic system failure and maintaining peak efficiency.

Why This Component Matters So Much

A properly functioning condenser fan motor has a direct impact on your comfort and your energy bills. Its performance dictates how cool the air from your vents feels and how hard your system has to work.

When a motor is slow, failing, or dead, the AC has to run longer and harder to try and cool your home. This wasted effort shows up as higher electricity consumption and poor cooling. Knowing what this motor does is the first step in being able to spot problems, perform basic maintenance, and keep your AC running strong all summer.

The Different Types of Condenser Fan Motors

When you look under the hood of an air conditioning unit, you'll find that not all condenser fan motors are built the same. There are a few key designs out there, and knowing the difference is essential, whether you're trying to fix a problem, thinking about an upgrade, or just want to understand what makes your AC tick.

The two main players you'll run into in most homes and businesses today are the old-school Permanent Split Capacitor (PSC) motor and the newer, brainier Electronically Commutated Motor (ECM). They both do the same job—spin the fan blade—but they go about it in completely different ways.

PSC Motors: The Reliable Workhorse

For decades, the Permanent Split Capacitor motor was the go-to choice for HVAC systems, and for good reason. It’s a simple, single-speed AC motor that relies on a run capacitor to get it started and keep it spinning efficiently. You can think of the capacitor as its trusty sidekick, always there to provide a little electrical nudge for smooth, consistent operation.

PSC motors are famous for their rugged construction and lower price tag, which is why you’ll find them in countless older or more basic AC units. Their simple design means fewer complex electronics to break down, often leading to a long, dependable service life. The trade-off for that simplicity, however, is efficiency. They operate like a light switch: it's either all on or all off, running at full blast no matter how much cooling you actually need.

ECMs: The High-Efficiency Innovator

The Electronically Commutated Motor is a real game-changer in HVAC technology. Unlike the on-or-off PSC motor, an ECM is a variable-speed DC motor with a built-in inverter and control module. This onboard "brain" converts the AC power from your home into DC, giving it the incredible ability to fine-tune its speed.

Think of it this way: a PSC motor is like a standard light switch, but an ECM is like a dimmer. It can ramp its speed up or down to precisely match the cooling demand at any given moment. This variable-speed capability leads to some major benefits, including whisper-quiet operation, better humidity control, and huge energy savings because the motor only draws the power it truly needs.

By running at lower speeds when full cooling power isn't required, an ECM can reduce the fan motor's electricity consumption by as much as 75% compared to a traditional PSC motor. This makes it a key component in modern, high-efficiency HVAC systems.

This move toward smarter, more efficient motors isn't just a passing fad; it’s a major shift across the entire industry. The demand for energy-conscious HVAC solutions and new environmental regulations are driving strong growth in the condenser fan motor market, particularly for advanced designs like ECMs. If you're interested in the market trends, you can explore the full report on condenser fan motors for more data.

Comparison of Condenser Fan Motor Types

To really see how these motors stack up, it helps to put them side-by-side. The table below breaks down the key differences between PSC and ECM motors, and we've also included the older, less common Shaded-Pole motor for a complete picture.

This comparison makes it clear why modern systems are rapidly adopting ECM technology. While the upfront cost is higher, the long-term energy savings and improved comfort often make it a worthwhile investment.

Of course, knowing how they work is only half the battle; you also need to understand why they fail.

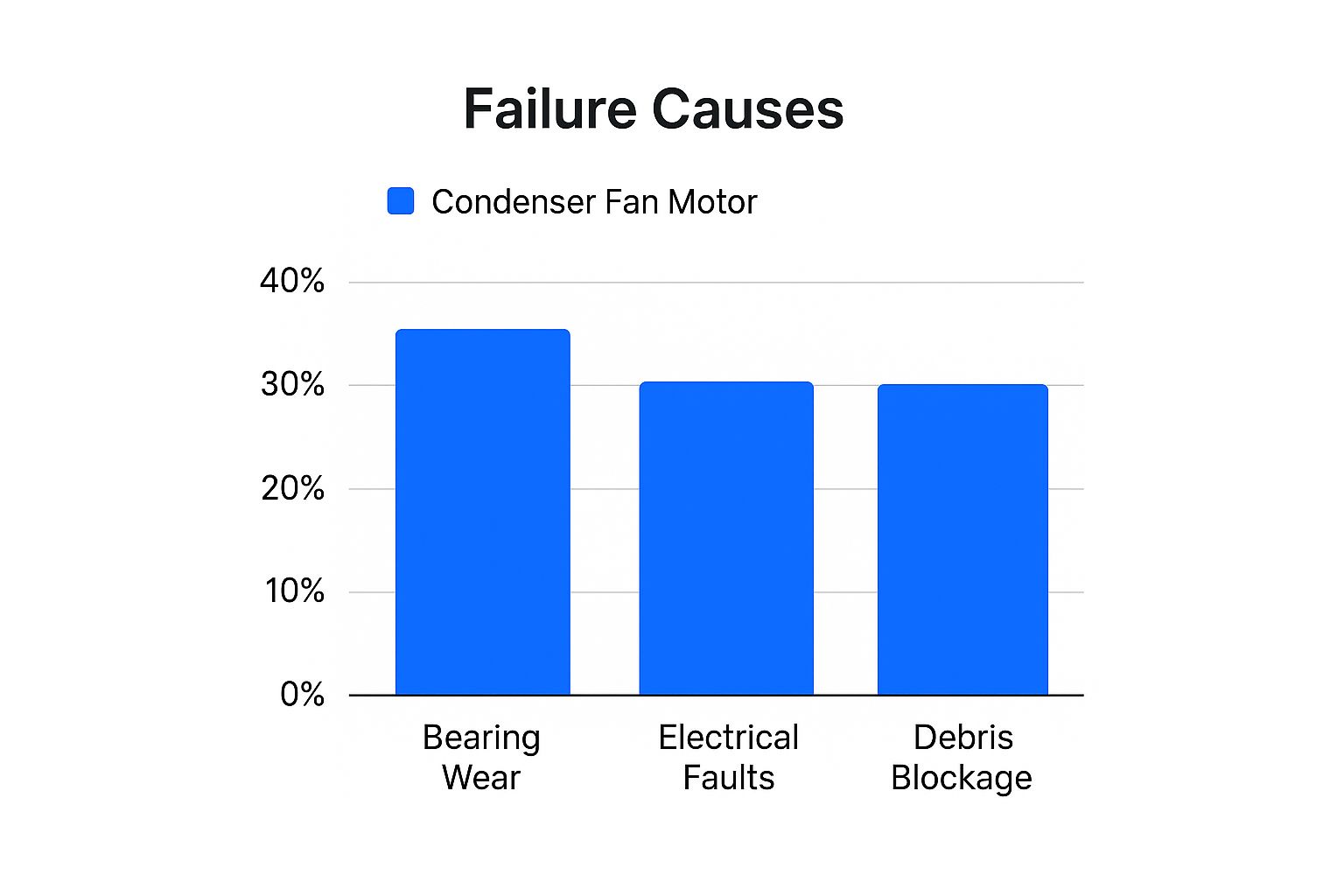

As you can see, mechanical wear on the bearings is the number one culprit behind motor failure. This really drives home the importance of regular maintenance to reduce physical strain and ensure the motor lasts as long as it should. By identifying which type of condenser fan motor you have, you’ll be much better prepared to spot potential problems and decide whether a simple repair or a high-efficiency upgrade makes the most sense.

Troubleshooting Common Condenser Fan Motor Problems

When your air conditioner suddenly gives up on a hot day, a bad condenser fan motor is a very common culprit. The good news? You can often figure out what's wrong yourself with a few simple checks. Let's walk through the classic symptoms and a step-by-step process to get to the root of the problem.

Before you touch a single thing, safety is your top priority. You have to kill all power to the outdoor condenser unit. That means finding the dedicated circuit breaker in your main electrical panel and switching it off. Then, find the disconnect switch—usually a small box mounted on the wall near the unit—and pull it out.

Identifying the Symptoms

A condenser fan motor rarely just quits out of the blue. It usually gives you some warning signs that trouble is brewing. Learning to spot these clues is the first step in your investigation.

Keep an eye (and an ear) out for these common red flags:

• The fan won't start: You might hear the unit humming, but the fan blades are dead still.

• The fan spins slowly: The blades are turning, but they look lazy and aren't moving nearly enough air.

• Strange noises from the unit: Any grinding, squealing, or rattling sounds are a bad sign.

• The fan starts and stops on its own: The motor might run for a bit, then shut off, then maybe start again. This often leads to the whole unit overheating.

Each of these points to a different potential issue, from a quick fix to a full motor replacement. Your job is to play detective and narrow it down.

Performing an Initial Visual Inspection

With the power completely off, it's time for a good old-fashioned visual check. Take the protective grille off the top of the condenser so you can see everything clearly. Now, look for anything that’s obviously wrong.

Is the fan being blocked by debris? Leaves, twigs, and dirt can easily jam the blades. While you're there, check the fan blades themselves for any cracks, chips, or bends. A damaged blade can throw the whole assembly off-balance and put a huge strain on the motor. This is also the perfect time to clean everything out.

Next comes the "spin test," a simple but incredibly useful diagnostic trick. Using a stick or a long screwdriver (never your fingers!), give the fan blades a gentle push.

How the blades react tells you a ton about the motor's bearings. If they spin freely for a few seconds, the bearings are probably fine. But if the blades feel stiff, are hard to turn, or make a grinding sound, you're likely dealing with shot bearings.

A fan that doesn't want to spin freely is a dead giveaway that the motor has failed internally. It’s time for a replacement. But if it spins just fine and still won’t run on its own, the problem is almost certainly electrical.

Distinguishing Between a Bad Motor and a Bad Capacitor

If the spin test passed with flying colors, you've likely narrowed it down to two main suspects: the condenser fan motor itself or its sidekick, the start capacitor. The capacitor is what gives the motor that initial jolt of electricity to get it going. When it fails, the motor has no "oomph" to start.

Here’s how to tell which one is the problem:

1. Symptom: The motor just hums. If you carefully give the blades a push with a stick (stand back!) and they start spinning and stay running, that points directly to a failed capacitor.

2. Symptom: The motor is completely dead—no hum, no movement, nothing. This could still be the capacitor, but it's more likely a dead motor or a problem with the wiring feeding it power.

3. Symptom: The motor feels incredibly hot to the touch (after you've turned it off) or you smell something burning. That’s a clear sign the motor has overheated and is toast.

The capacitor is a small, can-shaped part usually mounted right near the motor. Look for any physical signs of failure, like a bulging top, leaking oil, or obvious corrosion. Replacing a capacitor is a cheap and easy fix, often costing less than $30 for the part. A whole new motor, on the other hand, is a bigger job and a bigger expense. By following these steps, you can diagnose the issue with confidence and decide whether to fix it yourself or call in an HVAC pro.

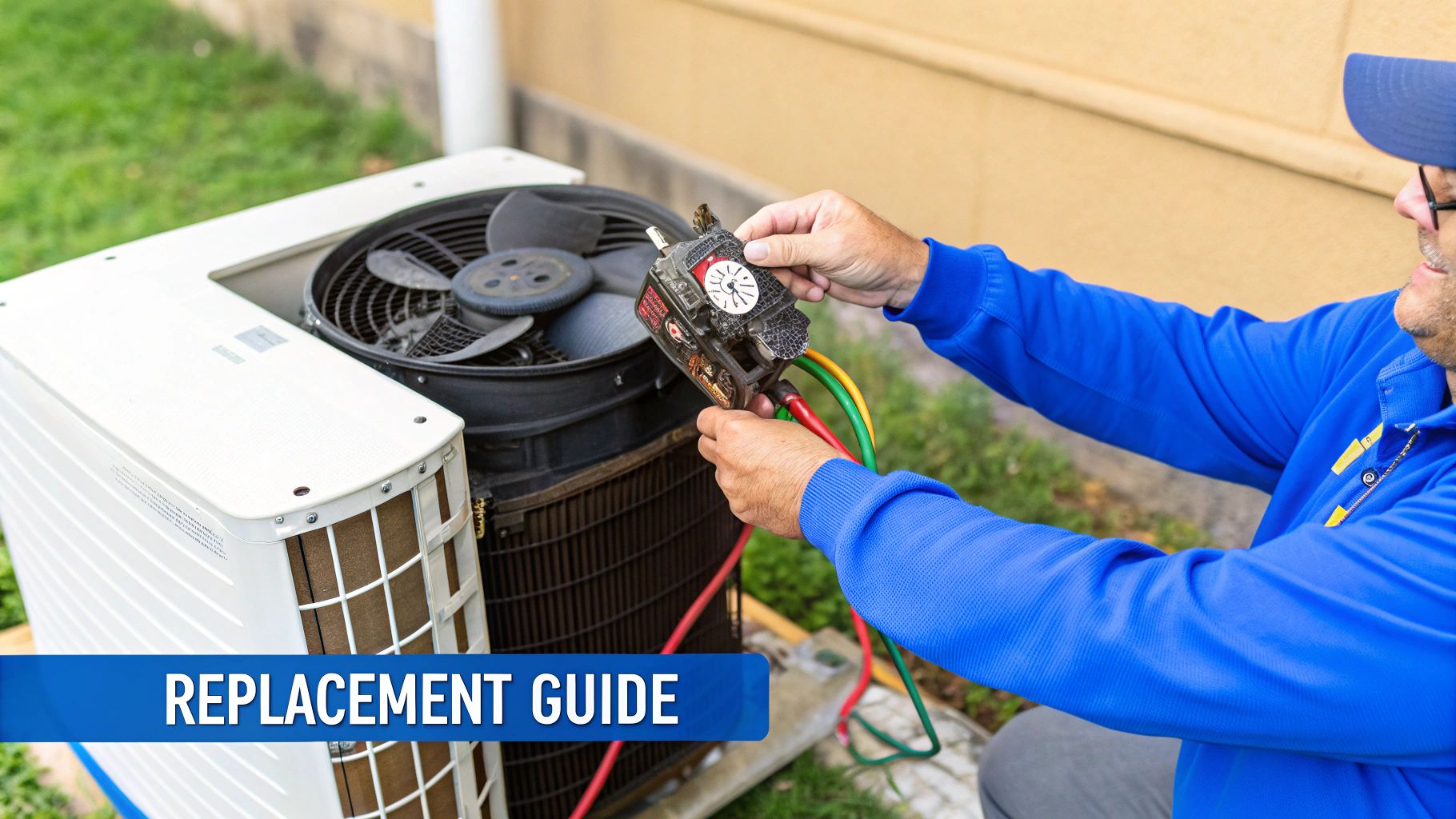

Time for a New Condenser Fan Motor? Here’s How to Replace It Safely

So, you've done your homework, run the diagnostics, and all signs point to a dead condenser fan motor. If you're comfortable with this kind of work, replacing it yourself is a very doable project. It's a job that demands patience and a serious respect for safety, but getting it right will have your AC humming again in no time.

This guide will walk you through the entire process, from finding the right part to firing it up for the first time. Let's get that cool air flowing again.

Find the Perfect Replacement Motor

First things first: you need the right part for the job. Guessing won't cut it here. The absolute best source of truth is the data plate on the side of your old motor. It's a small sticker or metal tag loaded with all the specs you need.

You'll need to match these details exactly:

• Voltage (Volts): This is the golden rule. Mismatch the voltage, and you’ll fry the new motor instantly, possibly taking other components with it.

• Horsepower (HP): The new motor’s HP must be identical. Too little power and it will burn itself out trying to keep up. Too much, and you risk damaging the fan blades or the unit’s mounting.

• RPM (Revolutions Per Minute): Matching the RPM ensures the fan pulls the correct amount of air through the coils, which is critical for proper cooling.

• Frame Size: This spec dictates the motor’s physical dimensions and how it mounts. The bolt pattern has to line up perfectly with your unit's grille.

Before you even think about removing the old motor, snap a clear, well-lit picture of that data plate with your phone. That photo is your shopping list.

Step-by-Step Installation Guide

Alright, you’ve got the new motor in hand. Now it’s time to get to work. Throughout this process, remember one thing above all else: safety first.

1. Kill All Power to the Unit This isn't just a suggestion—it's the most important step. Start at your home's main electrical panel and flip the breaker for your AC condenser to the "off" position. Then, head outside to the disconnect box (it's usually a grey metal box on the wall near the unit) and pull the disconnect plug out or switch it off.

2. Remove the Top Grille and Old Motor Unscrew the bolts holding the top grille of the condenser. Lift it carefully; the fan and motor are still attached, and the wires are still connected. Lean it securely against the side of the unit so it won't fall over while you work.

3. Document and Disconnect the Wiring Before you touch a single wire, take several clear photos from multiple angles showing where every wire connects. Pay close attention to which color wire lands on which terminal of the capacitor and contactor. Think of these pictures as your reassembly map. Once you’re confident you’ve documented everything, you can start disconnecting the wires.

Pro Tip: Wires on an older unit can get brittle. If a connector feels stuck, use a pair of needle-nose pliers to gently wiggle it free. Never yank on the wire itself—you could easily break it.

4. Remove the Fan Blade The fan blade is secured to the motor's shaft with a small set screw on its hub. You'll need an Allen wrench or a small socket to loosen it. The blade might be a bit seized on the shaft from years of use, so you may need to pull firmly and steadily to get it off. Just be careful not to bend the blades in the process.

5. Install the New Motor Now, unbolt the old motor from the grille. Position the new motor in its place, making sure it's oriented the same way as the old one. Thread the mounting bolts in, but don't fully tighten them just yet.

6. Attach the Fan Blade and Set Clearance Slide the fan blade back onto the new motor’s shaft. This is a critical adjustment. You need enough clearance between the bottom of the blades and the condenser coils, and also between the top of the blades and the grille once it’s reinstalled. Eyeball the placement, adjust the blade’s height on the shaft, and then securely tighten the set screw.

7. Wire the New Motor Pull up the photos you took earlier and connect the new motor’s wires to the capacitor and contactor. Most replacement motors also come with a wiring diagram—it’s a good idea to cross-reference your connections with it. Give each connection a gentle tug to make sure it's snug.

8. Reassemble and Test Carefully lower the grille and motor assembly back into place, tucking the wires inside so they don't get pinched. Reinstall all the screws. Once everything is buttoned up, you can restore power by putting the disconnect back in and flipping the breaker on. Go inside, turn on your AC, and listen for the smooth, quiet hum of your new condenser fan motor.

Taking on this kind of repair is becoming more common. In fact, the global condenser fan motors market was valued at around USD 1.5 billion in 2022 and is expected to climb to about USD 2.3 billion by 2030. You can learn more about this market trend, which is fueled by a growing need for efficient cooling worldwide.

The Unseen Work of Condenser Fan Motors

Most people think of a condenser fan motor as that thing humming away in their backyard AC unit. But that's just the tip of the iceberg. These hardworking motors are the unsung heroes in industries that touch every part of our lives, from the food on our plates to the cars we drive.

The basic job is always the same: get rid of heat. But when you move from a residential backyard to a bustling supermarket or the hood of a car, the scale and stakes change dramatically. Seeing how these motors perform under pressure really shows you the impressive engineering that goes into them.

Keeping Our Food Supply Safe

Ever walk into a grocery store on a hot day and feel that blast of cold air from the freezer aisle? You can thank a whole bank of condenser fan motors for that. They're the engines behind nearly all commercial refrigeration—walk-in freezers, dairy coolers, produce displays, you name it.

A motor failure in this world isn't a minor inconvenience; it's a crisis. It can mean thousands of dollars in spoiled food and a genuine public health risk. That's why these motors are built like tanks. They're designed for durability and relentless, near-continuous operation to hold food at precise, safe temperatures all the way from the farm to your shopping cart.

Powering Modern Automotive Cooling

The condenser fan motor is just as crucial in the automotive world, and its job is getting more complex every year. In a standard gas-powered car, it’s a double-duty workhorse, pulling air through the radiator to cool the engine and through the condenser to make your AC blow cold.

This isn't a niche component, either. The global automotive cooling fan market, where these motors are a star player, was valued at USD 55.04 billion in 2024 and is on a clear growth trajectory. You can explore more data on this automotive market trend to see just how big this industry is.

Now, think about electric vehicles (EVs). Their massive battery packs and power electronics generate a ton of heat. Sophisticated cooling is non-negotiable for safety and performance. High-efficiency condenser fan motors are at the heart of these thermal management systems, directly influencing an EV's driving range, how fast it can charge, and the long-term health of its battery.

So, from keeping your milk cold to paving the way for the future of driving, the humble condenser fan motor is a truly vital piece of modern technology.

Answering Your Top Questions

When your AC dies on a hot day, your mind immediately jumps to a few key questions. How much is this going to cost? Is it a serious problem? Can it wait? When the issue is the condenser fan motor, getting straight answers is the first step to making a smart decision without getting overwhelmed by technical jargon.

We've pulled together the most common questions we hear from homeowners about this crucial part. Let's cut to the chase and give you the practical info you need to understand the problem, the price tag, and the potential risks.

How Much Does a Condenser Fan Motor Replacement Cost?

This is almost always the first question, and for good reason. The answer really comes down to one thing: are you calling a pro or doing it yourself? The price difference is huge.

• Professional Replacement: If you hire an HVAC technician, expect the final bill to land somewhere between $400 and $750. That price covers the motor, labor, the service call fee, and usually a warranty on the work.

• DIY Replacement: Feeling handy? You can slash that cost significantly. A new motor from a supplier like EPS Controls will typically run you between $100 and $250. The savings are tempting, but you'll need the right tools, some basic electrical know-how, and a healthy respect for safety.

Keep in mind, the type of motor matters, too. A standard PSC motor is cheaper than a high-efficiency ECM, though an ECM can save you money on your energy bills over time.

Can I Run My AC If the Condenser Fan Is Broken?

Let me be crystal clear: No. Absolutely not. Running your air conditioner with a dead condenser fan is one of the quickest ways to destroy your entire system.

Think of it like this: the fan is the radiator for your AC's compressor. Without it, the compressor—the most expensive part of your whole system—will overheat in just a few minutes.

When the fan stops, heat and pressure build up inside the compressor at an alarming rate. This can cause a total burnout, a repair that easily costs $2,000 or more. Often, it’s so expensive that it makes more sense to replace the entire outdoor unit.

As soon as you notice the fan isn't spinning, shut the system off at the thermostat and the breaker. It’s the only way to protect your compressor and prevent a manageable repair from snowballing into a financial nightmare.

What Is the Average Lifespan of a Fan Motor?

A condenser fan motor is a workhorse, but it doesn’t last forever. In a typical home, you can expect to get 10 to 15 years of service out of one. Of course, several things can shorten or extend that lifespan.

Here’s what really makes a difference:

• Maintenance: A clean outdoor unit is a happy one. Keeping coils free of dirt, leaves, and grass clippings means the motor doesn't have to strain, which reduces wear and heat.

• Climate: If you live somewhere hot where the AC runs nonstop for months, that motor is working a lot harder and will likely wear out faster.

• Installation Quality: A properly mounted motor with a balanced fan blade runs smoothly. A sloppy installation can cause vibrations that destroy the bearings over time.

If your motor is over a decade old and starting to act up, it’s probably on its last legs. Replacing it proactively can save you from a sweltering emergency breakdown in the middle of July.

Is It the Motor or the Capacitor?

This is the classic HVAC puzzle. A bad motor and a bad capacitor look exactly the same at first glance: the fan won't start. The capacitor is a small part that gives the motor a jolt of electricity to get it spinning. Luckily, figuring out which one is the culprit is usually pretty simple.

Here’s a quick diagnostic trick called the "spin test":

1. Safety First! Kill the power to your outdoor unit. Turn it off at the circuit breaker and at the outdoor disconnect box.

2. Give It a Push: Find a stick or a long screwdriver (something you don't mind getting nicked) and carefully give one of the fan blades a push.

3. See What Happens:

   • If the blade spins freely and easily for a few rotations, the motor's bearings are probably fine. This is a strong sign that the capacitor is dead.

   • If the blade feels stiff, makes a grinding noise, or is hard to move, the motor's bearings are shot. The motor itself has failed and needs to be replaced.

A capacitor is a cheap and easy fix—the part is often under $30. This simple test can save you from buying a new motor you don't even need.
