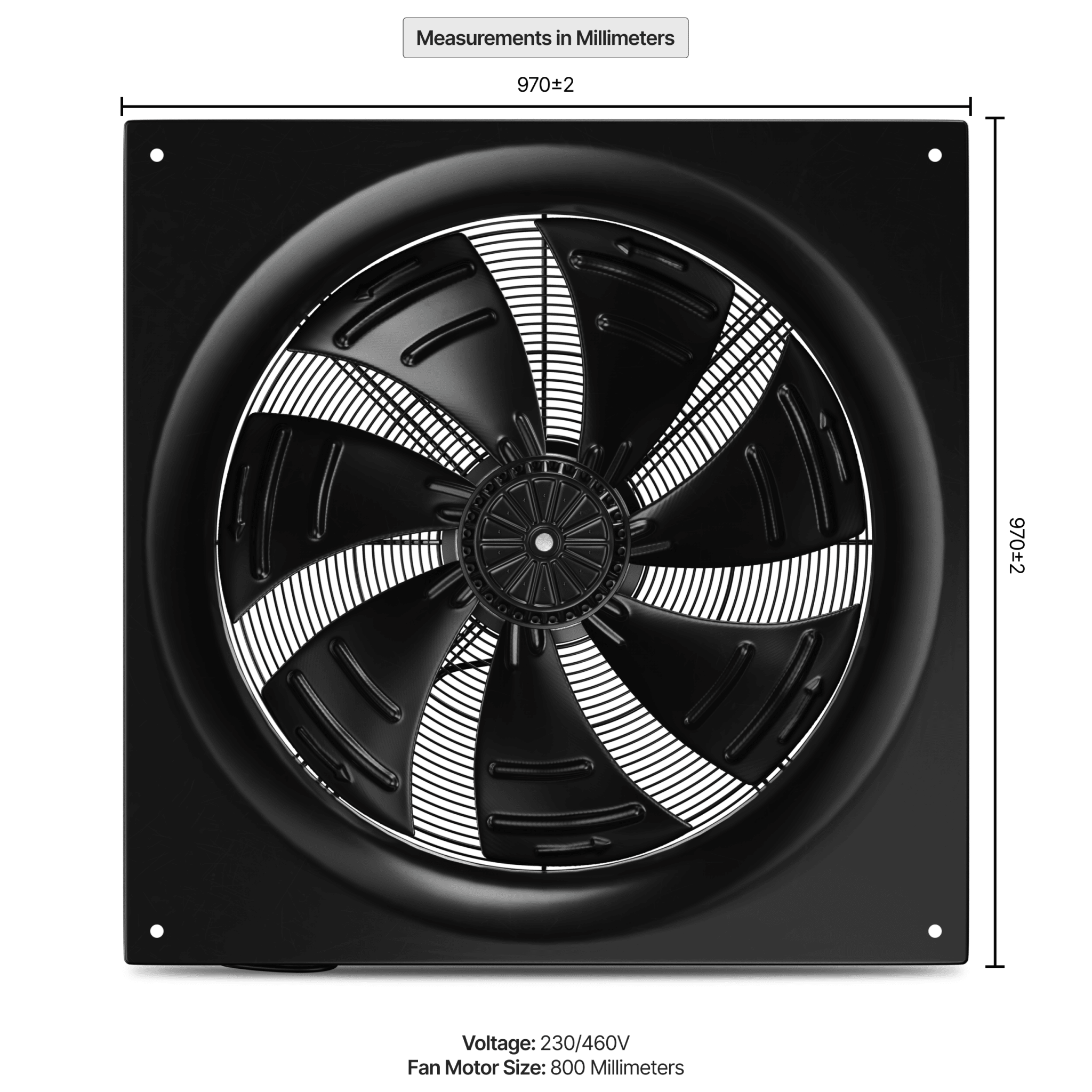

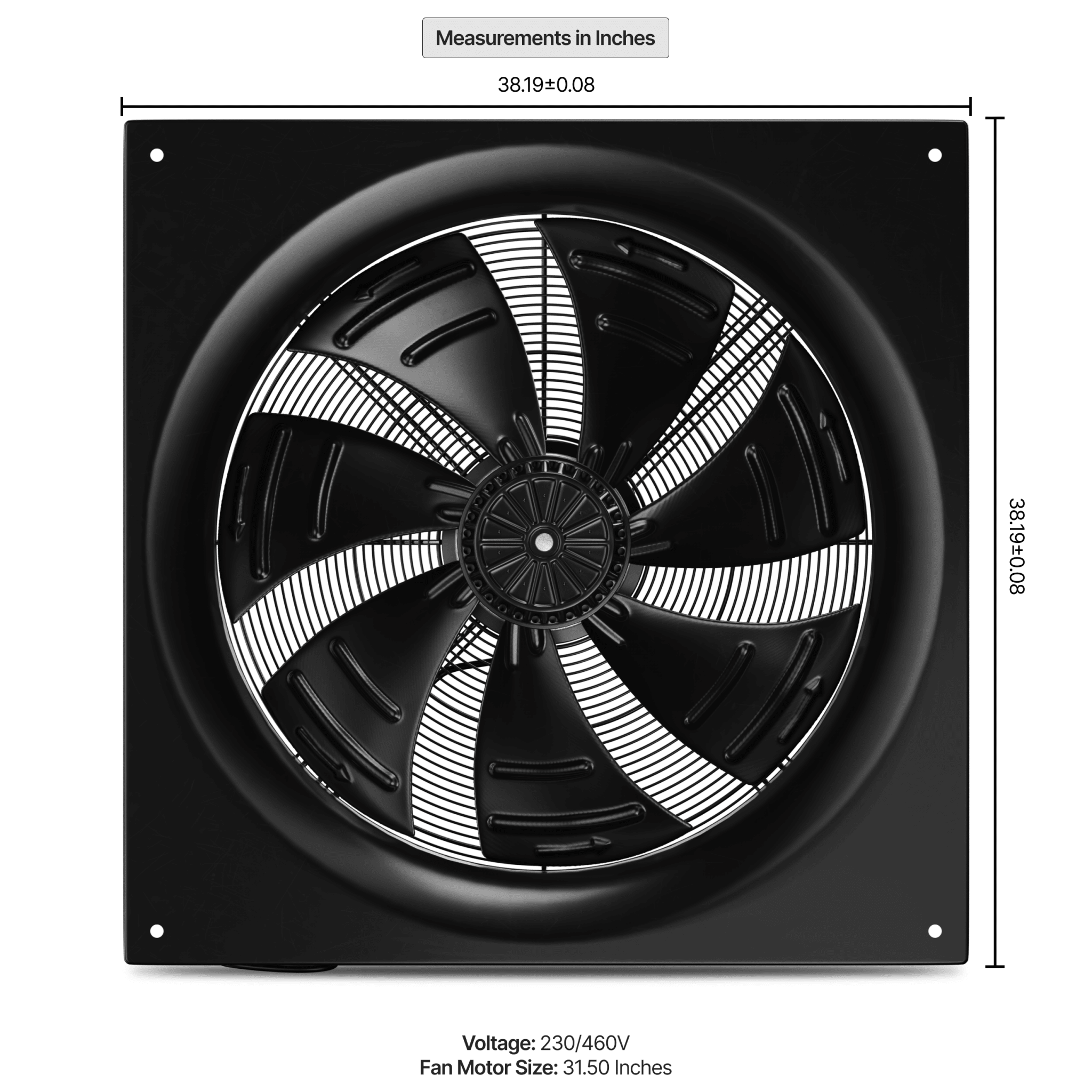

Dunli Condenser Fan Motor & Assembly - 800mm/230V-460V
$2,800.00
Skip to product information
Email us at info@epscontrols.com or call at 305-510-0626 for volume orders. Shipping may be waived for volume orders.

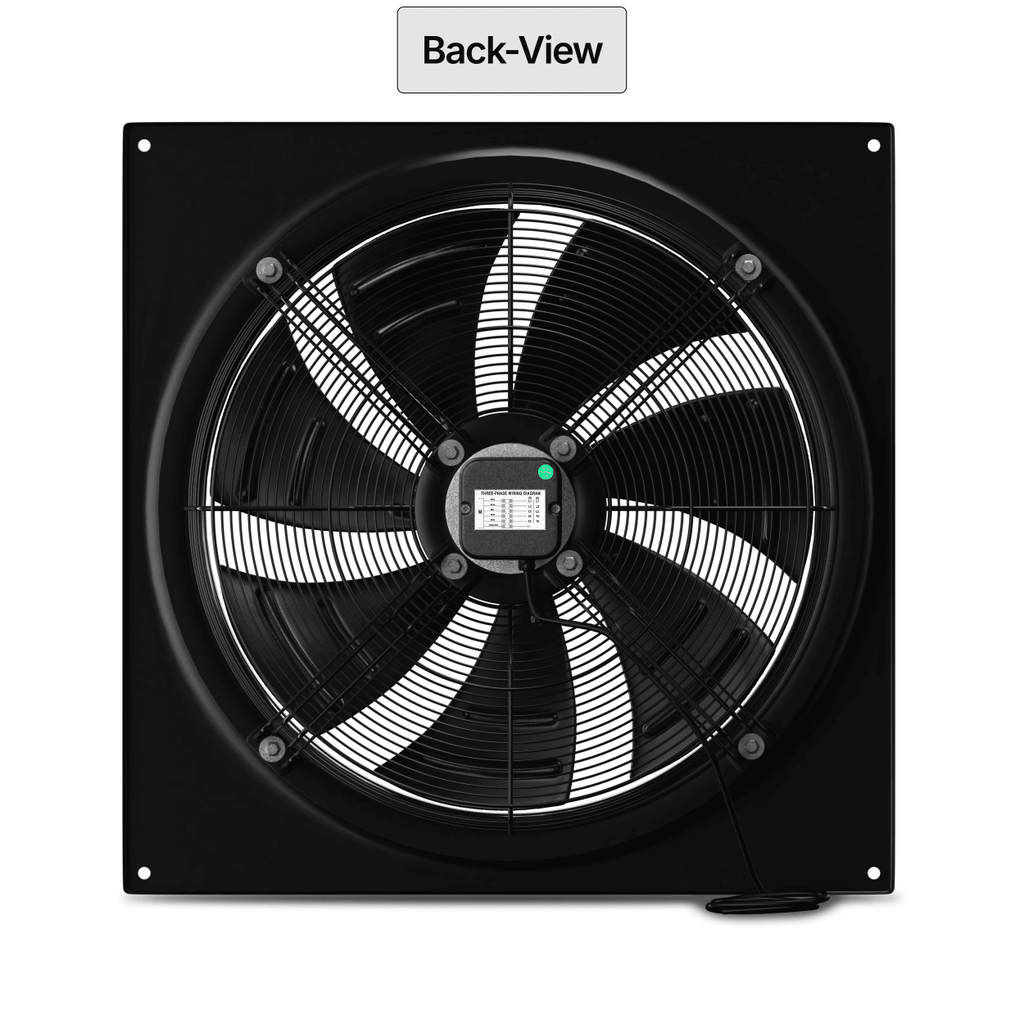

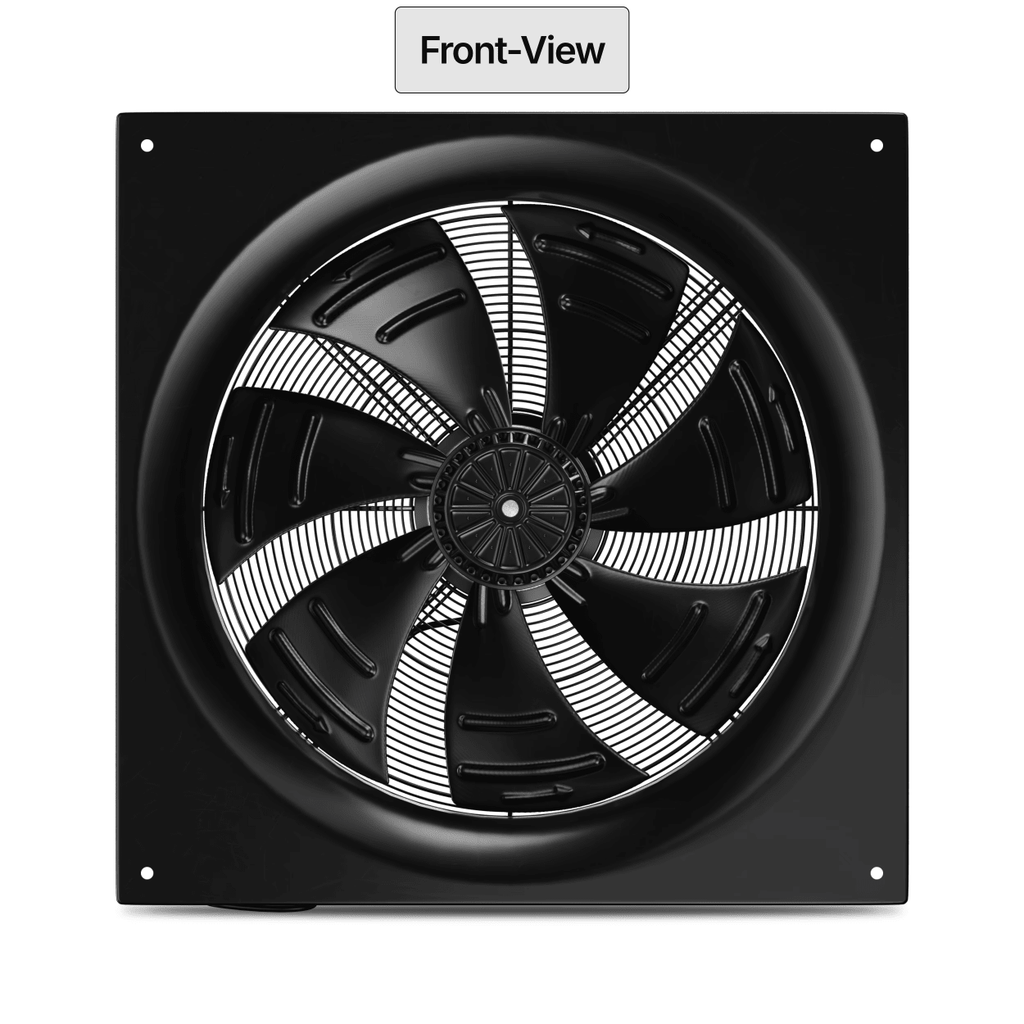

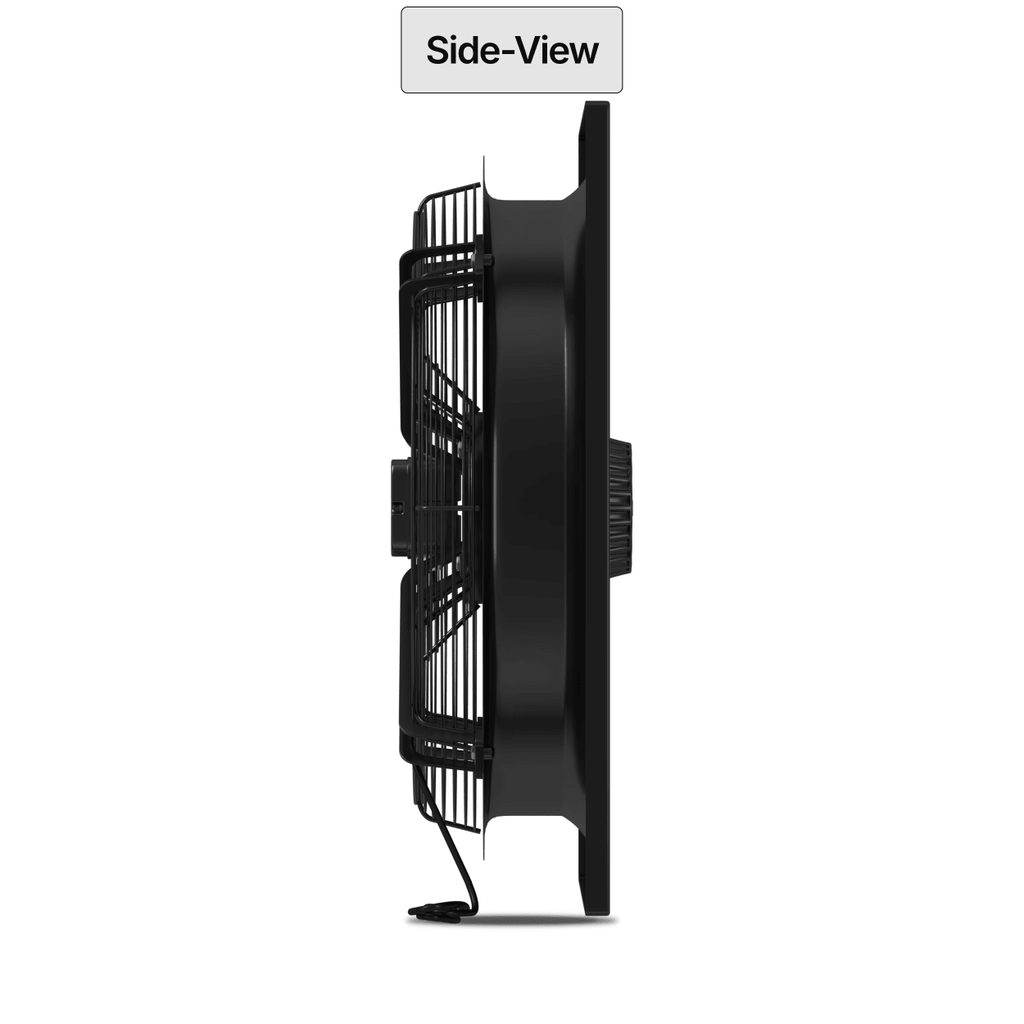

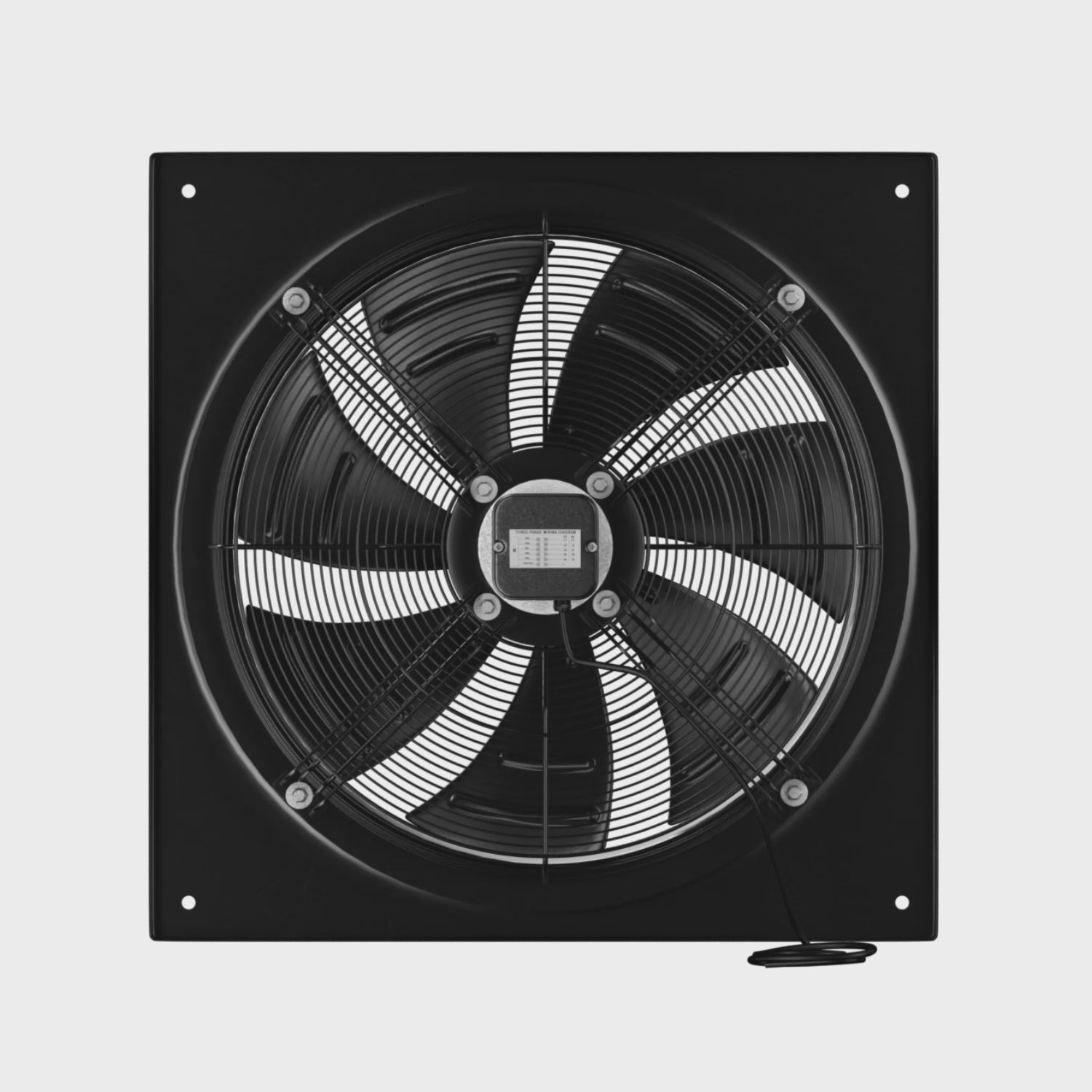

Dunli Condenser Fan Motor & Assembly - 800mm/230V-460V
$2,800.00
Pickup available at 13263 SW 124th ST
Usually ready in 1 hour
Ships in 1-2 Business Days
Model Number Reference
Aftermarket replacement motors may use different model numbers than the original OEM motor, even when they are designed for the same application.
Our Aftermarket Model: YWF.A6T-800S-7FIV14
Equivalent OEM Model: YWF.A6T-800S-7DIIIV14
This motor is designed as a direct replacement for the OEM model listed above.
Technical Specifications
| Brand | Dunli |
| Product Type | Axial Fan Motor with Fan Assembly |
| Model | YWF.A6T-800S-7FIV14 |
| Motor Type | Three-Phase Motor |

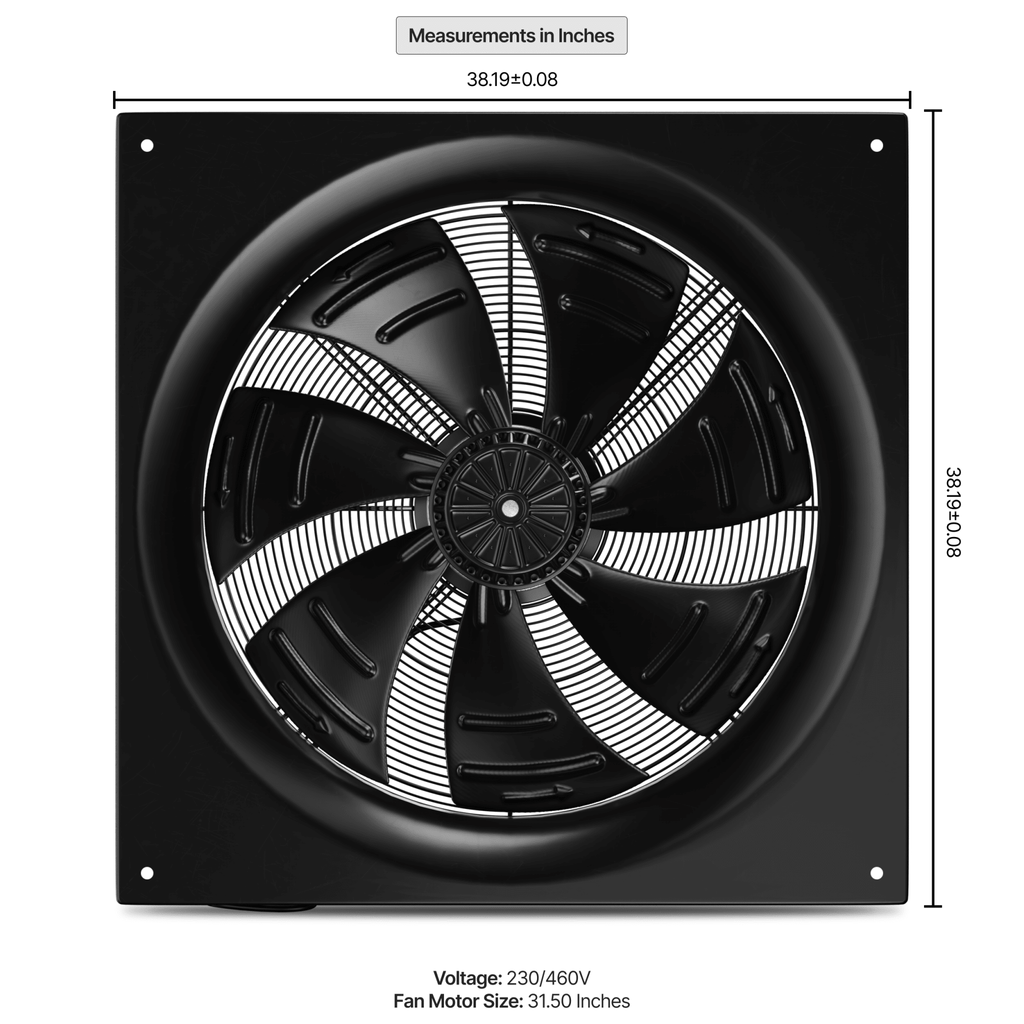

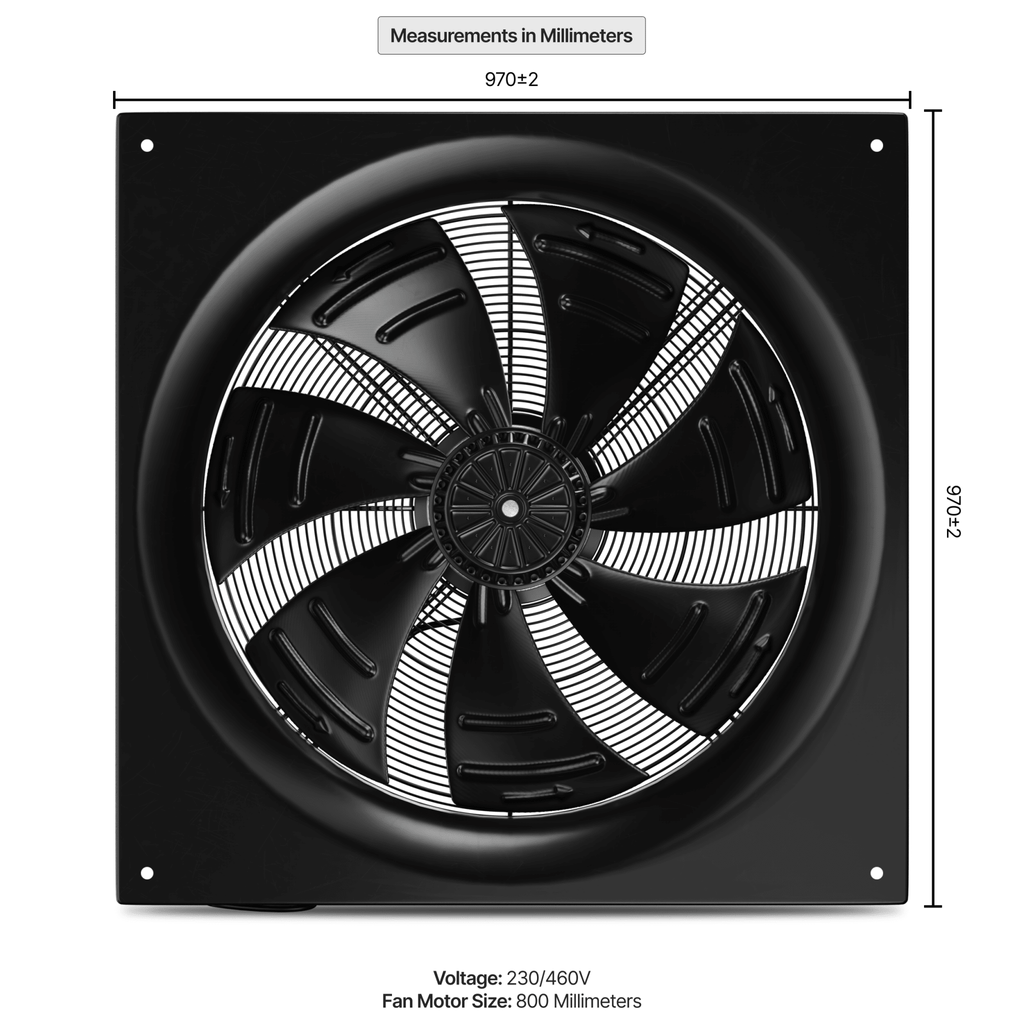

| Fan Diameter | 800mm |
| Voltage | 230V - 480V |
| Frequency | 60 Hz |
| Input Power | 1500 - 1600 W |
| Current | 4.57 - 2.58 A |
| Speed | 1060 - 1090 r/min |
| Air Flow | 22600 - 23350 m³/h |
| Noise | 80.6 - 81 dBA |
| Rotation | CCW |
| Insulation Class | Class F |
| Motor Protection | Overheated Protection Function, Cut-Off Temperature 150 - 160°C |
| Protection Class | IP54 |
| Ambient Temperature | -30°C to +60°C |
| Bearings | Ball Bearings |
| Mounting Type | Horizontal or Vertical |
| Net Weight / Gross Weight | 80 / 90 lbs |
| Package Size | 36 x 36 x 13 in |
Benefits at a Glance
- Superior-level airflow for an unbeatable price
- Heavy-duty durability built for long service life
- Versatile installation —seamlessly adaptable to your HVAC setup
- Fast shipping from Miami, ready when you are.

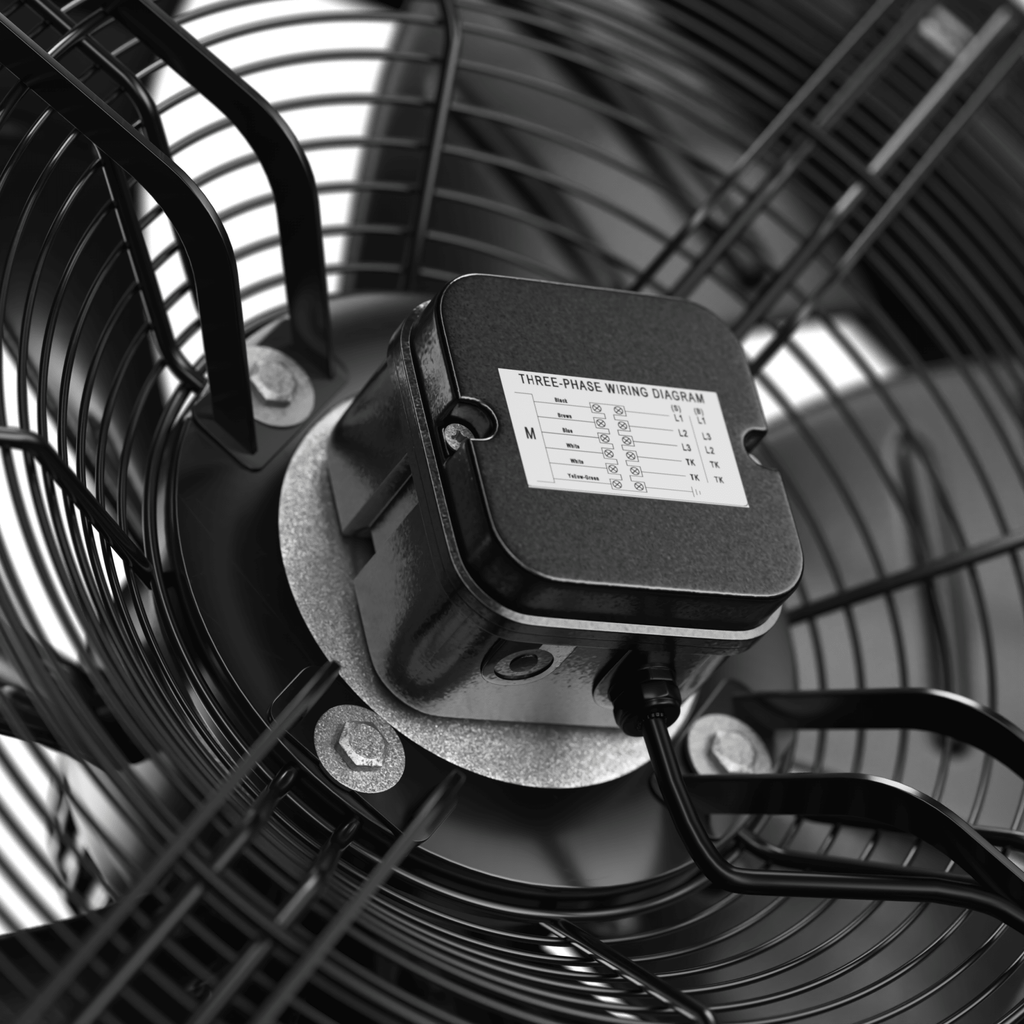

Three-Phase Wiring Diagram
The diagram comes affixed to the top of the motor cover box.
- Each Condenser Fan Motor undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.

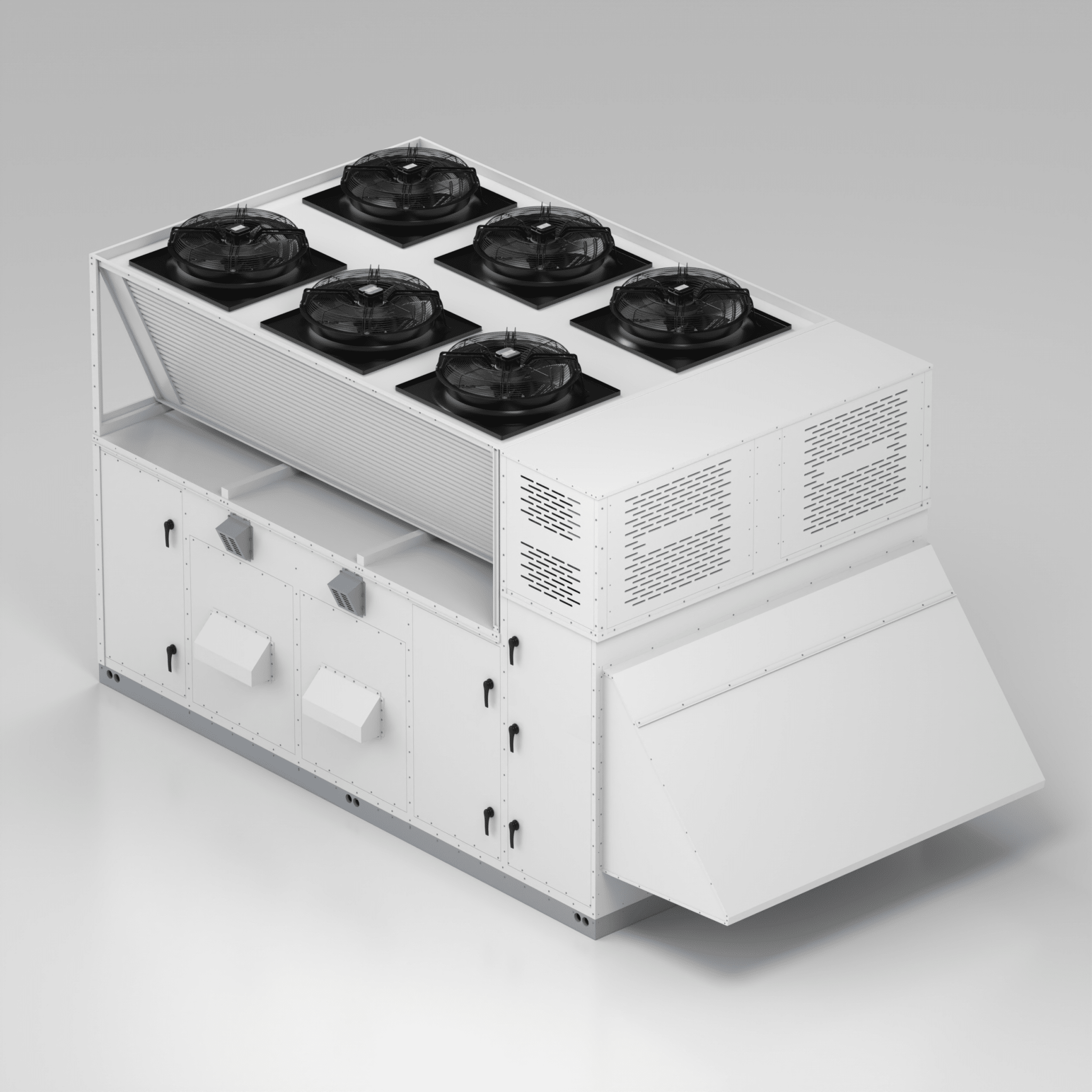

- This Condenser Fan Motor is designed specifically for Addison HVAC units. However, it may also be compatible with Daikin, AAON, Carrier and Modine units, subject to your evaluation and discretion.
