Ziehl-Abegg GR45C-ZID.GG.CR EC Motor Plug Fan - Addison Replacement - 450mm, 3.6 kW, 3PH 380-480V, 2260 RPM
$2,960.00
Skip to product information
Email us at info@epscontrols.com or call at 305-510-0626 for volume orders. Shipping may be waived for volume orders.

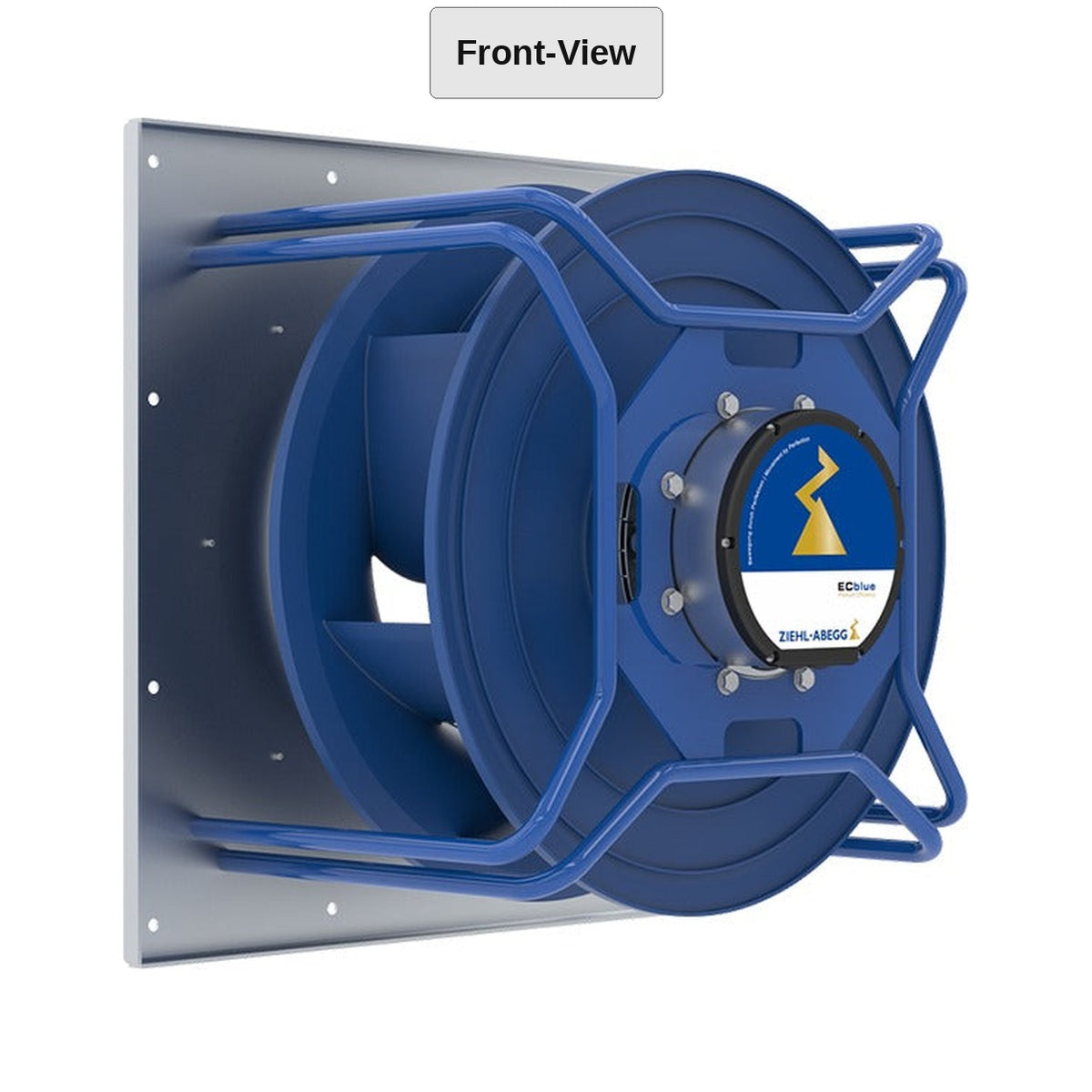

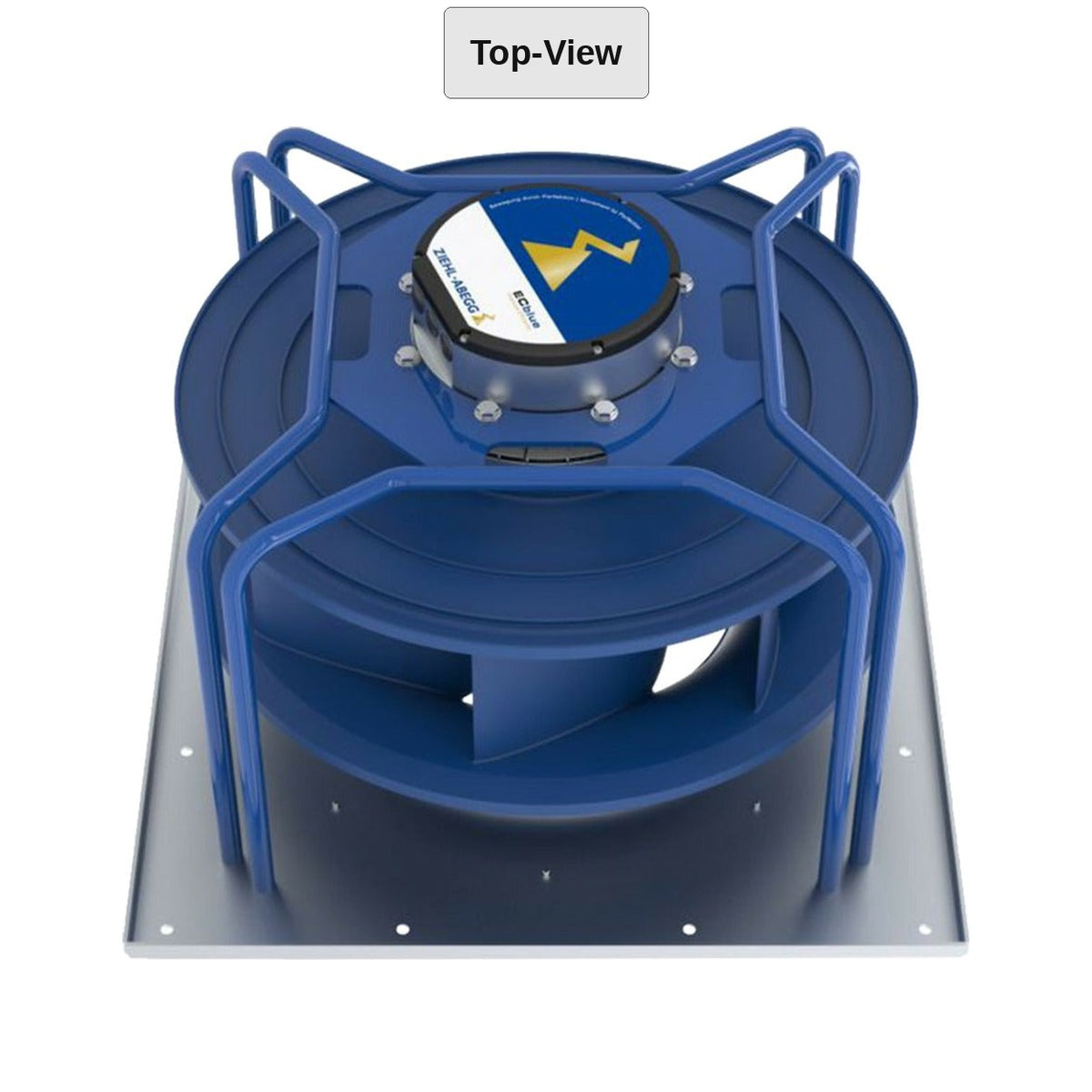

Ziehl-Abegg GR45C-ZID.GG.CR EC Motor Plug Fan - Addison Replacement - 450mm, 3.6 kW, 3PH 380-480V, 2260 RPM
$2,960.00
Pickup available at 13263 SW 124th ST
Usually ready in 1 hour
Ships in 1-2 Business Days
⚠ AVAILABILITY: This product will be available in 4 weeks. Order now to reserve yours; it ships from Miami, FL as soon as it arrives.
Replacement EC motor / EC plug fan for Addison air handlers and rooftop units, and other AHU/RTU applications using a 450 mm backward-curved EC plug fan. Please confirm fit against your existing fan nameplate or unit model/serial before ordering; we can help verify.
Ziehl-Abegg GR45C-ZID.GG.CR free-running EC centrifugal plug fan for 380-480 V three-phase power. Built for air handlers and rooftop units that need quiet, high-static airflow with low energy use.
Key Features
✔ Genuine Ziehl-Abegg Cpro-ECblue EC plug fan module (GR ventilation unit, installation position H)
✔ 450 mm (17.7") backward-curved ZAmid impeller, 7 blades
✔ EC motor with integrated controller: 0–100% speed control, no external VFD needed
✔ Integrated active temperature management (motor protection)
✔ High efficiency, ErP 2015 compliant, CE
✔ IP54, thermal class THCL 155, 50/60 Hz
Technical Specifications
| Brand | Ziehl-Abegg (Germany) |
| Series | Cpro-ECblue, size 450 |
| Product Type | EC Centrifugal Plug Fan / Ventilation Unit (GR) |
| Impeller Diameter | 450 mm (17.7 in), backward-curved, 7 blades |
| Model | GR45C-ZID.GG.CR |
| Voltage | 3~ 380-480 V (three phase) |
| Motor Input Power | 3.6 kW (approx. 4.8 HP) |
| Rated Current | 5.8-4.6 A |
| Rated Speed | 2260 RPM |
| Weight | approx. 42 kg (93 lb) |
| Frequency | 50/60 Hz |
| Protection Rating | IP54 |
| Insulation | THCL 155 |
| Control | Integrated EC controller (0-10 V / Modbus) |
| Condition | New |
| Availability | Available in 4 weeks |
Applications
Air handling units (AHUs), rooftop units, central AC / chiller air-side equipment, EC fan retrofits and industrial ventilation.
Need help confirming the fit? Send us your unit model and serial number or a nameplate photo and we'll check it for you.
