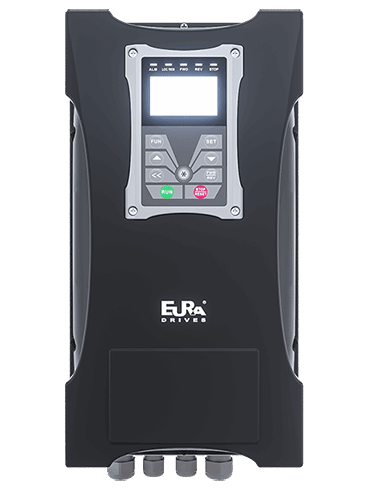

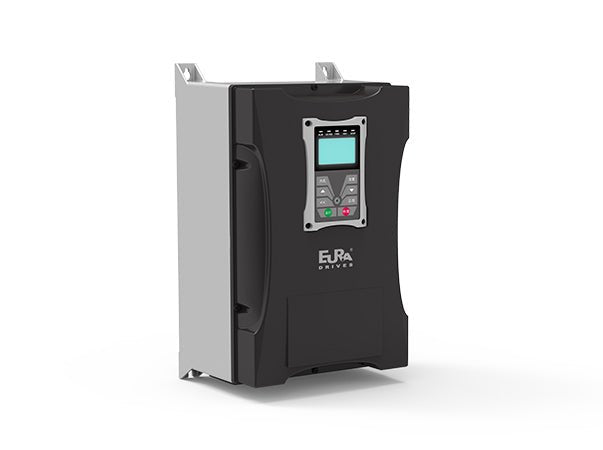

Eura Drives VFD EP66-0040T3I1 - 480V / 5.25 HP / Nema 4 / 3 in 3 out / 9.0 A / 4 KW
$2,036.00
Skip to product information
Eura Drives VFD EP66-0040T3I1 - 480V / 5.25 HP / Nema 4 / 3 in 3 out / 9.0 A / 4 KW
$2,036.00
Pickup available at 13263 SW 124th ST
Usually ready in 1 hour
U5F2AD02B1R3, 3 in 3 out, 9.0 A, 4 KW, 480V, 5.25 HP, Nema 4

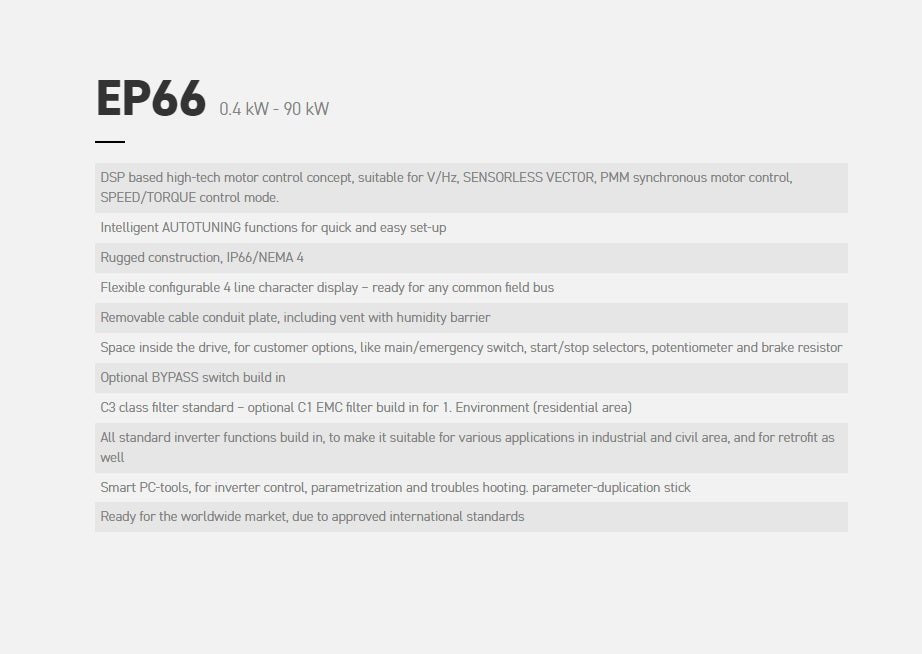

The Eura Drives EP66 series of VSD Variable frequency drives is a range of cost-effective, multi-function drives in an IP66 rated enclosure suitable for a wide variety of applications. The EP66 has all standard inverter functions build in, to make it suitable for various applications, and for retrofit as well.
- DSP based high-tech motor control concept, suitable for V/Hz, SENSORLESS VECTOR, PMM synchronous motor control.
- SPEED / TORQUE control mode, Intelligent AUTOTUNING functions for easy set-up.
- Rugged construction, IP66 / NEMA4
- Flexible configurable character display – fieldbus capability
- Removable cable conduit plate, including vent with humidity barrier.
- Room inside the drive, for customer options, like main- / emergency switch, start/stop selectors, potentiometer and brake resistor.
- Optional BYPASS switch builds in
- EMC filters build in for 1. environment, for residential area EMC compatibility
Additional links:
| Manufacturer: | Eura Drives |
| Series: | EP66 |
| Model: | EP66-0040T3 |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 4 |
| Current, А: | 9 |
| Main power supply, V: | 380-460 |
| Phase: | 3 |
| Output frequency, Hz: | 0-650 |
| Enclosure: | IP66 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | + |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 6 |
| Analog output: | 2 |
| Digital output: | 2 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | + |
| Starting torque: | 150% rated torque at 0,5 Hz (in SLV Mode) |
| V/f control mode: | + |
| Vector control with feedback: | - |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10.... +50 |
| Storage temperature, °С: | -40....+50 |
| Dimensions (W x H x D), mm: | 205x412x198 |
