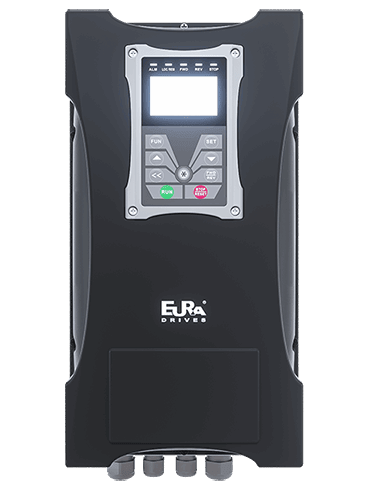

VFD EP66-0030T3I1 - 480V / 4 HP / Nema 4 / 3 in 3 out / 7.6 A / 3 KW

VFD EP66-0030T3I1 - 480V / 4 HP / Nema 4 / 3 in 3 out / 7.6 A / 3 KW

Regular price $1,927.00 USD
Regular price Sale price $1,927.00 USD
Sale Sold out
Shipping calculated at checkout.

U5F2AD02B1R3, 3 in 3 out, 7.6 A, 3 KW, 480V, 4 HP, Nema 4

EP66-0030T3 is an AC motor drive manufactured by Eura Drives that is designed to control the speed and torque of AC motors up to 30 kW in various industrial and commercial applications. This motor drive offers advanced control algorithms, such as vector control, that provide precise motor control and high energy efficiency, resulting in reduced energy consumption and improved motor performance.

The EP66-0030T3 motor drive has built-in protection functions that prevent damage to the motor and drive from overvoltage, undervoltage, overload, and short circuit. It also has a user-friendly design with a clear and easy-to-use LED display, making it easy to install, operate and monitor.

This motor drive operates on a wide input voltage range, from 380V to 480V, and offers various control modes, including V/F control, sensorless vector control, and closed-loop vector control. It also features multiple communication interfaces, such as RS-485 and MODBUS, allowing it to be easily integrated into different control systems.

Furthermore, the EP66-0030T3 motor drive has optional expansion modules that enable additional functionality, such as increased input/output points or additional communication interfaces. This motor drive is a reliable and efficient solution for controlling AC motors up to 30 kW in various industrial and commercial applications, offering advanced control algorithms, protection functions, and versatile communication interfaces.
