VFD E2000-0150T3E6 - 480V / 20 HP / Nema 1 / 3 in 3 out / 32 A / 15 KW
VFD E2000-0150T3E6 - 480V / 20 HP / Nema 1 / 3 in 3 out / 32 A / 15 KW
Couldn't load pickup availability
U5F2AF03B1R3, 3 in 3 out, 32 A, 15 KW, 480V, 20 HP, Nema 1
The E2000-0150T3 is a high-performance AC motor drive designed for industrial applications that require precise speed and torque control. This drive offers a power output of 15 kW (approximately 20 horsepower) and can handle input voltages from 380V to 480V. It supports a range of control modes, including V/F control, sensorless vector control, and closed-loop vector control, to provide the flexibility and accuracy needed for a variety of motor control applications. The E2000-0150T3 also features built-in protection functions such as overload protection, overvoltage protection, and short circuit protection to ensure safe and reliable operation. With its compact design and user-friendly interface, the E2000-0150T3 is a great choice for applications such as conveyor systems, fans, pumps, and more.
Share

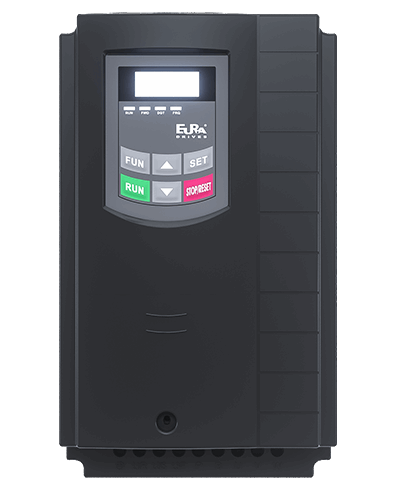

![VFD E2000-0150T3E6](http://www.epscontrols.com/cdn/shop/files/e2000-front-b-2ea4177e-94a5-4956-b3ee-d04af0604a3b-_1.png?v=1684348687&width=1445)

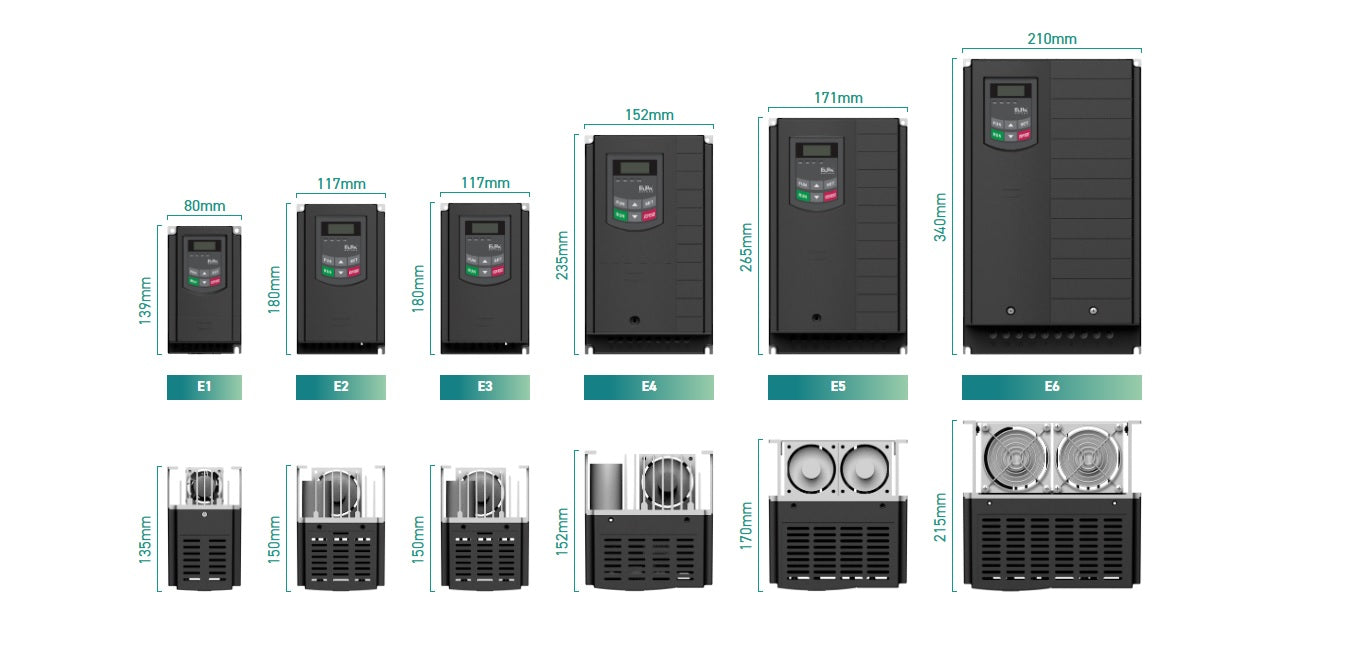

![VFD E2000-0150T3E6 - 480V / 20 HP / Nema 1 / 3 in 3 out / 32 A / 15 KW](http://www.epscontrols.com/cdn/shop/files/Untitled_111f8249-bd8d-4399-a08c-49882fe0d37f.jpg?v=1682707982&width=1445)
![VFD E2000-0150T3E6 - 480V / 20 HP / Nema 1 / 3 in 3 out / 32 A / 15 KW](http://www.epscontrols.com/cdn/shop/files/Application_249f773f-3c8b-4a84-9c68-6e68e2ce207d.jpg?v=1684759679&width=1445)

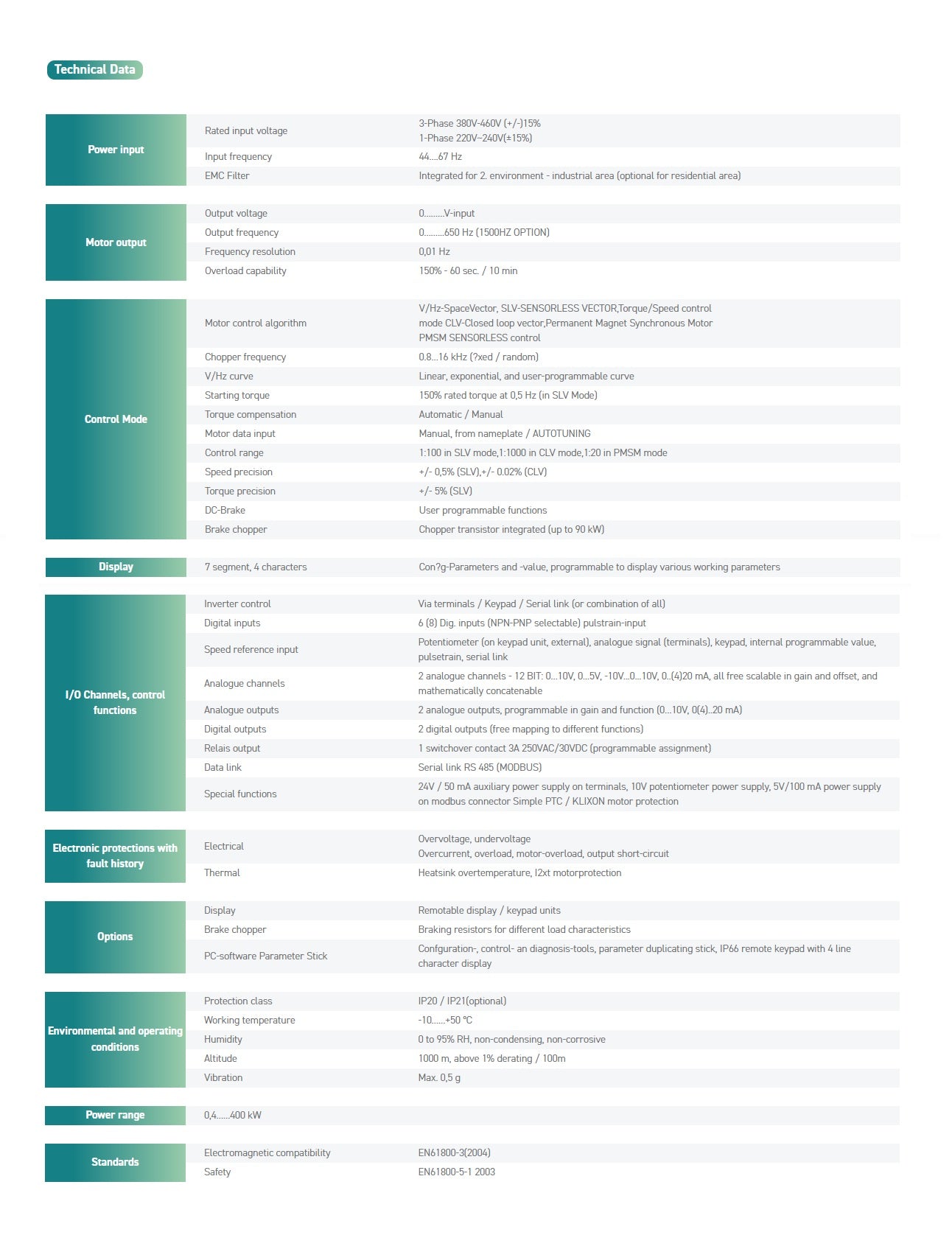

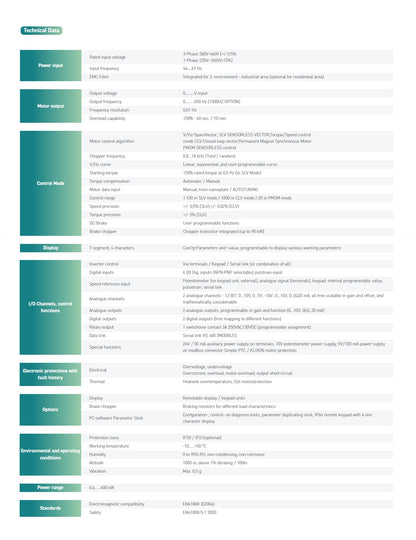

![VFD E2000-0150T3E6 - 480V / 20 HP / Nema 1 / 3 in 3 out / 32 A / 15 KW](http://www.epscontrols.com/cdn/shop/files/TechnicalData_57018dfd-41cb-4478-829c-33d2672c3a1e.jpg?v=1684761568&width=1445)
