VFD E2000-0015T3E2 - 480V / 2 HP / Nema 1 / 3 in 3 out / 4.0 A / 1.5KW
VFD E2000-0015T3E2 - 480V / 2 HP / Nema 1 / 3 in 3 out / 4.0 A / 1.5KW
Couldn't load pickup availability
U5F2AF03B1R3, 3 in 3 out, 4.0 A, 1.5kw, 480V, 2 HP, Nema 1
The E2000-0015T3 is a high-performance variable frequency drive (VFD) from Eura Drives, designed for industrial motor control applications. With a power rating of 1.5 kW (2 HP), this VFD provides reliable and efficient control for a wide range of motors. It features both V/F control and sensorless vector control modes, providing flexibility for different control requirements. The E2000-0015T3 also comes with a built-in braking unit, making it suitable for use with braking resistors. With an overload capacity of 150% for 60 seconds and 180% for 2 seconds, this VFD can handle heavy loads without compromising performance. In addition, the E2000-0015T3 supports communication via Modbus RTU, CANopen, and Profibus DP, providing easy integration with other industrial equipment. With an operating temperature range of -10°C to 40°C and protection level of IP20, this VFD is designed to withstand tough industrial environments. The compact size and user-friendly interface of the E2000-0015T3 make it an ideal choice for industrial applications where space is at a premium.
Share

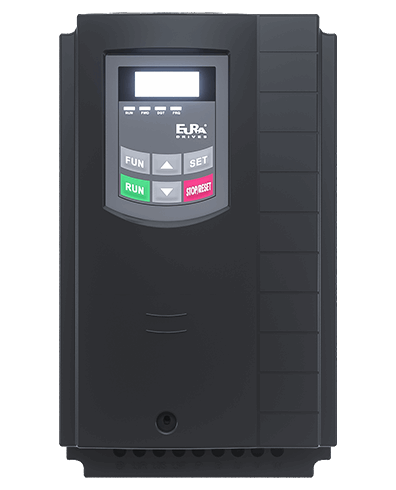

![VFD E2000-0015T3E2](http://www.epscontrols.com/cdn/shop/files/e2000-front-b-85fe902d-6775-47ca-a650-05e357fc0ddb-_1.png?v=1684348670&width=1445)

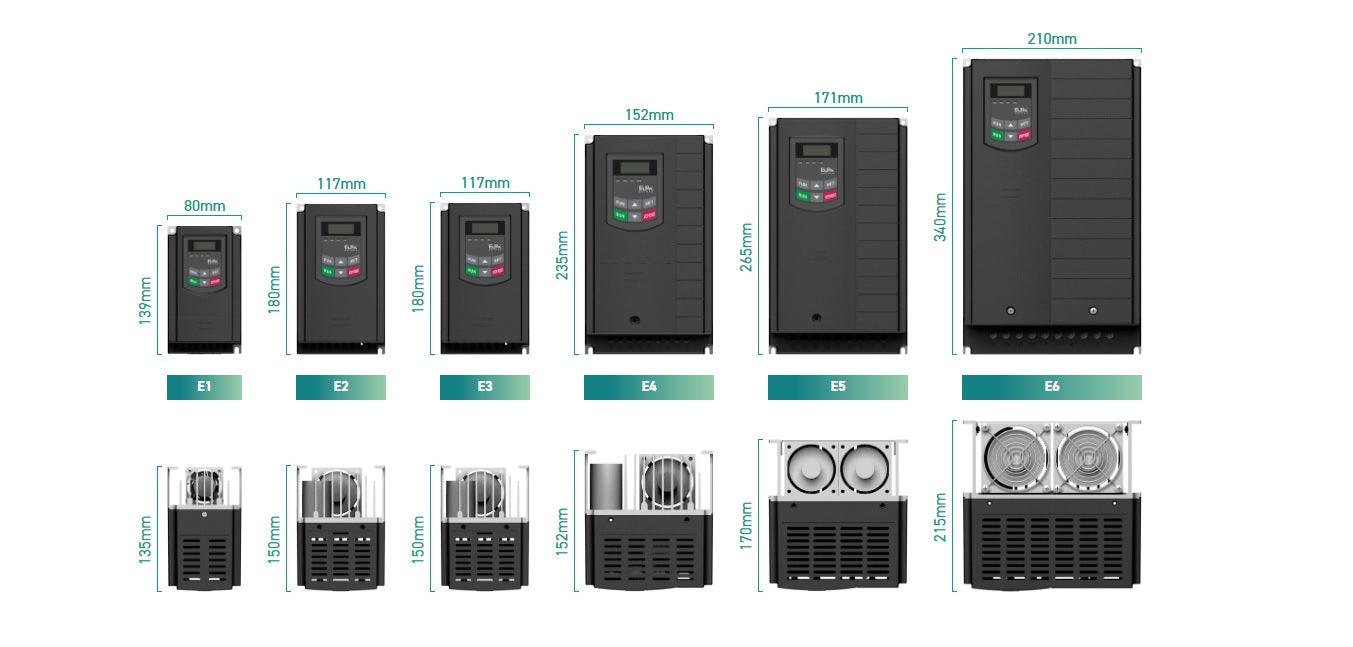

![VFD E2000-0015T3E2 - 480V / 2 HP / Nema 1 / 3 in 3 out / 4.0 A / 1.5KW](http://www.epscontrols.com/cdn/shop/files/Untitled_f0d6642a-1a4d-4908-bc3d-d5a2a56d2399.jpg?v=1682703728&width=1445)

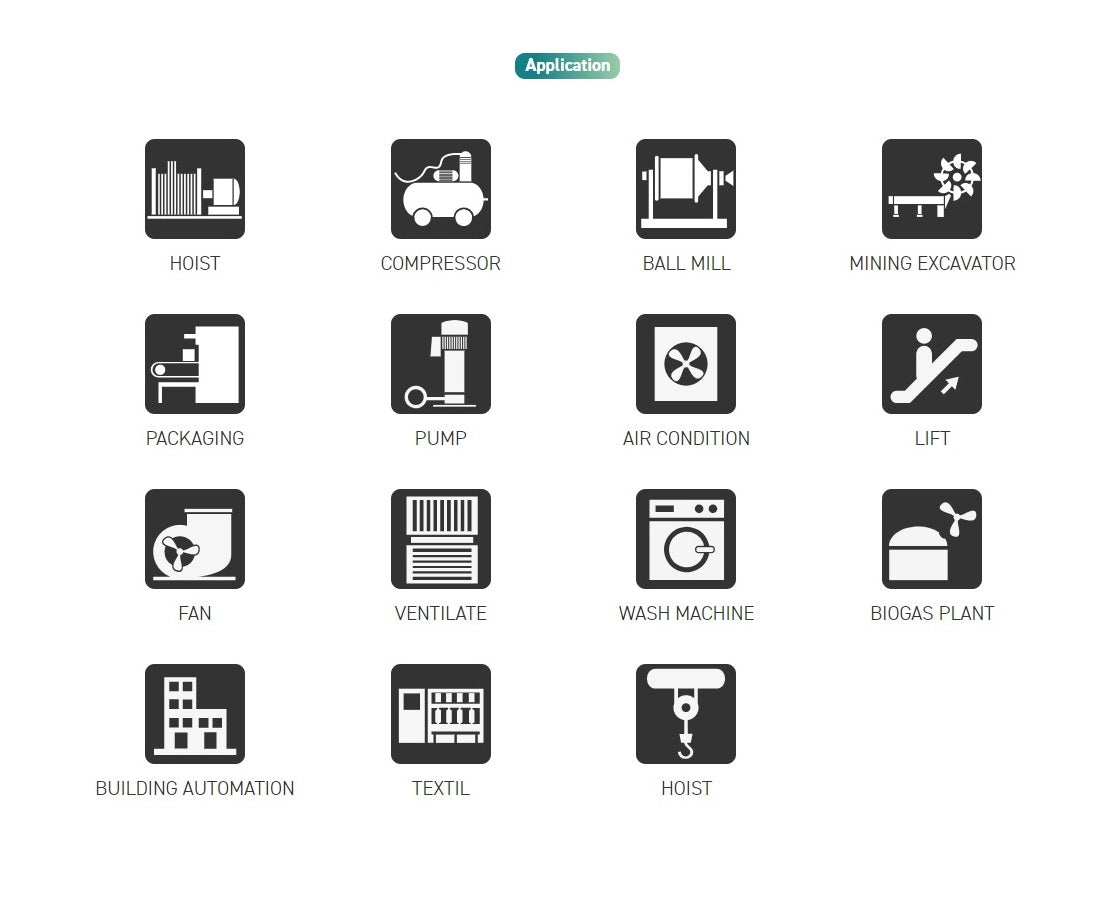

![VFD E2000-0015T3E2 - 480V / 2 HP / Nema 1 / 3 in 3 out / 4.0 A / 1.5KW](http://www.epscontrols.com/cdn/shop/files/Application_908261ae-1b77-4c1d-959b-3675af7f3fdf.jpg?v=1684759567&width=1445)

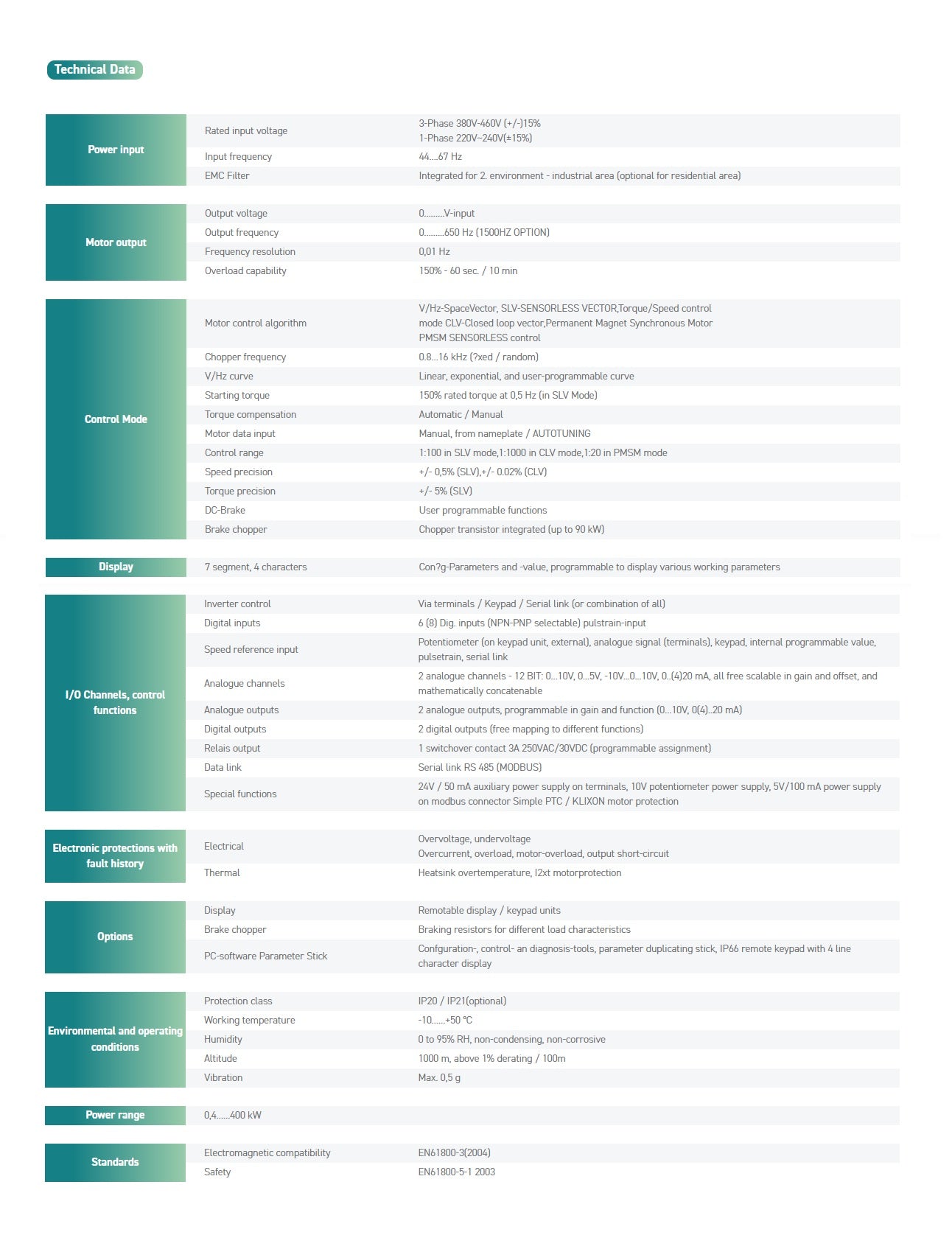

![VFD E2000-0015T3E2 - 480V / 2 HP / Nema 1 / 3 in 3 out / 4.0 A / 1.5KW](http://www.epscontrols.com/cdn/shop/files/TechnicalData_76f456f3-6758-4a95-af31-1d1166543832.jpg?v=1684761408&width=1445)
