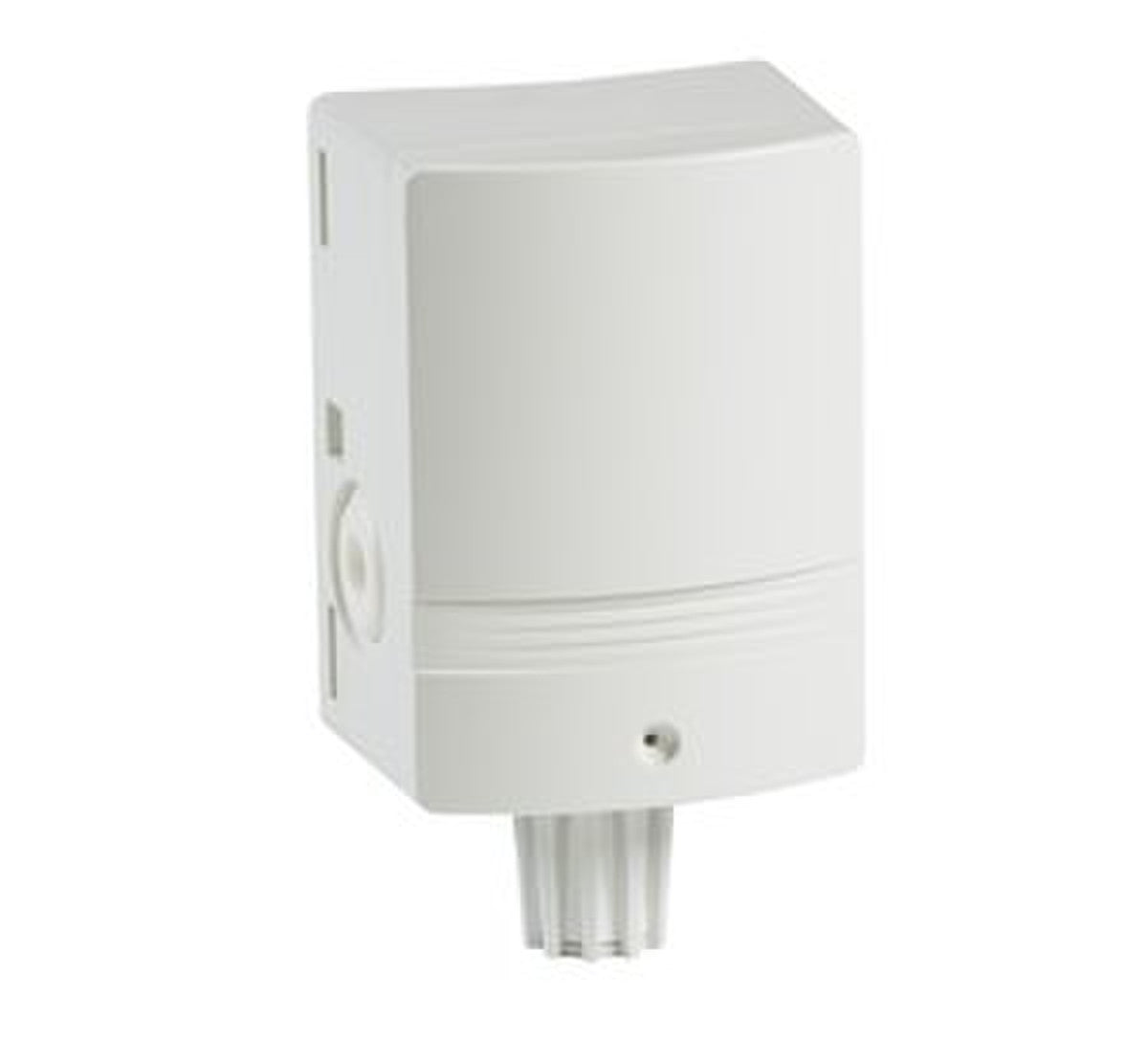

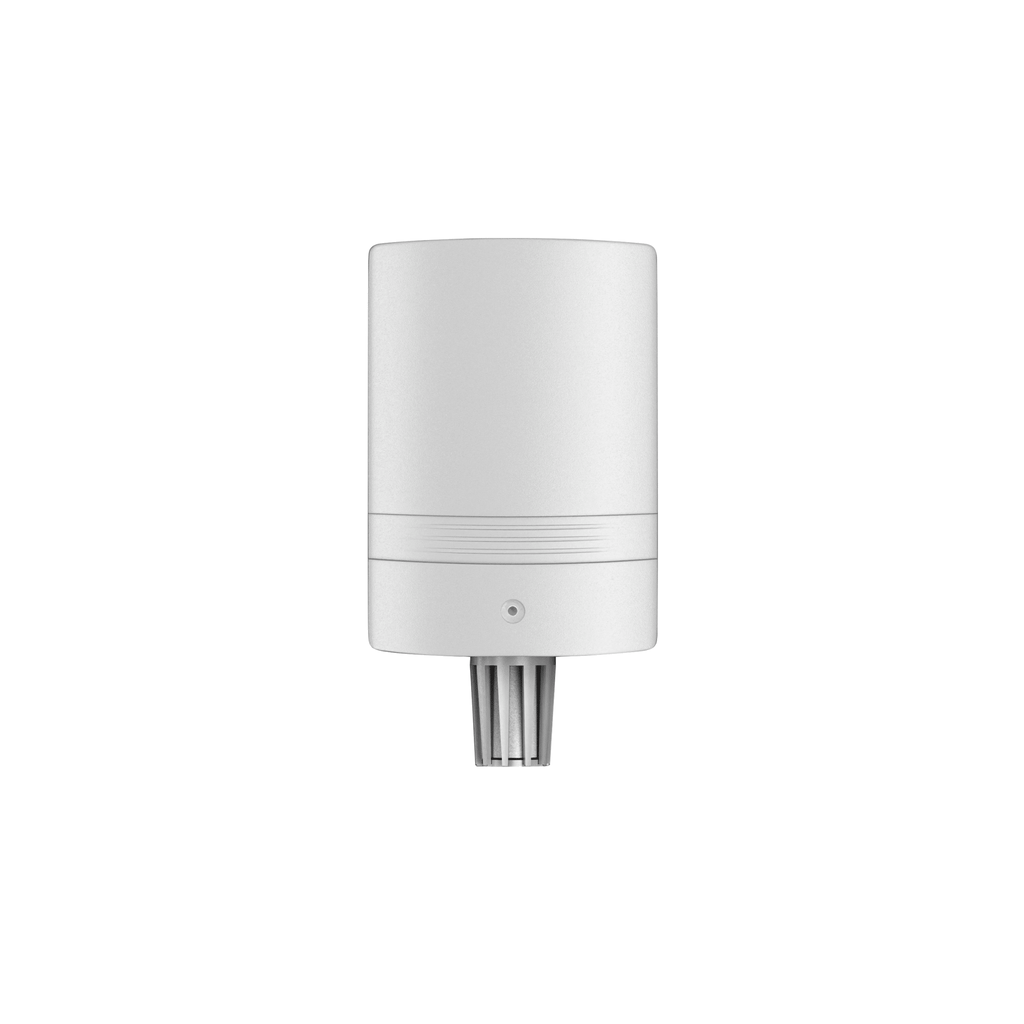

Tasseron Outdoor Humidity/Temperature Sensor THHOSA5C

Outdoor Humidity or Humidity/Temperature Sensor NEMA 4X Weatherproof Enclosure

FEATURES

• Humidity or temperature/humidity option
• Durable NEMA 4X/IP 66 injection-molded watertight enclosure
• Patent Pending Quick Connect System eliminates wire nuts and screw terminals
• NTC thermistors, RTD elements and transmitters available
• Dual filters to protect from contamination
• 2% / 3% / 5% accuracies
• Onboard DIP switches for selecting output in the field

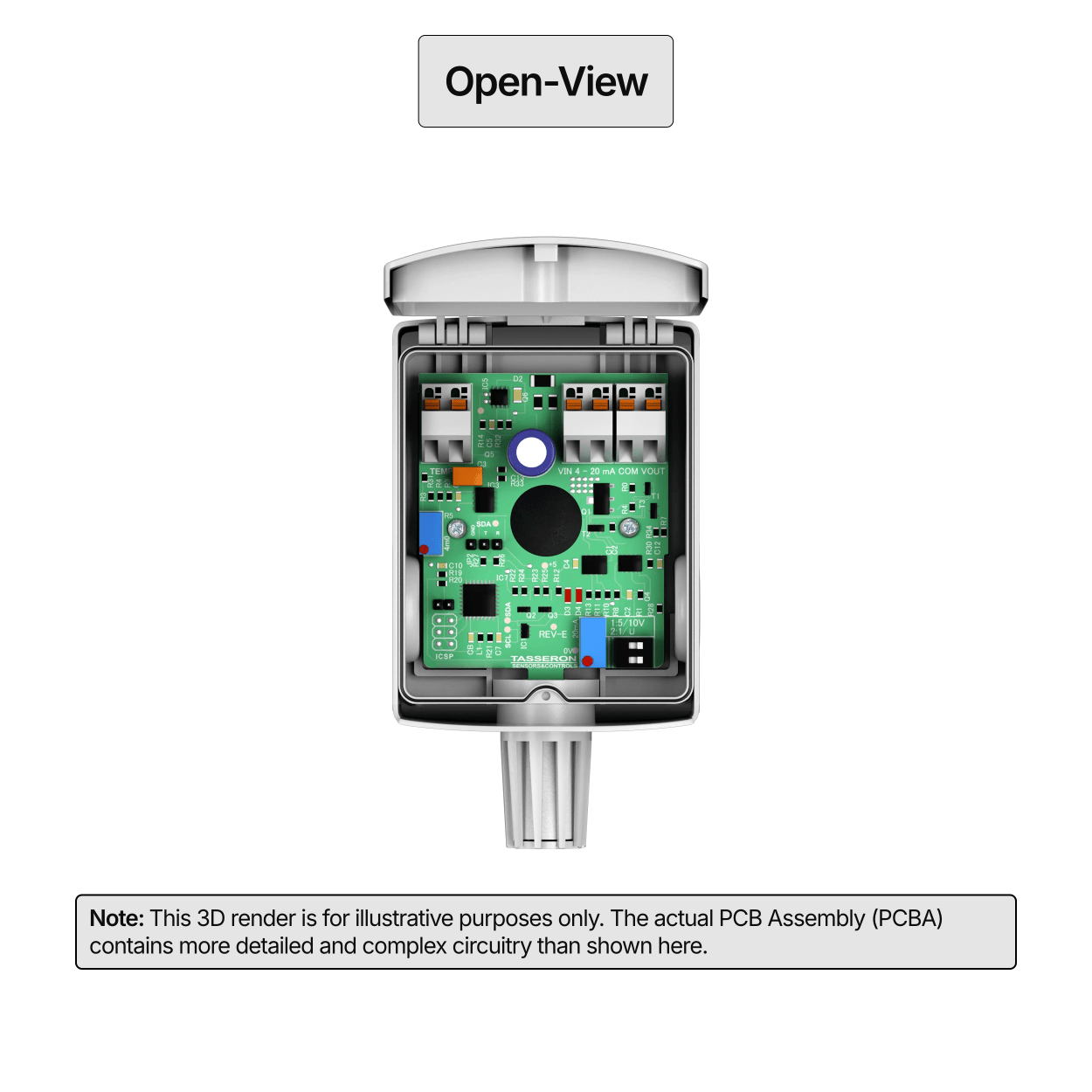

• Coated circuit boards for moisture resistance
• Compatible with most control systems
• Optional 1/2” NPT conduit adapter
• CE & RoHS compliant
• Made in the USA

GENERAL INFORMATION

High quality outdoor relative humidity transmitter in a NEMA 4X/IP 66 watertight injection-molded plastic enclosure. Circuit boards are coated to resist moisture. Onboard DIP switches enable user to select proper output signal in the field. Accurate with long term stability. Dual filters to resist contamination and ensure reliability.

Humidity sensors are also available with accurate thermistors, RTDs and field selectable temperature transmitters.

The polycarbonate cover and patent pending Quick Connect System make installation easy and reduce installation costs. Hinged cover stays open during installation.

SPECIFICATIONS

Enclosure:

Weatherproof NEMA 4X/IP 66, UV resistant injection-molded polycarbonate, UL 94 V-2

Cover:

Quick snap with hinges and screw down ability, injection-molded polycarbonate

Mounting:

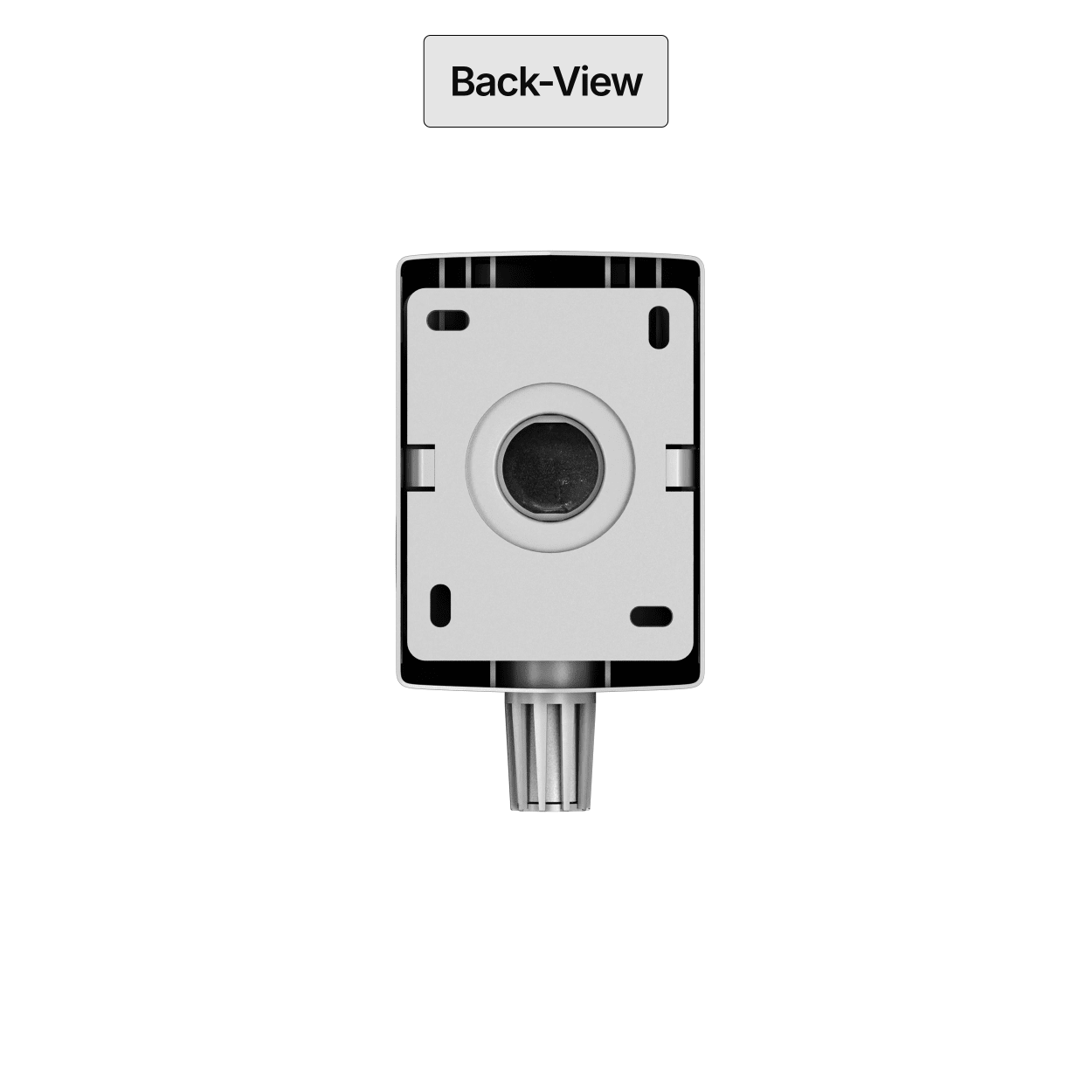

Quick mount bracket system with snap in place housing

Connection:

AWG 22-16 / 0.35—1.5mm² spring-loaded, patent-pending Quick Connect System
