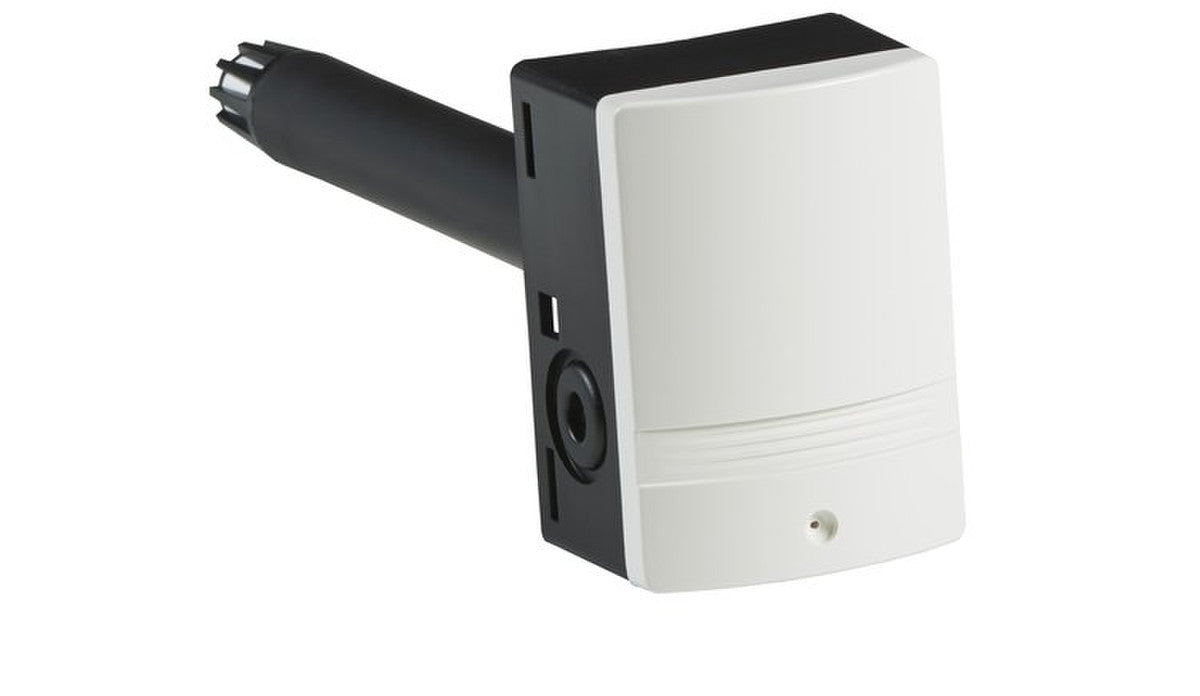

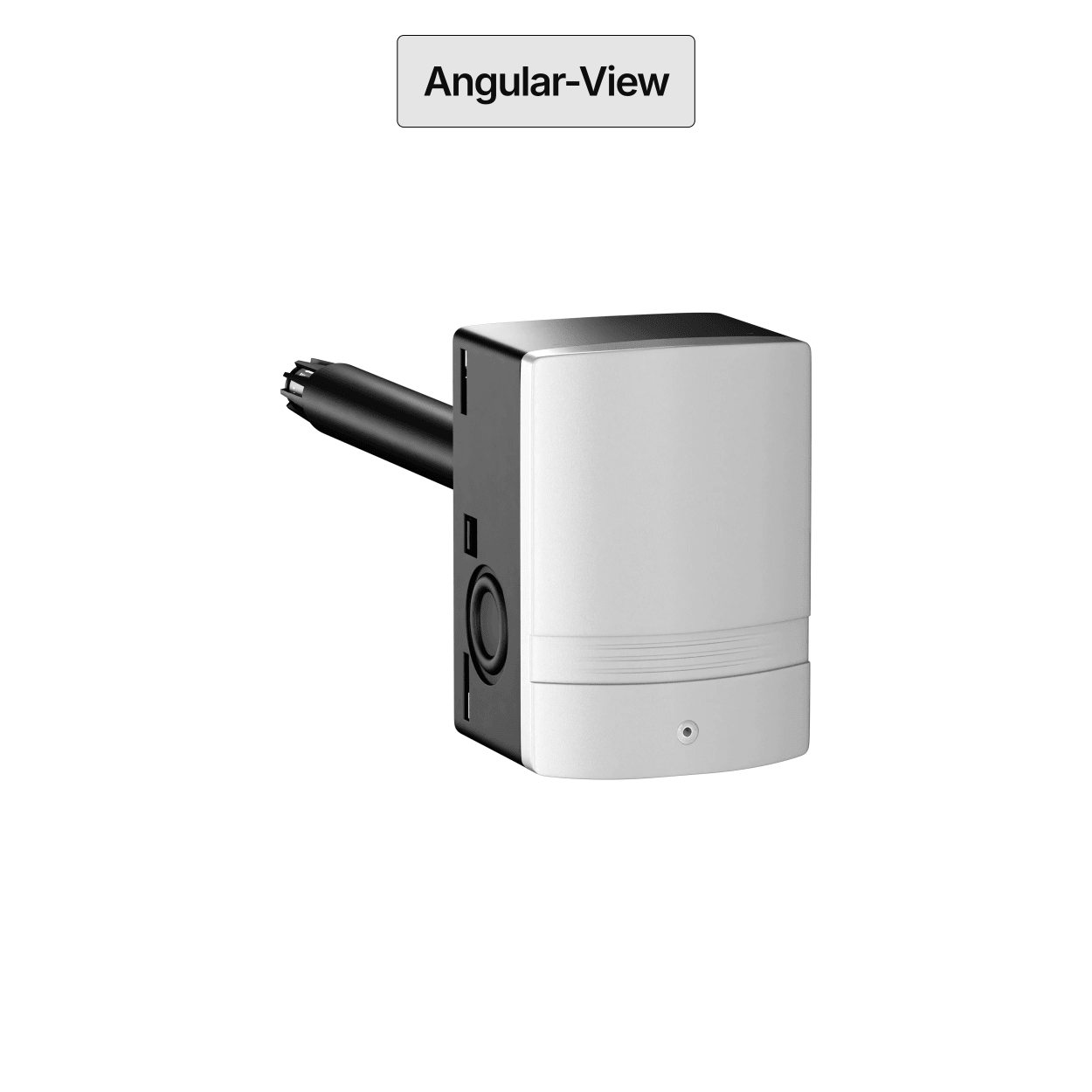

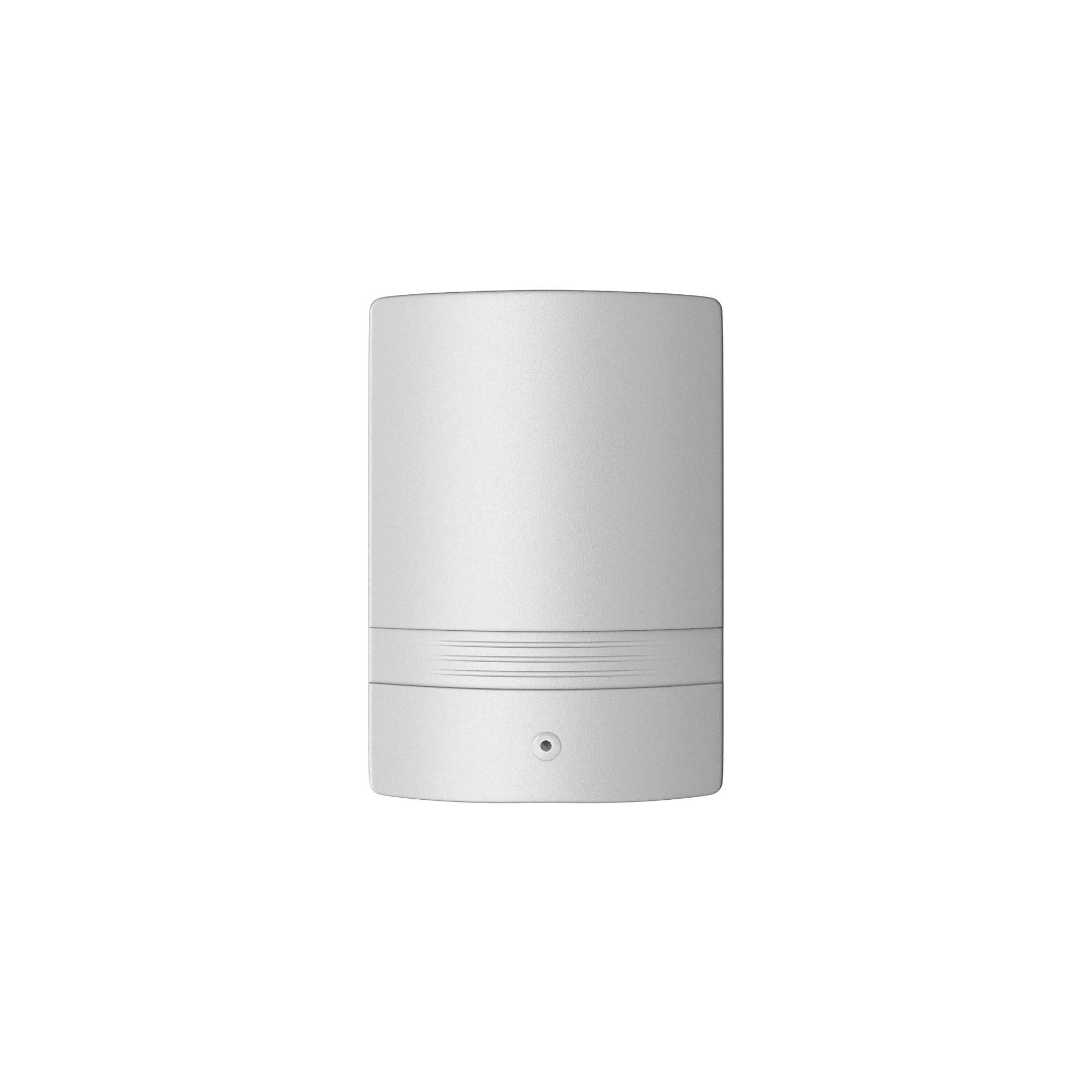

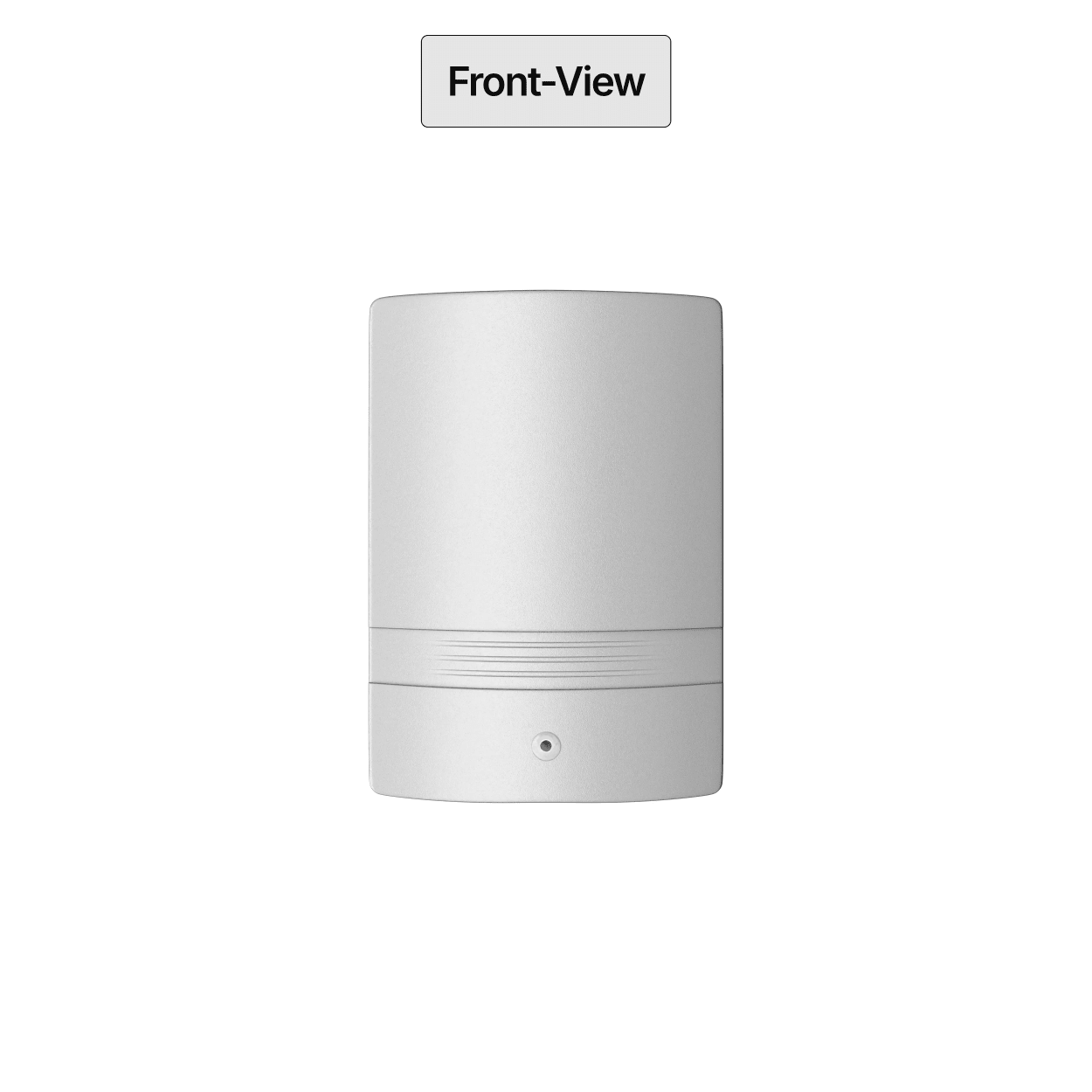

Tasseron Duct Mount Humidity/Temperature Sensor THHDSA5C

Duct mount sensor for relative humidity (RH) and temperature in NEMA 4X weatherproof Safe Box enclosure

FEATURES

• Humidity or temperature/humidity options
• Durable NEMA 4X / IP65 injection-molded watertight
• Quick Connect wire terminals for tool-free wiring
• Dual filters to protect from contamination
• 2% / 3% / 5% RH accuracies
• Long term stability and low annual drift
• Onboard DIP switches for felid selectable outputs

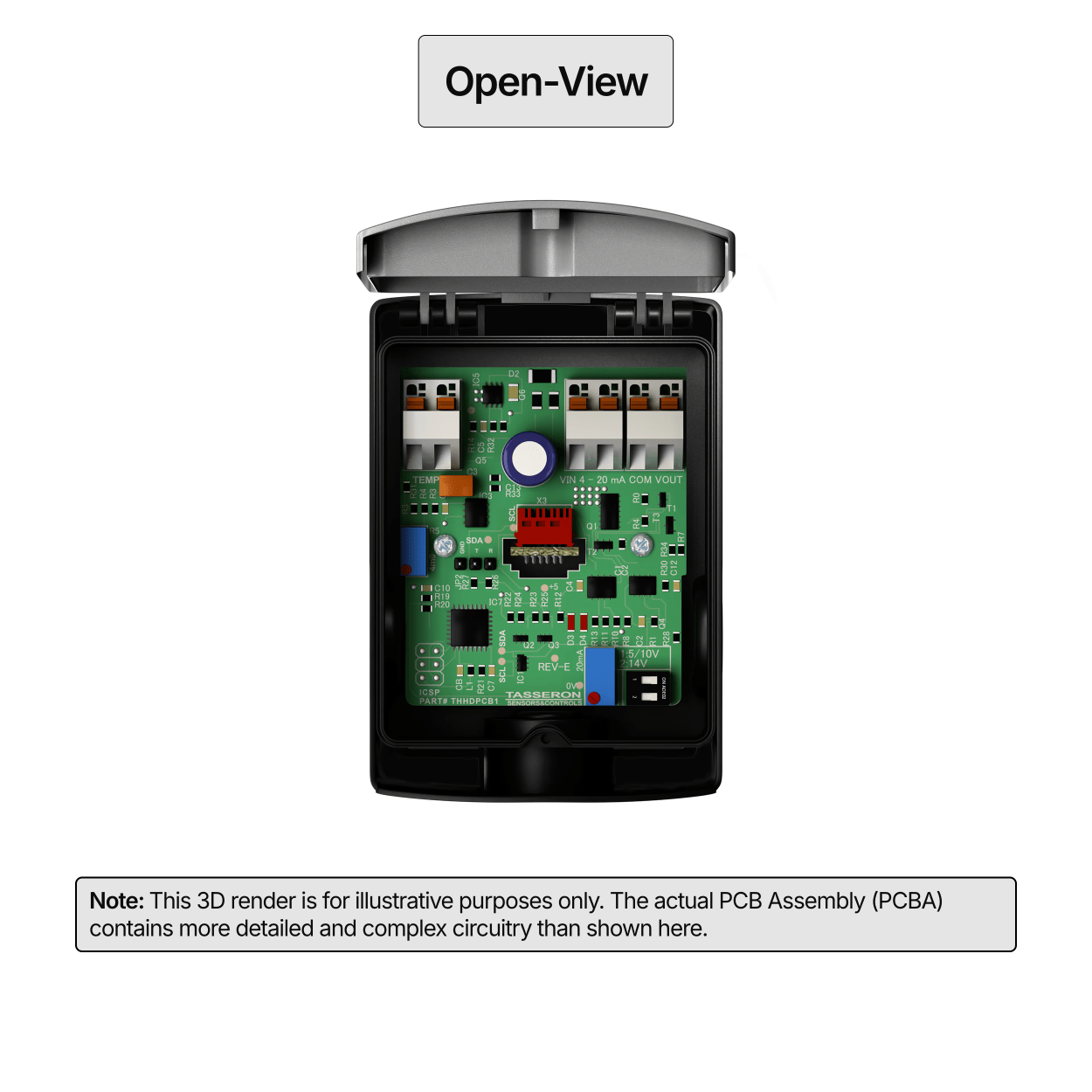

• Coated circuit boards for moisture resistance
• NTC thermistors and RTD elements available
• Adjustable probe length
• Installed anti-vibration pad on flange
• Optional 1/2” NPT conduit adapter
• CE & RoHS compliant
• Made in the USA

GENERAL INFORMATION

High quality duct mount relative humidity transmitter in a NEMA 4X / IP65 watertight injection-molded Safe Box enclosure. Circuit boards are coated to resist moisture and dual filers on the sensing elements provide extra protection against environmental conditions. Sensing elements are accurate with long term stability.

The Tasseron Duct Safe humidity sensors have onboard DIP switches enable user to select proper analog output signal in the field. These are also offered in combination with temperature with passive thermistors or RTDs available.

The hinged cover of the Safe Box stays open during installation and the Quick Connect wire terminals make installation easy and reduce labor costs. The mounting flange equipped with each sensor is adjustable to allow optimum element location to suit a variety if applications.

SPECIFICATIONS

Enclosure Rating:

Weatherproof NEMA 4X/IP 65

Enclosure Material:

UL 94 V-2, UV resistant injection-molded polycarbonate

Cover:

Quick snap with hinges and screw down ability

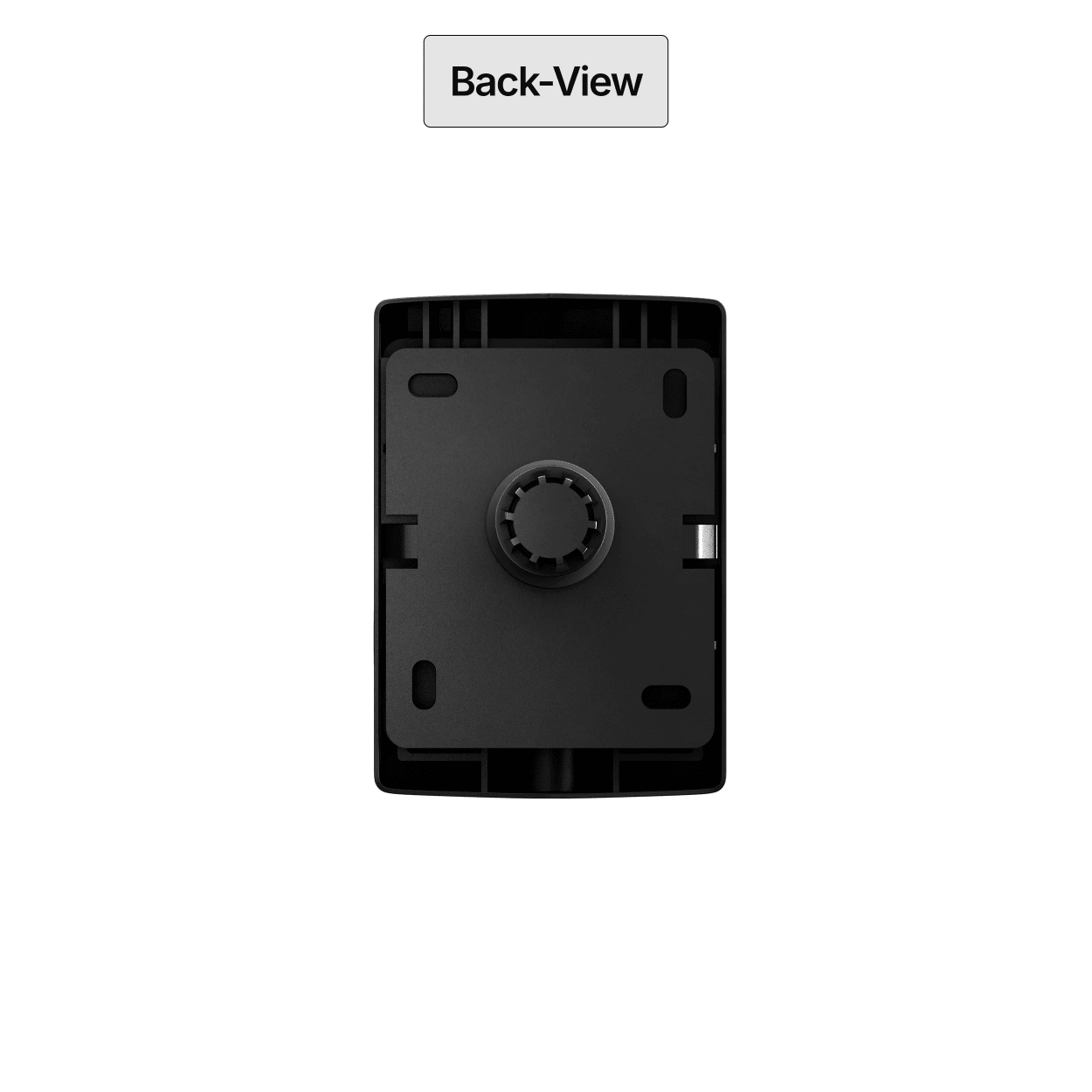

Mounting:

Quick mount bracket system with snap in place housing

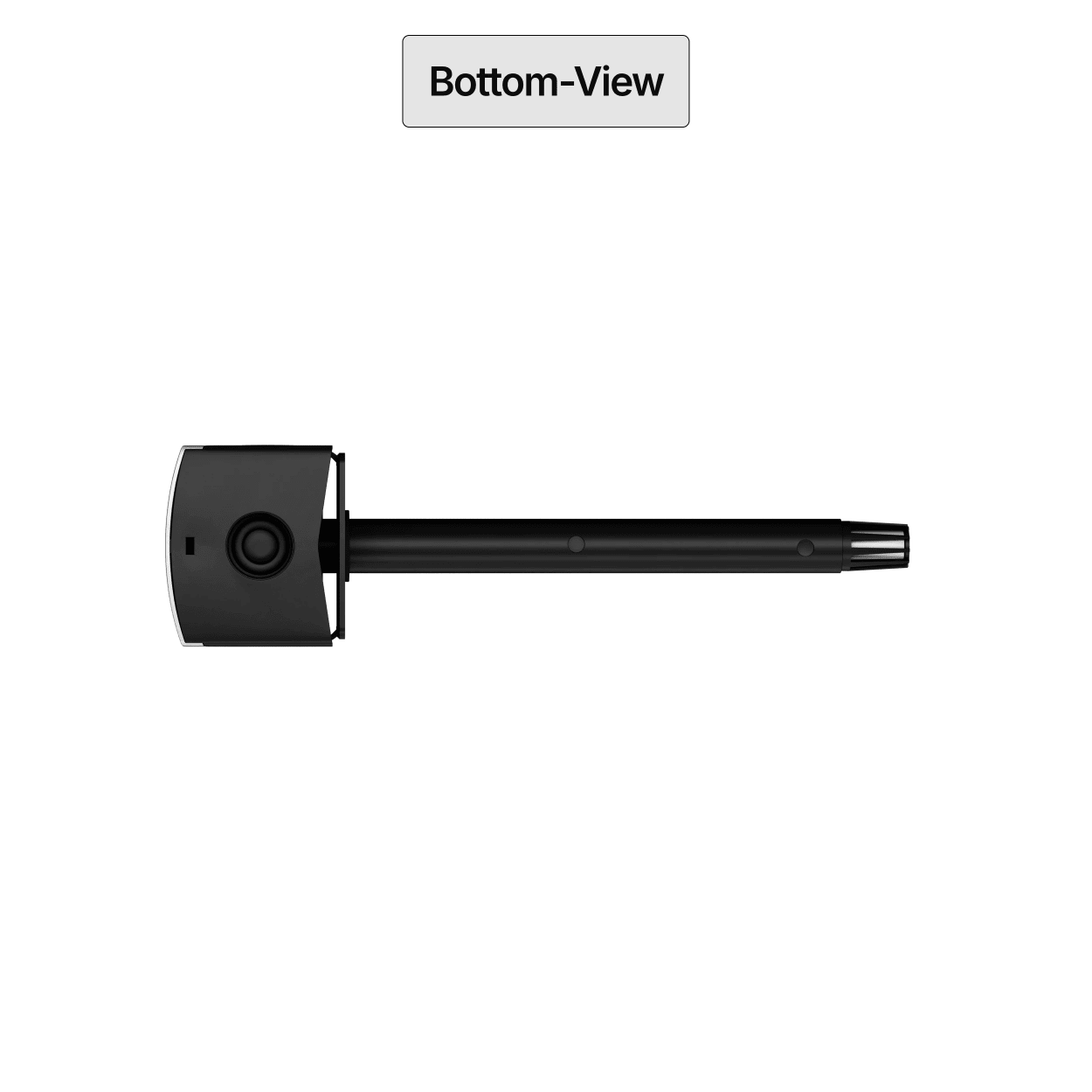

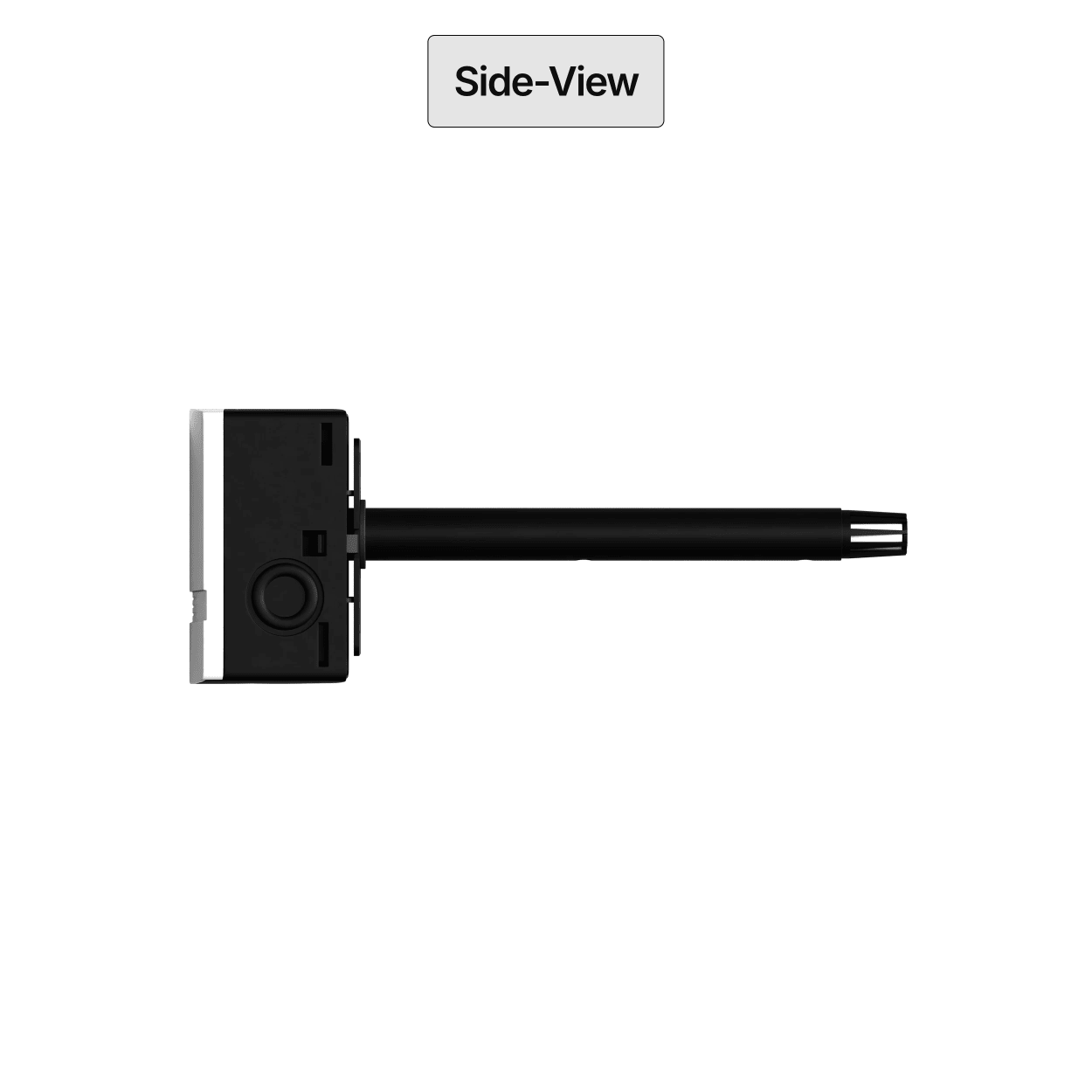

Probe Length:

Adjustable up to 8”

Probe Material:

Glass filled nylon UL 94 HB
