Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0783 - 550mm/230V-460V
$1,190.00
Skip to product information
Email us at info@epscontrols.com or call at 305-510-0626 for volume orders. Shipping may be waived for volume orders.
Dunli Condenser Fan Motor & Assembly - Aftermarket Replacement Addison Part No. 0515P-0783 - 550mm/230V-460V
$1,190.00
Pickup available at 13263 SW 124th ST
Usually ready in 1 hour
Ships in 1-2 Business Days
Technical Specifications
| Brand | Dunli |
| Product Type | Axial Fan Motor with Fan Assembly |
| Aftermarket Replacement For | Addison Part No. 0515P-0783 |
| Model | YWF.A4T-550S-5FIIIV04 |
| Motor Type | Three-Phase Motor |
| Fan Diameter | 550mm |
| Voltage | 230V - 460V |
| Frequency | 60 Hz |
| Input Power | 650 - 750 W |
| Current | 2.1 - 1.2 A |
| Speed | 1460 - 1540 r/min |
| Air Flow | 9100 - 9450 m³/h |
| Noise | 72 - 73 dBA |
| Rotation | CW, Looking into the End-Shield |
| Insulation Class | Class F |
| Motor Protection | Overheated Protection Function, Cut-Off Temperature 150 - 160°C |
| Protection Class | IP54 |
| Ambient Temperature | -30°C to +60°C |
| Bearings | Ball Bearings |
| Mounting Type | Horizontal or Vertical |
| Net Weight / Gross Weight | 24.69 / 29.32 lbs |
| Package Size | 23.62 x 23.62 x 8.66 in |
Benefits at a Glance
- Superior-level airflow for an unbeatable price
- Heavy-duty durability built for long service life
- Plug and play compatibility —drop-in replacement for Addison 0515P-0783
- Fast shipping from Miami, ready when you are.

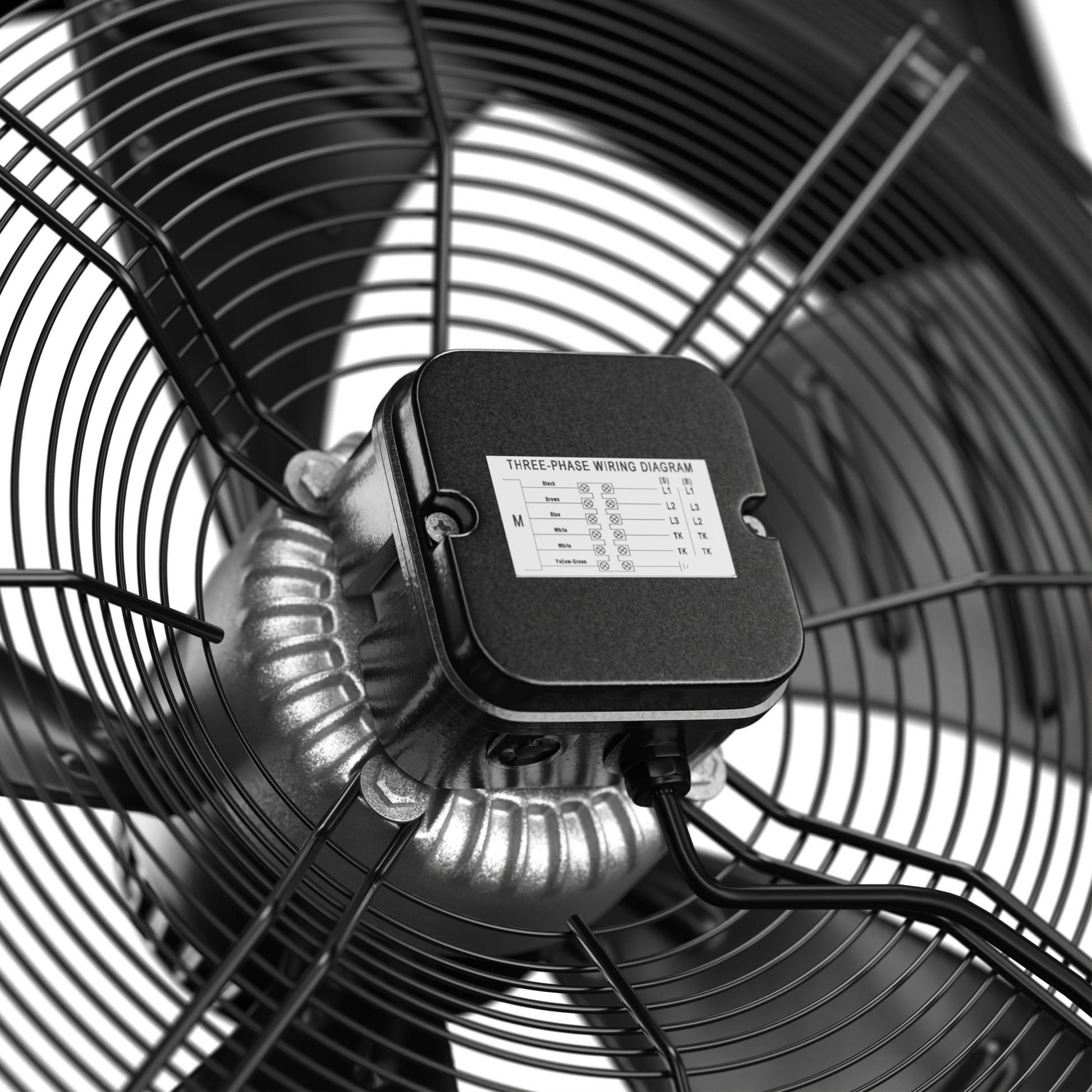

Three-Phase Wiring Diagram
The diagram comes affixed to the top of the motor cover box.
- Each Condenser Fan Motor undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
- This Condenser Fan Motor is designed specifically for Addison HVAC units. However, it may also be compatible with Daikin, AAON, Carrier and Modine units, subject to your evaluation and discretion.
