Worldwide Electric VFD - Model WDGP150-4 - Limited Supply
Worldwide Electric VFD - Model WDGP150-4 - Limited Supply
Worldwide Electric VFD - Model WDGP150-4 - Limited Supply
$1,925
Voltage
Constant Torque Horsepower
IP Rating
In Stock
In Stock
In Stock
2-Year Limited Warranty
2-Year Limited Warranty
Pay in 4 Installments
Pay in 4 Installments
Important: Please note that this Variable Frequency Drive requires initial startup and the setup is not included with purchase.

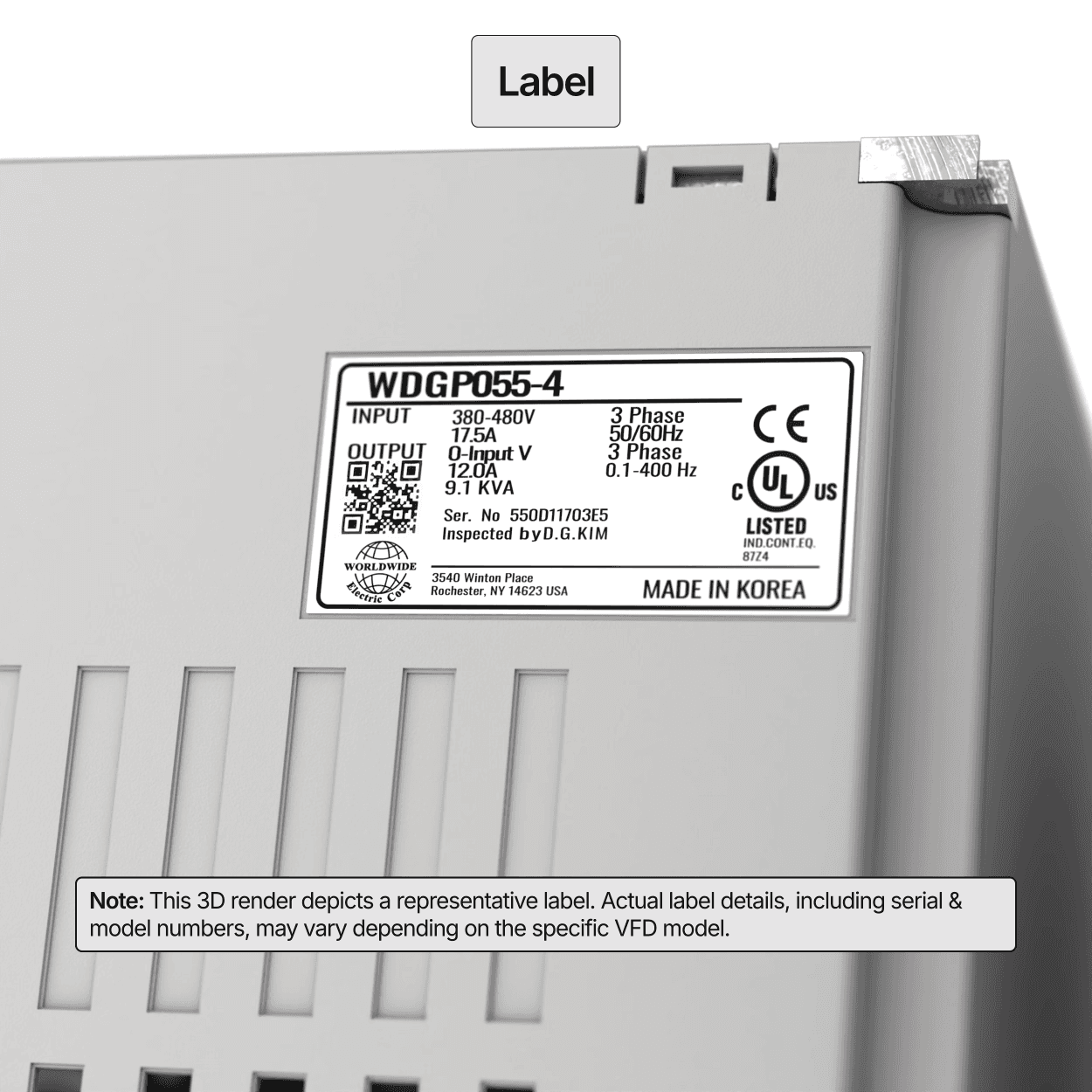

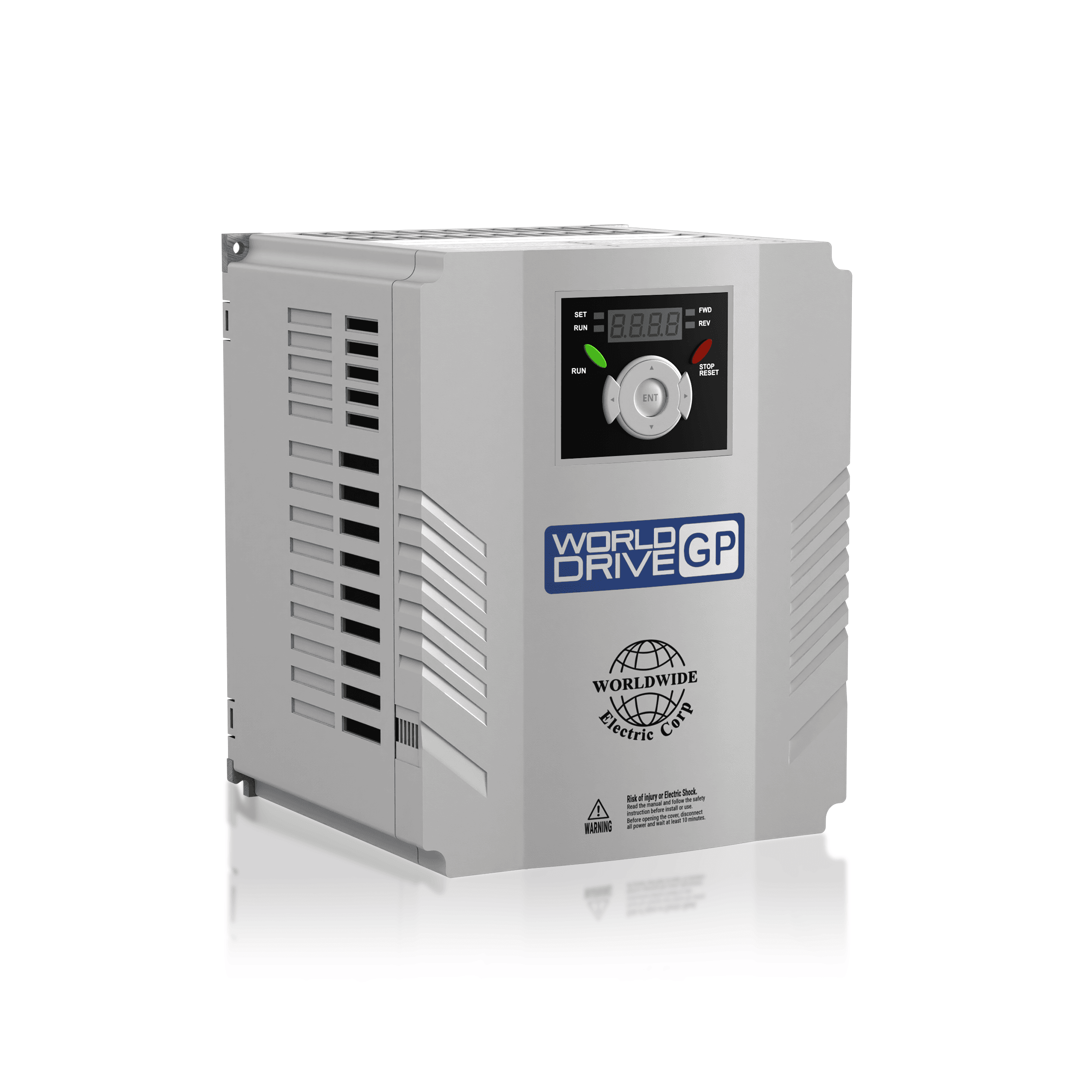

Note: Images are 3D renders, not exact product representations, though meticulously designed to reflect the product accurately.
Fulfillment for this product is currently between 3-4 days.
Fulfillment for this product is currently between 3-4 days.
Fulfillment for this product is currently between 3-4 days.
Product Details
Horsepower
Input Voltage
Output Frequency
Amperage
Dimensions
Weight
Protection Rating
Enclosure Type
Operating Environment
Mounting Options
20 HP
380-480V (Three-Phase In / Three-Phase Out)
0-400 Hz (Sensorless: 0-300 Hz)
32 A
12.6 x 9.3 x 7.5 in
TBD
NEMA 1 / IP20
Polycarbonate Enclosure
Clean, Dry Environments
Bookshelf, DIN Rail (<4kW)
User Interface
Communication Protocol
Circuit Board Protection
Braking System
Control Feature
Safety Feature
Certifications
Control Modes
Accessory Option
Remote Keypad
User-Friendly Keypad For Parameter Definition
Built-In Modbus-RTU
Conformal-Coated For Enhanced Durability
Built-In Dynamic Braking Control
Built-In PID Loop Control
Ground Fault Protection
UL, CUL, CE
V/F, Slip Compensation, Sensorless Vector
WDGP Conduit Box For Enhanced Protection
Optional Remote Keypad With Cable
Horsepower
Input Voltage
Output Frequency
Amperage
Dimensions
Weight
Protection Rating
Enclosure Type
Operating Environment
Mounting Options
20 HP
380-480V (Three-Phase In / Three-Phase Out)
0-400 Hz (Sensorless: 0-300 Hz)
32 A
12.6 x 9.3 x 7.5 in
TBD
NEMA 1 / IP20
Polycarbonate Enclosure
Clean, Dry Environments
Bookshelf, DIN Rail (<4kW)
User Interface
Communication Protocol
Circuit Board Protection
Braking System
Control Feature
Safety Feature
Certifications
Control Modes
Accessory Option
Remote Keypad
User-Friendly Keypad For Parameter Definition
Built-In Modbus-RTU
Conformal-Coated For Enhanced Durability
Built-In Dynamic Braking Control
Built-In PID Loop Control
Ground Fault Protection
UL, CUL, CE
V/F, Slip Compensation, Sensorless Vector
WDGP Conduit Box For Enhanced Protection
Optional Remote Keypad With Cable
Horsepower
Input Voltage
Output Frequency
Amperage
Dimensions
Weight
Protection Rating
Enclosure Type
Operating Environment
Mounting Options
20 HP
380-480V (Three-Phase In / Three-Phase Out)
0-400 Hz (Sensorless: 0-300 Hz)
32 A
12.6 x 9.3 x 7.5 in
TBD
NEMA 1 / IP20
Polycarbonate Enclosure
Clean, Dry Environments
Bookshelf, DIN Rail (<4kW)
User Interface
Communication Protocol
Circuit Board Protection
Braking System
Control Feature
Safety Feature
Certifications
Control Modes
Accessory Option
Remote Keypad
User-Friendly Keypad For Parameter Definition
Built-In Modbus-RTU
Conformal-Coated For Enhanced Durability
Built-In Dynamic Braking Control
Built-In PID Loop Control
Ground Fault Protection
UL, CUL, CE
V/F, Slip Compensation, Sensorless Vector
WDGP Conduit Box For Enhanced Protection
Optional Remote Keypad With Cable
Benefits at a Glance
Cost-effective performance with wide voltage compatibility
Durable design optimized for continuous operation
User-friendly interface for easy parameter adjustments
Enhanced safety with built-in ground fault protection
Benefits at a Glance
Cost-effective performance with wide voltage compatibility
Durable design optimized for continuous operation
User-friendly interface for easy parameter adjustments
Enhanced safety with built-in ground fault protection
Benefits at a Glance
Cost-effective performance with wide voltage compatibility
Durable design optimized for continuous operation
User-friendly interface for easy parameter adjustments
Enhanced safety with built-in ground fault protection
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
Each Variable Frequency Drive undergoes a rigorous quality control process, including thorough inspections for any mechanical or structural defects, before being shipped to ensure optimal performance and customer satisfaction.
